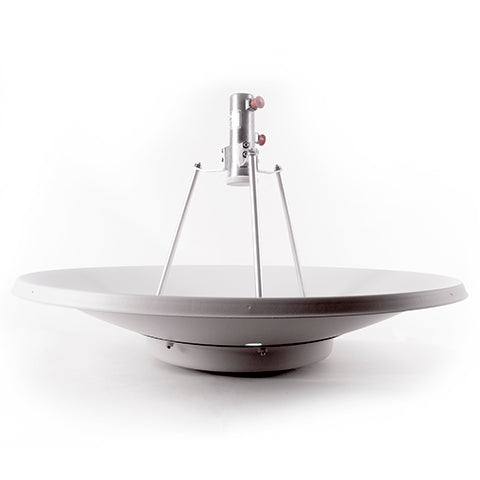

RADWIN External Dish Antenna to Gain Dual Polarization

Features

•Compatible with all radios using 4.9-6.06 GHz
•Small, lightweight rugged design
•Includes pole mounting kit & RF cable (60cm)
•Wind speed - operational at 160km/h; survival at 220 km/h
•N-Type RF connectors
•5.6 degree beam width

Technical Specifications

•Frequency Range: 4.9-6.06GHz
•Gain: 28dBi
•Ingress protection IP67
•3db Beamwidth Azimuth: 5.6°
•3db Beamwidth Elevation: 5.6°
•Polarization: Dual Linear (Vertical and Horizontal)
•Side-lobes Level >20dB
•Cross polarization: >25 dB
•Weight: 6.3kg - Dimensions: Diameter 72.5cm Depth 44cm
•Lightning protection DC ground
•Input Impedance: 50 Ohm
•Temperature Range: -20°C to 56°C

Box Contents

•1 x Radwin High performance External Dish Antenna

Weights & Dimensions

Datasheets

RADWIN External Dish Antenna to Gain Dual Polarization

Name: RADWIN External Dish Antenna to Gain Dual Polarization
Brand: Radwin
SKU: NERW-9721-5158
Price: 879.00 CAD
Availability: InStock

Vendor: Radwin

SKU: NERW-9721-5158

Vendor SKU: RW-9721-5158

Shipping calculated at checkout.

Manufacturer's Warranty:

The Radwin directional dish antenna provides a 28dBi gain for most Radwin 5GHz radios. Has a lightweight rugged design for easy install, and Dual Linear (vertical & horizontal) polarization.

Same day shipping available for orders placed before noon. Please make note on your order.
Free returns within 30 days for defective items
