• Delivers up to 60W of PoE++
• Surge, peak pulse, and overcurrent protection
• Contains RJ45 data input, AC cable with earth ground, and PoE++ output
• LED indicator for status monitoring

• Output Voltage: 48V DC at 1.25A
• Rated Voltage: 100—240V AC at 50/60Hz
• 4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)

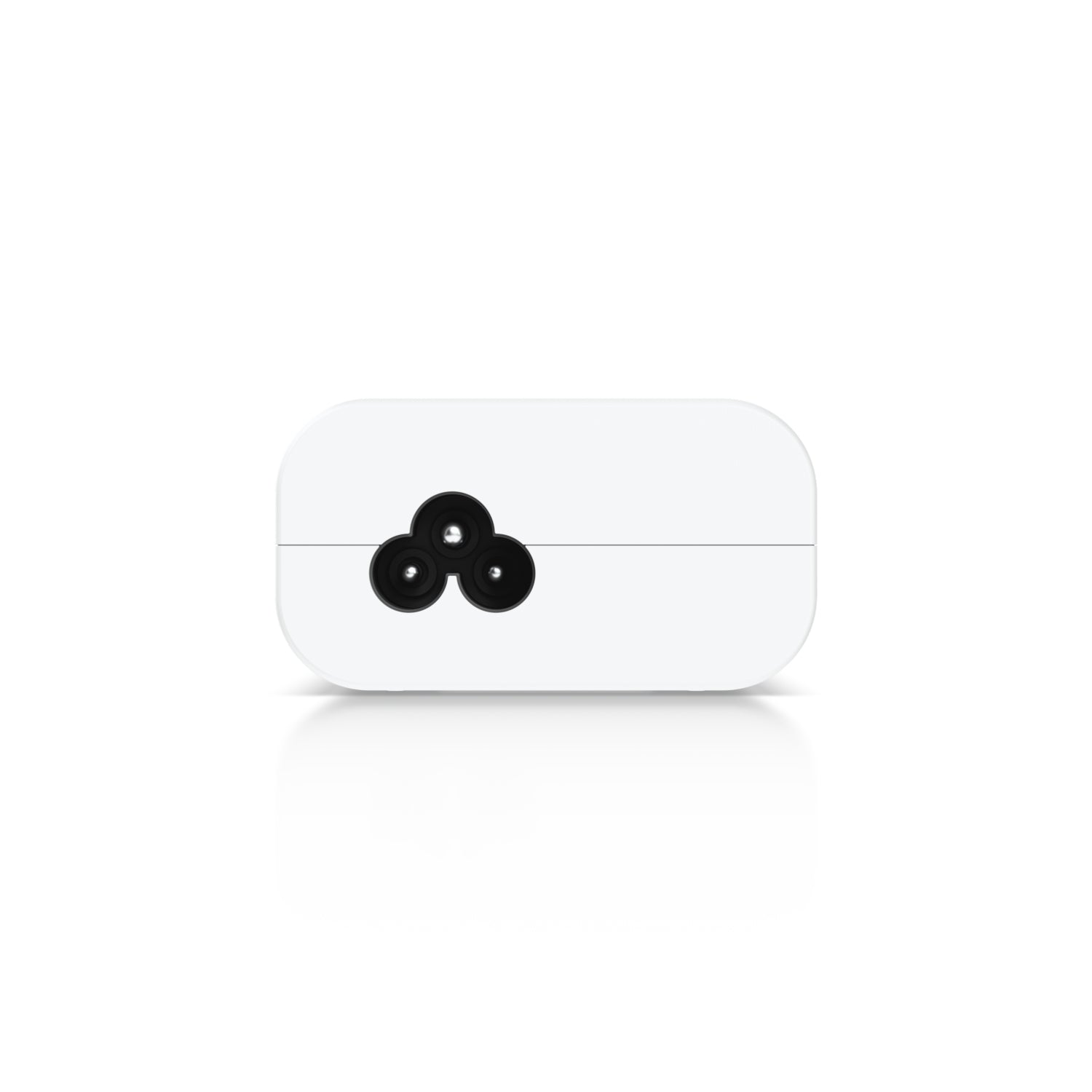

• AC Connector: IEC-320 C6
• Clamping Protection: 11V Data, 60V power

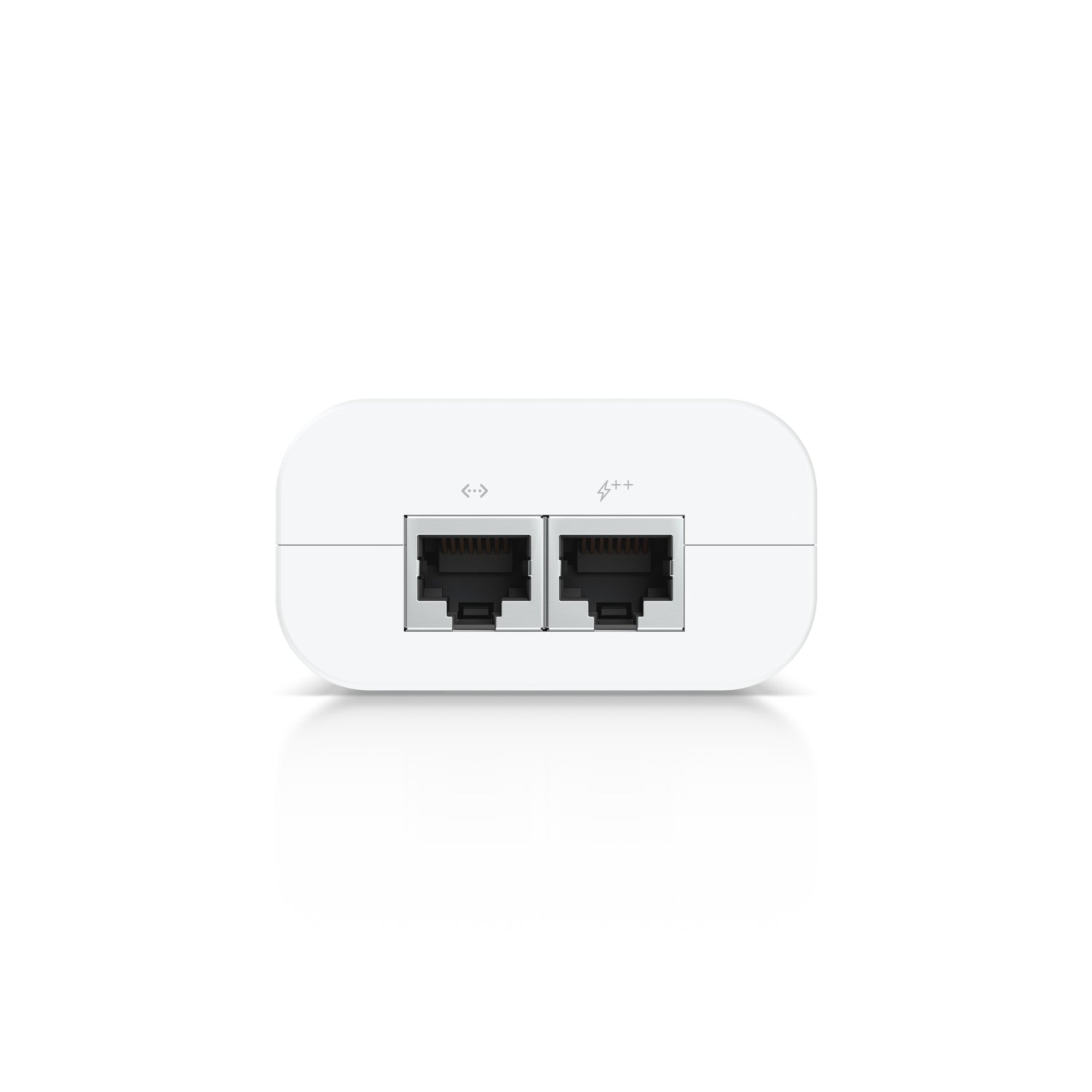

• Data In / PoE: RJ45 Shielded Socket
• Input Current: 1.3A @ 120V AC
• Inrush Current: <100A peak @ 120V AC; <200A peak @ 230V AC
• Efficiency: 85+%
• Switching Frequency: 65 kHz
• Surge Protection: Difference and common mode
• Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS

• 1 x PoE++ Adapter
