• Smart relay integration
• One configurable button
• Multi-color illuminated button
• Selectable faceplate labels

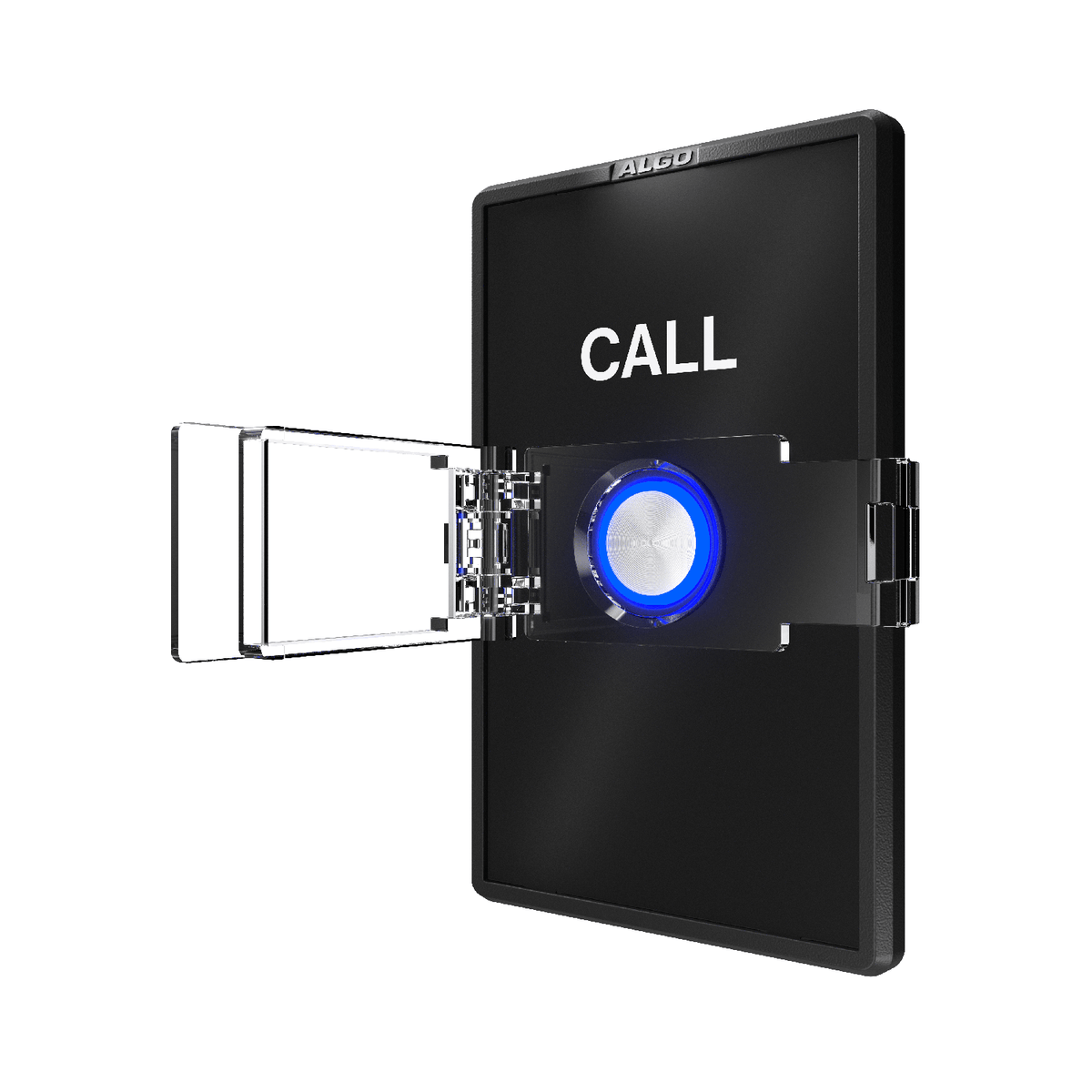

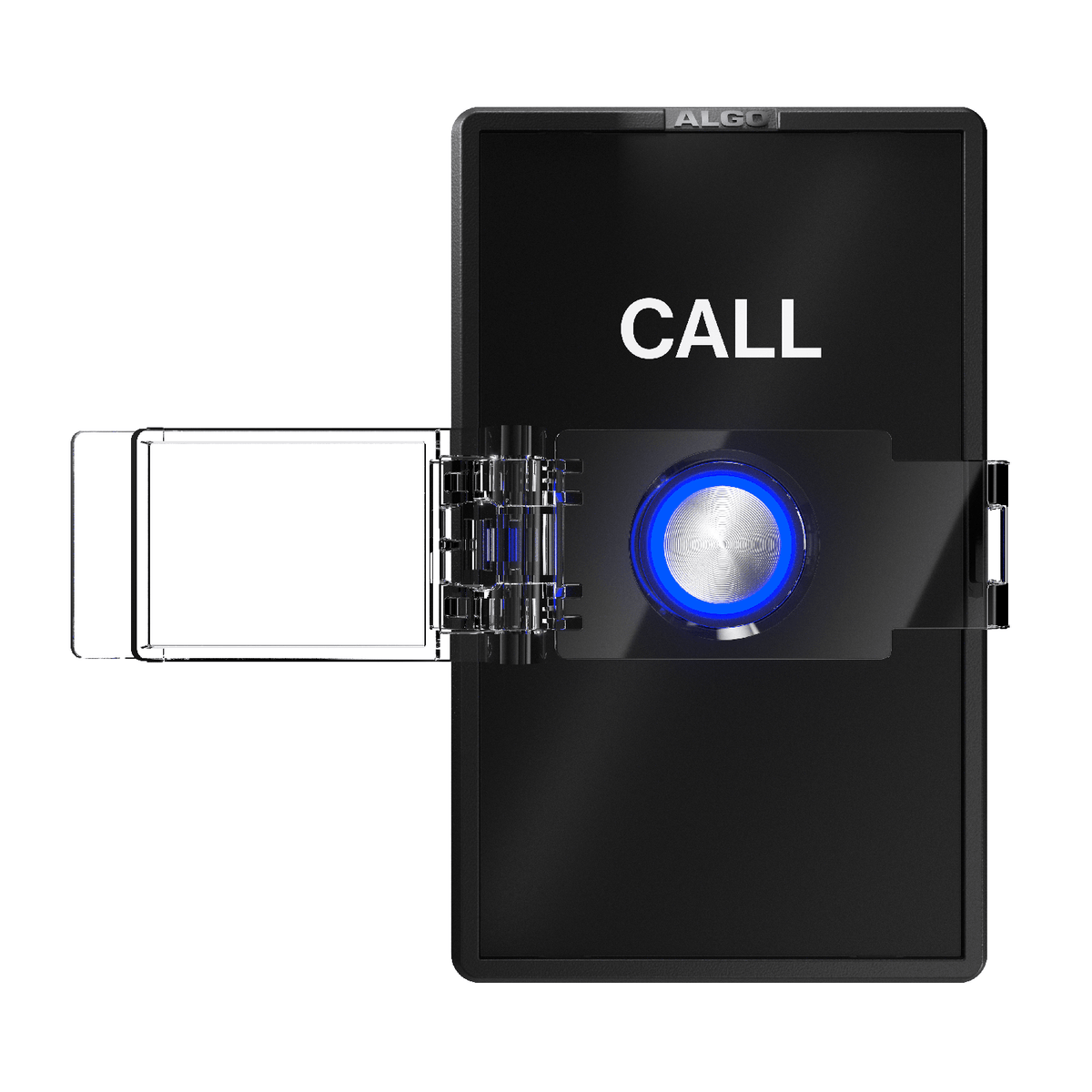

• Optional protective cover
• SIP, multicast, and API actions
• ADMP compatibility

• Power: Supplied by the connected Algo IP Endpoint
• Supervision: Monitored via the connected Algo IP Endpoint’s Status page
• Connection: Terminal block, 24 AWG single twisted pair (to host endpoint)

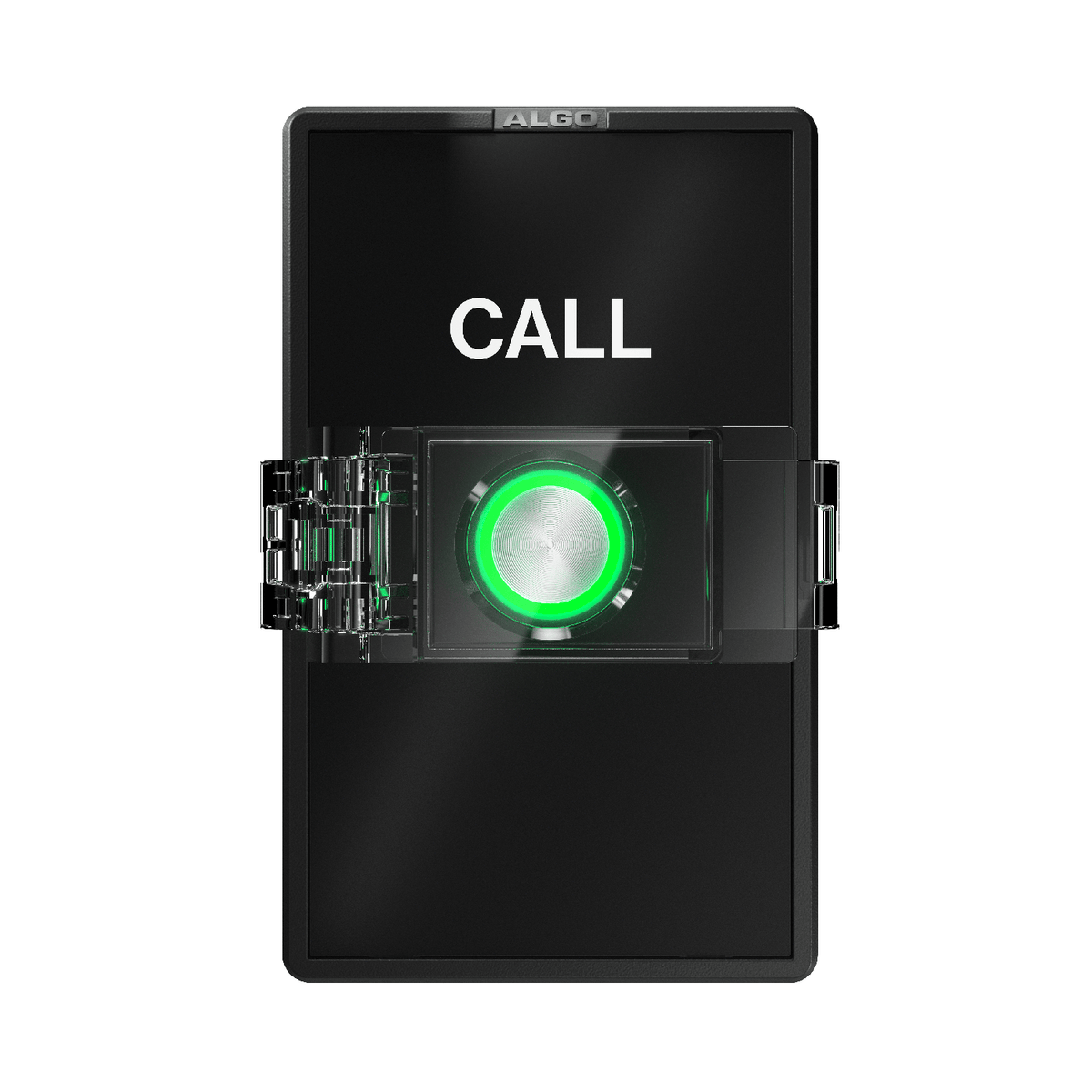

• Button Ring Illumination: Configurable LED ring with 4 colors (Blue, Red, Green, Amber), 4 flash patterns, 3 brightness levels

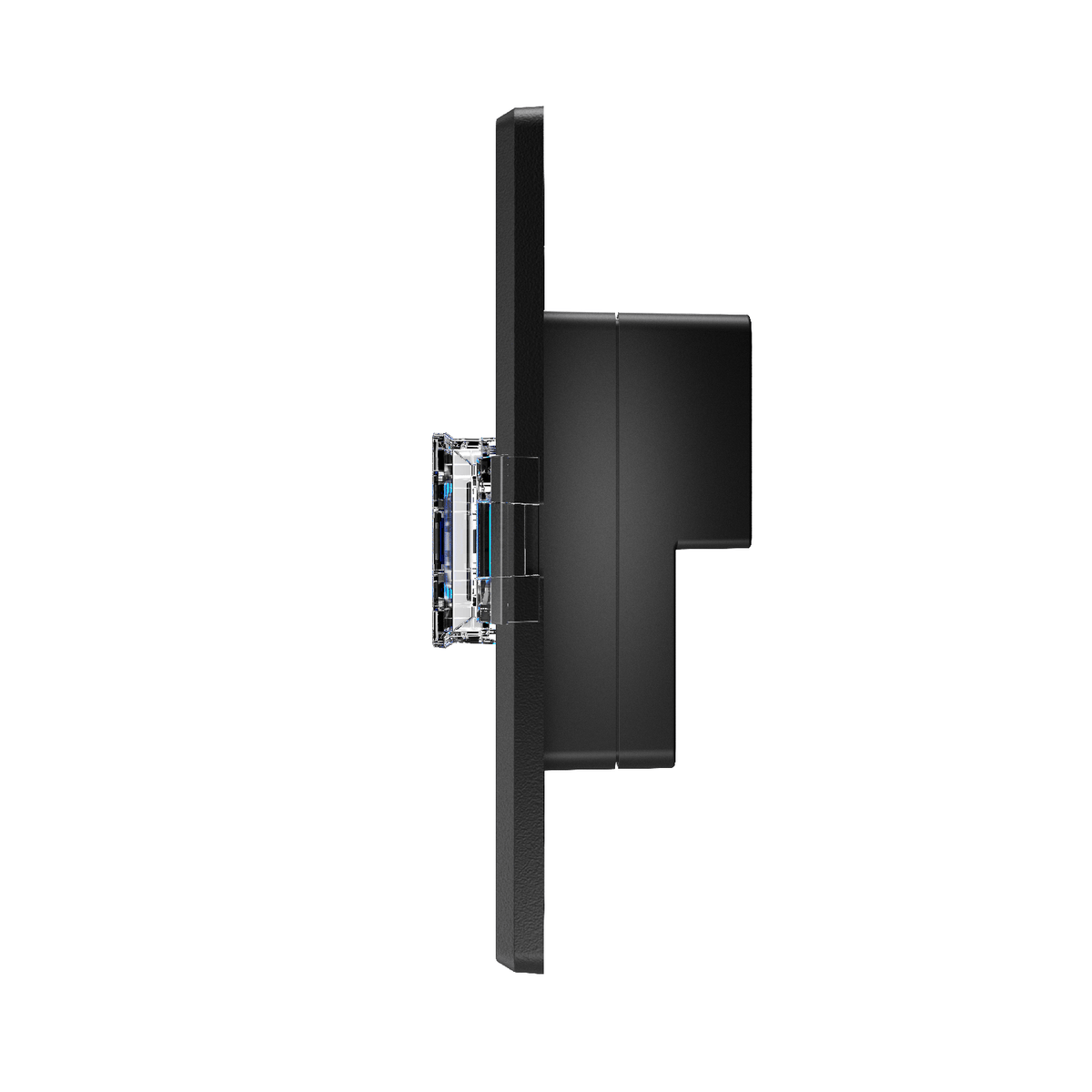

• Mounting: Flush mounting or wall surface mounting, Single-gang electrical box or low-voltage bracket

• 1x Single Button

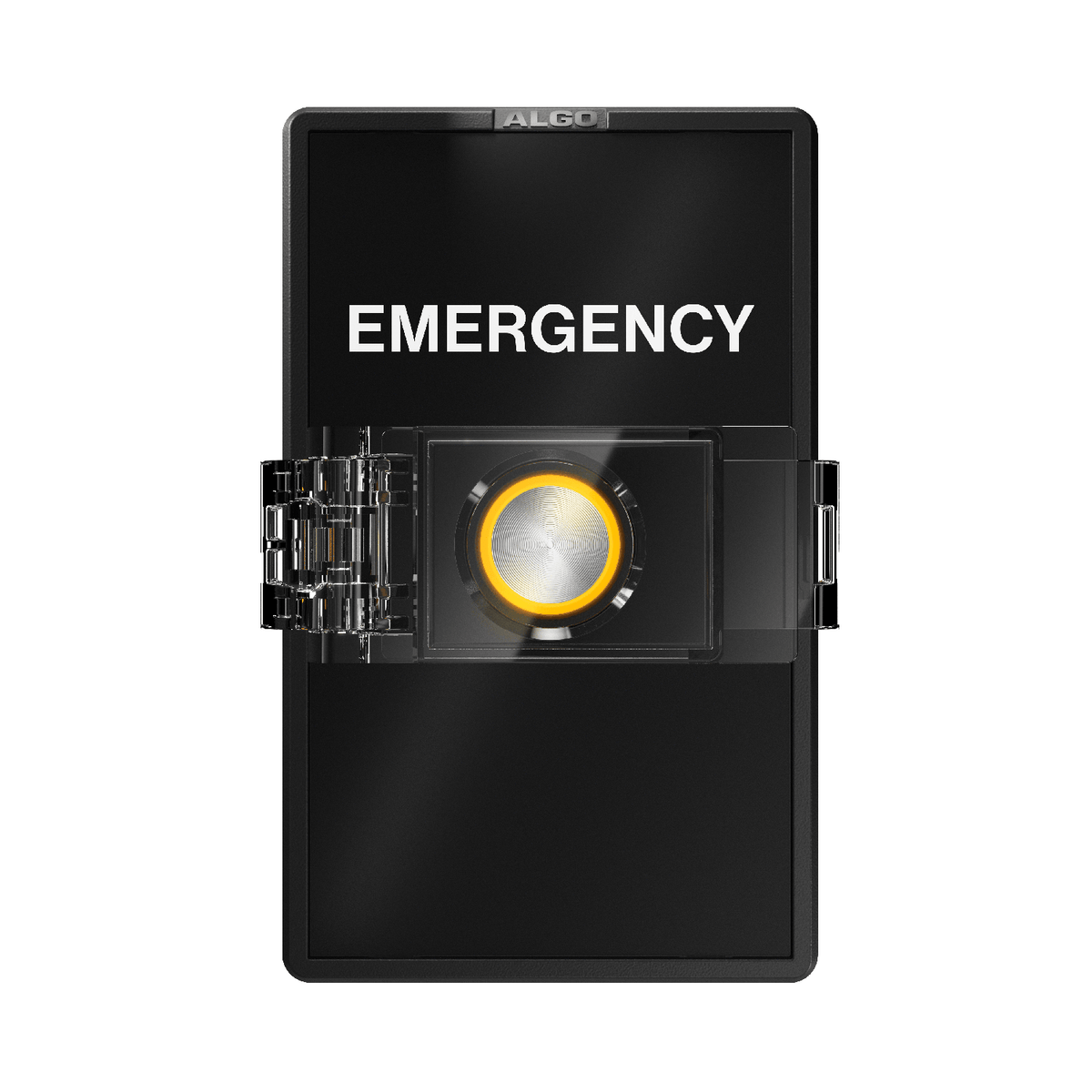

• 1x Black EMERGENCY faceplate
• 1x Black blank faceplate

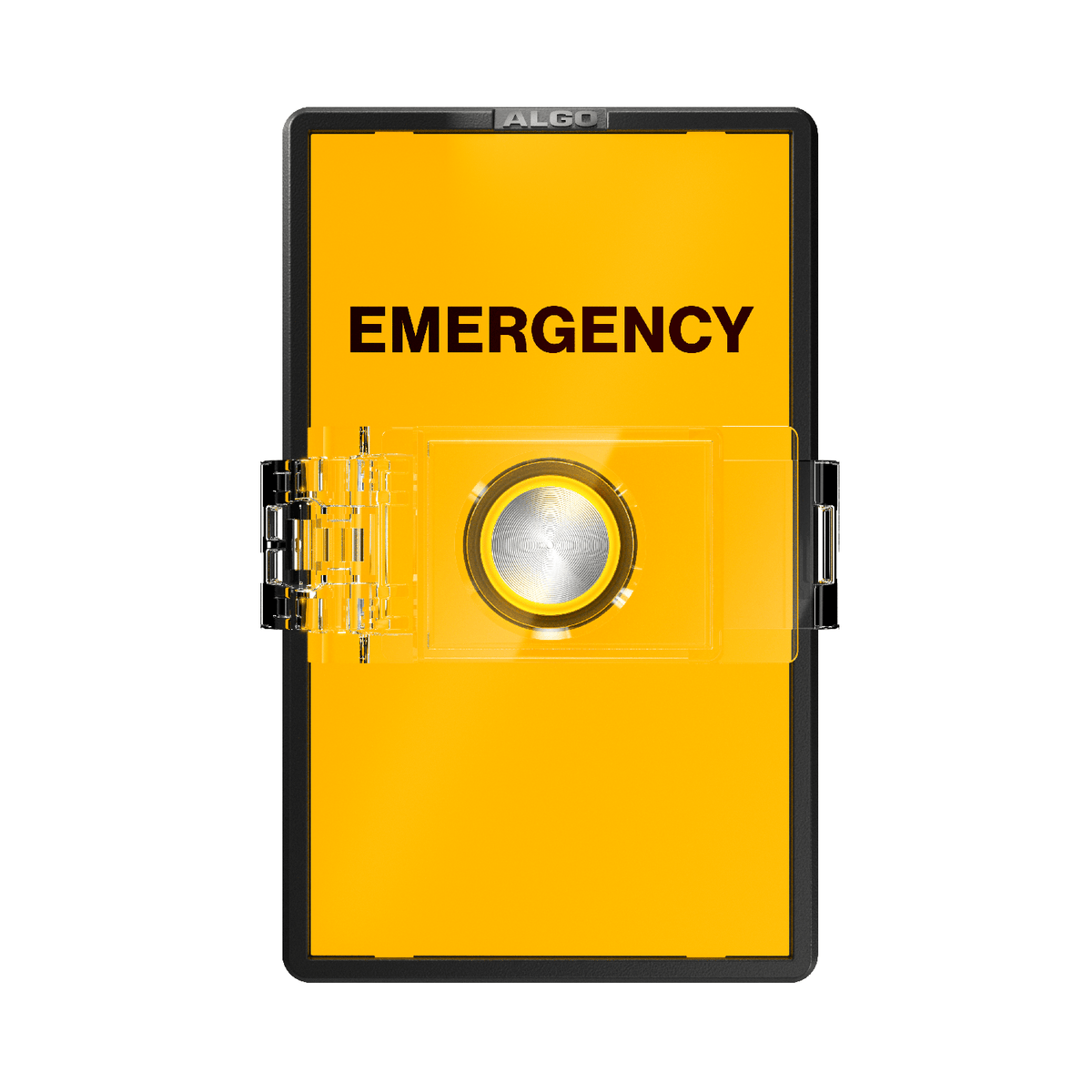

• 1x Amber EMERGENCY faceplate

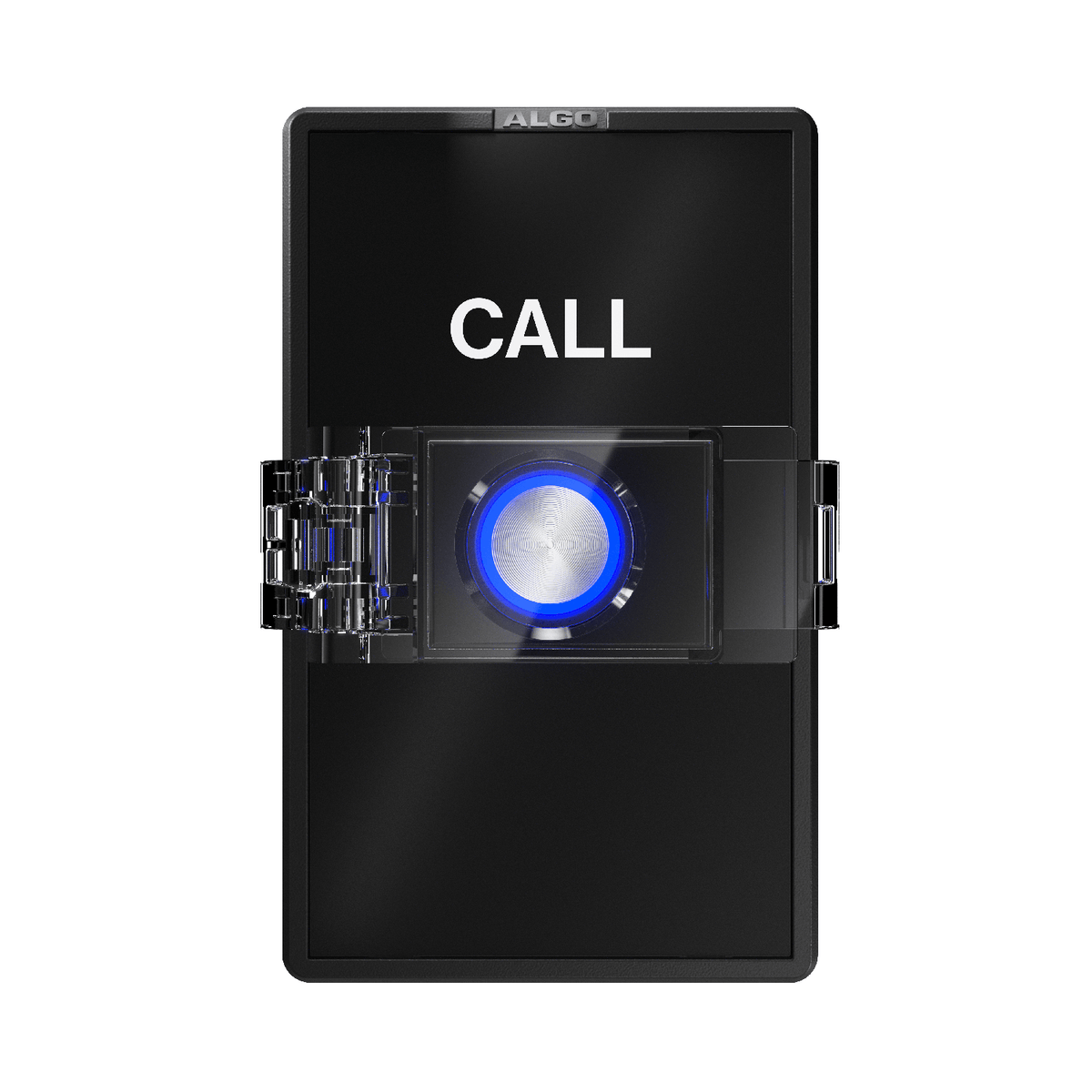

• 1x Black CALL faceplate

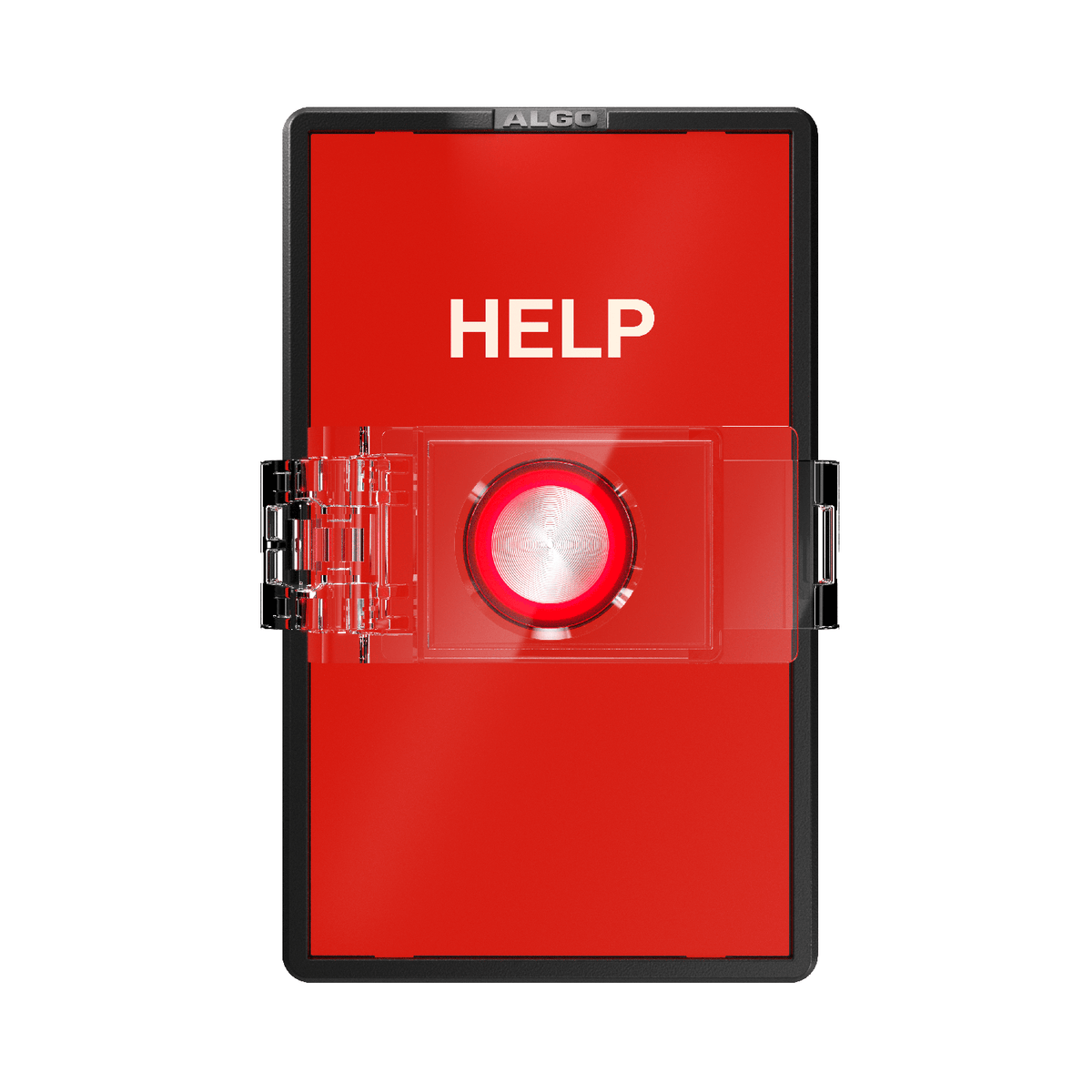

• 1x Red HELP faceplate

2.8-in x 1.4-in x 4.5-in

0.17 lbs

Datasheet
