•Ideal for wireless internet last mile, industrial/commercial communications, private networks, security & surveillance
•Configurable in nominal heights from 16 to 96 feet with exceptional wind load capacity
•Quick & easy 2 person install with very few tools required
•Factory assembled sections reduce on-site installation time and cost

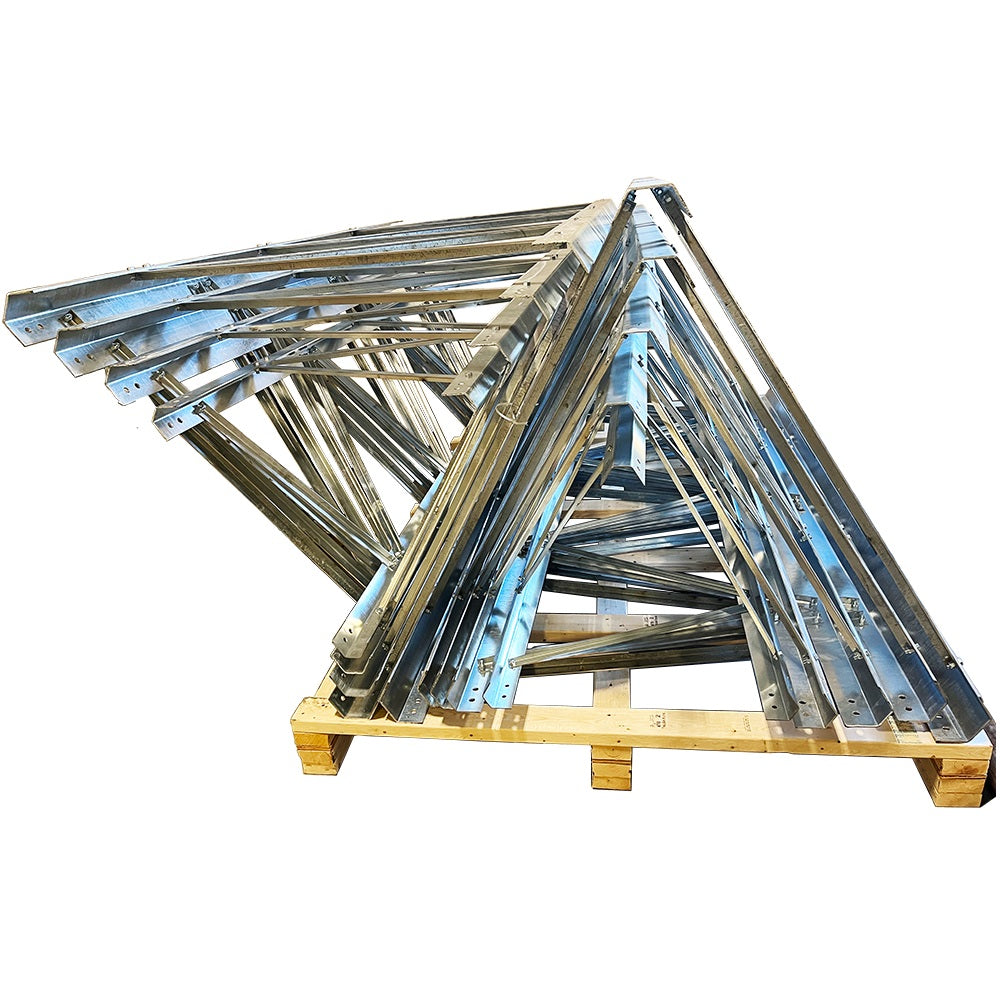

•Nested 8 foot sections on a custom pallet for compact warehouse and transport-friendly shipping package
•Enhancements to both leg profile & taper improve installation & tower structure
•Z style bracing with custom V profile leg
•High strength galvanized steel construction
•High strength-to-weight ratio -lightweight, small footprint
•Designed to meet TIA Std TIA-222-H
•Made in Canada
•Note: A concrete base is required. See installation instructions for more information

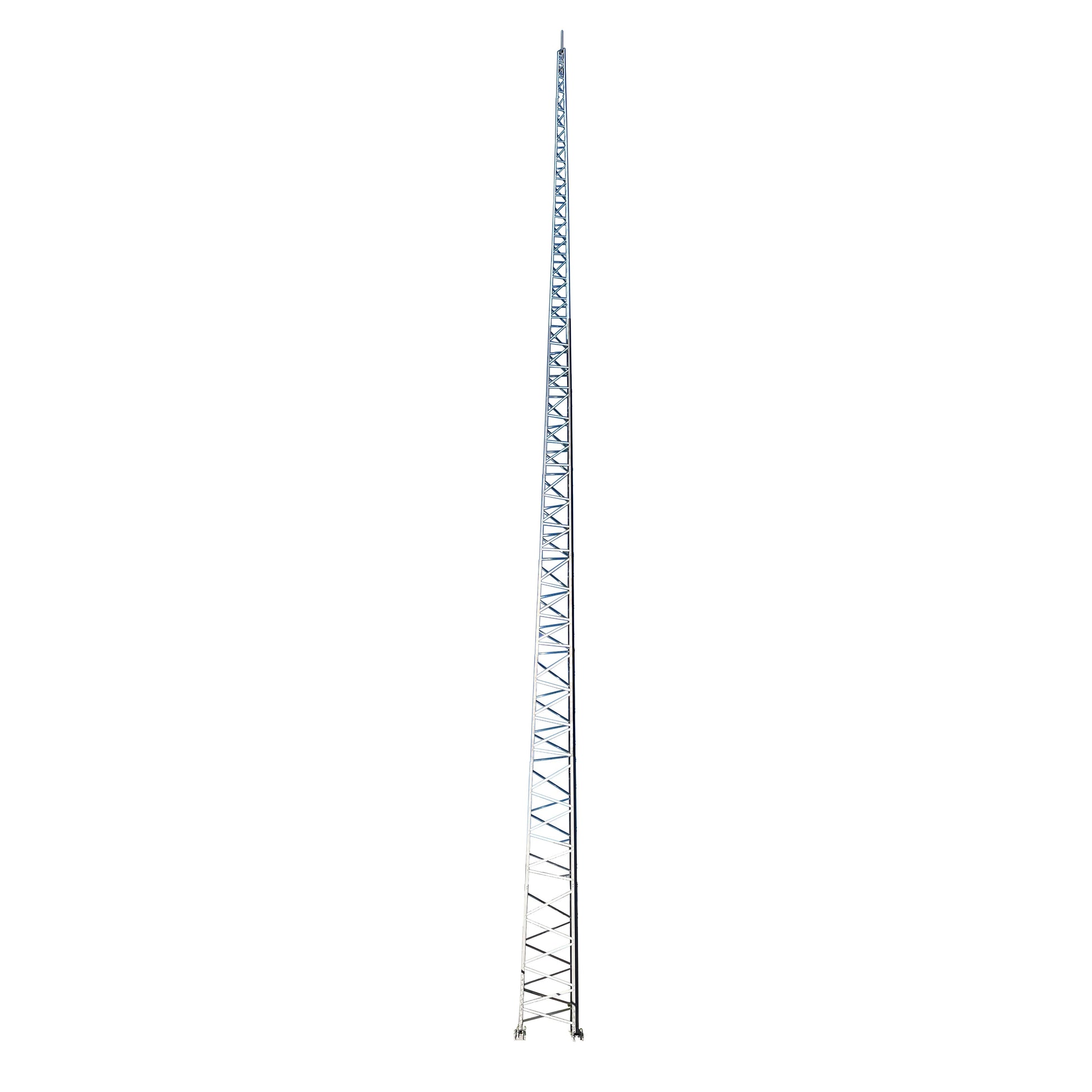

•Tower Height: 96ft
•Free Standing Installation: Yes
•Load Limits @ 113hm/h Wind w/ Flat Antenna: Ice - 2 sq.ft, No Ice - 12 sq.ft
•Load Limits @ 113hm/h Wind w/ Round Antenna: Ice - 3 sq.ft., No Ice - 18 sq.ft.
•Tower load limits are based on survival, and cannot be stamped by a licensed engineer
•Towers have not been tested to be in compliance with other sections of CSA-S37-13

•Vista SS Tower sections
•DM mast
•Top plate
•Rotor plate
•244A mast clamp assembly
•Hardware
