•Improves signal quality
•Decreases pixelation
•May increase number of channels
•Ultra-low noise
•Adjustable gain (17 dB/30 dB)
•Blocks LTE interference from 3G/4G/5G smartphones and transmitters
•EMI & FM Out of Band filtering (does not pass FM signals)
•Will support ATSC 3.0, NextGen TV, and 4K Broadcast when available
•Housing offers RF shielding for reducing interference
•Heavy-duty rated for indoor or outdoor use

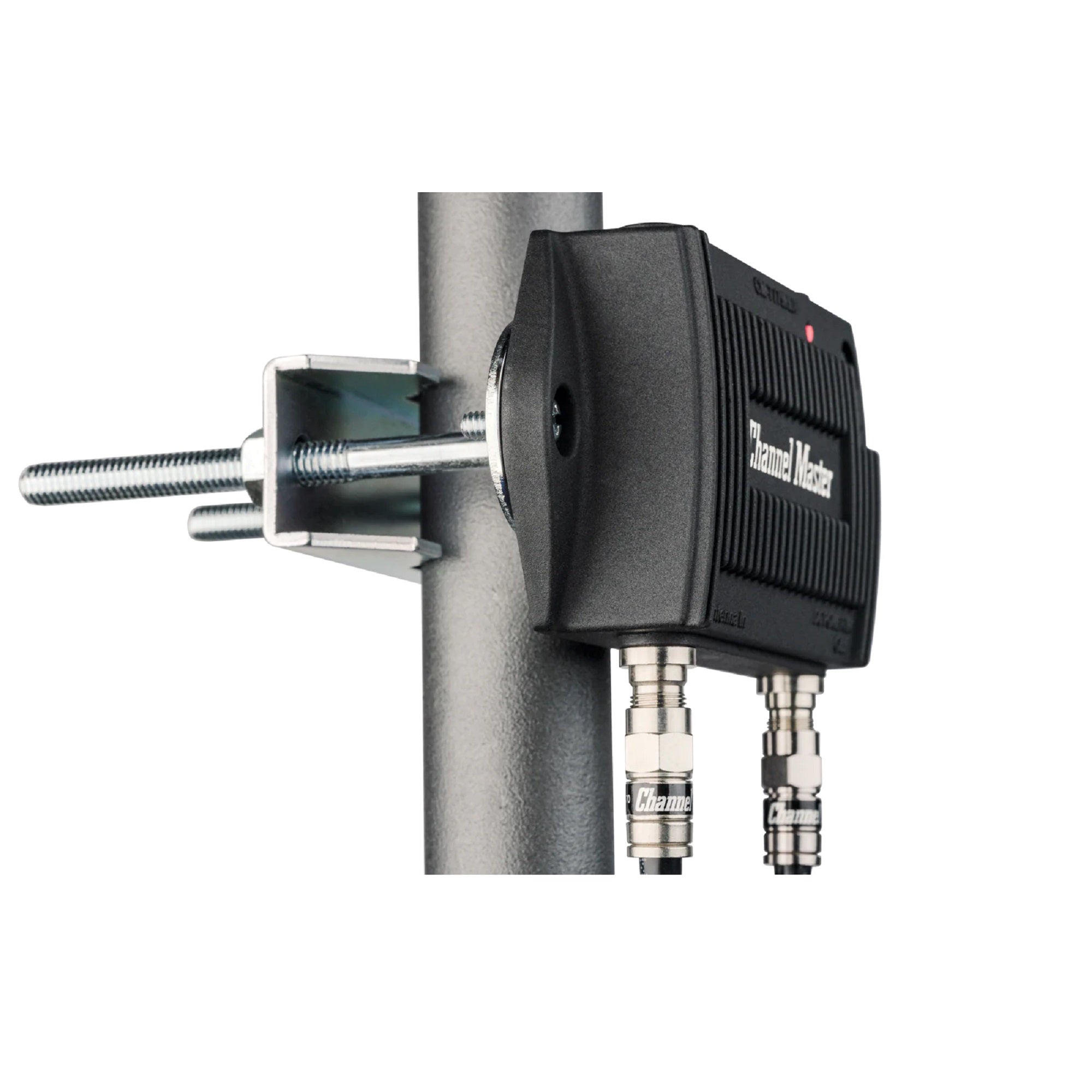

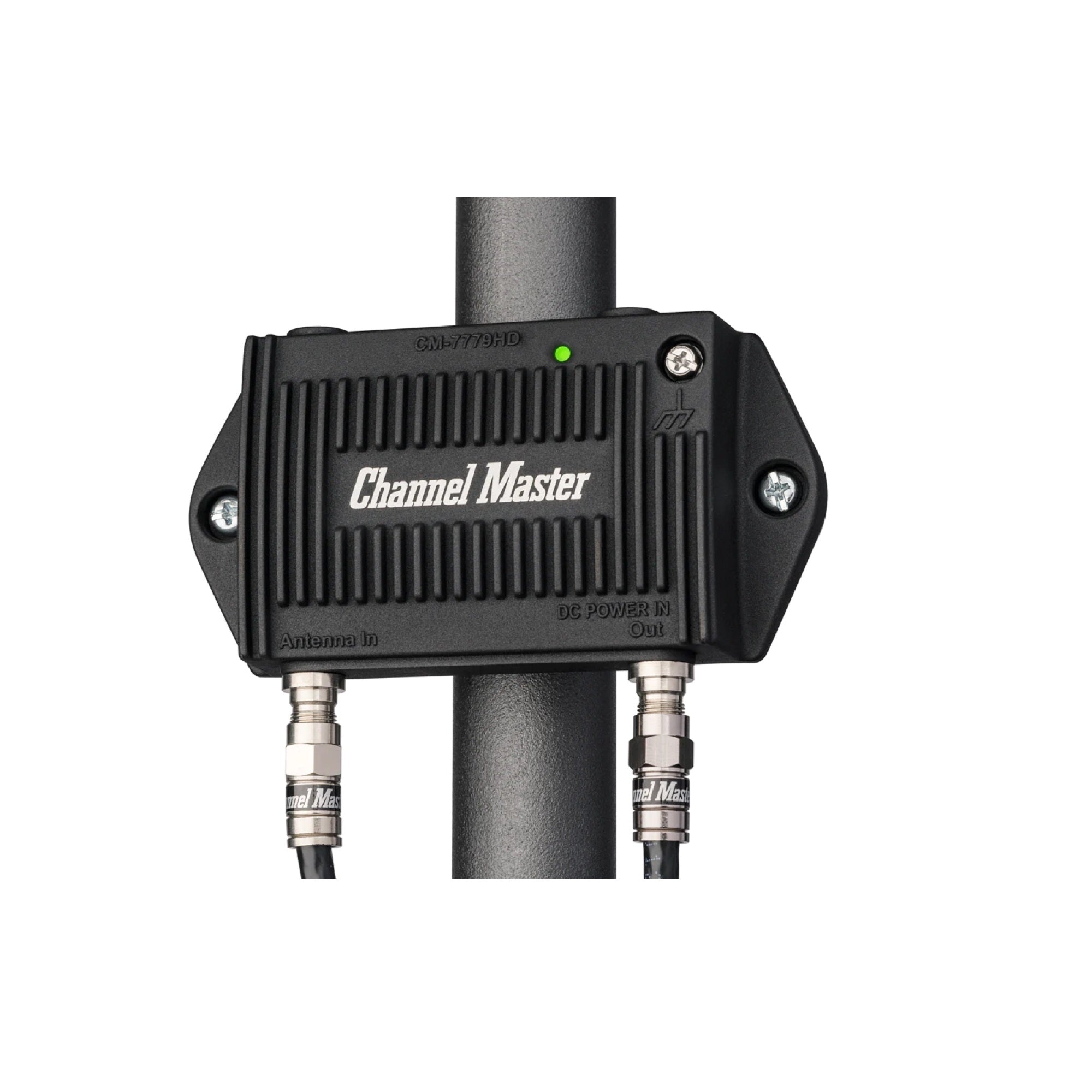

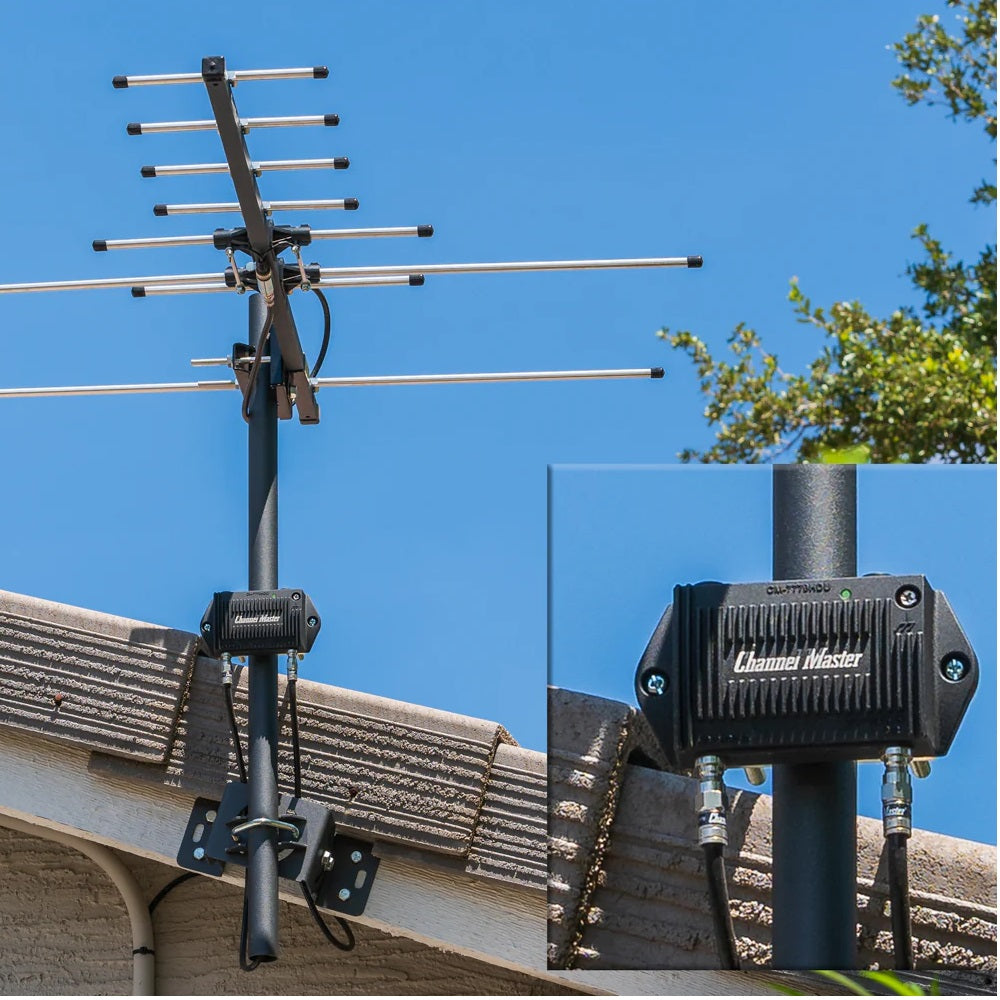

•Mast mounted for close proximity to antenna
•Note: When installing a splitter with this amplifier it must be apower passing splitter, most common splitters will not pass power

•Impedance (Input and Output): 75 Ohm
•Connector: F-type
•Frequency Range: 54MHz~88MHz,174MHz-260MHz,470MHz~608MHz
•Gain: +30dB (High) / +17dB (Low)
•Noise Figure: Typically Less than 2dB
•Input/Output Return Loss: <-12
•Max Input Level: 18 (High) 10 (Low) dBmV
•Max Output Level: 34 dBmV
•FM Trap: 88MHz; >2dB, 95-108 MHz; >14dB
•Power Consumption: <3W
•Operating Temperature: -40°C to +60°C
•UL Listed, RoHS Compliant: Yes

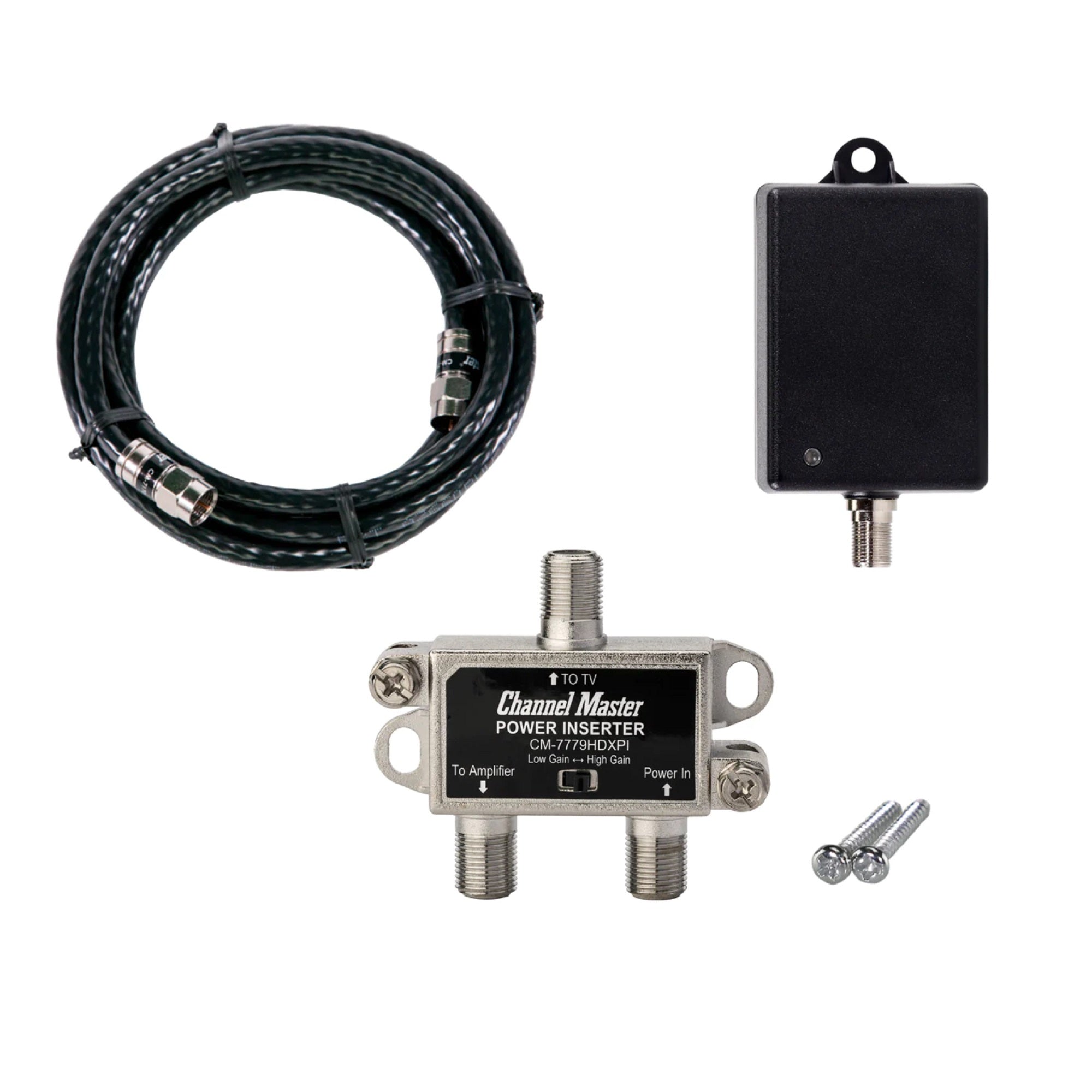

•1 x PreAmp 1 TV Antenna Pre-Amplifier
•1 x 6' Coaxial Cable for Power Adapter Connection

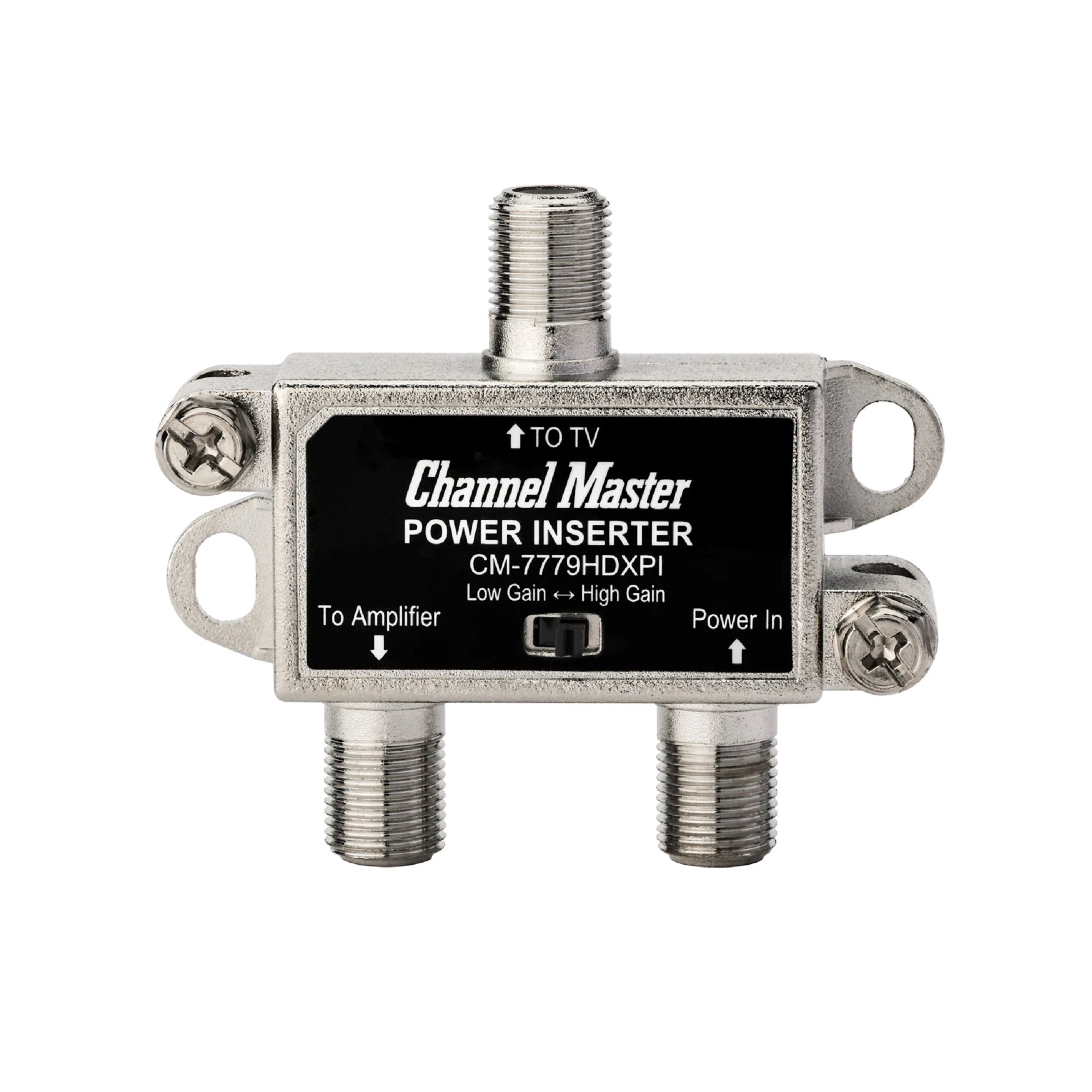

•1 x Power Inserter with High/Low Gain Switch
•1 x Power Adapter

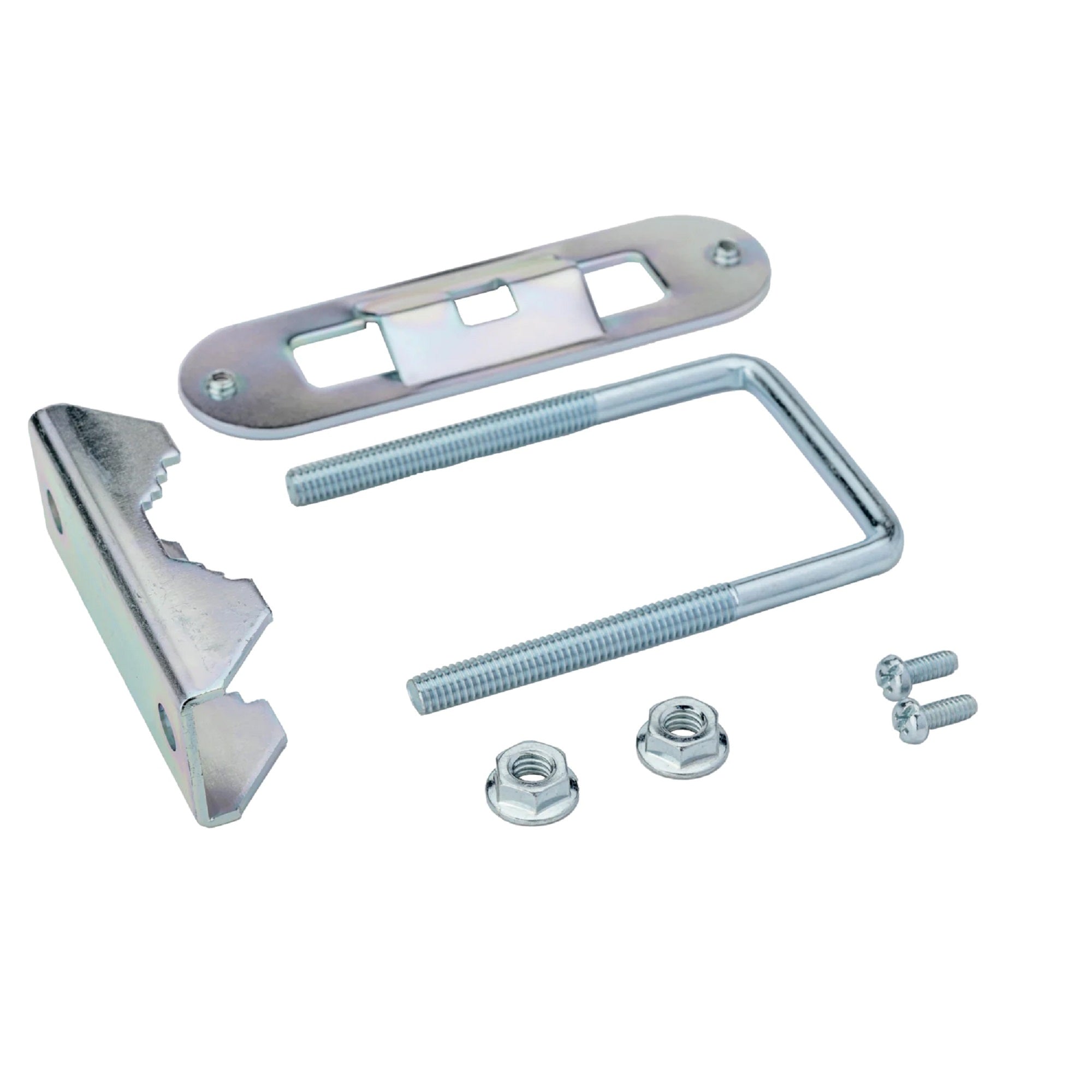

•1 x Heavy Duty Mounting Bracket (Accommodates Masts up to 2" in Diameter.)
•2 x Mounting Screws
•Installation Guide
•1-Year Limited Warranty
