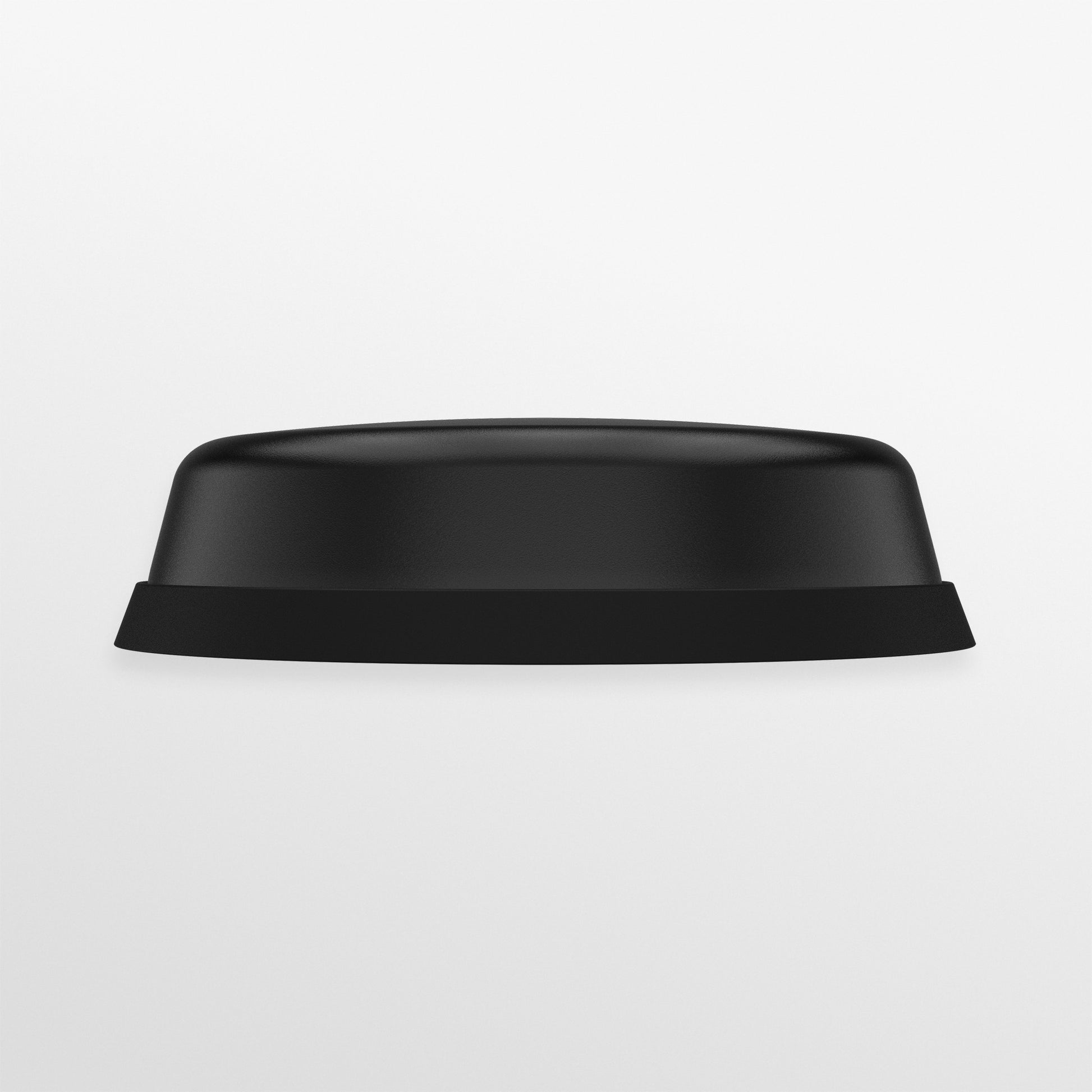

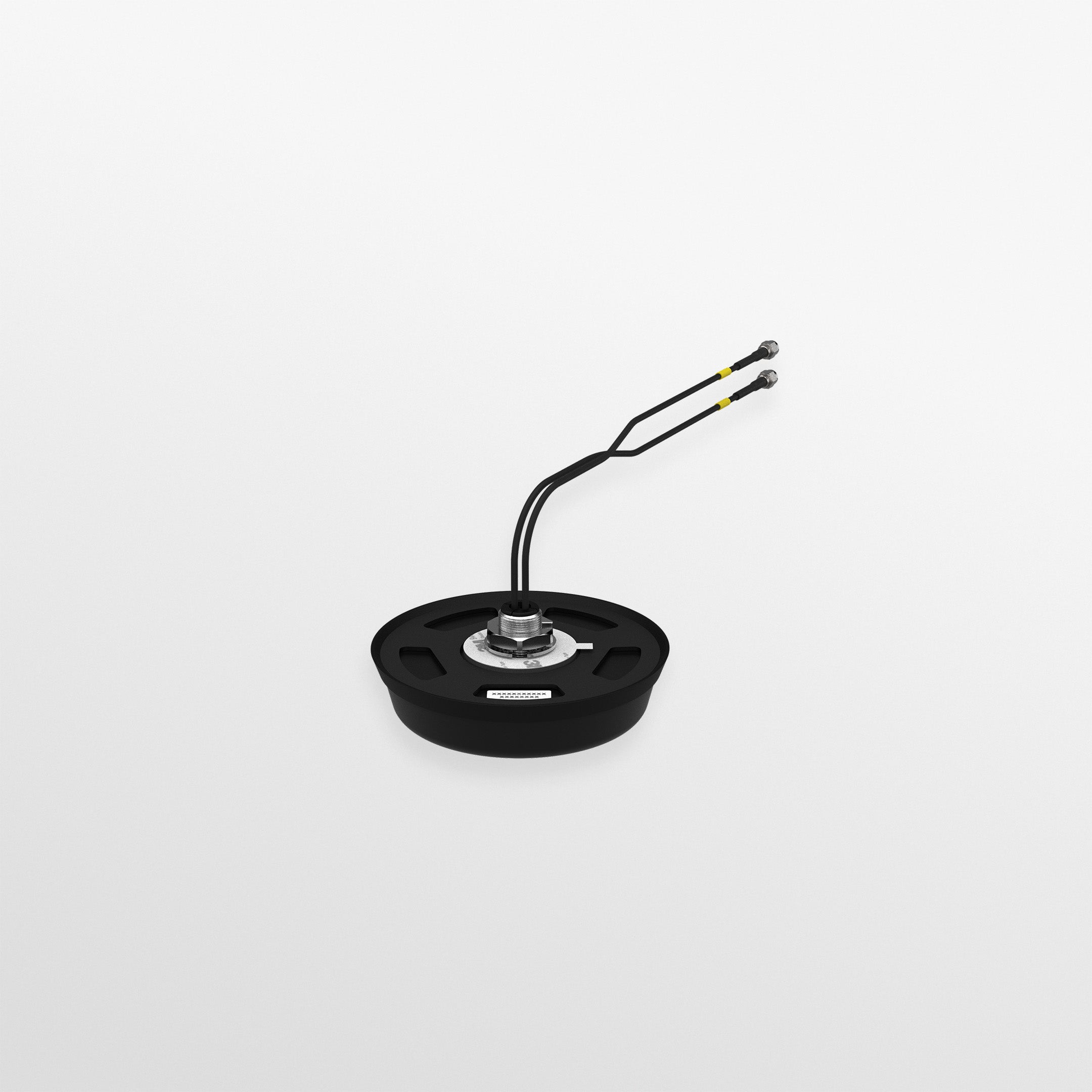

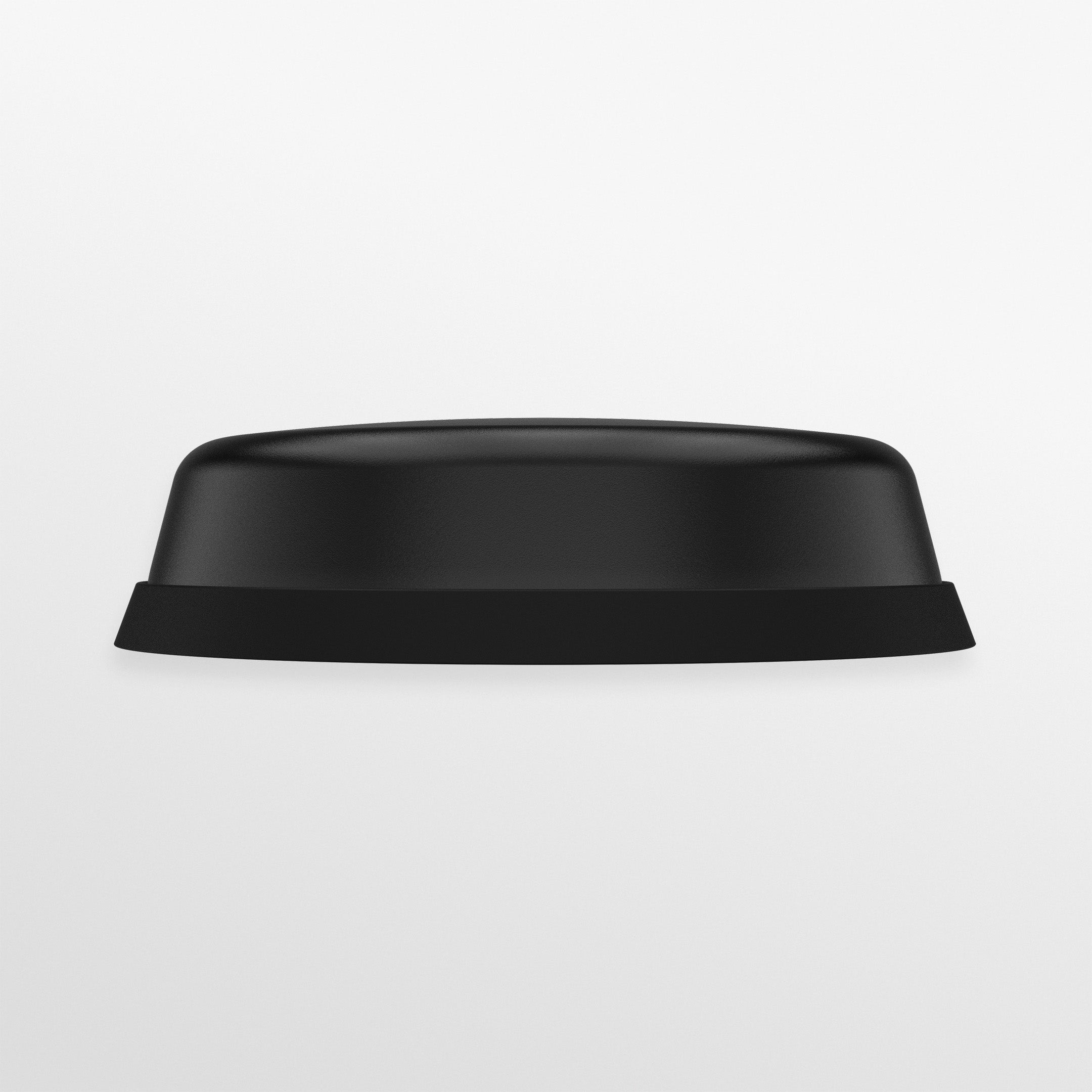

Panorama Low-Profile MiMo 4G Puck Antenna

The L[X]M2-7-27-[X] antenna range has been designed to provide 2×2  MiMo 617-960/1427-4200MHz along with optional SiSo or 2×2 MiMo 2400-2485/5150-6000MHz WiFi and optional GPS/GNSS 1562-1612 MHz 26db LNA in an ultra low profile package. The compact, robust, low-profile housing is weatherproof and impact resiststant.

The antenna is designed to be panel mounted. Supplied with integrated flame retardant CS30 (Compliant to UN ECE 118.03) cables and SMA plug connectors (SMA Rev Pol for WiFi where applicable), the antenna will offer plug and play connectivity with many different routers and modems.

The antenna is supplied in black flame retardant LEXAN EXL9330 plastic as standard.

The product is engineered specifically for installation on a non-conductive ground plane and performance will be detrimentally affected across 617-960MHz by installation on a metallic or conductive panel.
