viaPhoton Outdoor Hybrid Fiber Trunk, 12 Fibers, Single Mode, 12 x 10AWG, LCULCU, End 1 32" Breakout, End 224" Breakout, (200'

Name: viaPhoton Outdoor Hybrid Fiber Trunk, 12 Fibers, Single Mode, 12 x 10AWG, LCULCU, End 1 32" Breakout, End 224" Breakout, (200'
Brand: ViaPhoton
SKU: CAOHFT-12SM-F200
Price: 3731.48 CAD
Availability: InStock

viaPhoton Outdoor Hybrid Fiber Trunk, 12 Fibers, Single Mode, 12 x 10AWG, LCULCU, End 1 32" Breakout, End 224" Breakout, (200'

Vendor: ViaPhoton

SKU: CAOHFT-12SM-F200

Vendor SKU: FT-12SM1210-F200

Login for pricing

Shipping calculated at checkout.

Special Order Item

Manufacturer's Warranty:

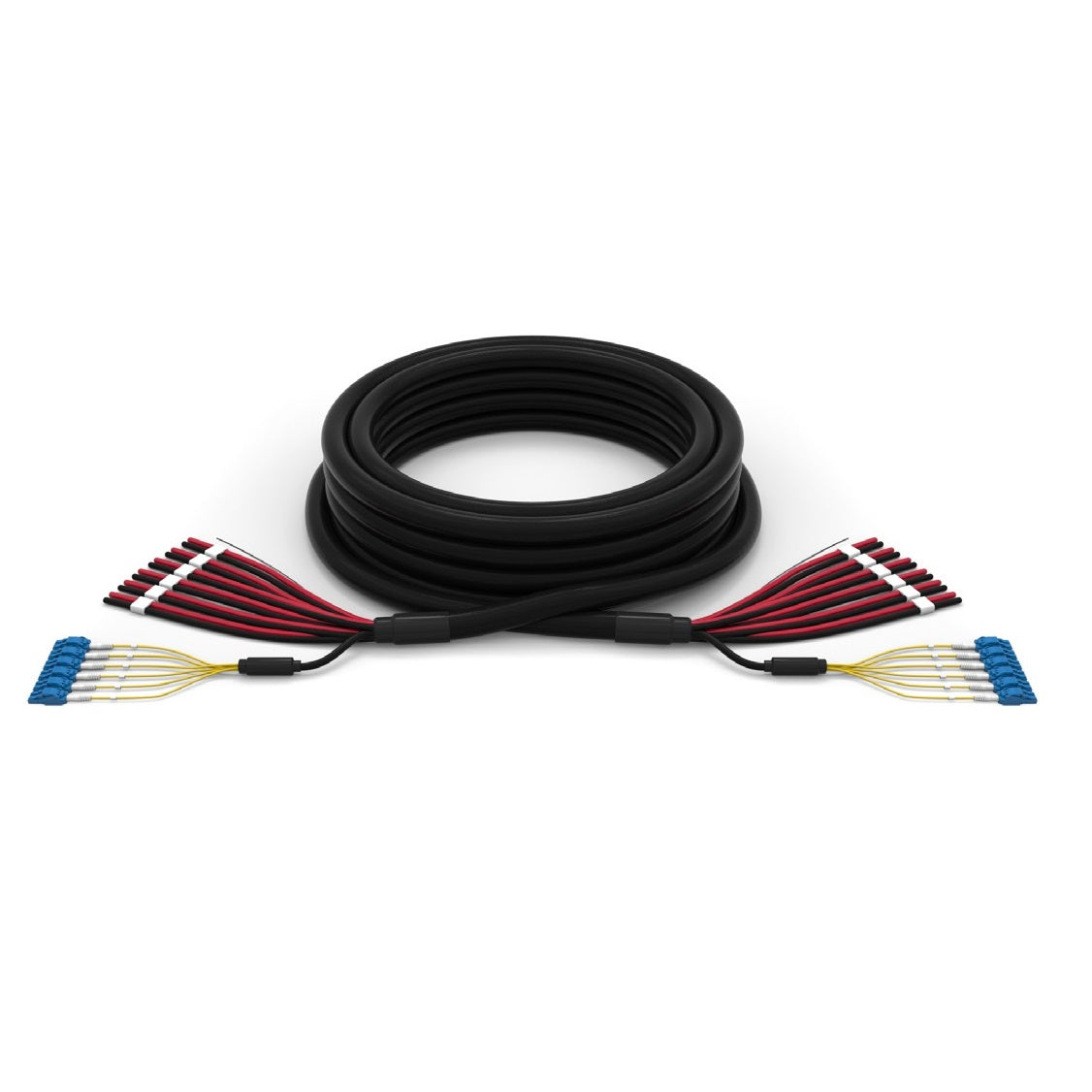

This Outdoor Hybrid Fiber Trunk has 12 single-mode fibers, 12x10 AWG copper conductors, LC duplex uniboot, 2 mm OD / 32 inch long breakout, 2mm OD / 24 inch breakout

Special order items do not qualify for same day shipping.
No returns of exchanges on Special Order Items.
Pricing is subject to change.

Oversized Items will require special shipping. We will contact you to finalize shipment.
Read our Special Order Policy

Features

•UV Resistant

Technical Specifications

•Fiber Type: Single-mode (G.657.A2)
•Total Fiber Quantity: 12
•Connectors (both ends): LC duplex uniboot / UPC
•Number of DC Conductors: 12 / red, black
•Conductor Type: 10 AWG
•End 1 Breakout: OD - 2 mm (0.08 in) , Length - 813 mm (32 in)
•End 1 Breakout: OD - 2 mm (0.08 in) , Length - 610 mm (24 in)
•Insertion Loss LC/UPC Connector: ≤ 0.10 dB (typical), 0.30dB (max)
•Return Loss, LC/UPC Connector: 50 dB (typical)
•Bend Radius (OD x 10): 254.5 mm (10 in)
•Flame Performance: TC-OF / THHN / THWN-2
•Operating: Temperature: -40°C to +80°C (-40°F to +176°F)

Box Contents

•1 x 200ft Outdoor Hybrid Fiber Trunk
