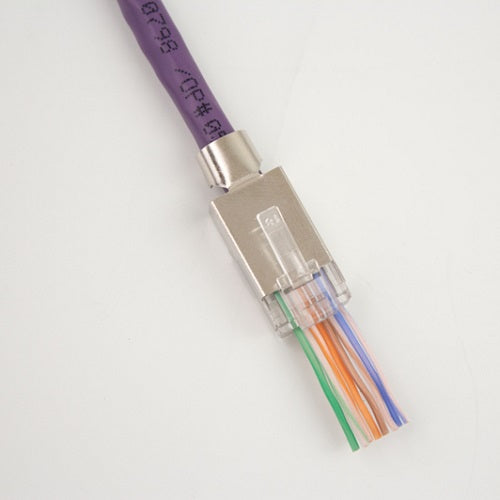

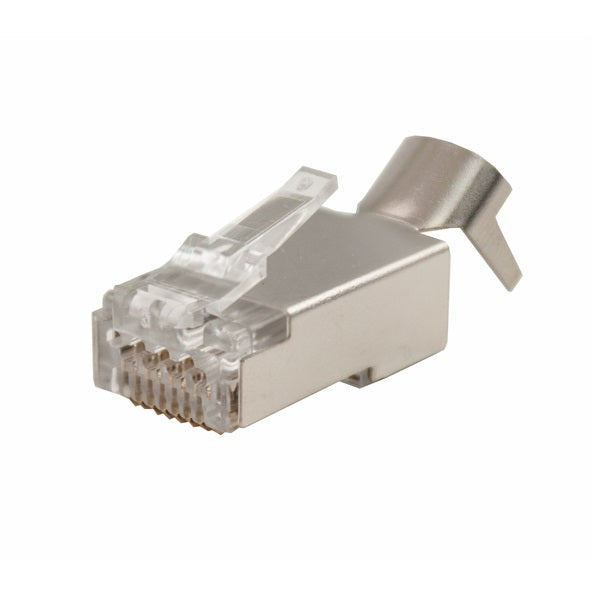

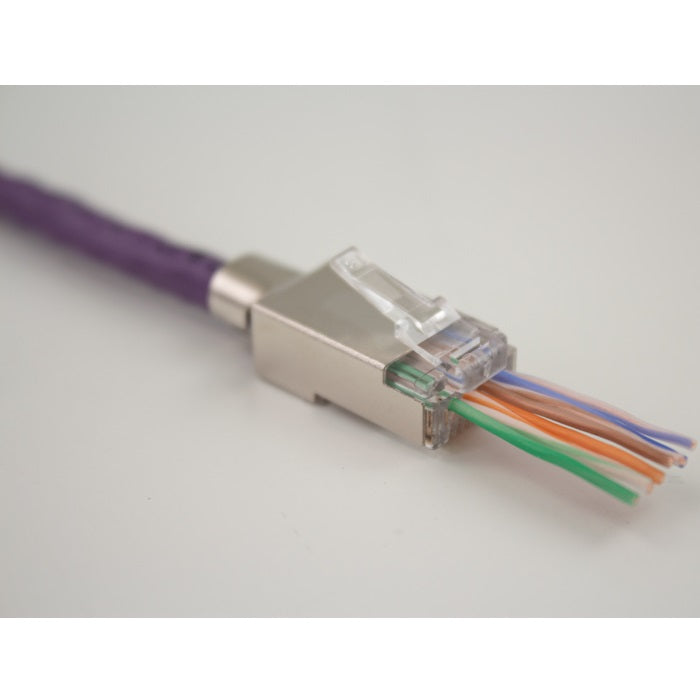

Vertical Cable CAT6/CAT6A Shielded RJ45 Modular Connector

Features

•Feed through design
•Fast and easy to terminate
•Easier sequence verification
•Gold plated terminal contact
•Compatible with solid and stranded cable

Technical Specifications

•Voltage Rating: 250V AC RMS
•Current Rating: 2 Amps
•Contact Resistance: 20m Ω Max
•Insulation Resistance: 500m Ω
•Cable to Plug Tensile Strength: 20 lbs
•Durability: 2000 Cycles Min
•Housing Material: Polycarbonate UL94V-2
•Contact Blade: Gold Plated (3 Prong)
•Conductor Type: For Solid and Stranded Wire
•Conductor Size: For 23AWG
•Insulation Size: 1.2mm max
•RoHS Compliant: Yes

Box Contents

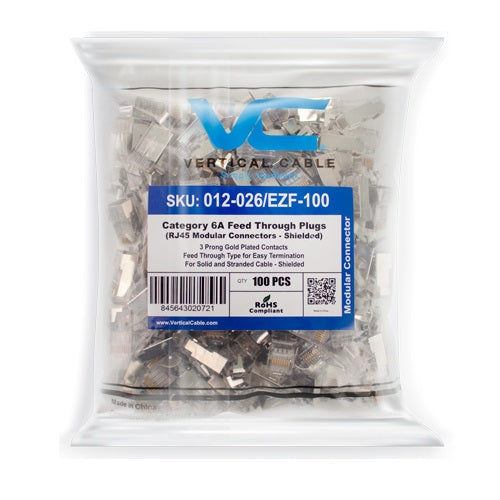

•100 x Shielded Feed Through Plug

Weights & Dimensions

Datasheets

Vertical Cable CAT6/CAT6A Shielded RJ45 Modular Connector

Name: Vertical Cable CAT6/CAT6A Shielded RJ45 Modular Connector
Brand: Vertical Cable
SKU: CO012-026-EZF100
Price: 124.16 CAD
Availability: InStock

Vendor: Vertical Cable

SKU: CO012-026-EZF100

Vendor SKU: 012-026/EZF-100

Shipping calculated at checkout.

Special Order Item

Manufacturer's Warranty: 1-Year

Add-ons

Vertical Cable Crimp Tool for RJ45 Cat6/Cat6a

Don't be out of parts with this 100 pack of CAT6/6A shielded RJ45 plugs for solid and stranded cable.

Special order items do not qualify for same day shipping.
No returns of exchanges on Special Order Items.
Pricing is subject to change.

Oversized Items will require special shipping. We will contact you to finalize shipment.
Read our Special Order Policy

Features

•Feed through design
•Fast and easy to terminate
•Easier sequence verification
•Gold plated terminal contact
•Compatible with solid and stranded cable
