Features

•Universal design, compatible with 77% to quad RG-11 cable
•Approved with Bell, Rogers, Shaw, Cogeco, Videotron and other cable companies
•Meets or exceeds all SCTE Specifications
•Superior corrosion resistance and RF integrity

Technical Specifications

•Bandwidth: 0 MHz to 3 GHZ
•Impedance: 75 Ohms (nominal)
•Return Loss: Minimum -35 dB to 1 GHz, Minimum -20 dB to 3 GHz
•Insertion Loss: Less than .10 dB to 1 GHz
•Operating Voltage: 90 V (at 60 Hz continuous AC)
•Operating Temperature: -40°C to 60°C (-40°F to +140°F)
•Cable Retention: 75 lbs (34.02 kg) minimum

Box Contents

•25 x RG11 Compression Connectors

Weights & Dimensions

Datasheets

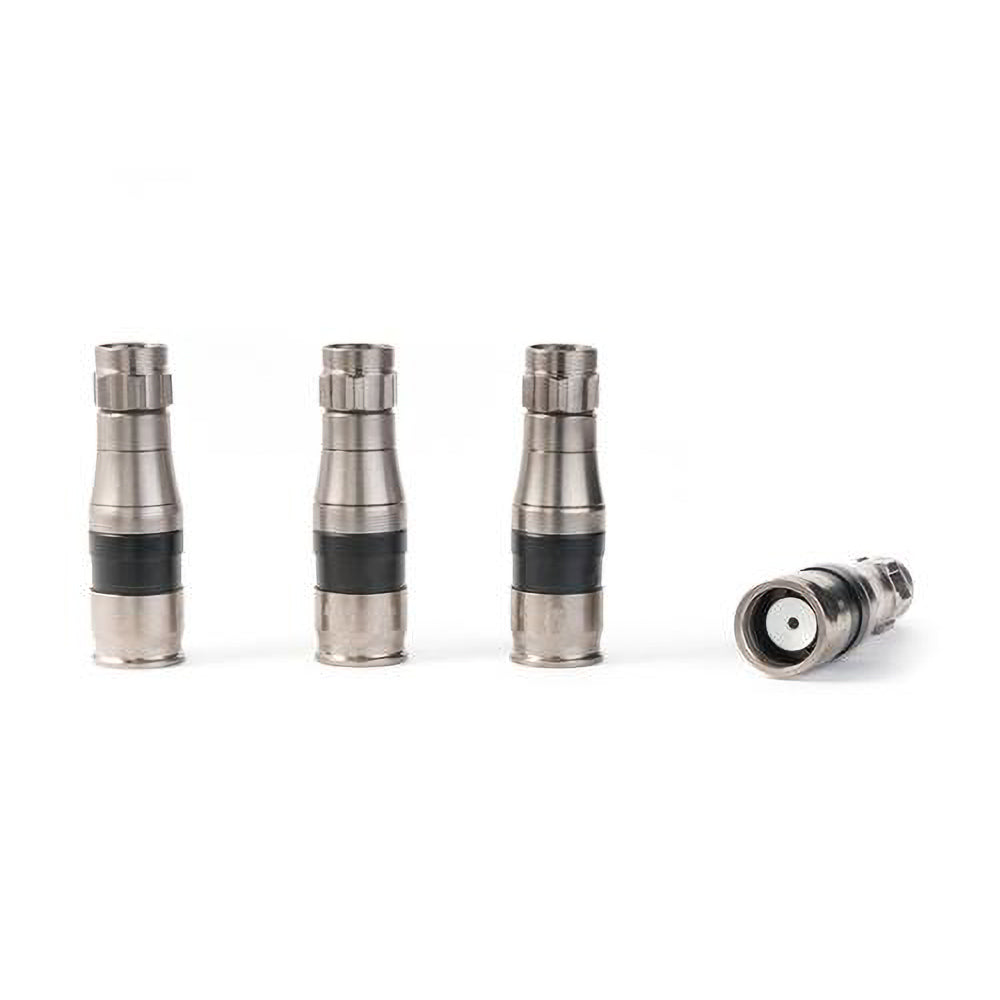

PPC SignalTight Universal RG11 Plus Compression F Connector - 25pk

Name: PPC SignalTight Universal RG11 Plus Compression F Connector - 25pk
Brand: PPC
SKU: COEX11N716PLUS
Price: 27.88 CAD
Availability: InStock

Vendor: PPC

SKU: COEX11N716PLUS

Vendor SKU: EX11N716PLUS

Shipping calculated at checkout.

Out of stock - Restocking Soon

Manufacturer's Warranty:

PPC (Belden) patented RG11 compression EX11 connectors are the only universal compression connector available today. This 360 degree circular compression provides durable weather seal. Accepts industry standard 1/4"-1/4"-1/4" cable prep. O-Ring provides complete seal between nut and body.
