• 2.4Gbps aggregate wireless throughput, 2x1 Gigabit Ethernet port
• Single-band 2x2:2 MIMO with TDMA technology
• Up to 5-kilometer coverage range
• Advanced QoS to ensure real-time performance of low-latency applications
• IP66 level weatherproof
• Self power adaptation upon auto detection of PoE+
• Convenient and intelligent web management; GWN App management; GDMS Networking offers a remote management via SSH tunneling

• Antenna: 2 single internal antennas 5GHz x 2 , gain 13.5dBi Beamwidth 5G: H:30°C, V:30°C
• MIMO: 5GHz: 2x2:2, MIMO
• Frequency Bands: 5GHz Radio: 5150 - 5850 MHz *Not all frequency bands can be used in all regions
• Channel Bandwidth: 5G: 20, 40, 80 and 160MHz (x2)
• Wi-Fi Data Rates: 5G IEEE 802.11ax: 7.3 Mbps to 2402 Mbps IEEE 802.11ac: 6.5 Mbps to 1732 Mbps IEEE 802.11n: 6.5 Mbps to 300Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
• Maximum TX Power: 5G: 26dBm *Maximum power varies by country, frequency band and MCS rate
• Receiver Sensitivity: 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11n 20 MHz: -73 dBm @MCS7; 802.11n 40 MHz: -70 dBm @MCS7; 802.11ac 20 MHz: -67 dBm @MCS8; 802.11ac 40 MHz: -63 dBm @MCS9; 802.11ac 80 MHz: -59 dBm @MCS9; 802.11ax 20 MHz: -60 dBm @MCS11; 802.11ax 40 MHz: -58 dBm @MCS11; 802.11ax 80 MHz: -56 dBm @MCS11; 802.11ax 160 MHz: -52 dBm@ MCS11;
• Coverage Range: Up to 5 kilometers *coverage range can vary based on environment
• Point to Multipoint: 1 to 4

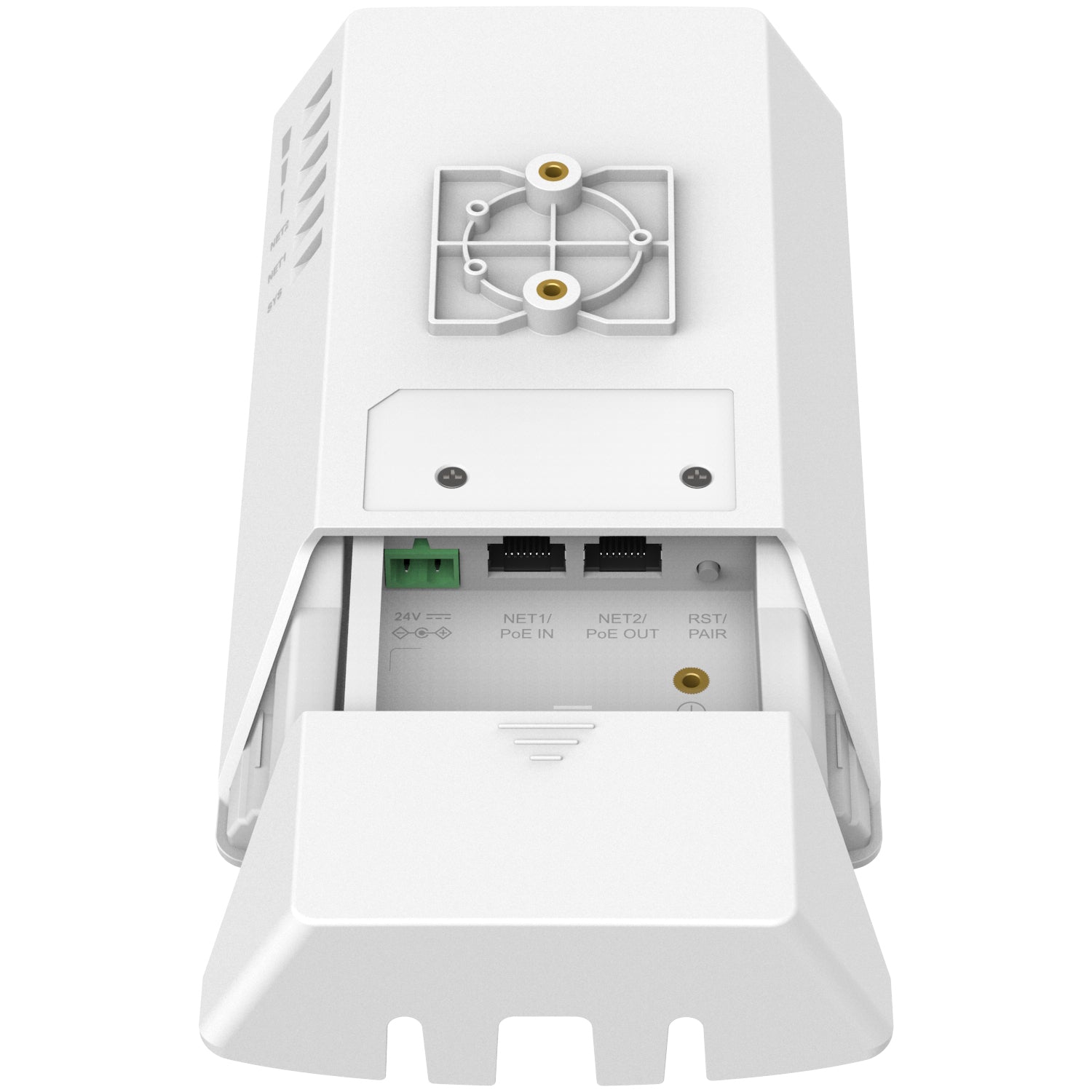

• Network Ports: 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE input 1x autosensing 10/100/1000 Base-T Ethernet Port, RJ-45, PoE output
• LEDs: 1 tri-color LED for device tracking and status indication 3x LED for signal strength 2x LED for network port status
• Auxiliary Ports: 1x Reset and Pairing Button

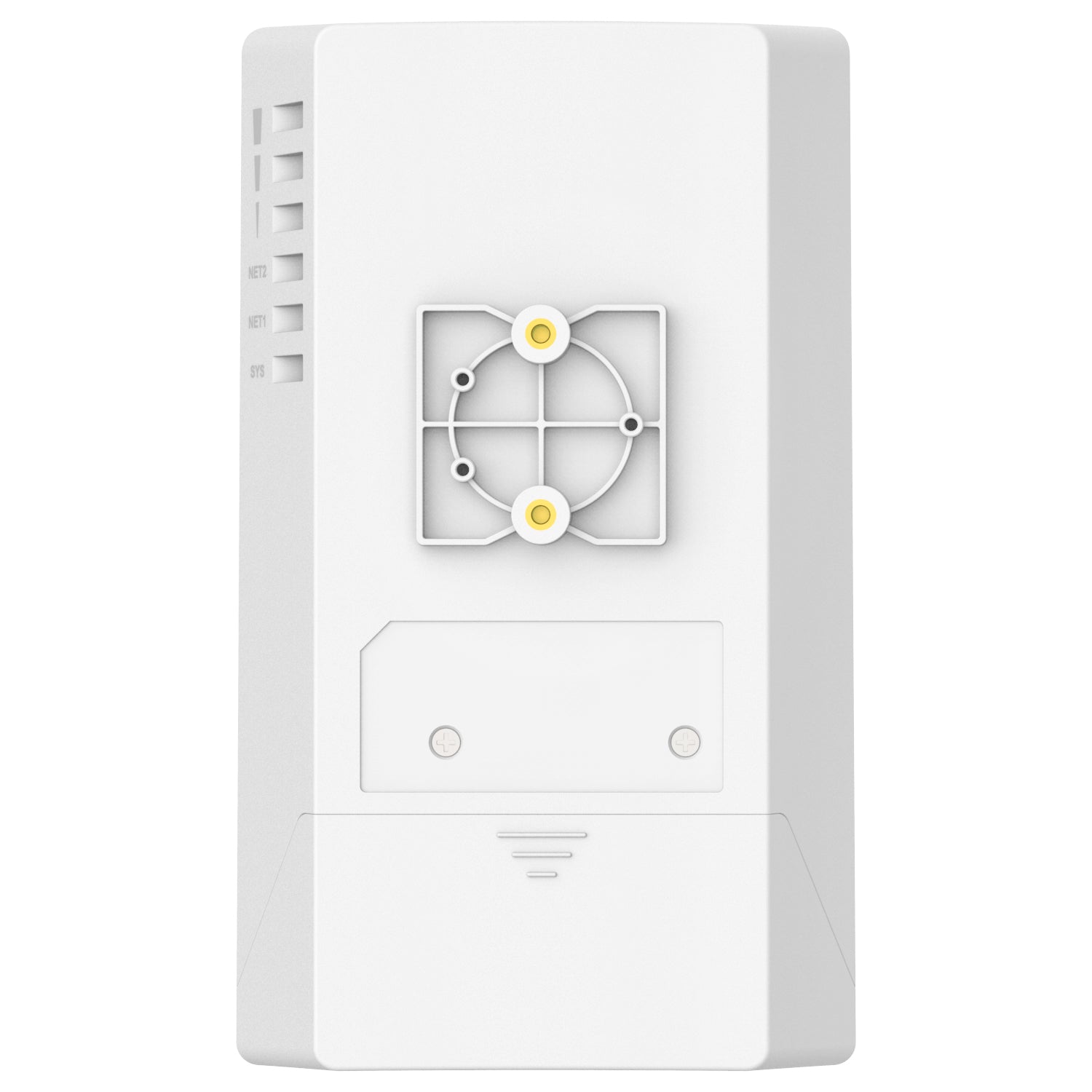

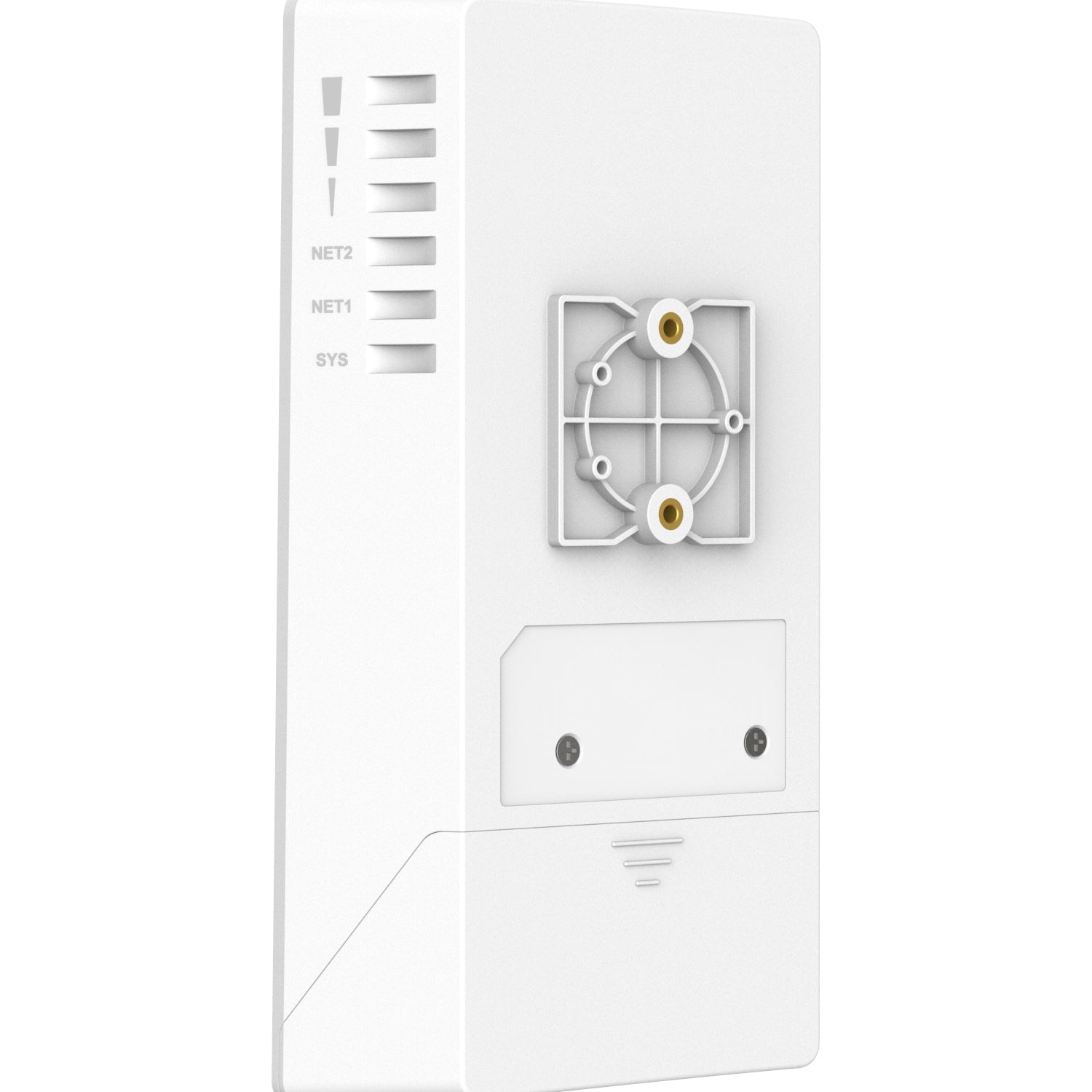

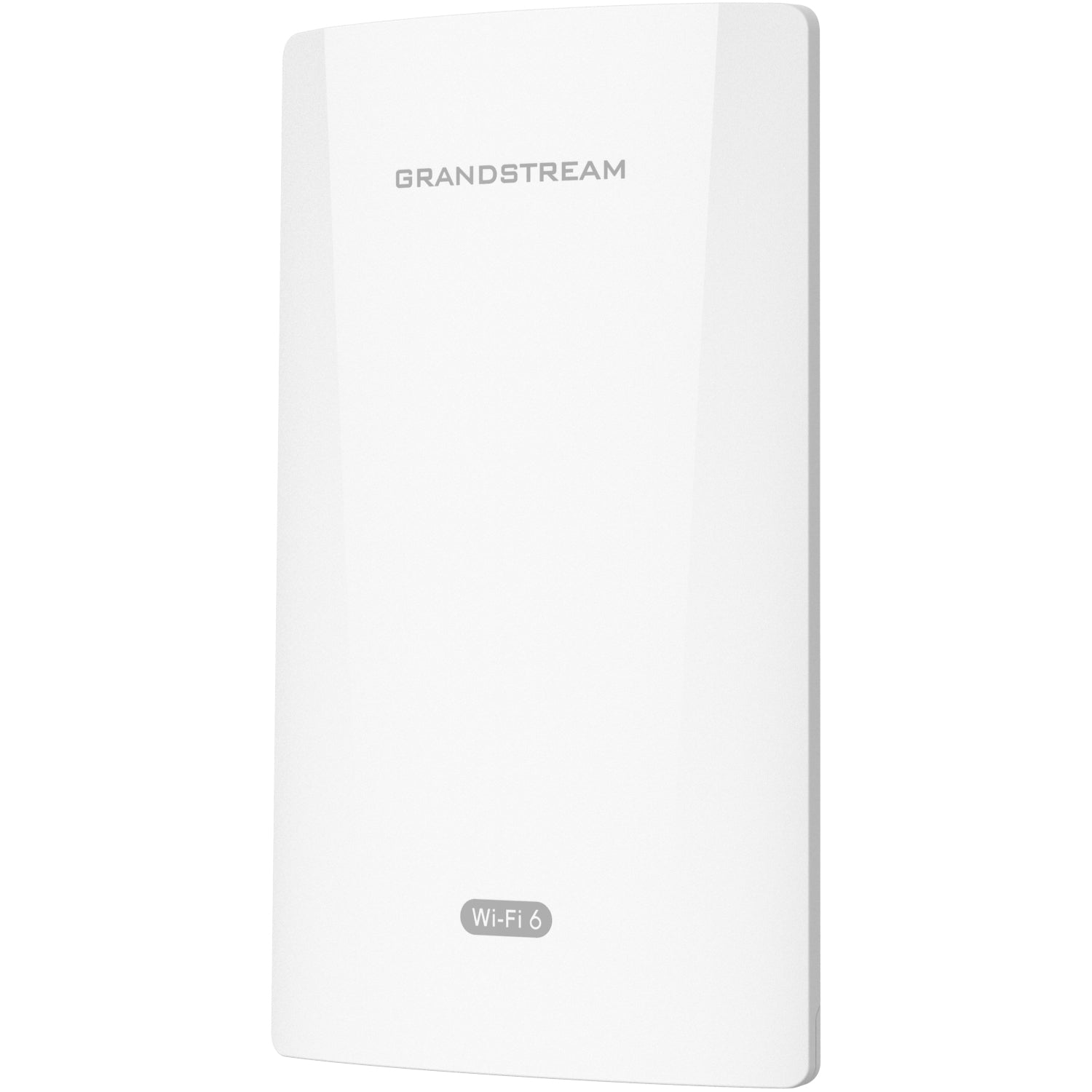

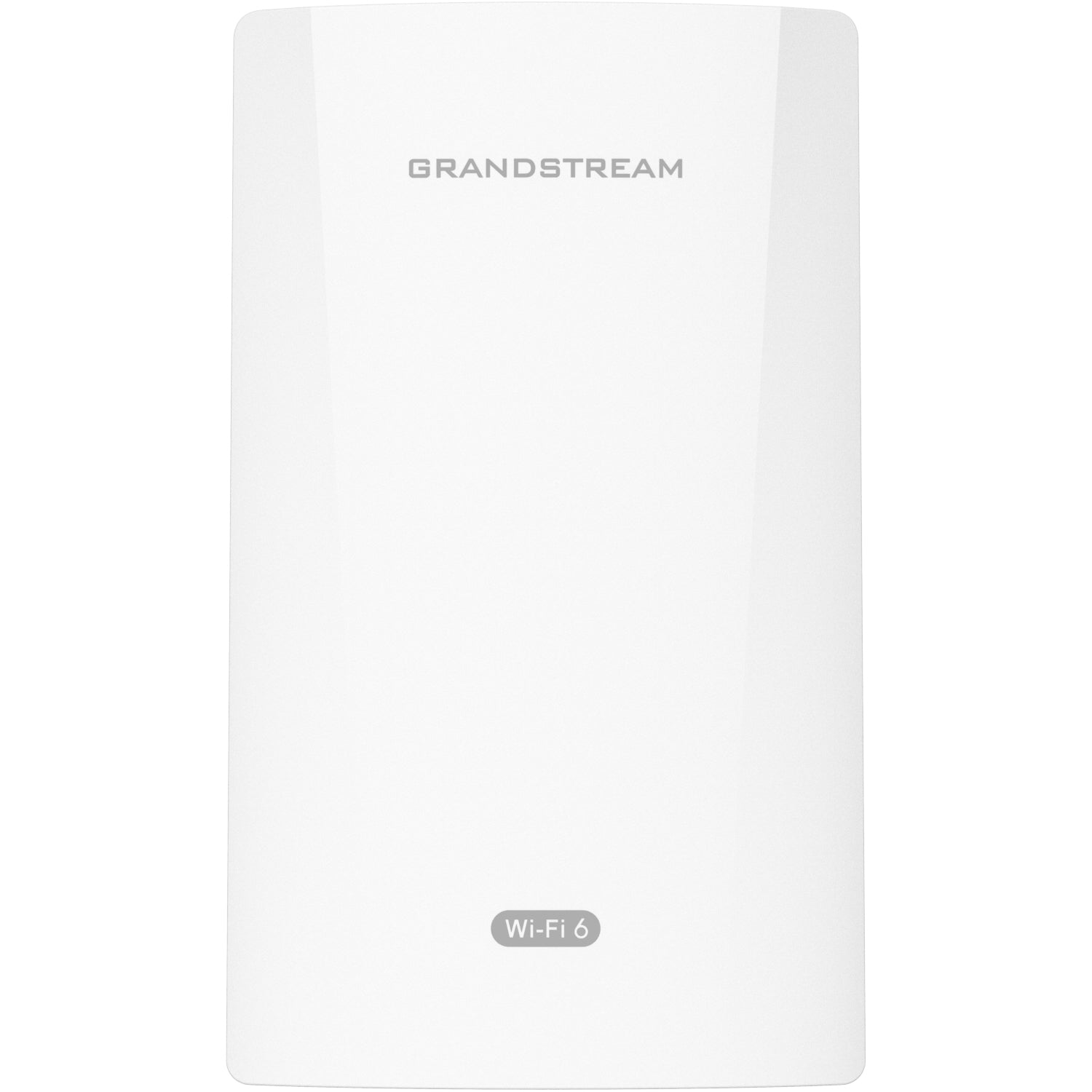

• GWN7302 PtP/PtMP Fixed Wireless Bridge
• Mounting Kits
• Quick Start Guide

Datasheet
