• 1.27Gbps aggregate wireless throughput and 2×Gigabit wireline ports
• Dual-band 2×2:2 MUMIMO with beam-forming technology

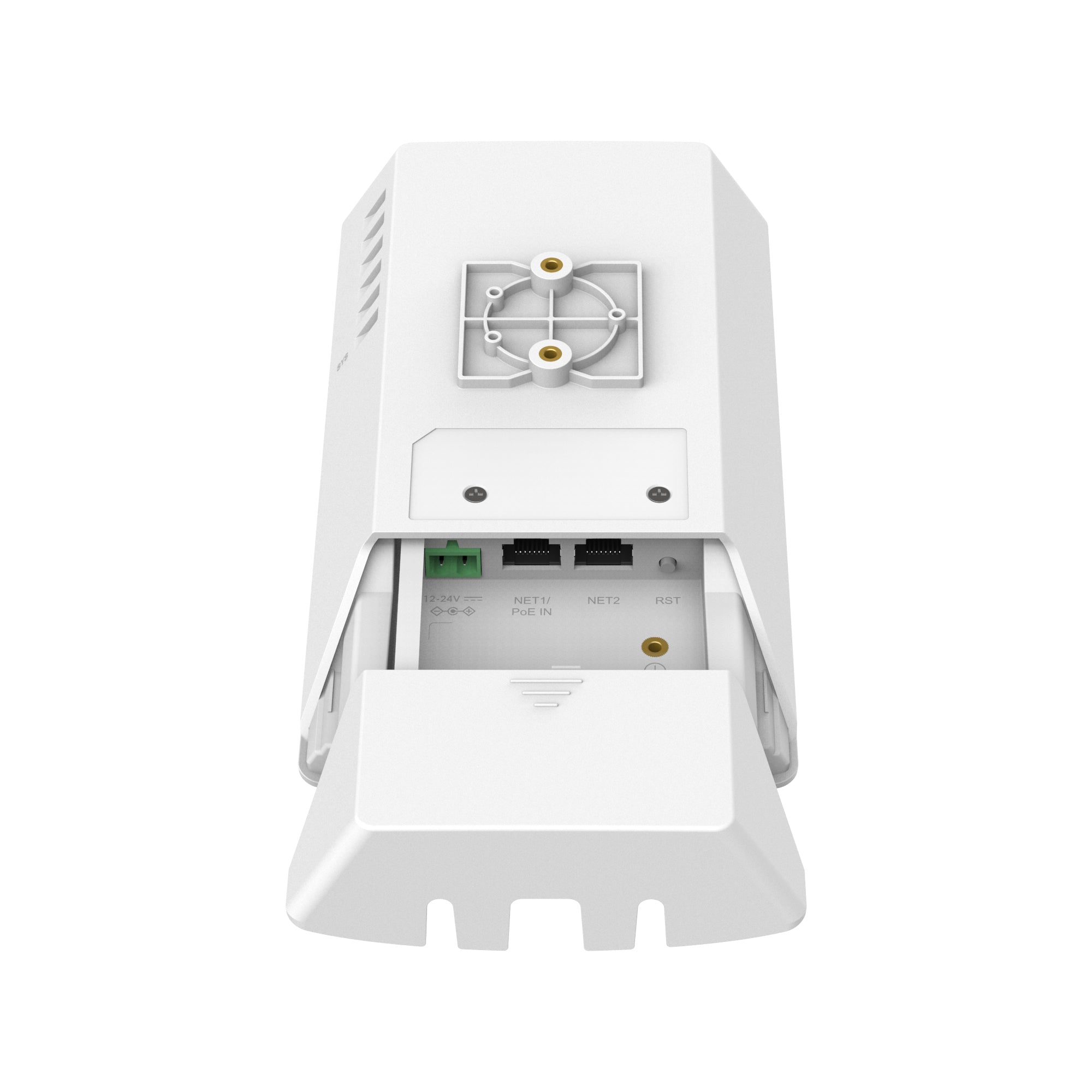

• Self power adaptation upon auto detection of PoE or PoE+, and connect the DC power supply through the Phoenix Connector
• Supports 100+ concurrent Wi-Fi client devices
• Up to 150-meter coverage range
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown
• Flexibilty of 2 internal antennas for different application scenarios
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

• Wi-Fi Standards: IEEE 802.11a/b/g/n/ac (Wave-2)
• Antennas: 2 dual band external antennas 2.4GHz, gain 4.0dBi 5 GHz, gain 4.0dBi
• Wi-Fi Data Rates: IEEE 802.11ac: 6.5 Mbps to 867 Mbps
• Frequency Bands: 2.4GHz Radio: 2400 – 2483.5 MHz 5 GHz Radio: 5150-5850 MHz *Not all frequency bands can be used in all regions.
• Channel Bandwidth: 2.4G: 20 and 40MHz 5G: 20, 40 and 80 MHz
• System Security: OSEN; WPA2-PSK (personal); WPA2-802.1x (enterprise); WPA3-SAE (personal); WPA3-802.1x (enterprise); WPA/WPA2, WPA2/WPA3; anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random
default password per device
• MIMO: 2×2:2 2.4GHz (MIMO) 2×2:2 5GHz (MU-MIMO))
• Coverage Range: Up to 150 meters *Coverage range can vary based on environment
• Maximum TX Power: 2.4G: 24 dBm 5G: 22dBm *Maximum power varies by country, frequency band, and MCS rate
• Receiver Sensitivity: 2.4G - 802.11b: -96dBm @1Mbps, -88dBm @11Mbps; 5G -802.11a: -92dBm @6Mbps, -74dBm @54Mbps
• SSIDs: 16 SSIDs total, 8 per radio (2.4 Ghz and 5 Ghz)
• Concurrent Clients: 100+

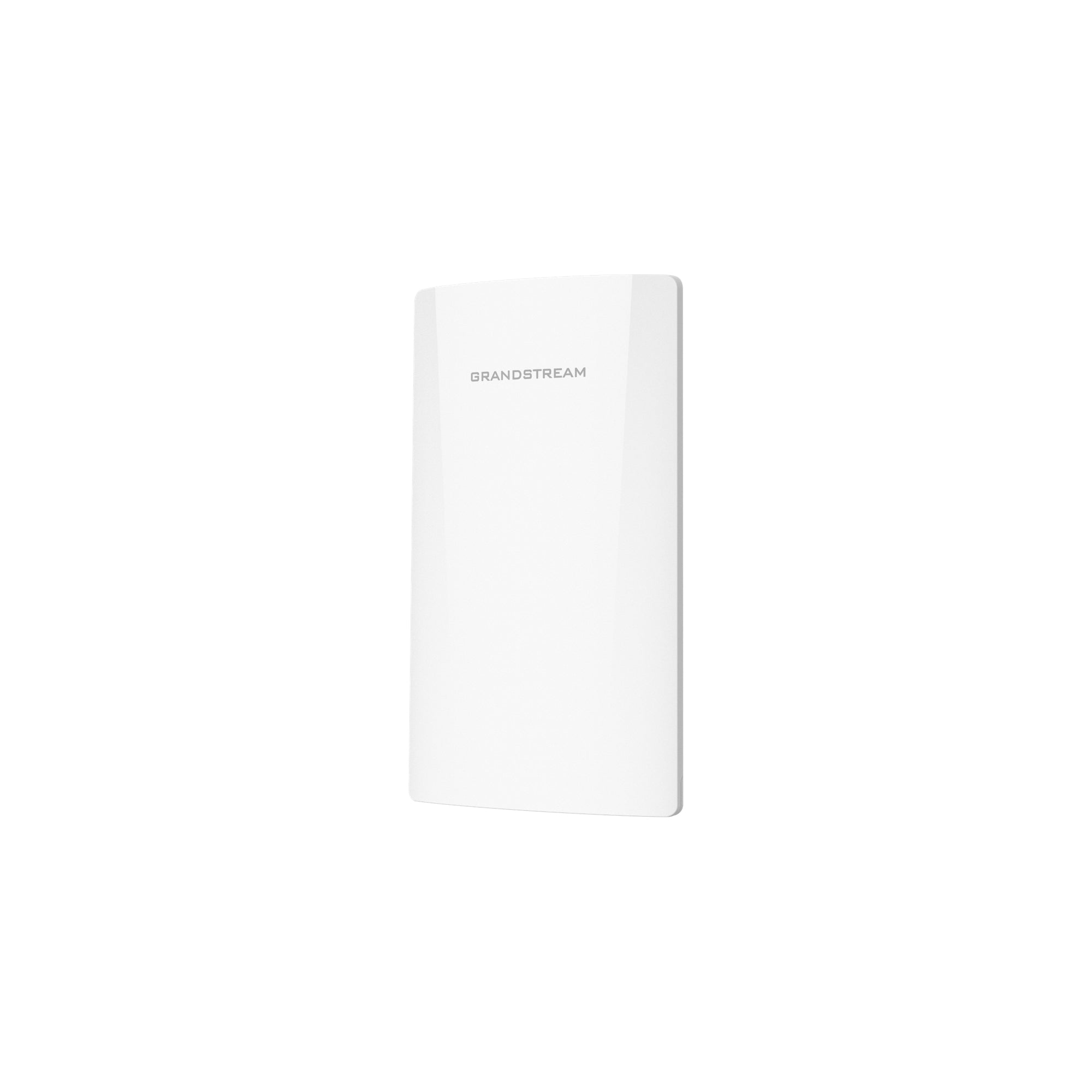

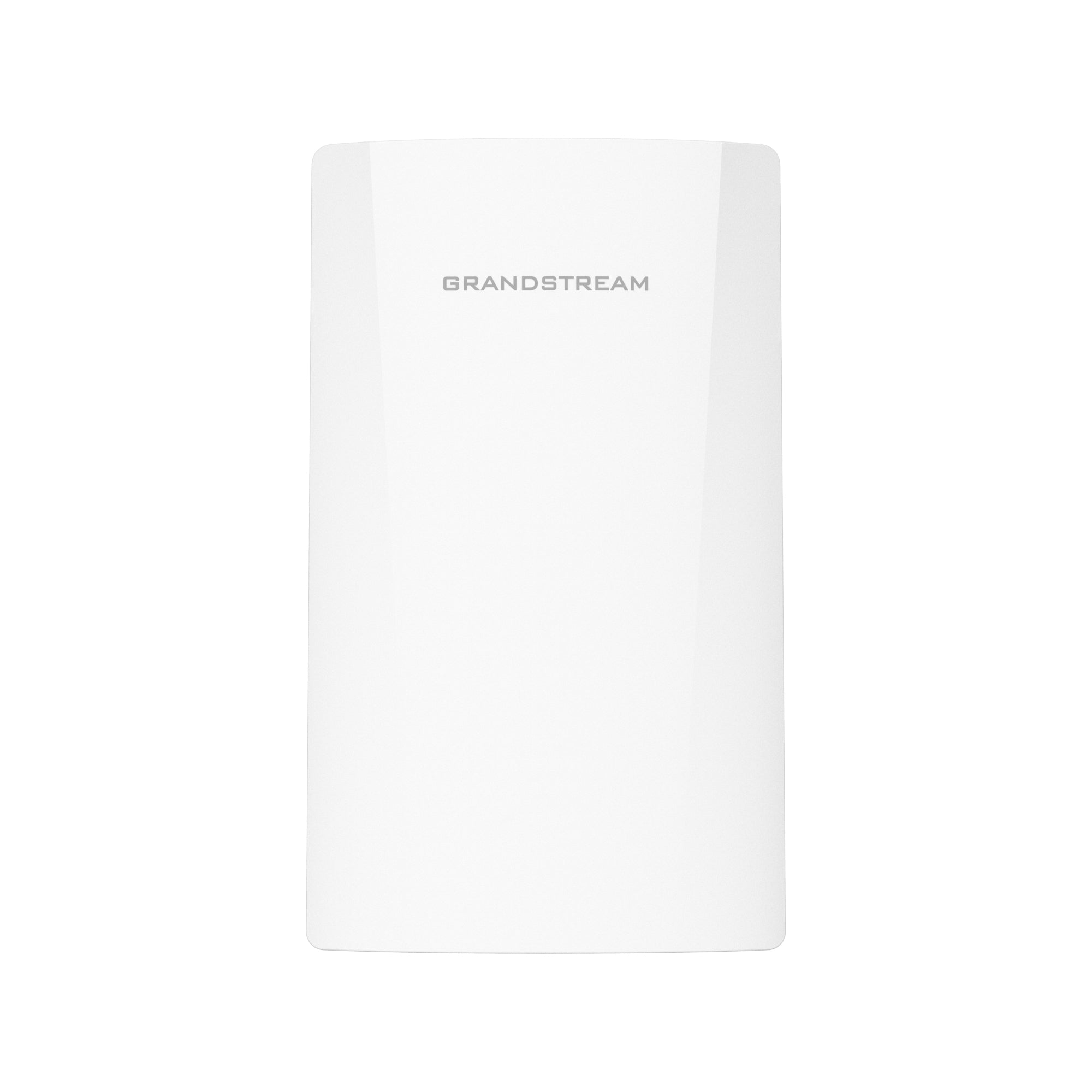

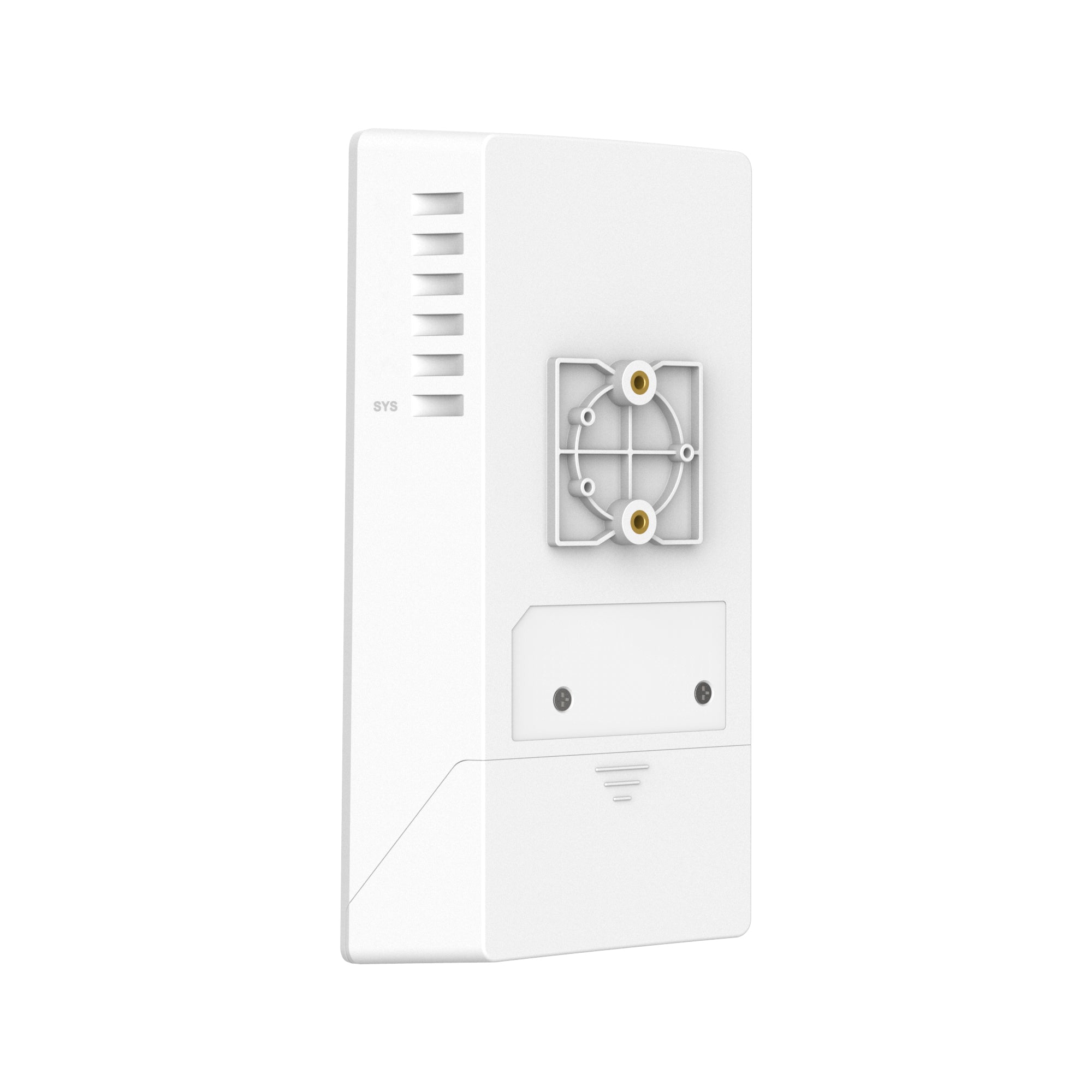

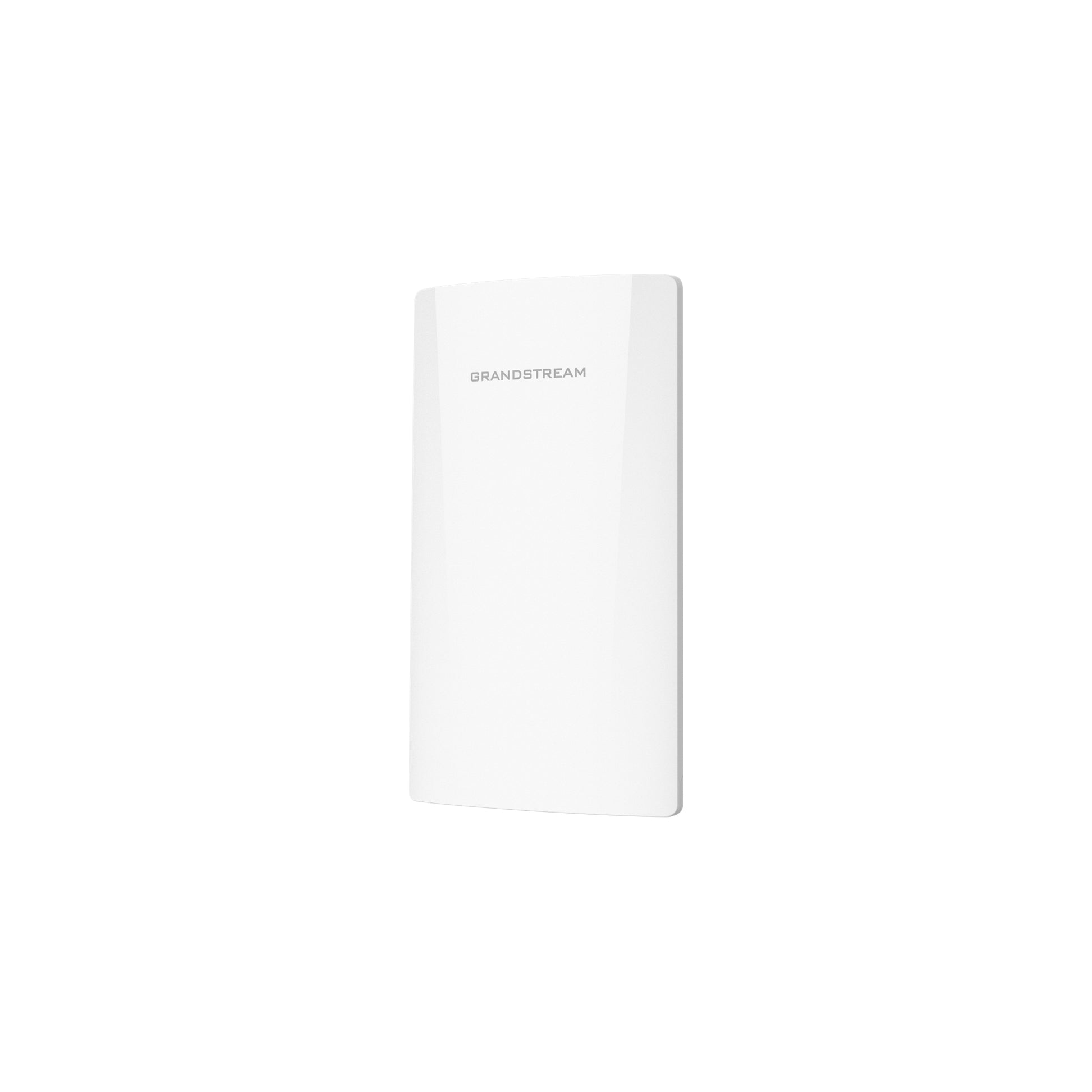

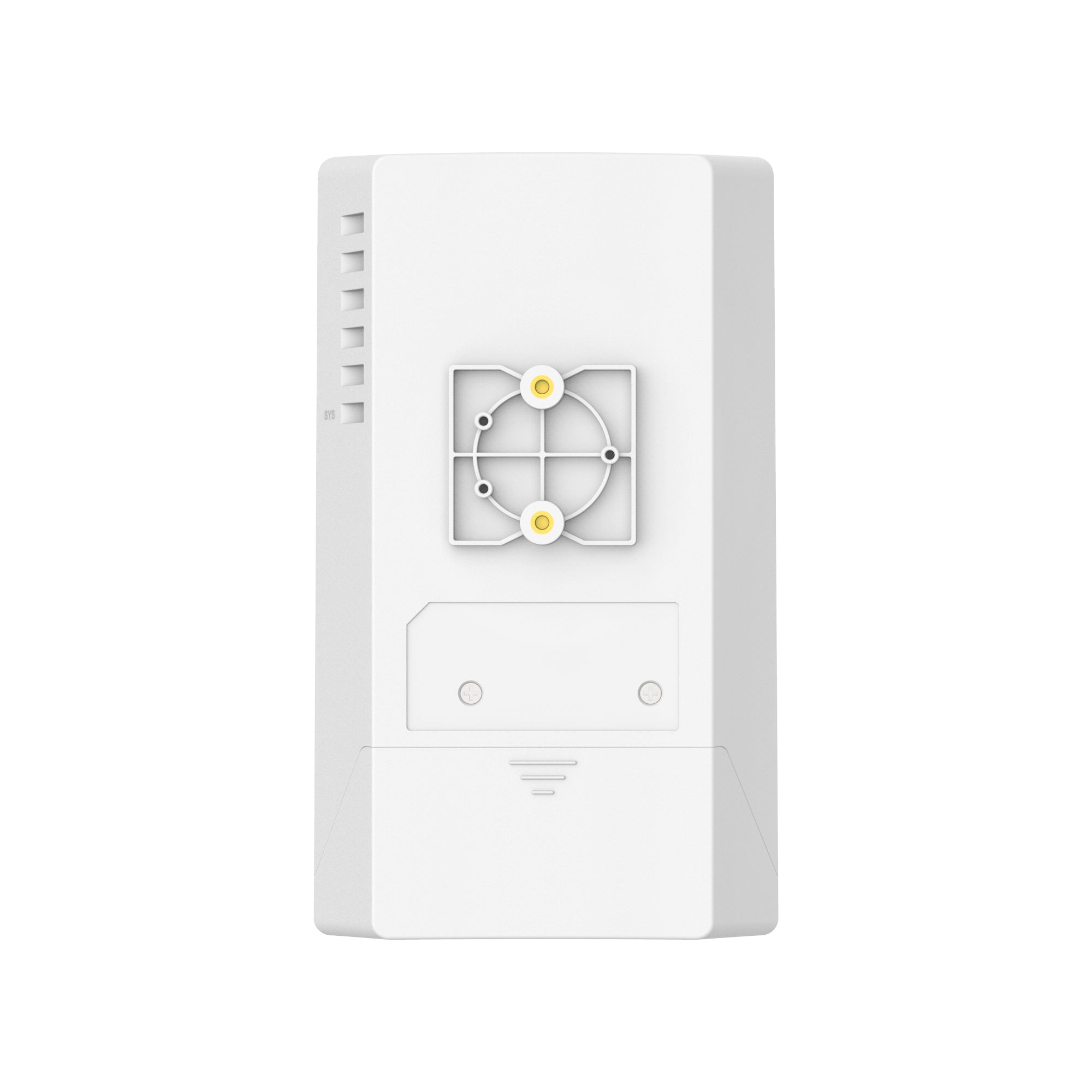

• 1 x Grandstream GWN7605CLR Outdoor Wi-Fi Access Point with Phoenix Connector
• Quick installation guides

Datasheet
