•Ideal Wi-Fi AP for voice-over Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones.

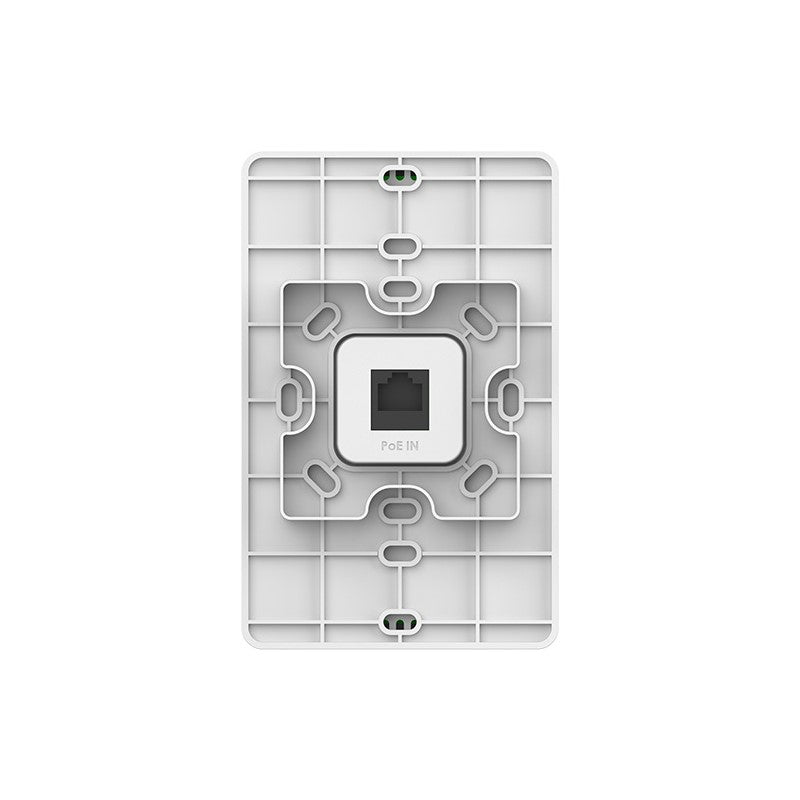

•Designed to be mounted in-wall to provide a clean and professional installation that blends into the surrounding environment
•2.03 Gbps wireless throughput and 4x Gigabit wireline ports
•Supports up to 200 concurrent Wi-Fi client devices
•Advanced QoS to ensure real-time performance of low-latency applications
•Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
•Self power adaptation upon auto detection of PoE or PoE+
•Embedded controller manages up to 30 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

•Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac (Wave-2)
•Antennas: 2.4GHz - gain 3dBi; 5GHz - gain 5dBi (2 x 5G & 2 x dual band internal antennas)
•Frequency Bands: 2.4 GHz Radio @ 2412 - 2484 MHz; 5 GHz Radio @ 5180 - 5825 MHz
•Channel Bandwidth: 2.4G - 20 and 40MHz; 5G - 20, 40, 80MHz
•Wi-Fi and System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
•MIMO: 2×2:2 2.4GHz(MIMO); 4×4:4 5GHz(MU-MIMO)
•Coverage Range: Up to 100 meters
•Maximum TX Power: 2.4G - 23dBm; 5G - 25dBm
•Concurrent Clients: Up to 200
•Network Interfaces: 1 x 10/100/1000M uplink Ethernet port with PoE/PoE+; 2 x 10/100/1000M Ethernet port with PSE; 1 x 10/100/1000M Ethernet port
•Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
•QoS: 802.11e/WMM, VLAN, TOS

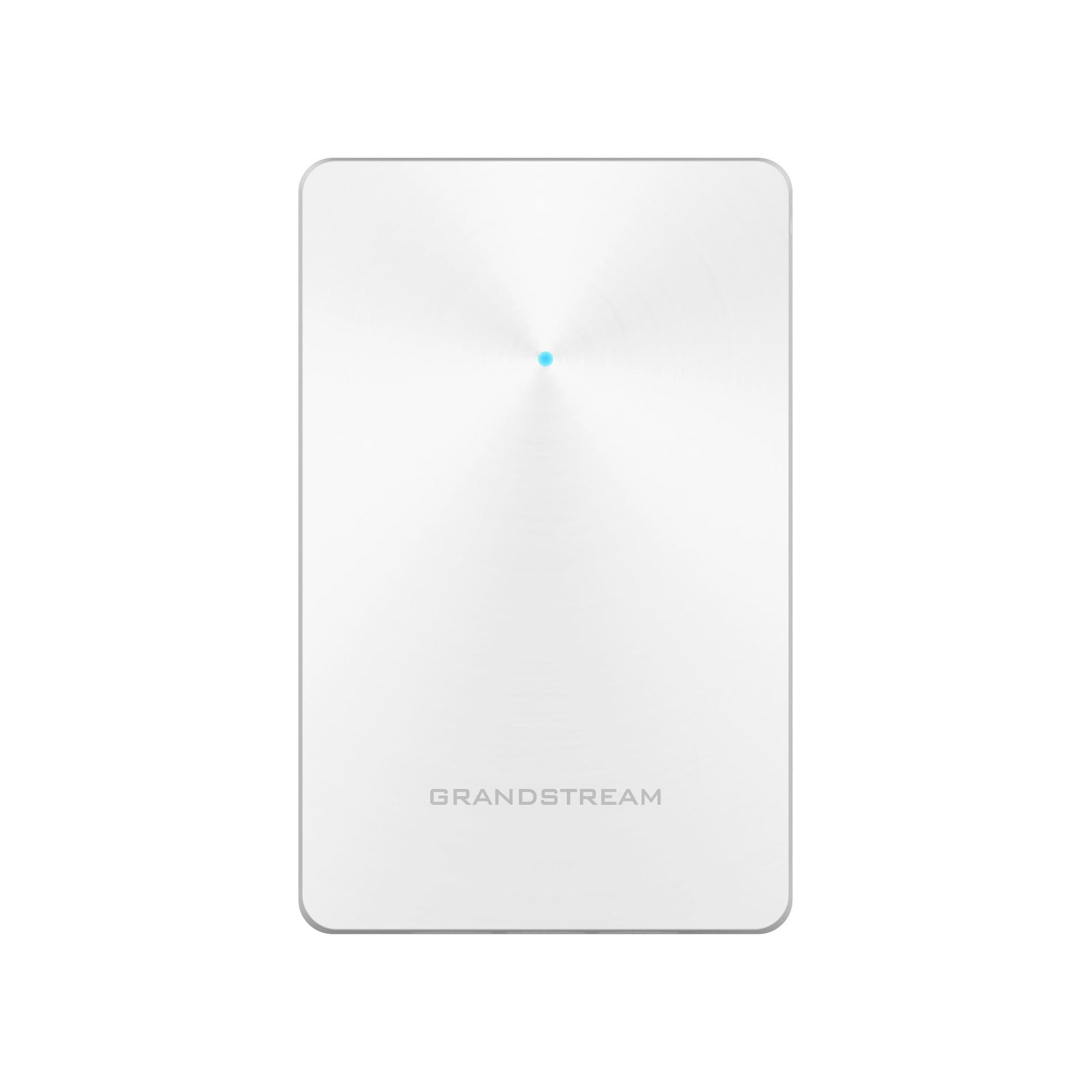

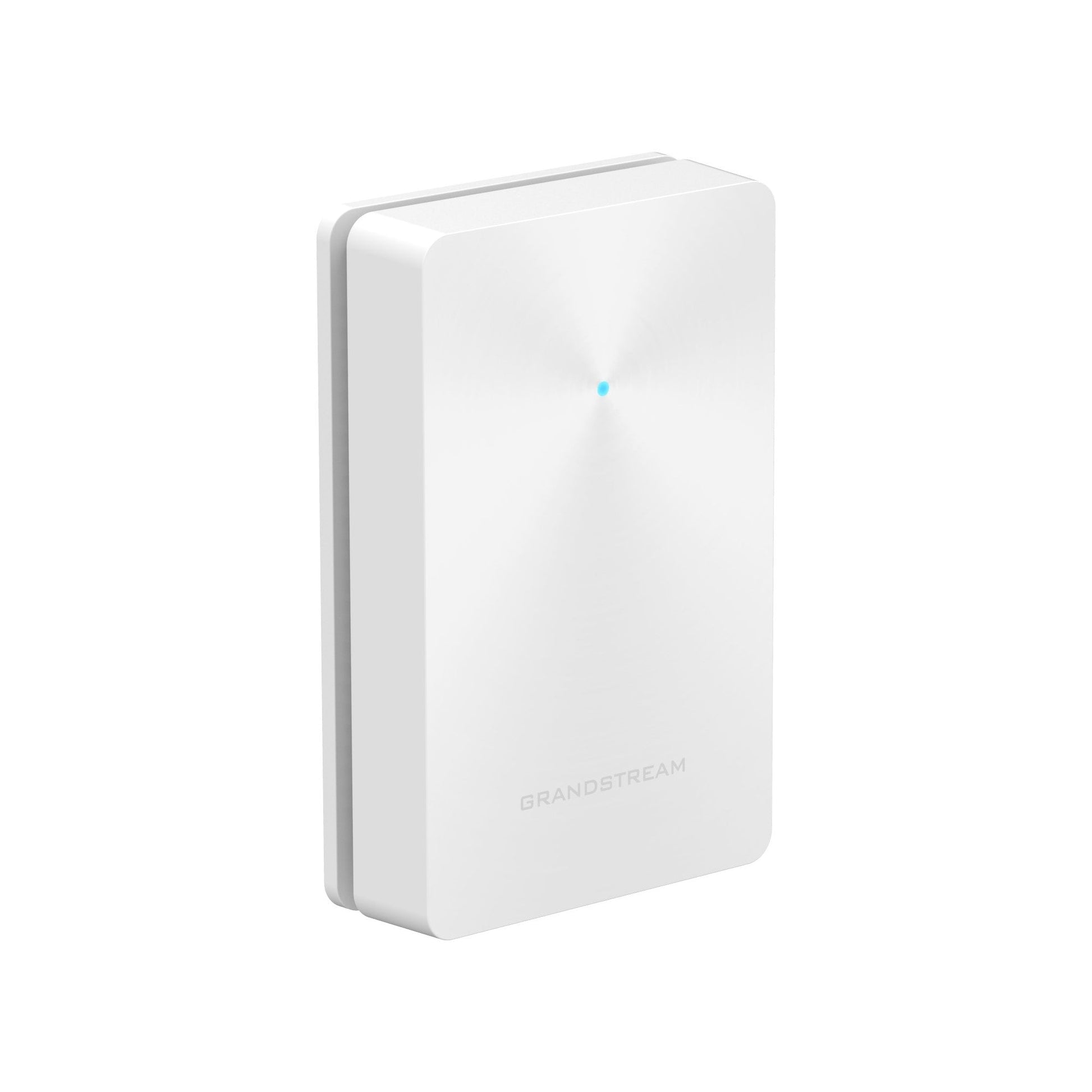

•1 x GWN7624 In-Wall Wireless AP
•4 x Screws
•Quick Installation Guide
