•Ideal Wi-Fi AP for voice-over Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones
•1.77Gbps aggregate wireless throughput and 2 x Gigabit Ethernet ports
•Dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology
•Up to 175-meter coverage range
•Supports 500+ concurrent Wi-Fi client devices
•Advanced QoS to ensure real-time performance of low-latency applications
•Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
•Self power adaptation upon auto detection of PoE or PoE+
•Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

•Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax
•Antennas: 2.4GHz - gain 3dBi; 5GHz - gain 4dBi (2 x dual band internal antennas)
•Frequency Bands: 2.4 GHz Radio @ 2400-2483.5 MHz; 5 GHz Radio @ 5150-5850 MHz
•Channel Bandwidth: 2.4G - 20 and 40MHz; 5G - 20, 40, 80MHz
•Wi-Fi and System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
•MIMO: 2×2:2 2.4GHz(MIMO); 2×2:2 5GHz(MU-MIMO)
•Coverage Range: Up to 175 meters
•Maximum TX Power: 2.4G - 24dBm; 5G - 22dBm
•Concurrent Clients: 500+

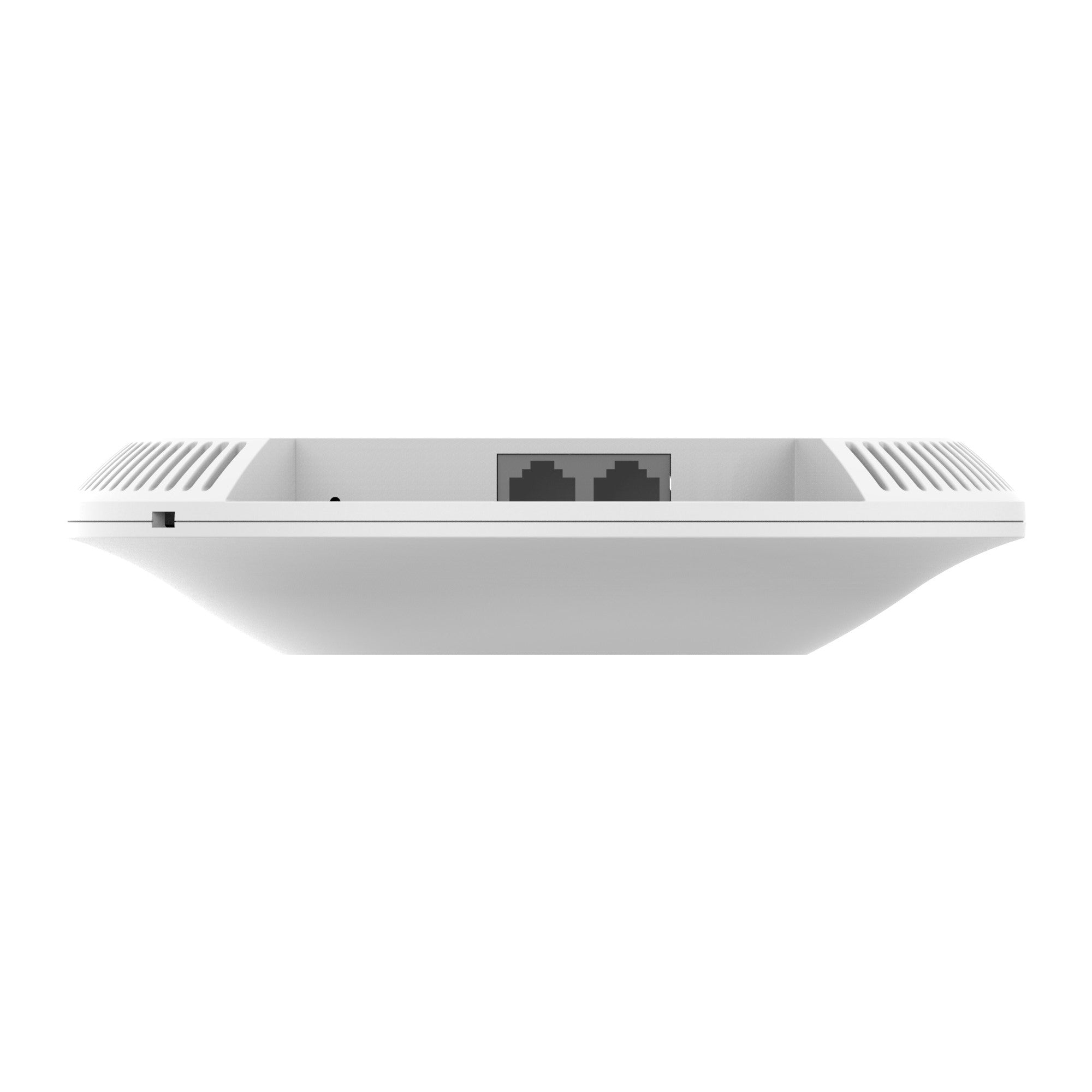

•Network Interfaces: 2 x autosensing 10/100/1000 Base-T Ethernet Ports
•Network Protocols: IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
•Operating Environment: 0°C to 45°C (10% to 90% non-condensing)

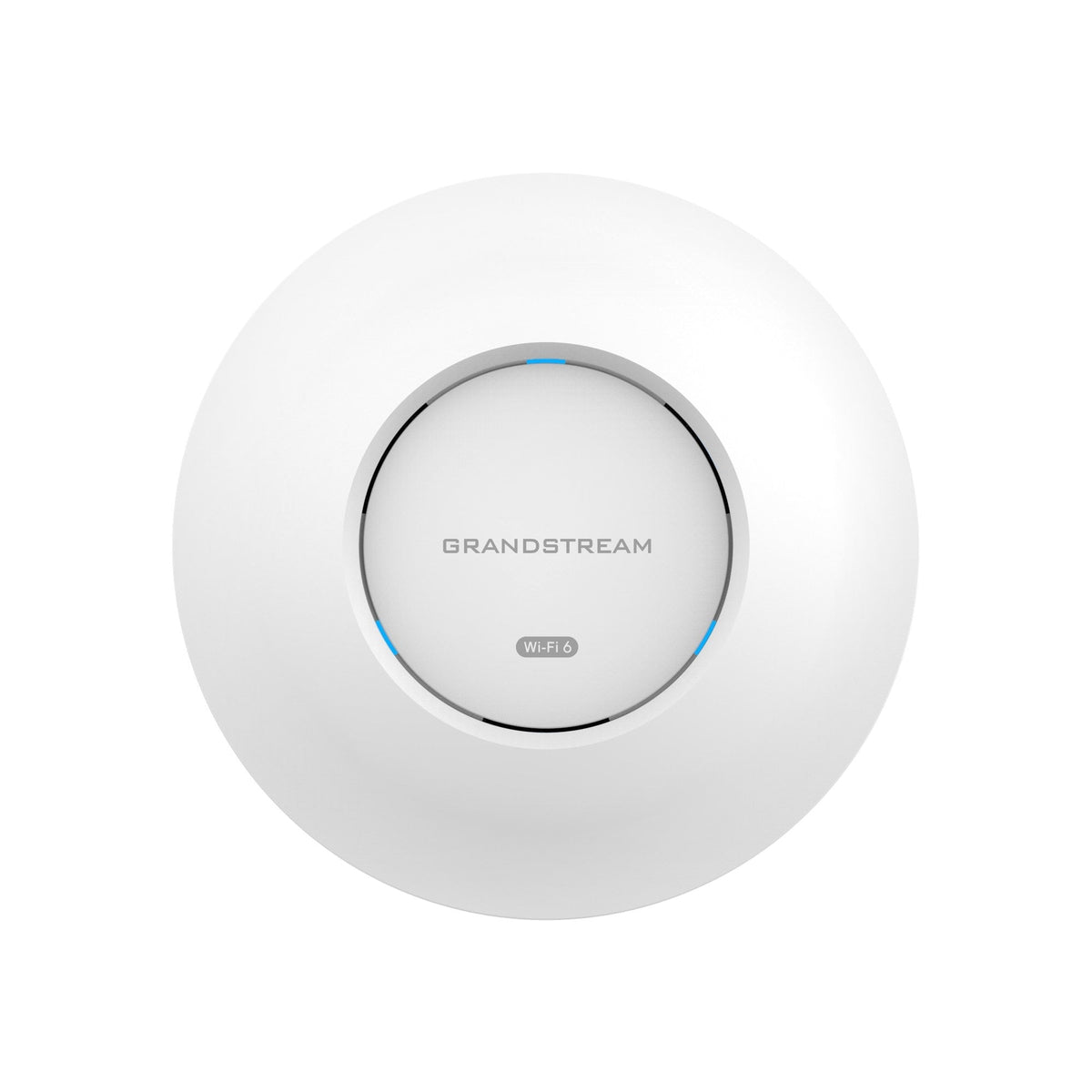

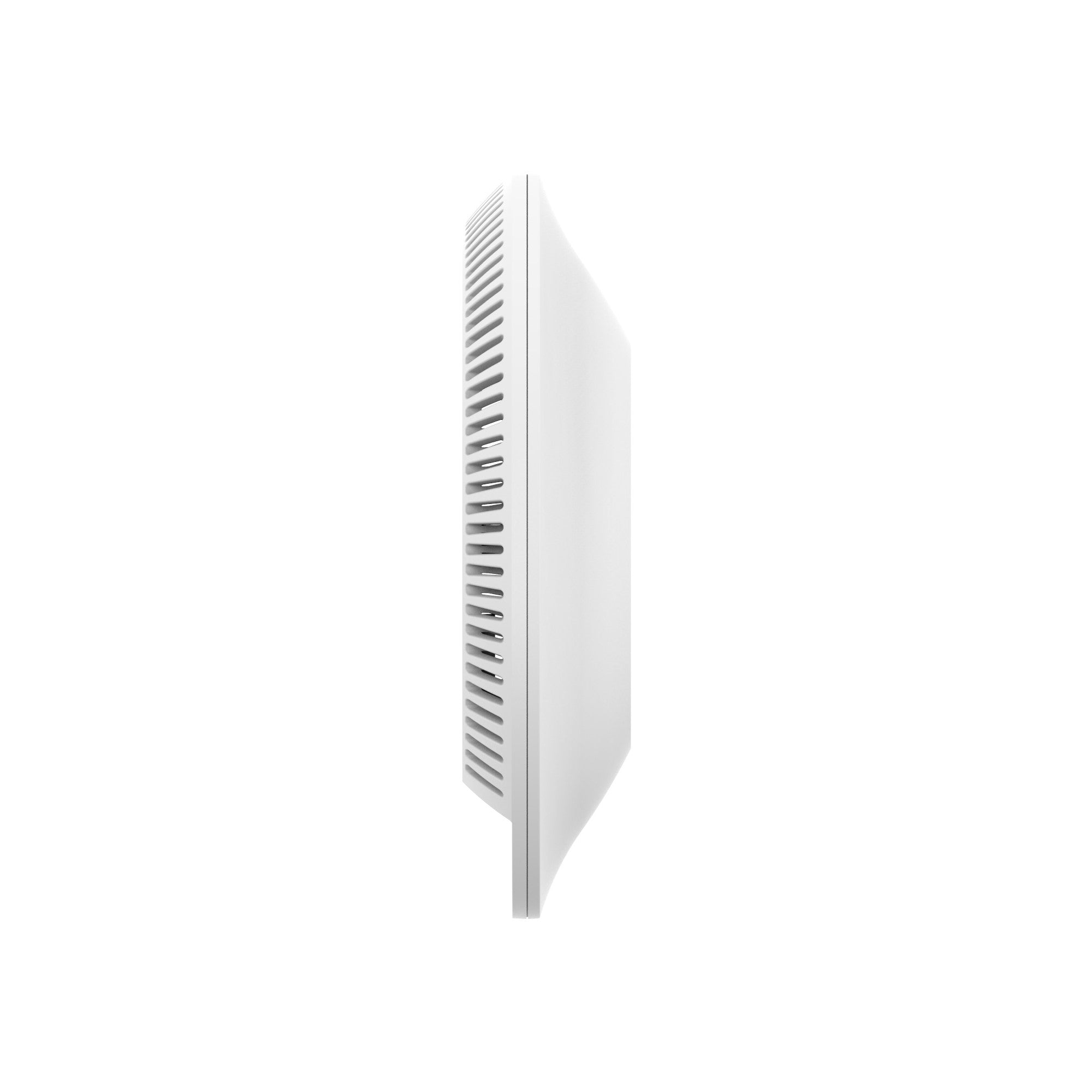

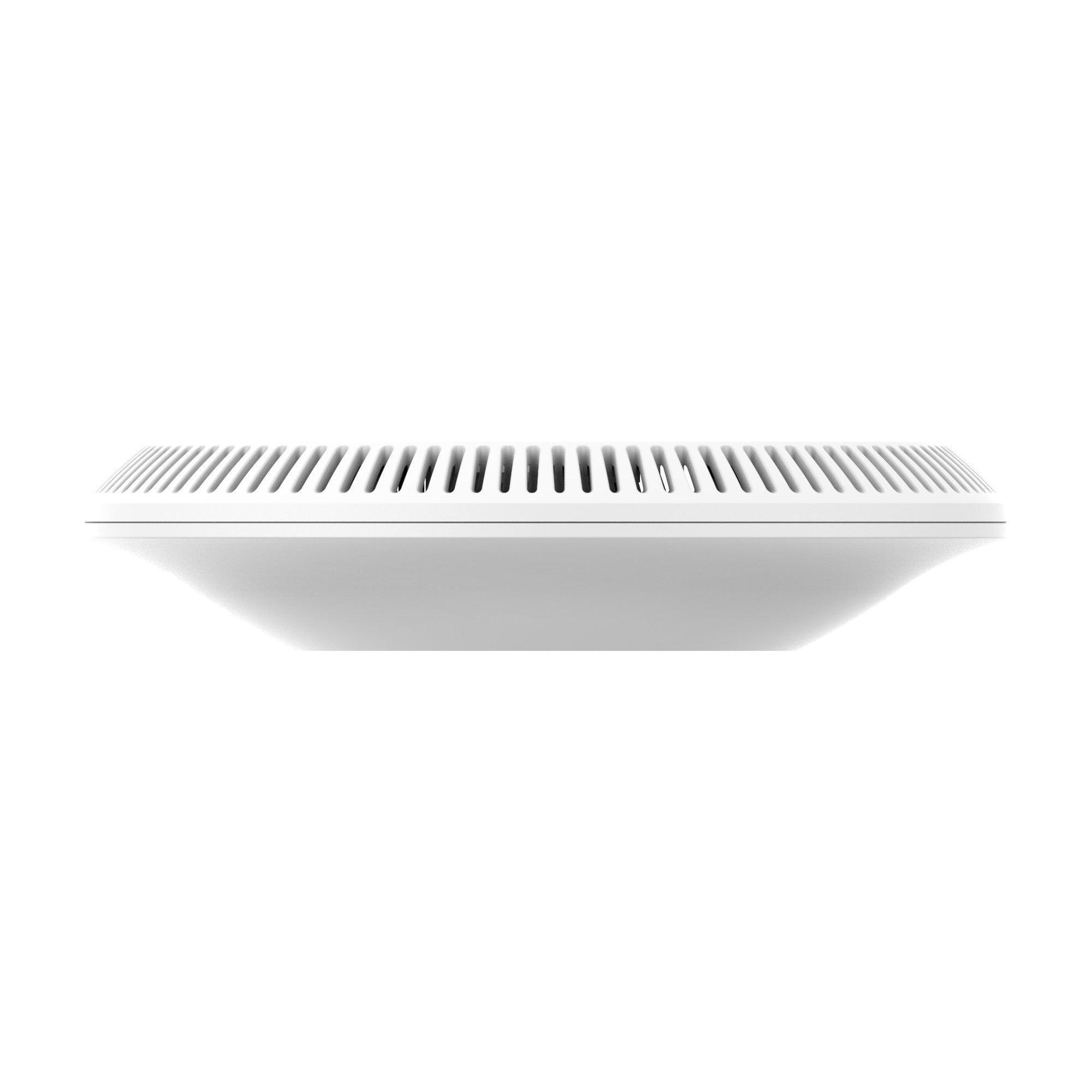

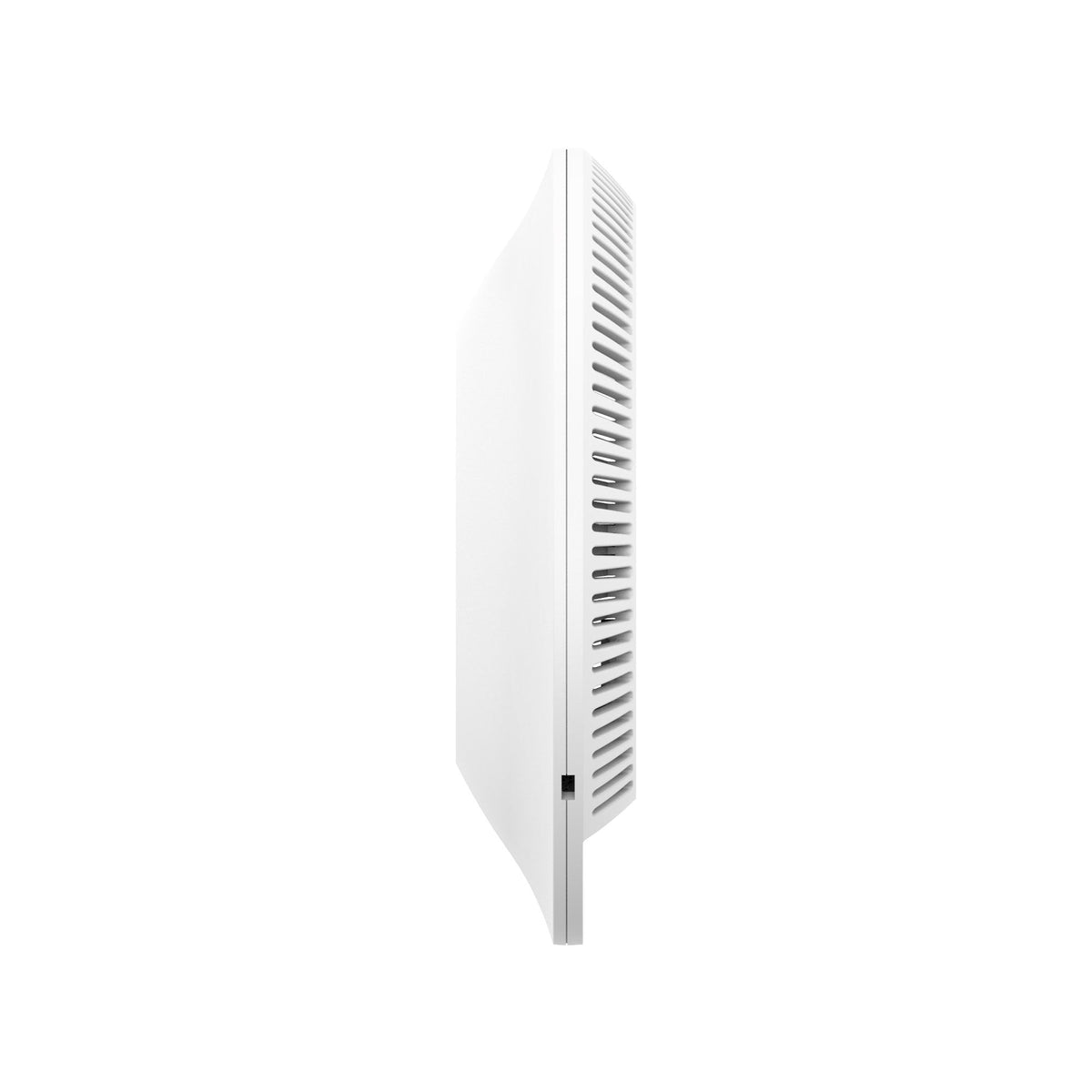

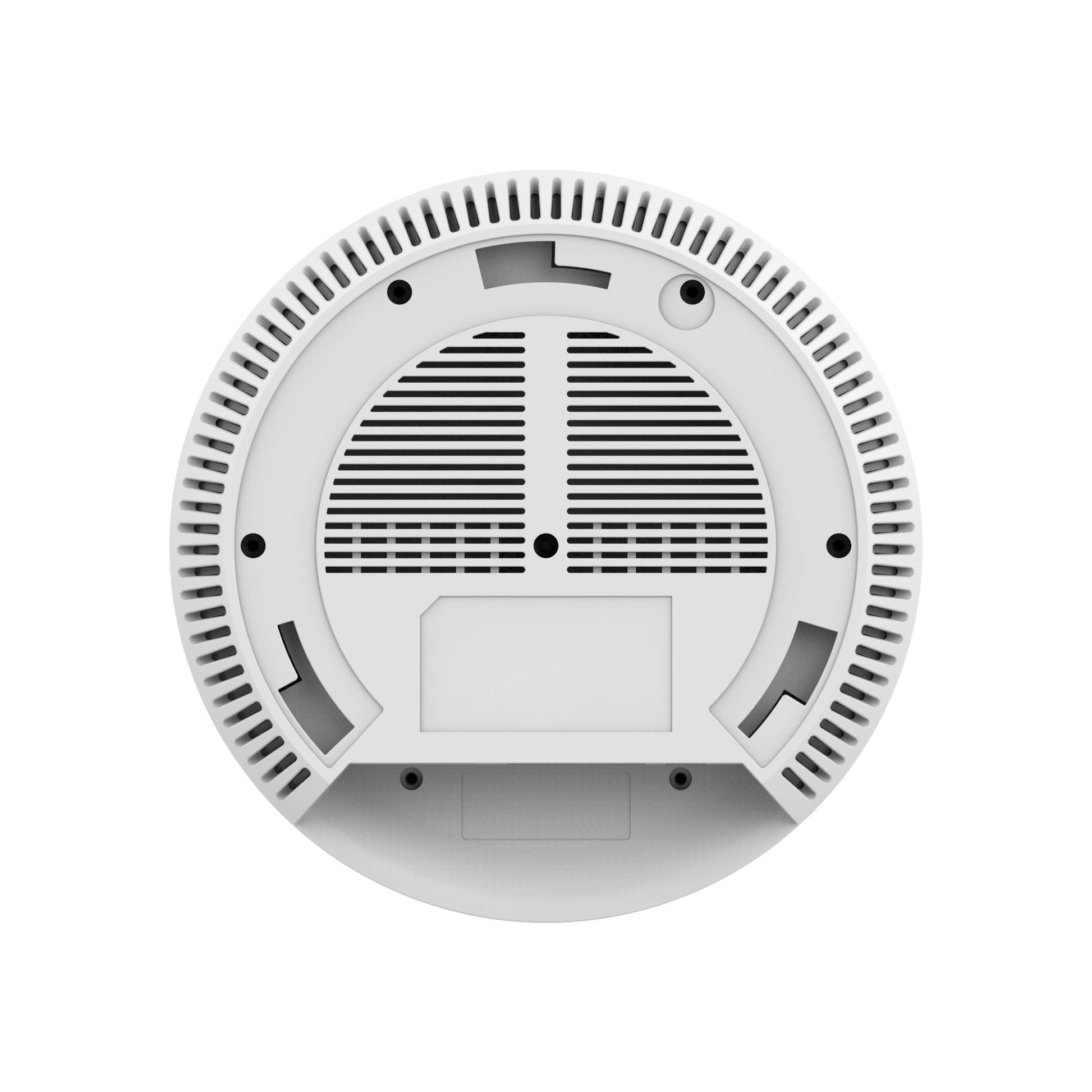

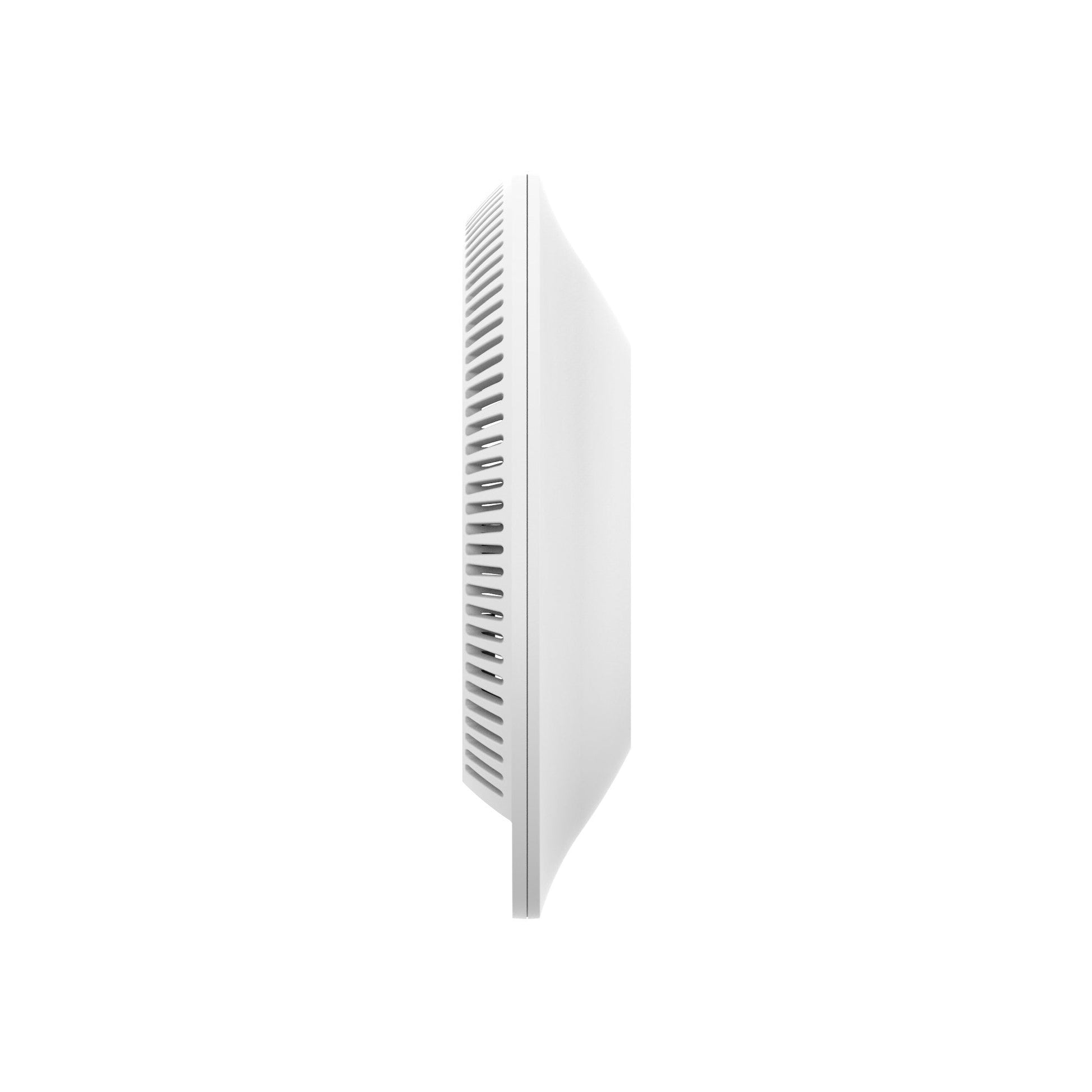

•1 x GWN7660 802.11ax Wireless AP
•1 x Indoor Wall Mount Kit
•1 x Indoor Ceiling Mount Kit
•Quick Start Guide
