•Ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi voice and video IP phones
•IP67 weatherproofing and a wide operating temperature range ensures the access point can operate properly in difficult weather conditions
•3 Gbps aggregate wireless throughput, 3.5 Gbps aggregate wired throughput
•Dual-band 2x2:2 MU- MIMO with XTRA Range technology
•Self power adaptation upon auto detection of PoE/PoE+
•Supports 256 concurrent Wi-Fi client devices
•Up to 300-meter coverage range
•Advanced QoS to ensure real-time performance of low-latency applications
•Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
•Flexibility of 5 internal antennas
•Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management
•IP67-level weatherproof capability when installed vertically

•Wi-Fi Standards: IEEE 802.11 b/g/n/ac/ax
•Antennas: 2 x 2.4GHz - gain 5.5 dBi; 2 x 5GHz - gain 6.0 dBi; 1 x BT - gain 4.5 dBi
•Frequency Bands: 2.4 GHz Radio @ 2412-2484 MHz; 5 GHz Radio @ 5180-5825 MHz
•Channel Bandwidth: 2.4G - 20 and 40 MHz; 5G - 20, 40, 80 and 160 MHz
•Wi-Fi and System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
•MIMO: 2x2:2 2.4GHz; 2x2:2 5GHz
•Coverage Range: Up to 300 meters
•Maximum TX Power: 2.4G - 27dBm; 5G - 26dBm
•Concurrent Clients: 256

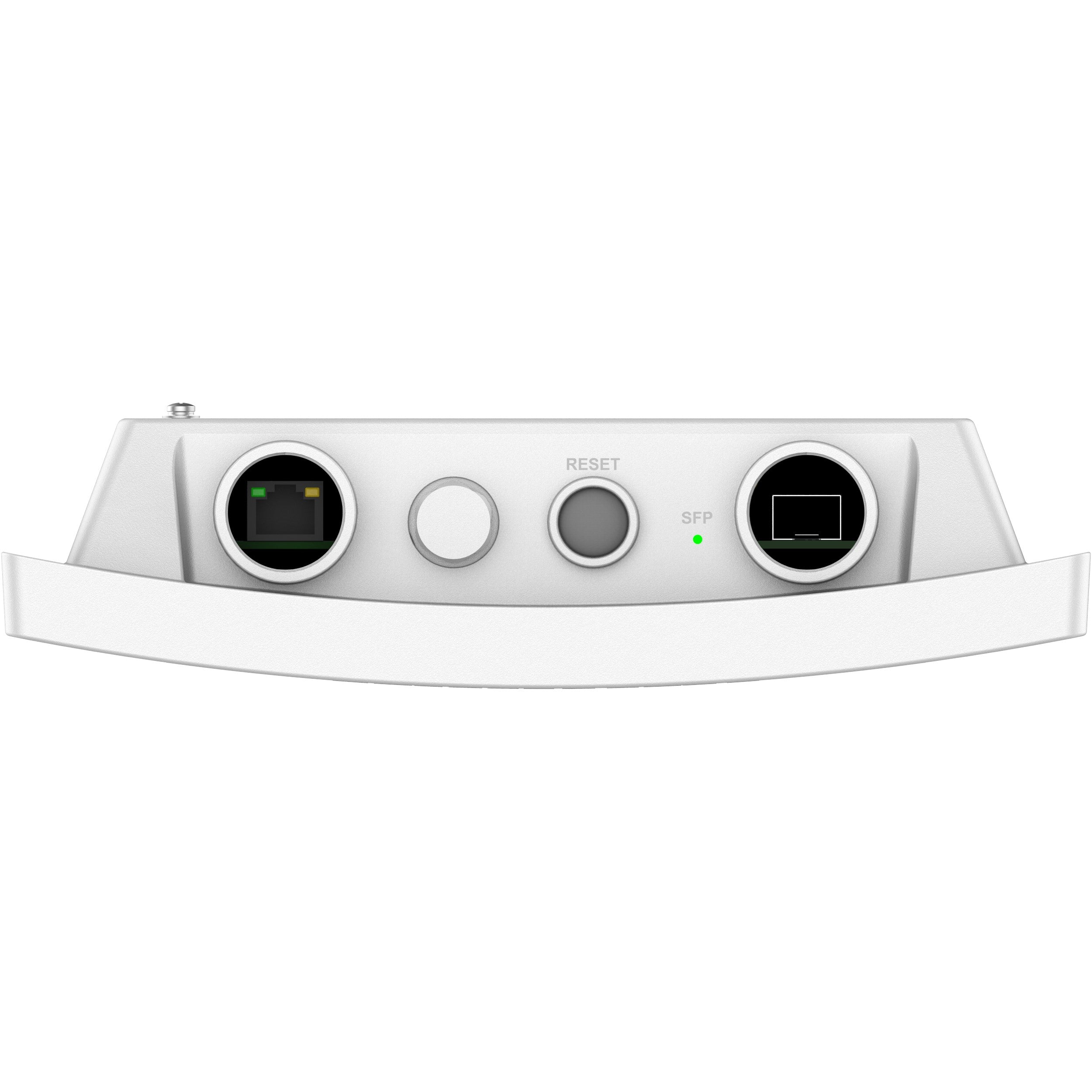

•Network Interfaces: 1 x 1G Port and 1 x 2.5G SFP Port
•Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
•Operating Environment: -30°C to 60°C (5% to 95% non-condensing)

•1 x GWN7660ELR Wireless AP

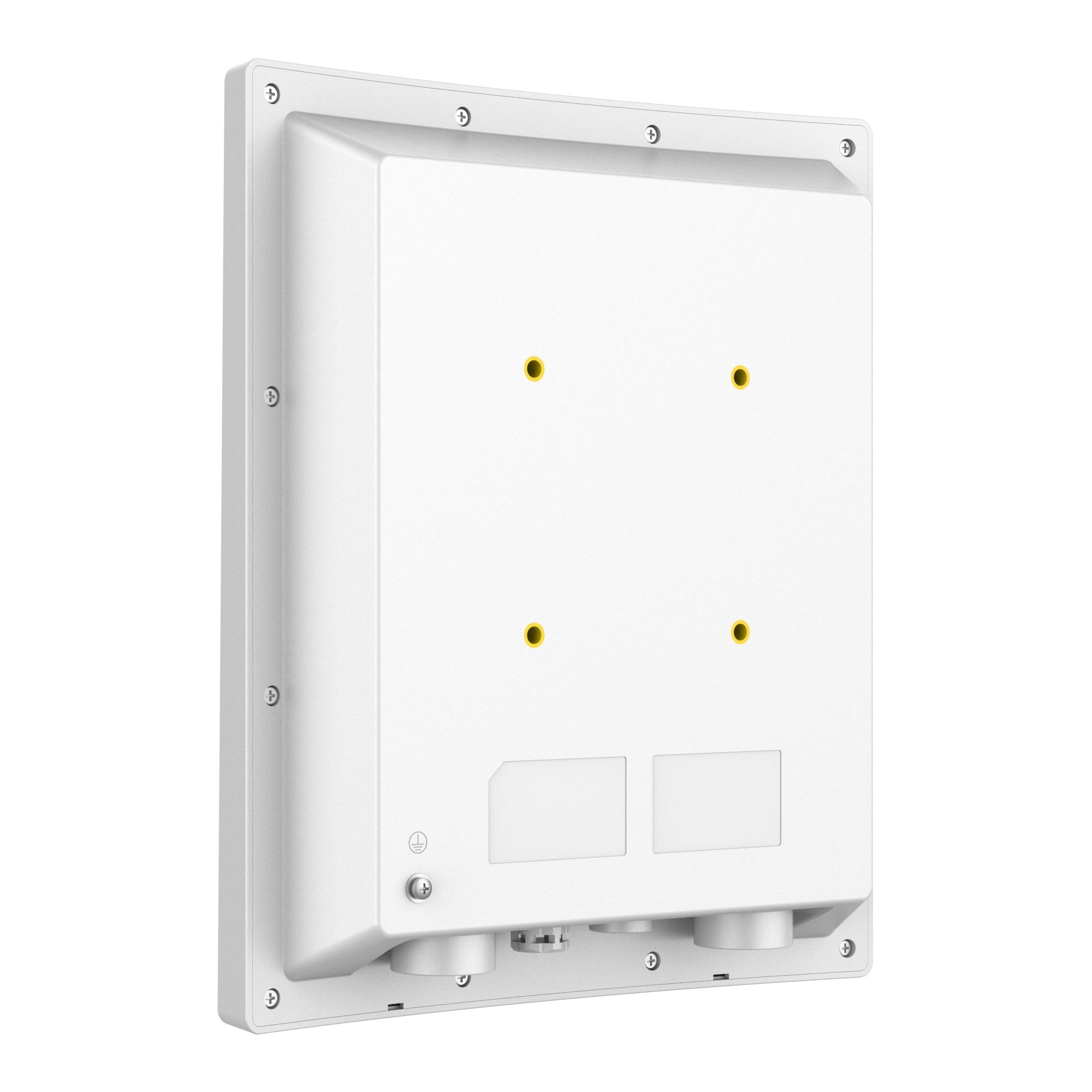

•1 x Outdoor Wall Mount Kit
•1 x Outdoor Pole Mount Kit
•Quick Start Guide
