• 3Gbps aggregate wireless throughput and 1Gigabit wireline port
• Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
• Up to 120-meter coverage range
• Supports 128 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Supports Mesh networking with the GWN7062E/ET series, future Grandstream Routers, and other GWN series access points to provide easy network expansion
• Embedded controller can manage up to 10 local GWN series APs; GDMS Networking offers unlimited AP management; GWN Manager offers premisebased software

• Antenna: 1 single frequency antenna and 2 dual frequency antennas 2.4GHz x 2, maximum gain 2.5 dBi 5GHz x 3, maximum gain 2.5 dBi
• MIMO: 2.4GHz: 2x2:2, MU-MIMO 5GHz: 3x3:2, MU-MIMO
• Frequency Bands: 2.4GHz Radio: 2400 - 2483.5 MHz 5GHz Radio: 5150 - 5895 MHz *Not all frequency bands can be used in all regions
• Channel Bandwidth: 2.4G: 20 and 40 MHz 5G: 20, 40, 80 and 160 MHz
• Wi-Fi Data Rates: 2.4G IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps IEEE 802.11n: 6.5 Mbps to 300 Mbps IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps IEEE 802.11b: 1, 2, 5.5, 11 Mbps 5G IEEE 802.11ax: 7.3 Mbps to 2402 Mbps IEEE 802.11ac: 6.5 Mbps to 867 Mbps IEEE 802.11n: 6.5 Mbps to 600 Mbps IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• Maximum TX Power: 2.4G: 26 dBm; 5G: 24 dBm
• Receiver Sensitivity: 2.4G 802.11b: -96 dBm @1 Mbps, -88 dBm @11 Mbps; 802.11g: -93 dBm @6 Mbps, -75 dBm @54 Mbps; 802.11n 20 MHz: -73 dBm @MCS7; 802.11n 40 MHz: -70 dBm @MCS7; 802.11ax 20 MHz: -60 dBm @MCS11; 802.11ax 40 MHz: -58 dBm @MCS11; 5G 802.11a: -92 dBm @6 Mbps, -74 dBm @54 Mbps; 802.11n 20 MHz: -73 dBm @MCS7; 802.11n 40 MHz: -70 dBm @MCS7; 802.11ac 20 MHz: -67 dBm @MCS8; 802.11ac 40 MHz: -63 dBm @MCS9; 802.11ac 80 MHz: -59 dBm @MCS9; 802.11ax 20 MHz: -60 dBm @MCS11; 802.11ax 40 MHz: -58 dBm @MCS11; 802.11ax 80 MHz: -56 dBm @MCS11; 802.11ax 160 MHz: -52 dBm@ MCS11;
• Coverage Range: Up to 120 meters
• Network Ports: 1x autosensing 10/100/1000 Base-T Ethernet Port
• LEDs: 1 tri-color LED for device tracking and status indication
• AC: 110-240V~50/60Hz 0.4A
• Maximum Power Consumption: 12W

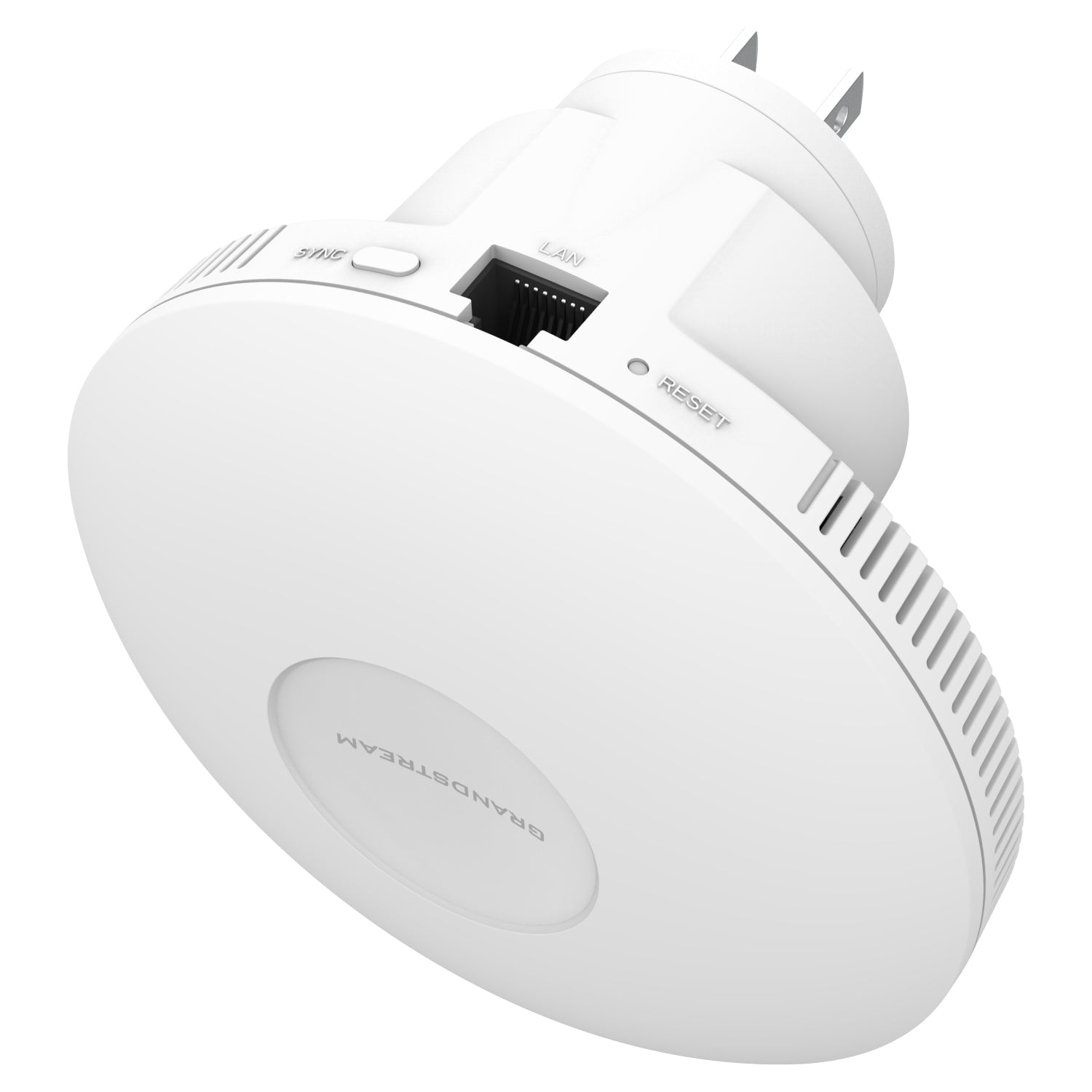

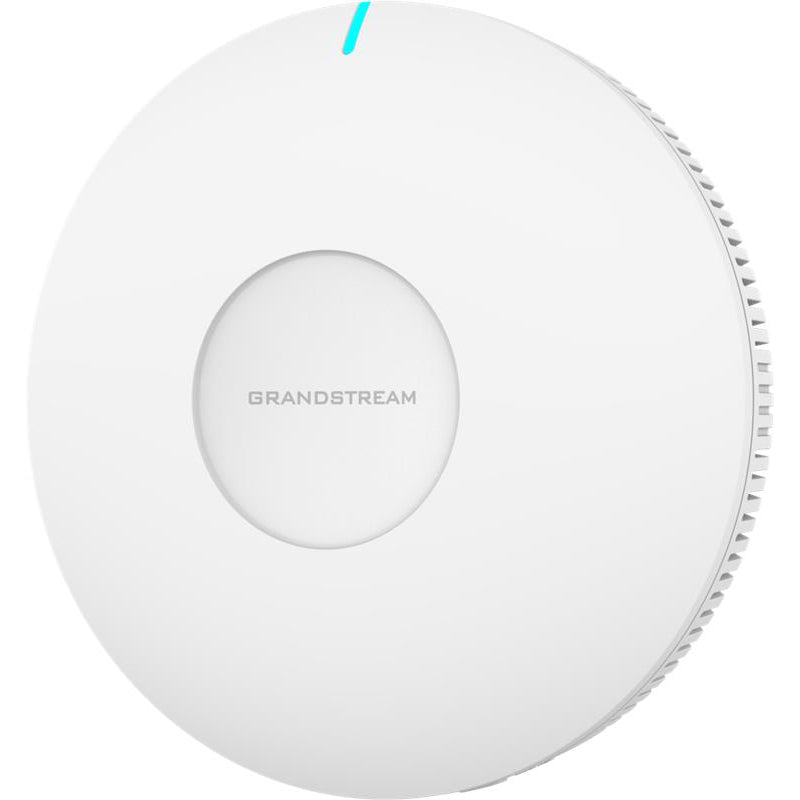

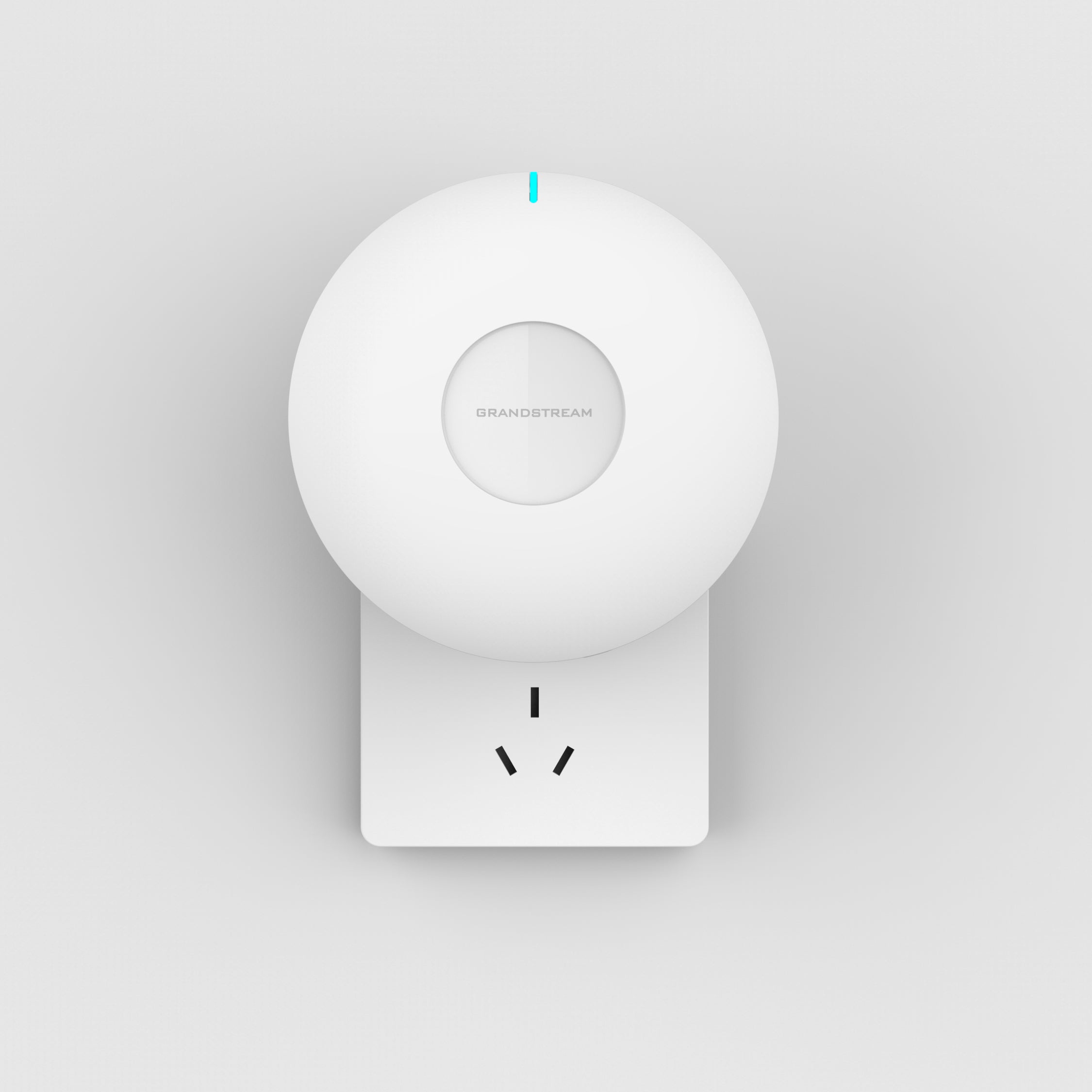

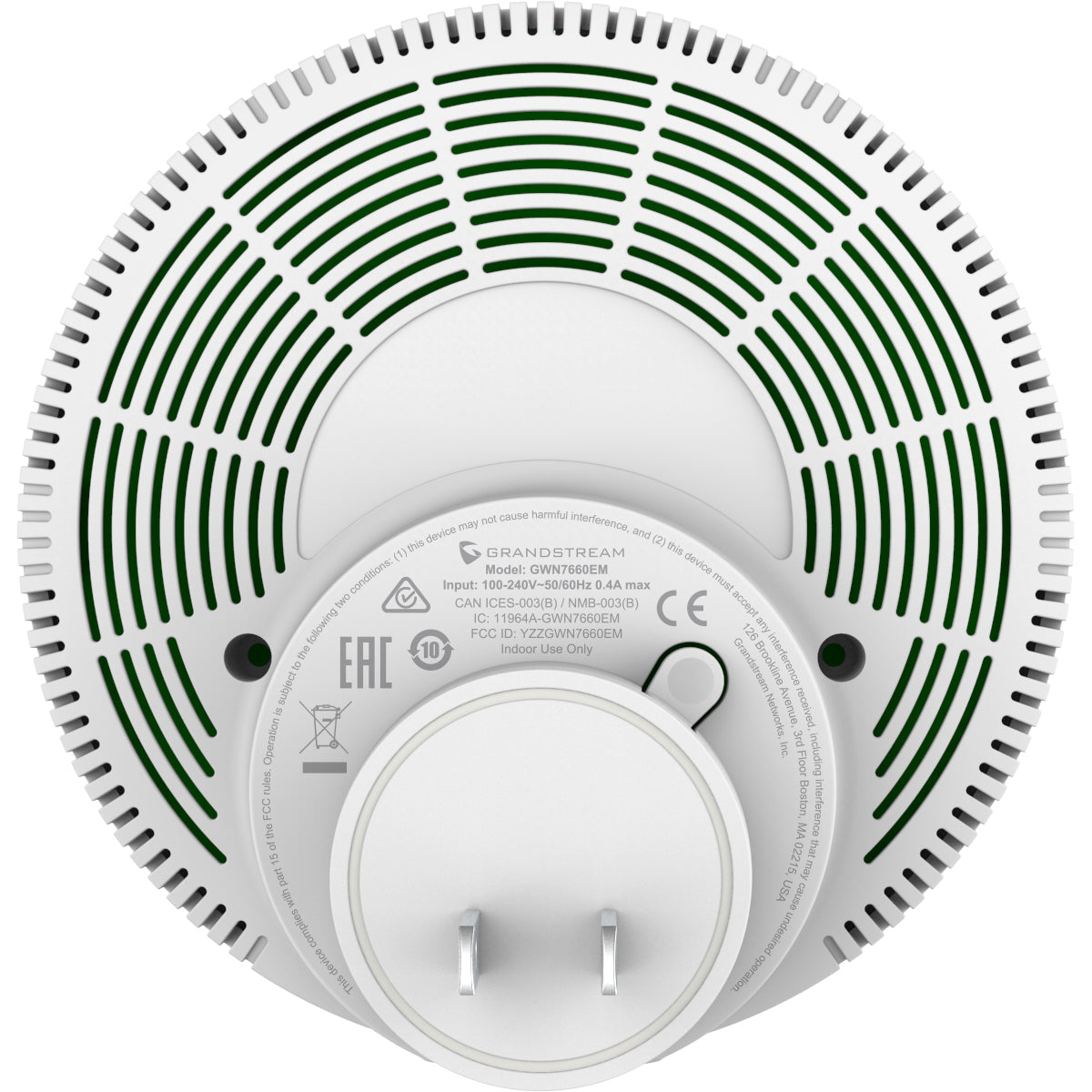

• Grandstream GWN7660EM Wi-Fi 6 Plug-In Mesh Access Point
• Quick installation guides

Datasheet
