• 6 Gbps aggregate wireless throughput

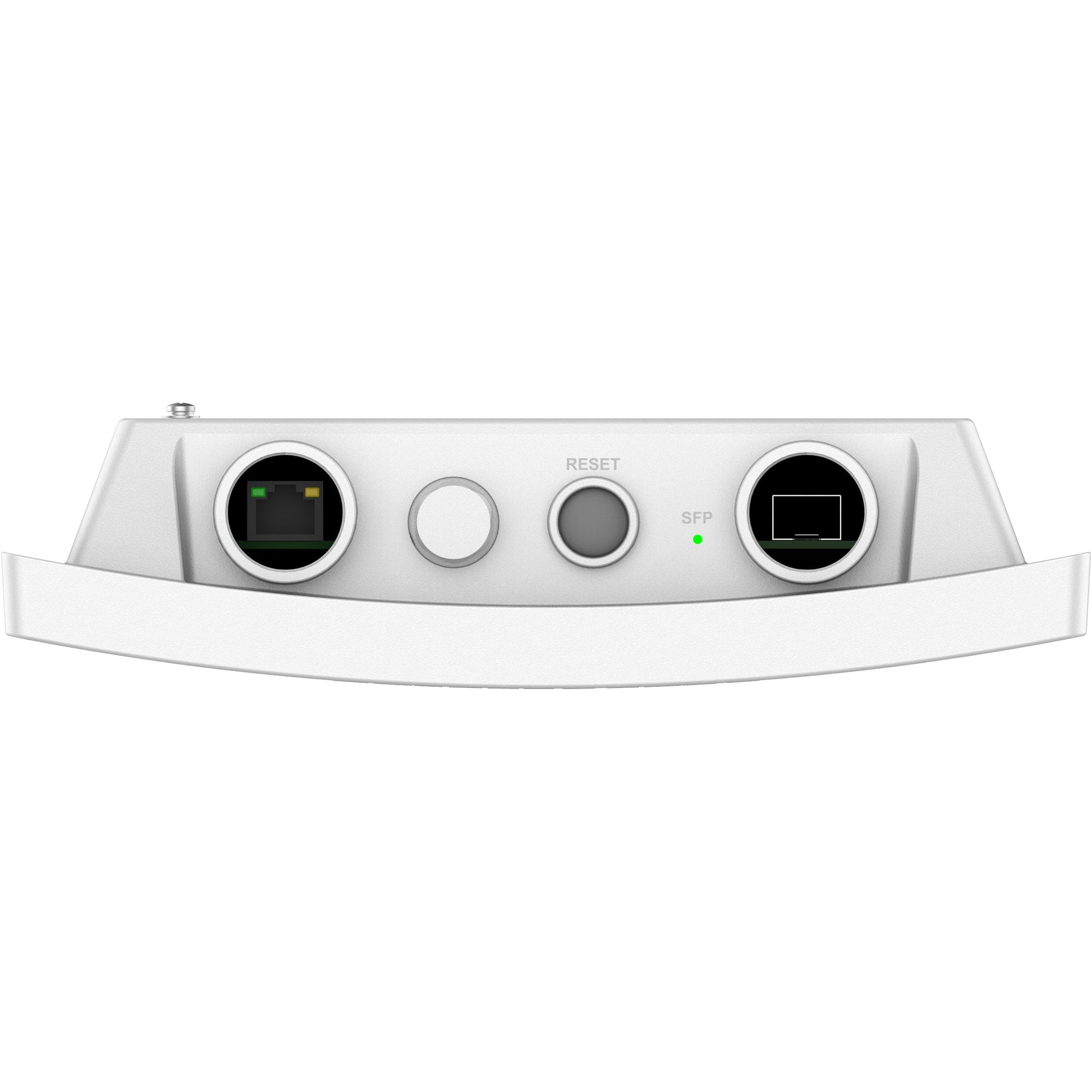

• 2.5 Gbps RJ45, and 2.5 Gbps SFP wireline ports
• Dual-band 4x4:4 MU-MIMO with x8 internal antennas with OFDMA technology
• Self-power adaptation upon auto-detection of PoE or PoE+
• Support 512 concurrent Wi-Fi client devices
• Up to 300-meter coverage range
• Advanced QoS to ensure real-time performance of low-latency applications
• Embedded controller manages up to 50 local GWN APs; GDMS Networking offers unlimited AP management, & GWN Manager offers on-premise software AP management

• Wi-Fi Standards: IEEE 802.11 b/g/n/ac/a
• Antennas: 5 individual internal antennas(2 x 2.4GHz, gain 5.5 dBi; 2 x 5 GHz, gain 6.0 dBi; BT gain 4.5 dBi
• Wi-Fi Data Rates: 5G - Up to 2403 Mbps; 2.4G - Up to 573.5 Mbps
• Frequency Bands: 2.4GHz - 2400 to 2483.5MHz; 5GHz - 5150 to 5850 MHz (Not all frequency bands can be used in all regions)
• Channel Bandwidth: 2.4G - 20 and 40 MHz; 5G - 20, 40, 80, 160 MHz
• MU-MIMO: 2x2:2 @ 2.4GHz; 2x3:2 @ 5GHz
• Network Interfaces: 1 x 1G RJ45 Port and 1 x 2.5G SFP Port
• SSIDs: 32 SSIDs total, 16 per radio (2.4ghz and 5 ghz)
• Network Protocols: IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
• Concurrent Clients: 256
• Coverage Range: Up to 300 meters(Coverage range can vary based on environment)
• Operating Environment: Temperature -30°C to 60°C; Humidity 5% to 95% Non-condensing

• 1 x 7664ELR AP
• 1 x Mounting kit
• Quick installation guide
