• No frame cutting required – surface mounted
• Higher grade stainless steel ensures superior keeper strength
• Compatible with most major exit devices
• Accommodates exit devices with latch projections from 1/2" to 3/4" (13mm - 19mm)
• Ensure proper latch alignment with horizontal adjustment up to 1/4" (6.4mm) to compensate for door misalignments
• Field selectable voltage input –12 or 24VDC and 12 to 24VAC (even 11 to 16VAC)
• Horizontal solenoid prevents manipulation from vibration
• Modular plug-in wire connectors
• Selectively brushed stainless steel finish
• Non-handed
• Hex socket head cap screws for added support and tamper resistance
• Mounting spacer included to provide enhanced latch engagement

• UL 1034 Listed for 1500lbf of static strength
• Factory-tested to over 4-million cycles of operation
• Dimensions: 1-3/4" x 9" x 3/4" (45mm x 230mm x 20mm
• Intermittent Duty: Energized less than 1 minute with Duty Ratio 1:5
• Continuous Duty: Energized 1 minute or more

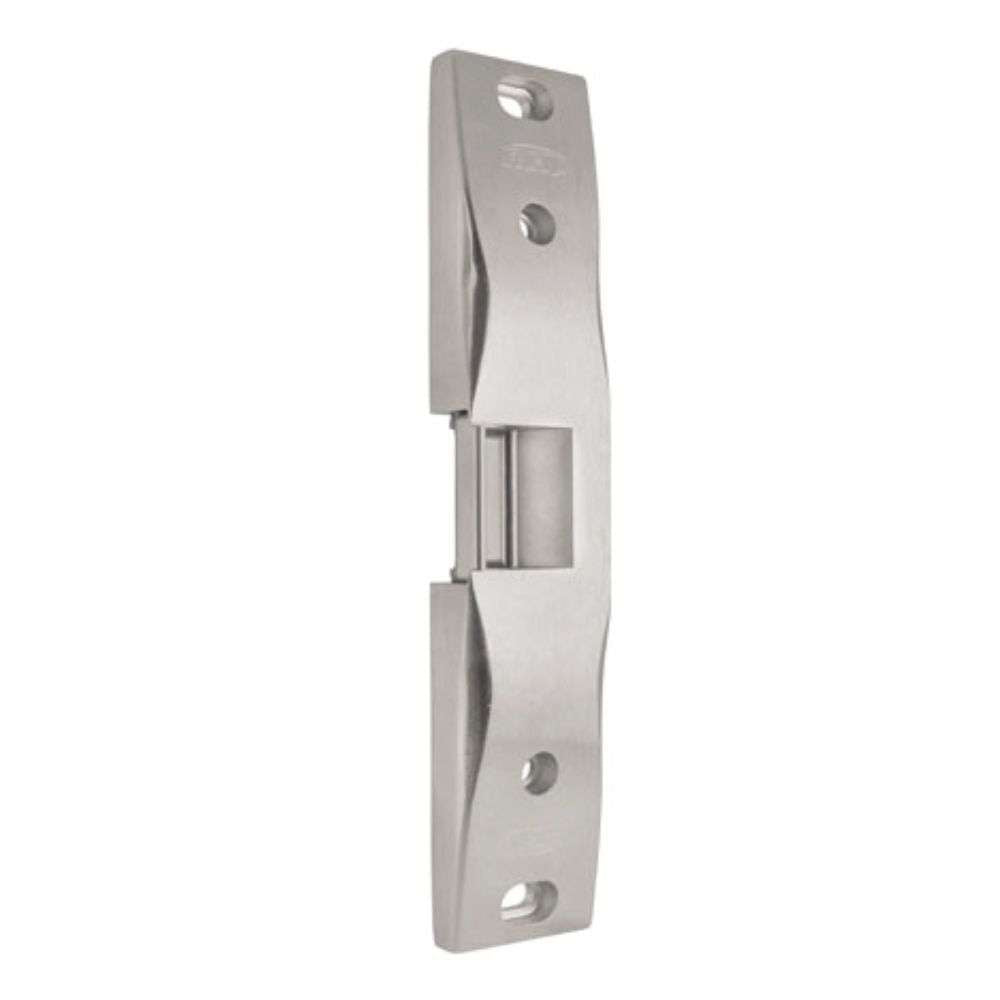

• 1 x 0162 Rim Strike
