ClearConX Bi-Directional Wide-band IR HDMI Extender Over Cat5e/6 -164'

Features

•Transmits a wide-band (38K - 56KHz) Di-Directional IR control signal together with the HDMI signal
•Automatically adjusts feedback, equalization, and amplification

Technical Specifications

•Operating Temperature Range: -5 to +35 degrees C (+23 to +95 degrees F)
•Operating Humidity Range: 5 to 90%RH (No Condensation)

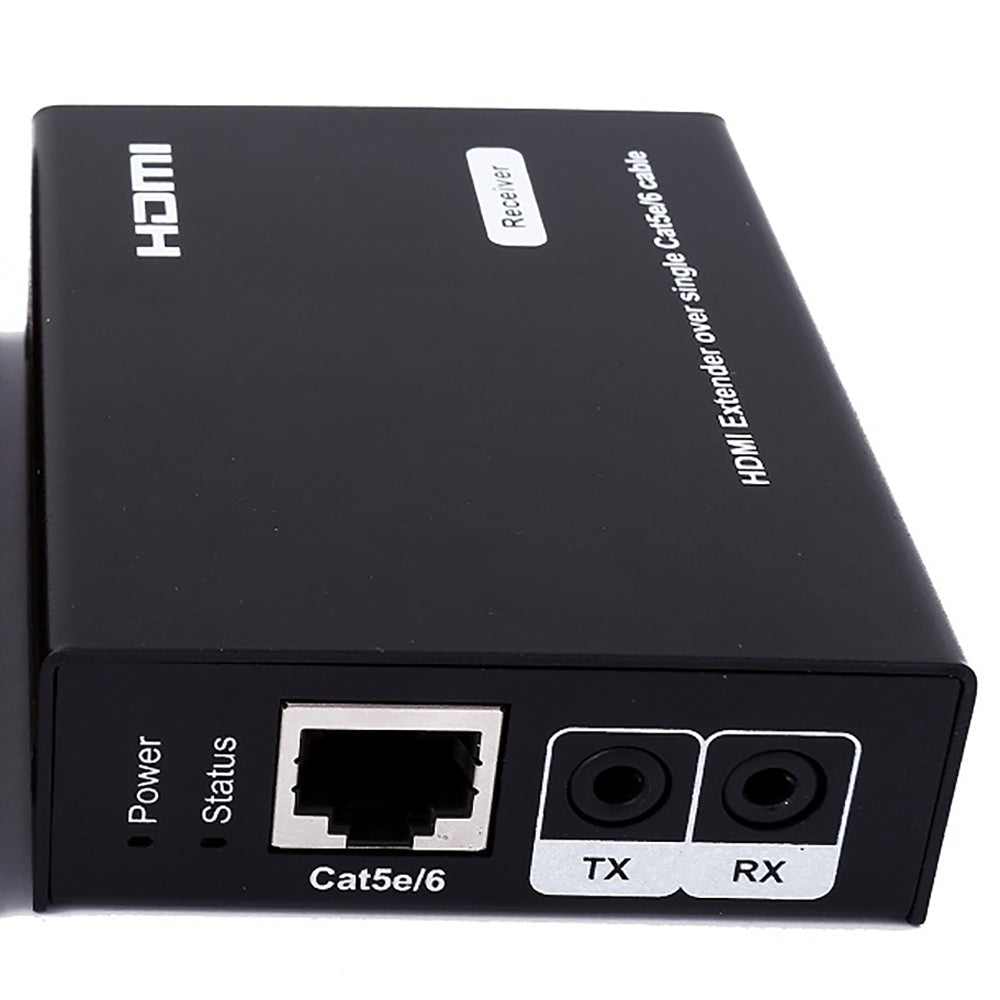

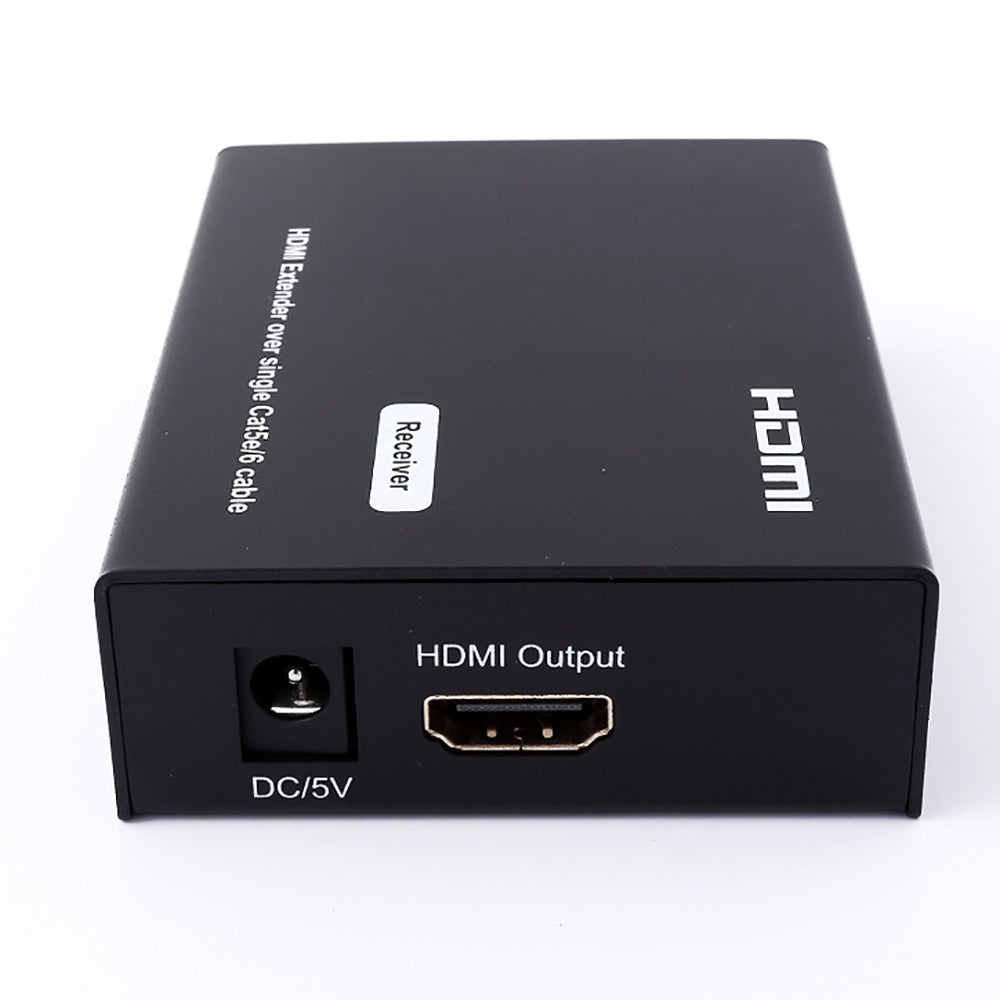

•Connectors on Receiver; 1 x HDMI Receptacle, 1 x RJ45 Receptacle, 1 x Power DC Receptacle, 2 x IR Receptacle
•Resolution outputs: 1080p/1080i/720p/576p/480p
•Data Transfer Speed: 6.75-Gbps
•Audio format supported: DTS-HD Master Audio, Dolby True HD, multi-channel 5.1, stereo etc
•Output Video Signal: HDMI
•Power Supply: DC 5V Power Supply
•Transmission Distance: 1080p up to 50m
•IR wavelength & frequency: Wavelength: 940-nm, IR Frequency: 38KHz - 56KHz

Box Contents

•1 x HDMI Receiver
•1 x IR TX Emitter
•1 x IR RX Receiver
•1 X 5V/1A DC Adapter
•1 x User manual

Weights & Dimensions

Datasheets

ClearConX Bi-Directional Wide-band IR HDMI Extender Over Cat5e/6 -164'

Name: ClearConX Bi-Directional Wide-band IR HDMI Extender Over Cat5e/6 -164'
Brand: ClearConX Distribution
SKU: MDCCEX21B-RX
Price: 59.41 CAD
Availability: InStock

Vendor: ClearConX Distribution

SKU: MDCCEX21B-RX

Vendor SKU: SX-EX21B-RX

Shipping calculated at checkout.

Manufacturer's Warranty: 1-Year

The ClearConX 1 x 2 HDMI Splitter offers lossless duplication and simultaneous distribution of a single HDMI HD source to two Cat5e/6 connected outputs. Enjoy simple, flexible and reliable content replication to 2 separate display devices supporting resolutions up to 1080p. With added support for 3D! You can't go wrong with the versatility of this cost-efficient system.
Allows HDMI Audio/Video Signals and IR to be transmitted over a 50-meter single Cat5e/6 Cable.

Same day shipping available for orders placed before noon. Please make note on your order.
Free returns within 30 days for defective items

Features

•Transmits a wide-band (38K - 56KHz) Di-Directional IR control signal together with the HDMI signal
•Automatically adjusts feedback, equalization, and amplification

Technical Specifications

Box Contents

•1 x HDMI Receiver
•1 x IR TX Emitter
•1 x IR RX Receiver
•1 X 5V/1A DC Adapter
•1 x User manual
