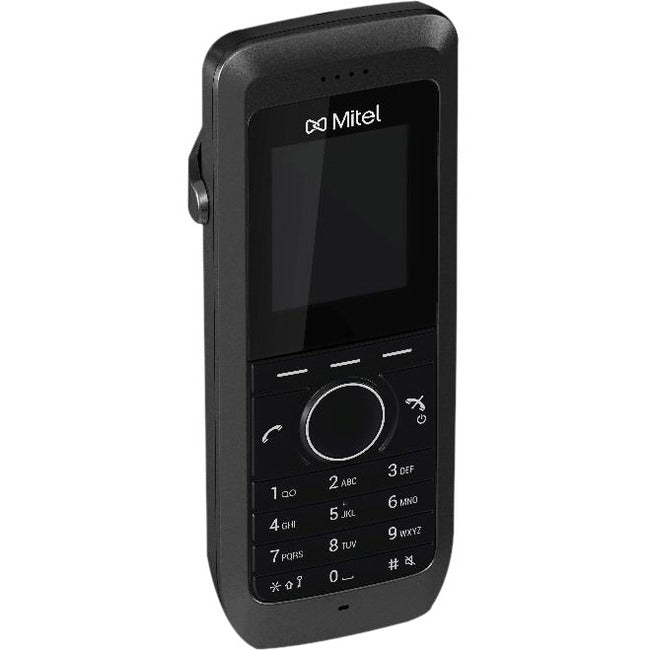

Mitel 5613 DECT Phone

The Mitel 5613 DECT phone is designed for mobile users who desire a device that meets their demanding office communication needs. The 5613 affords users the flexibility to tailor the phone for specific needs through its programmable soft keys and offers duplex hands-free and support for standard (3.5 mm) headsets to compliment the way they work today. The 5613 offers a large, clear and informative 1.8" backlit color display. There are two methods of charging the 5613, either by a traditional individual desktop charger unit or via a six-way charger rack. As an option for phones that are used in shifts, or when there is no time to leave the phones in a charger, there is a 6-way battery pack charger. This allows the users to easily switch to a fresh battery when needed.

Phone Management

The DECT phones can be managed in two alternatives ways: a central solution using the CPDM3/WSM3 server and/or a local PC solution with phones docked in a dedicated Desk PDM Programmer.

CPDM3

The Central Portable Device Manager (CPDM3 / WSM3) solution has the same functionality as the PC-based solution, but is centralized and can manage multiple DECT phones simultaneously. The CPDM3 works with LAN-connected Rack PDM Chargers and Desk PDM Programmers. Phones can then be managed either locally or remotely. For DECT phones used in IP DECT systems the phones can also be managed over-the-air.

Desk PDM Programmer

Desk PDM (Portable Device Manager), supports configuration of phones with all their parameters, as well as software upgrades. The Desk PDM software is installed on a PC and connected to the Desk PDM Programmer via the included USB cable. A database on the PC stores all the phone configurations - only one phone can be managed at a time.
