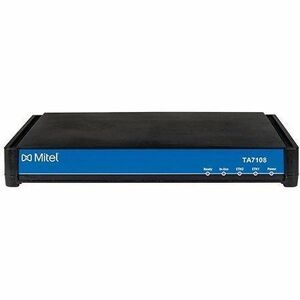

MITEL TA7108 UNIVERSAL W/O AC CORD
MITEL TA7108 UNIVERSAL W/O AC CORD
Manufacturer's Warranty:
TA7100 Terminal Adapters
The TA7100 units are security-ready, VoIP terminal adapters, allowing analog phones, modems and fax machines to connect to Mitel communications servers. In addition, the units can act as remote gateways for analog end-points via an IP network to a central Mitel communications servers.
Product Overview
The Terminal Adapters for analog devices connecting to SIP extensions come in three packages, the Mitel TA7102 with two analog ports, the Mitel TA7104 with four, and the Mitel TA7108 with 8 analog ports. Through the analog ports, the TA7100 terminal adapters can connect up to two, four or eight analog phones, modems or faxes. In addition, a PC or home router can be connected to the units second LAN/Ethernet port.
For wide area connection, the terminal adapters use existing broadband access equipment to connect to any standards-based VoIP network. The TA7100 offers security features, such as SIP over TLS, SRTP, certificates management, and HTTPS, designed to bring enhanced security for the network management, SIP signaling and media transmission aspects. TA7100 units interface seamlessly with the full Mitel communication system portfolio of products in secure networks.
The units also use innovative TAS (Transparent IP Address Sharing) technology and an embedded PPPoE client to allow PC (or router) connectivity to the second Ethernet port. This is done to have the same public IP address as the first port, eliminating the need for private IP addresses or address translations. The Terminal Adapters support high compression codec's simultaneously on all analog voice ports, saving valuable bandwidth.
For management purpose, the TA7100 unites provide a web interface, giving administrator convenient access to the unit for initial setup. The devices can also be auto- provisioned by fetching their encrypted configuration from a TFTP or HTTPS server, making installation secure and transparent to end users.
Features
Features
Technical Specifications
Technical Specifications
Box Contents
Box Contents
Weights & Dimensions
Weights & Dimensions
