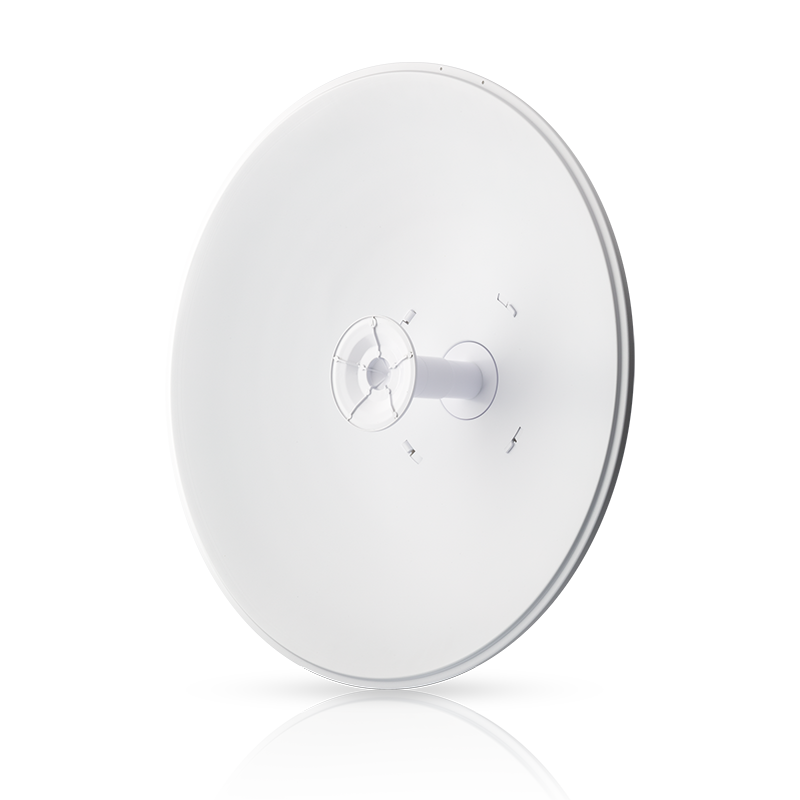

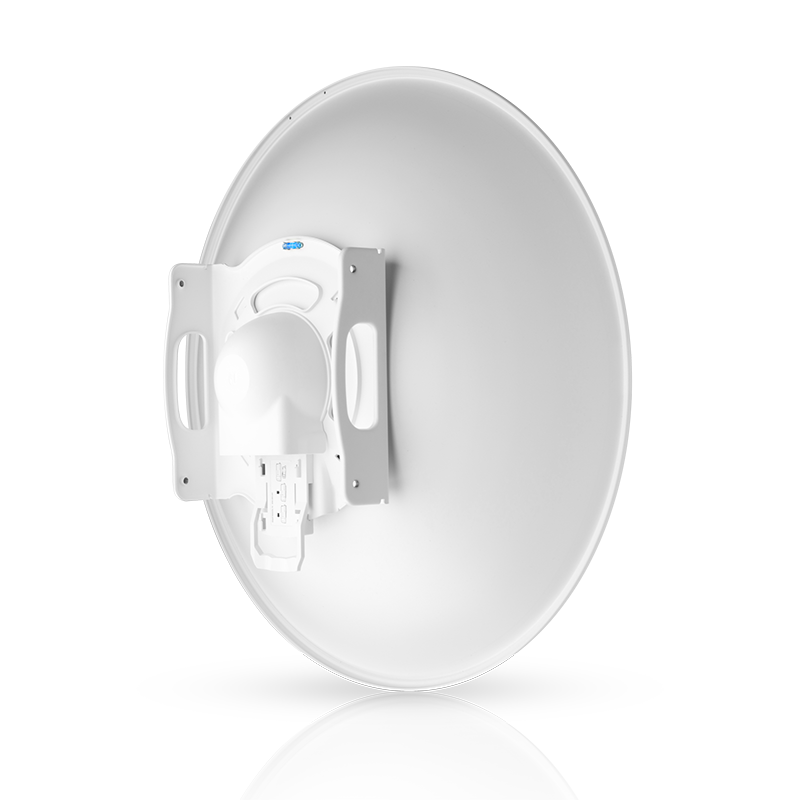

•The airFiber X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.
•The compact form factor allows the airFiber X Antennas to be used in various applications, from carrier backhauls between towers to PtP bridging between buildings.
•The airFiber X Antennas are designed to integrate seamlessly with the airFiber X radios.
•The innovative industrial design improves RF isolation to significantly reduce interference and deliver superior gain for high capacity, multipoint networks.
•The 5 GHz RocketDish to airFiber Antenna Conversion Kit, model AF-5G-OMT-S45, converts the RocketDish RD-5G30 or RD-5G34 antenna for use with the airFiber AF-5X radio.

•Frequency Range: 5.1 - 5.9 GHz
•Gain: 30 dBi
•+45 Deg Beamwidth: 5.8 Deg (3 dB)
•- 45 Deg Beamwidth: 5.8 Deg (3 dB)
•F/B Ratio: 30 dB
•Max. VSWR: 1.6:1
•Wind Loading: 790 N @ 200 km/h (178 lbf @ 125 mph)
•Wind Survivability: 200 km/h (125 mph)
•Polarization: Dual-Linear
•Cross-pol Isolation: 35 dB Min.
•ETSI Specification: EN 302 326 DN2
•Mounting: Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included

•Universal Pole Mount
•airFiber X Radio Bracket
•Weatherproof RF Connectors
