•Quickly mount multiple airFiber X radios on existing airFiber dish antennas for Plug and Play installation. You can use radio channels of different sizes - even adjacent channels with no guard band - and place them anywhere within the radio band.

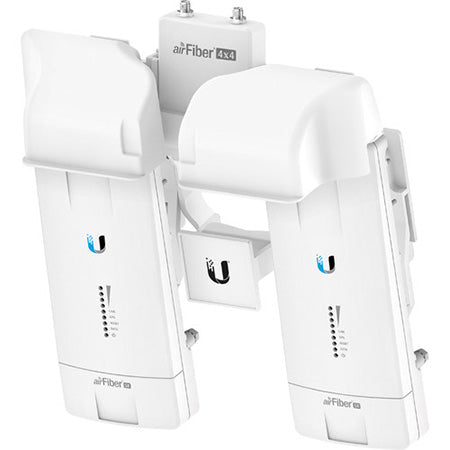

•4x4 MIMO backhaul technology: Simply mount two airFiber 5X radios for Plug and Play installation. You can use multiple channels and place them anywhere within the radio band
•Reduced tower footprint and cost: Multiple airFiber 5X radios mounted on a single dish antenna maximizes throughput and capacity in a clean, compact tower footpring, minimizing tower costs
•Superior link redundancy solution: Multiple airFiber X radios with multiple carriers on multiple frequency bands provide the ultimate noise immunity and link redundancy performance

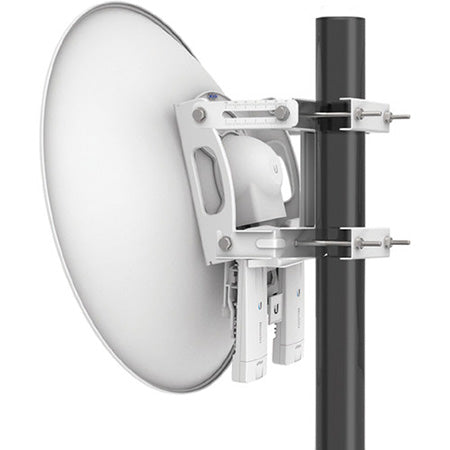

•Mounting versatility: The airFiber NxN Multiplexer can be attached to most 5 GHz airFiber X or RocketDish antenna models. For any other antenna configuration, you can mount the airFiber NxN Multiplexer on a pole
•Pair with EdgePoint: The EdgePoint provides link aggregation and powerful configuration features, including radiolink load balancing and advances reliability for optical fiber deployments

•RF Connectors: (2) RP-SMA Weatherproof (CH0, CH1) ; (4) RP-SMA Weatherproof (A0, A1, B0, B1)
•Cable Loss: 4.1 dB
•Supported airFiber X Radio: AF-5X
•Multiplex MIMO: 2 x (2x2)
•Mounting: airFiber X/Rocket Mount Compatible

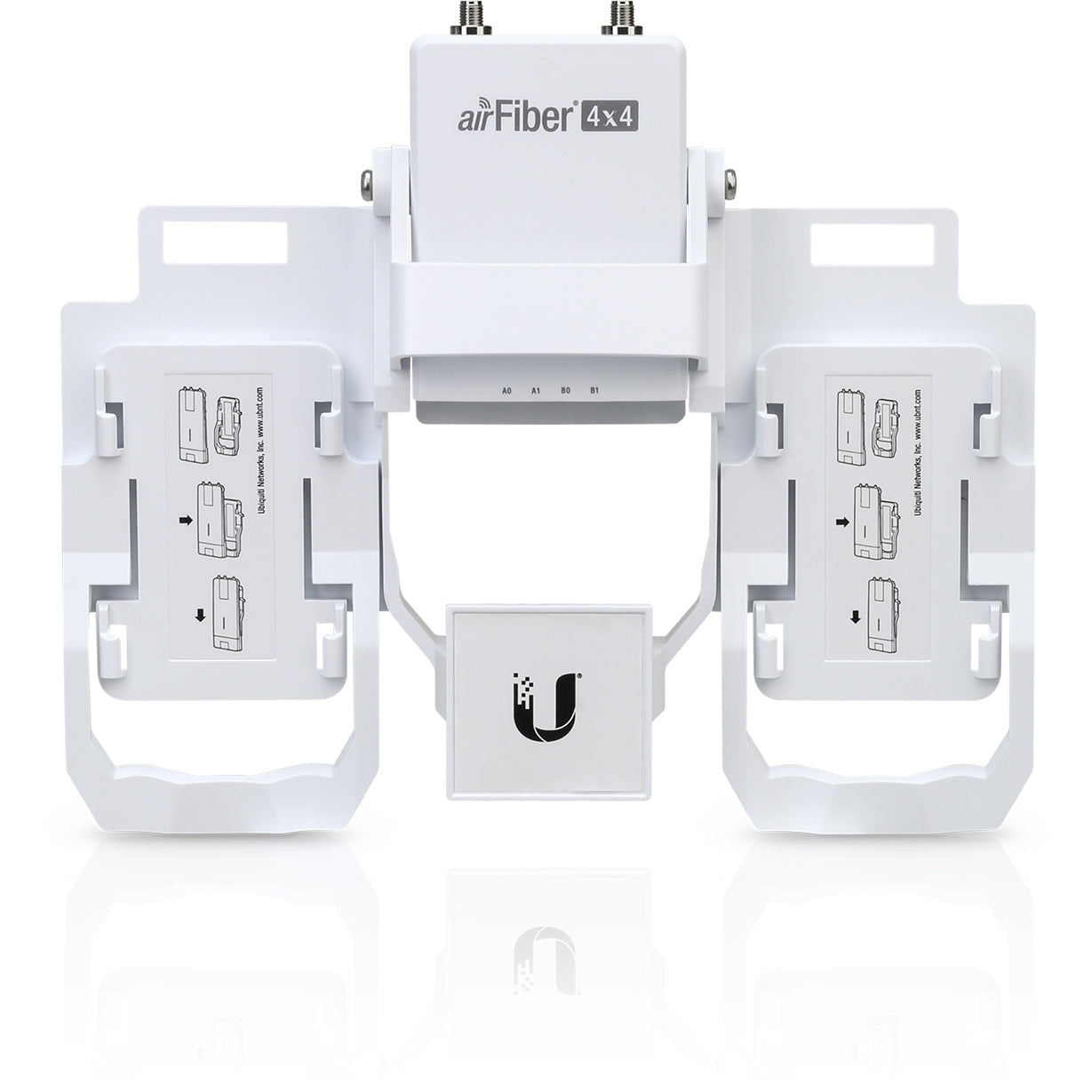

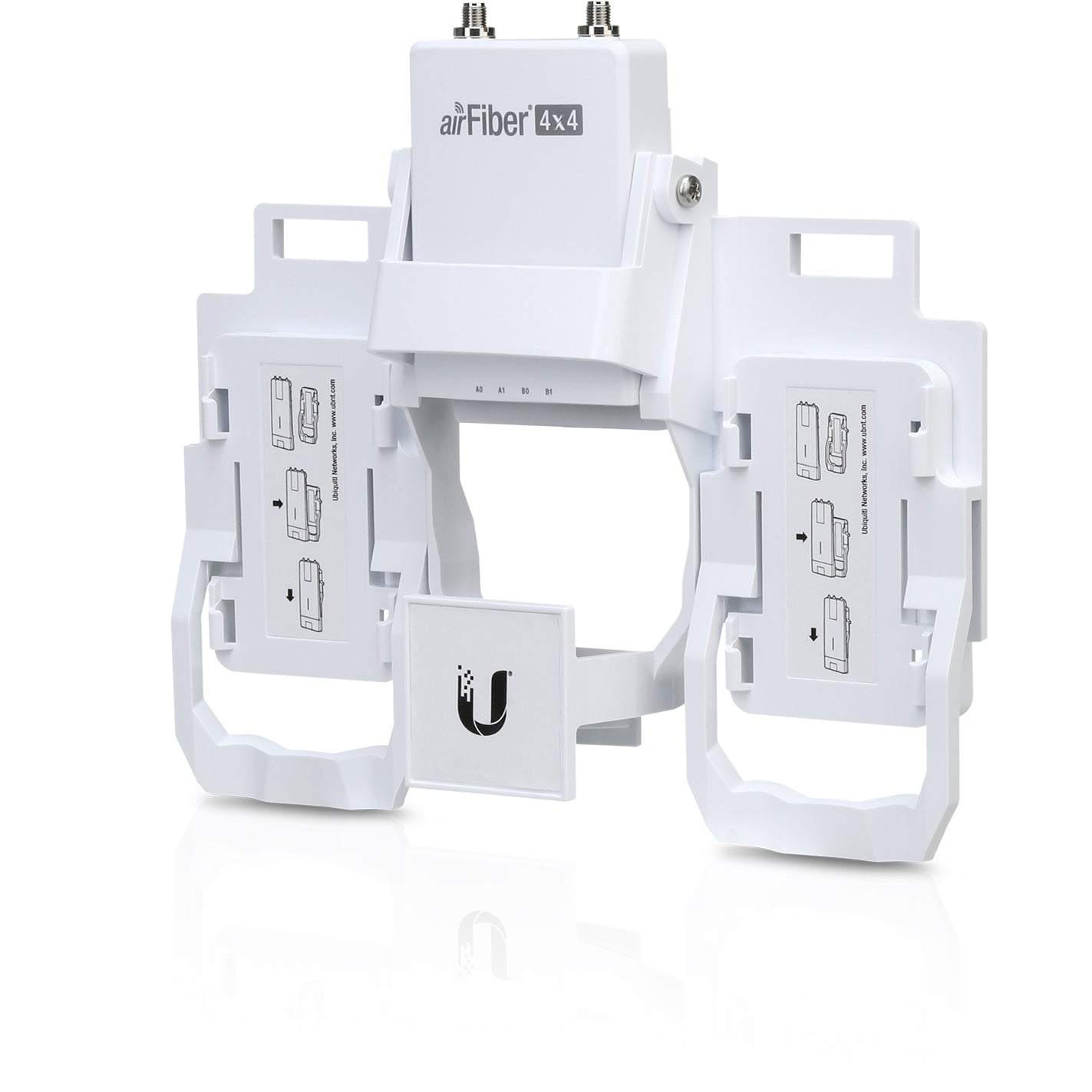

•1 x AF-MPx4 airFiber NxN Multiplexer
•1 x 4x4 Radio Bracket
•2 x Protective Shrouds (Left and Right)
•Mutiplexer Screws
•Quick Start Guide
