•To expand the coverage of an AmpliFi network or turn an existing router into a powerful mesh network
•Superior performance provided by integrated Super Antenna for superior speed and range
•Lightning speed for HD streaming and games, move faster on all devices with speeds up to 1,750 Mbps
•Pivots on magnetic connector designed to provide power and adjustability
•Downloadable AmpliFi app offers easy setup for Apple iOS and Android devices

•Max TX Power: 26 dBm
•Radios: 2
•MIMO Chains: 6
•Speed: 1,750 Mbps
•ESD/EMP Protection: +/- 24kV Air/Contact
•Antennas: (1) Dual-Band Antenna, Tri-Polarity
•Wi-Fi Standards: 802.11ac
•Wireless Security: WPA2-PSK AES/TKIP
•Operating Temperature: 14 to 131Degrees F (-10 to 55Degrees C)
•Operating Humidity: 5 to 95% Noncondensing
•802.11ac: 13 Mbps to 1300 Mbps (MCS0 - MCS9, VHT 20/40/80), 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40), 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11b: 1, 2, 5.5, 11 Mbps, 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
•Extends range of up to 6,000 sq. ft

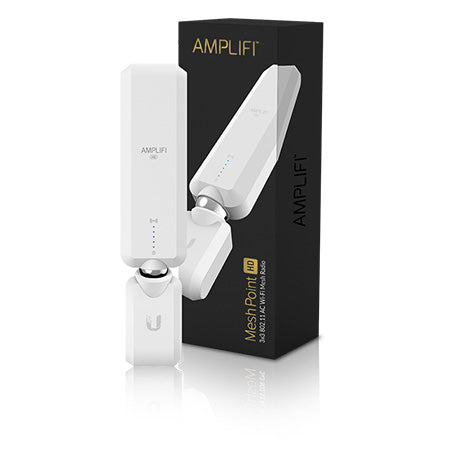

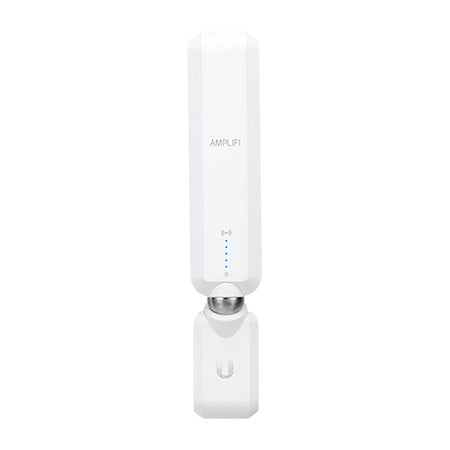

•AmpliFi HD MeshPoint
•Quick Start Guide
