•The absence of side lobes enables excellent noise immunity of a network
•The radiation pattern of the 90° Asymmetrical Horn Antenna is stable over the whole band width of operation
•Asymmetrical Horn Antennas have solid aluminum body, built to last and resist any weather conditions
•Asymmetrical Horn antennas were awarded WISPA Product of the Year 2019, 2020 and 2021 Awards

•Frequency Range: 5180 - 6000 MHz
•Gain: 16 dBi
•Mechanical Adjustment: ± 20° Elevation, ± 20° Azimuth
•Effective Projected Area: 646/654 cm² - Front/Side (100.1/101.4 in²)
•Wind Load: 79/82 N - Front/Side at 160 km/h (100 mi/h)
•Wind Survival: 160 km/h (100 m/h)
•Beam Efficiency: 90% (Beam efficiency defined up to first null)
•Front-to-Back Ratio: 30 dB
•Antenna Connection: TwistPort™ - Quick Locking Waveguide Port
•Operating Temperature: -35°C to +60°C (-31°F to +140°F)
•Environmental: IP55
•Materials: UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminium, Stainless Steel

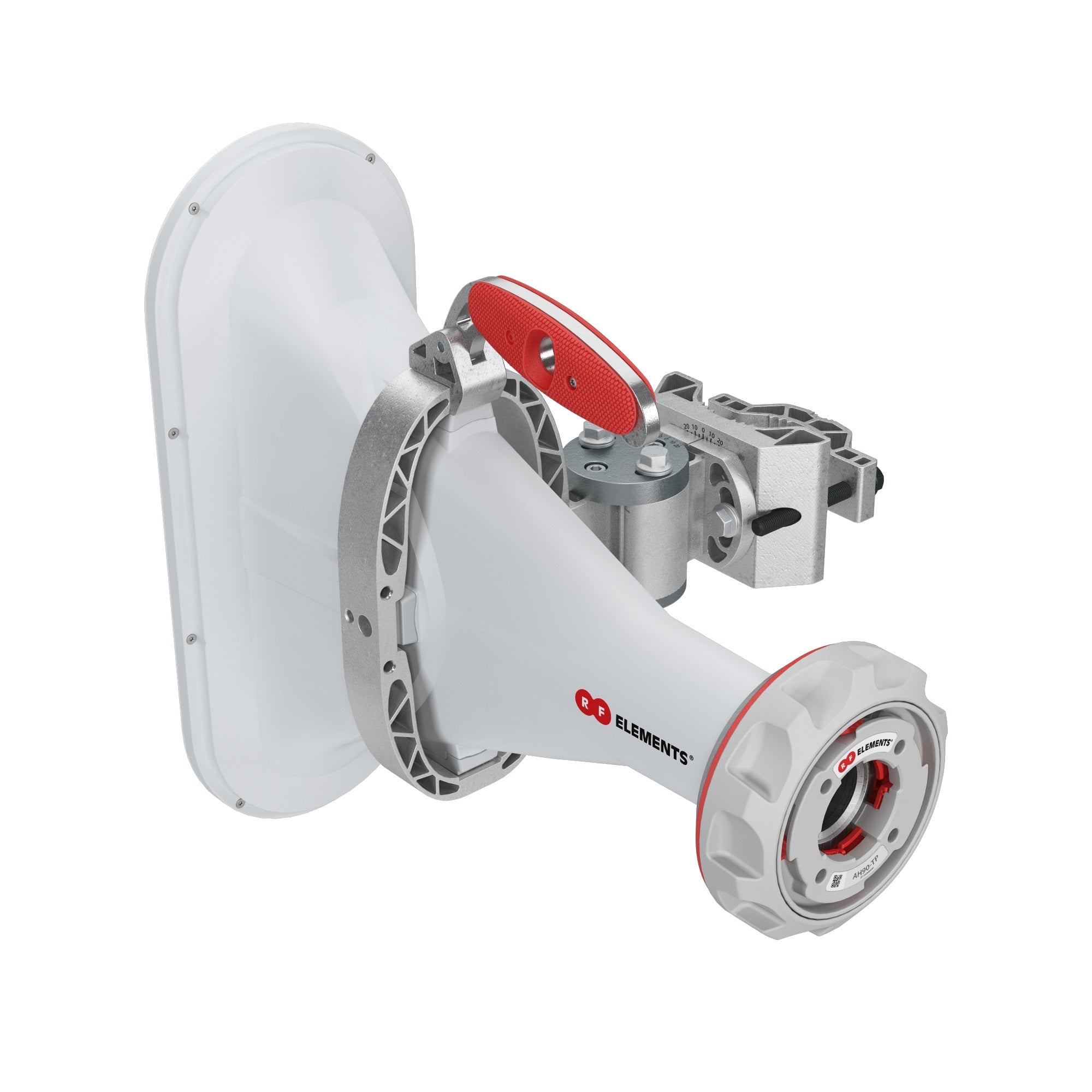

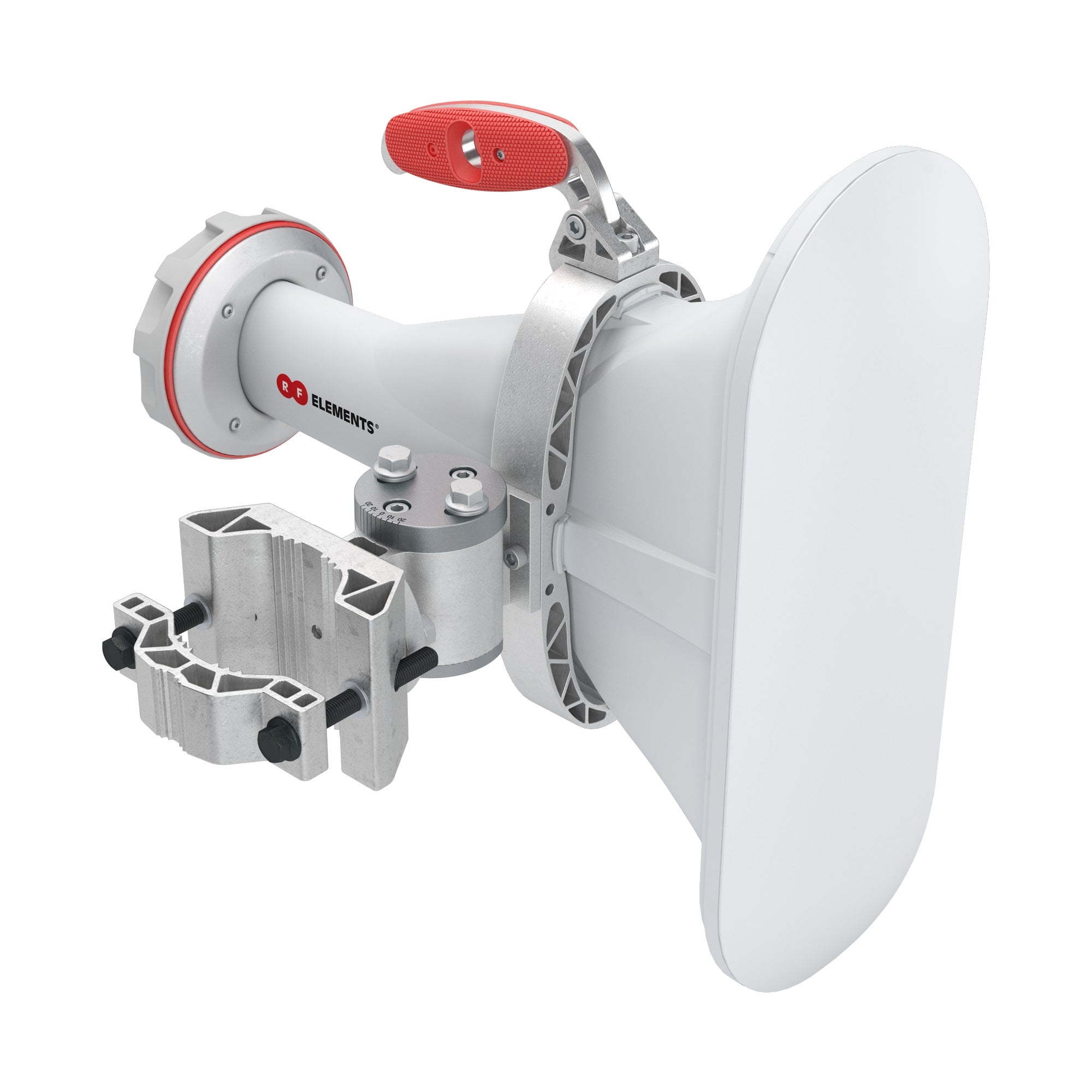

•1 x AH90-TP Body
•1 x Bracket Base UBR
•1 x Bracket Ring UBR
•1 x AH-TP Bracket Arm
•1 x Pole Mount Bracket
•5 x Screw (M6 x 20 mm DIN 912)
•2 x Screw (M8 x 80 mm DIN 6921)
•1 x Lock Screw (3 x 16 mm)
