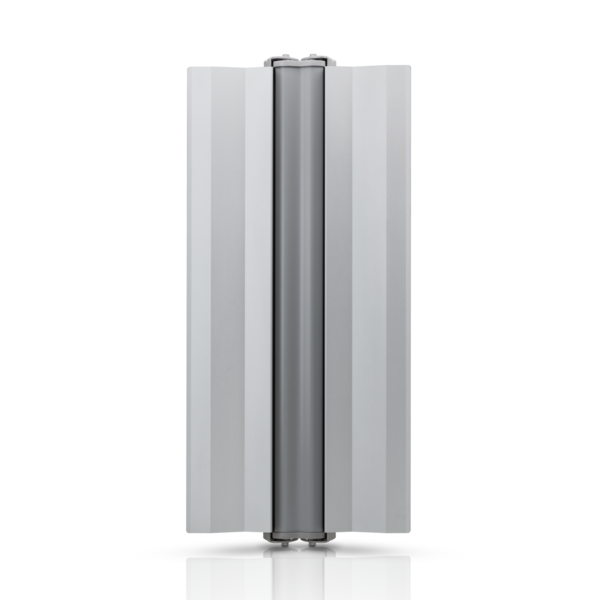

•Advanced Carrier-Class PtMP BaseStation Antenna with Adjustable Beamwidth Configuration: The airMAX Titanium Sector Antenna features advanced RF isolation and adjustable beamwidth configurations. Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60°, 90°, or 120° sector. The antenna gain changes according to the configured beamwidth. The antenna gain is 17 dBi at 60°, 16 dBi at 90°, and 15 dBi at 120°.
•Easily Mount & Protect Your Rocket: The Titanium Sector Antenna features an integrated Rocket mount that allows you to mount the Rocket without the use of any tools. There's also a custom-designed Protective Shroud that helps to shield your Rocket from the elements.
•Increased Performance When Paired with a Rocket M2 Titanium: The airMAX Titanium Sector Antenna is specifically engineered for optimal performance when paired with a Rocket M2 Titanium. This combo supports up to a 20% increase in performance with PtMP networks, up to 90% performance improvement in a co-location environment, and increased durability in harsh weather.
•Reduced Co-Location Interference: The airMAX Titanium Sector is designed to be highly resistant to noise interference in co-location deployments.

•Frequency Range: 2.3-2.6 GHz
•Beamwidth Angles: 60°, 90°, 120°
•Gain (Beamwidth Dependent): 17 dBi @ 60°, 16 dBi @ 90°, 15 dBi @ 120°
•Polarization: Dual Linear
•Cross-pol Isolation: 25dB Typical
•Max VSWR: 1.5:1
•RF Connectors: 2 SMA Connectors (Weatherproof)
•ETSI Specification: EN 302 326 DN2
•Wind Loading: 92 lbs @100 mph

•1 x Titanium Sector Antenna
•1 x Protective Shroud
•2 x RF Cables (weatherproof)
•2 x U Brackets
•2 x Pole Brackets
•2 x Pole Clamps
•8 x M8 Serrated Flange Nuts
•4 x M8x135 Carriage Bolts
•4 x M8x20 Serrated Flange Bolts
•Quick Start Guide
