• Business-Grade up to 9.3 mi (15 km) Ultra-Range Wireless Transmission: With 23dBi high-gain directional antennas
• Plug-and-Play with Preconfigured Kit: Preconfigured for instant PtP auto-pairing, the bridges deliver instant connectivity right out of the box
• App-Guided Alignment: Visualized app-guided alignment for long-distance setups and instant speed testing for installation verification
• Simple PoE Deployment and Power Supply: 1 x Gigabit PoE port supports both 802.3af PoE and Passive PoE for simplified wiring and lower deployment costs
• Designed for Outdoor Durability & Reliability: IP65 weatherproof enclosure, 6 kV lightning protection and operating range of -40°C to +70°C
• Remote Monitoring & Management: Standalone mode or Omada SDN mode for remote centralized management via Web UI or App

• Interface: 1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In
• Power Supply: 802.3af PoE (1,2pins; 3,6pins); 24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included)
• Antenna: External 2×2 Dual-Polarized Directional MIMO Antennas (5 GHz: 23 dBi)
• Antenna Beamwidth: Horizontal 9°, Vertical 7°
• Bandwidth: 5 GHz - 20 MHz/40 MHz/80 MHz
• Transmission Distance: 15 km (9.3 mi)
• Wireless Standards: IEEE 802.11 a/n/ac
• Signal Rate: Up to 867 Mbps @ 5 GHz
• Transmission Power: CE <23 dBm (5 GHz, U-NII-1/2A, ERIP), <30 dBm (5 GHz, U-NII-1/2C, ERIP); FCC <27 dBm (5 GHz, U-NII-1), <27 dBm (5 GHz, U-NII-3)
• Lightning Protection: Ethernet Ports ±6 kV
• Operating Environment: Temperature -40°C to 70°C (-40°F–158°F); Humidity 10-90% (non condensing)
• Certification: CE, FCC, RoHS

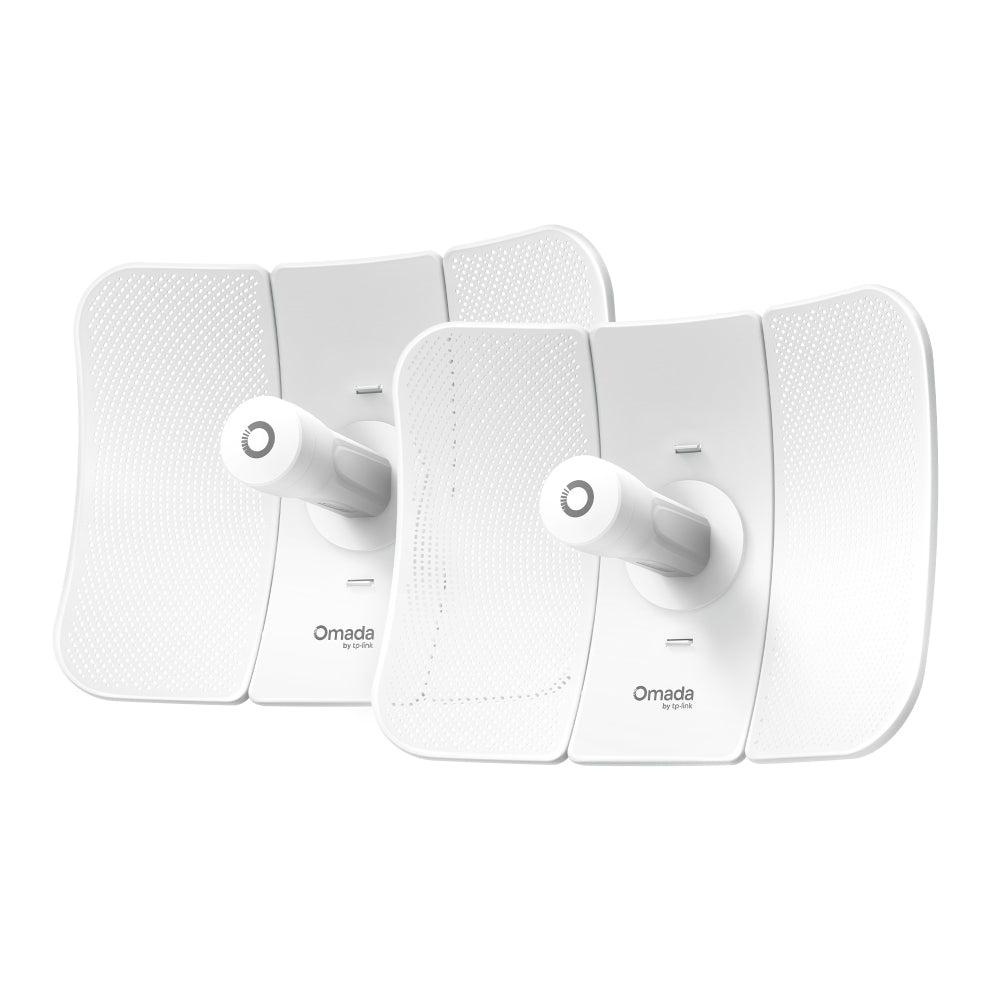

• 1 x Beam Bridge 5 UR KIT
• 1 x Passive PoE Adapter
• 1 x Power Cord
• 1 x Mounting Kit
• Installation Guide
