•Based on a QCA 9557 chipset (720 MHz) and 128 MB of RAM/Flash memory the LigoDLB PRO series access points are an ideal solution for resource demanding installations with a high number of clients connected to a single AP
•The all-in-one design reduces the risk of cable failures and decreases the signal loss, as the radio is connected directly to the antenna. Such integration allows saving tower space and improves the cost which helps to speed up your ROI.
•Metal enclosure works as a deflector eliminating interference caused by backlobes and rejecting noise when multiple base-stations are co-located on a single tower

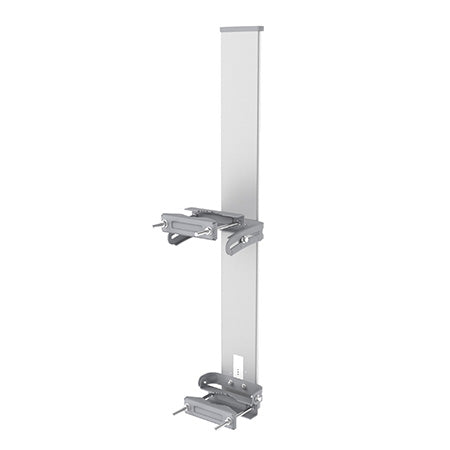

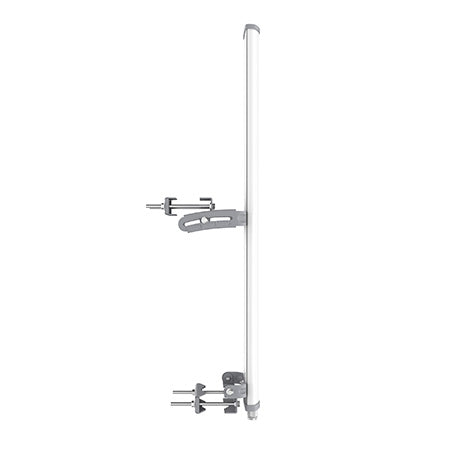

•The LigoDLB PRO mounting bracket allows 15 Deg down-tilt when doing antenna alignment
•LigoDLB's operating system includes all the essential features for point-to-multipoint networks
•LigoWave's iPoll PTMP (Point to Multi-Point) proprietary protocol is an innovative solution to eliminate transmission congestion and close cluster interference created in PTMP wireless installations
•WNMS is a FREE enterprise grade Wireless Network Management System. A single software solution simplifies a large number of management and monitoring tasks for the network administrator.

•Radio Frequency: 5.150 - 5.850 GHz
•Channel Size: 5, 10, 20, 40 MHz
•Stream: MIMO 2x2
•Wireless Protocol: Proprietary iPoll 3 or standard 802.11n
•Operating Mode: Point to Multi Point Max output power 30 dBm*
•Receive Sensitivity at 20 MHz Channel: -97 dBm +/-2dB@BPSK -91 dBm +/-2dB@QPSK -79 dBm +/-2dB@16QAM -76 dBm +/-2dB@64QAM
•Network Ethernet Interface: 10/100/1000 Base-T
•Aggregated Data Throughput: 180 Mbps
•Antenna Gain: 20 dBi
•Beamwidth: Horizontal: - 90 deg, Vertical - 12 deg
•Tilting: +15 degrees
•Powering Method: 802.3af PoE

•Sector Antenna
•PoE Cable
•Install Guide
•Mounting Hardware
