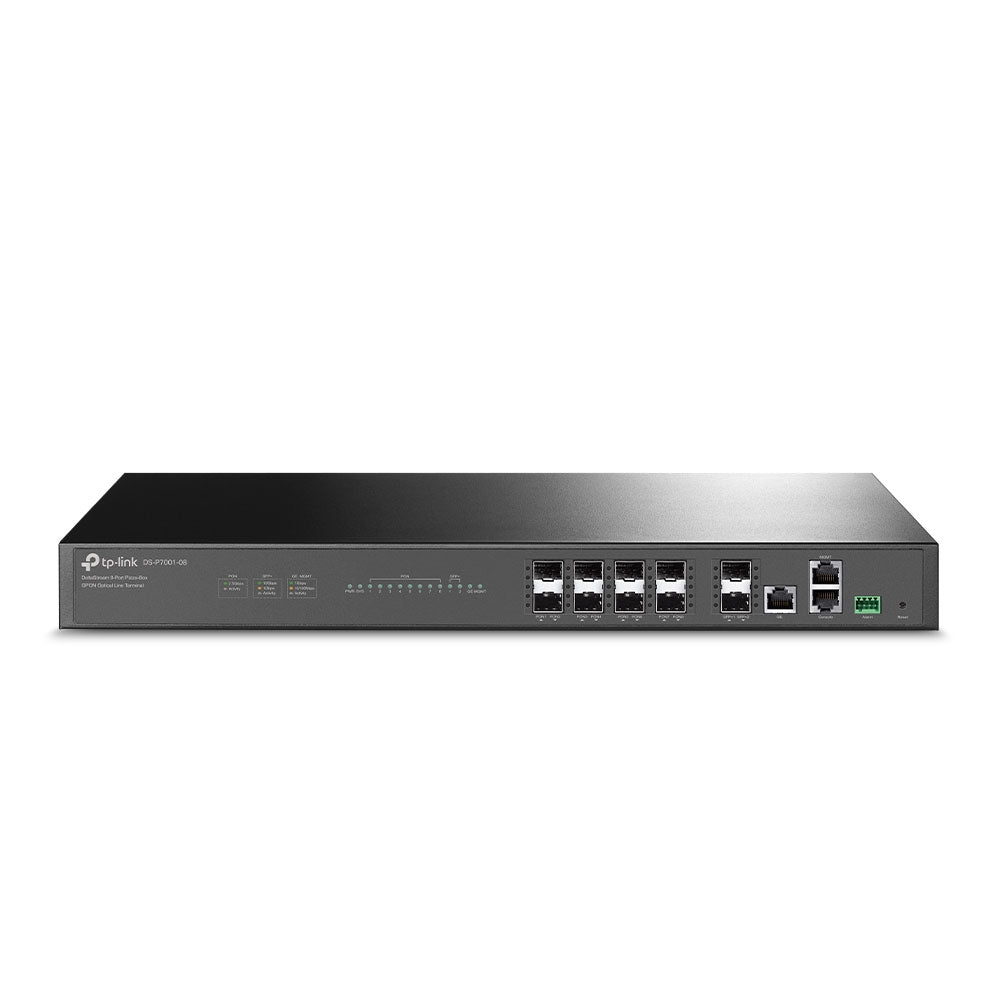

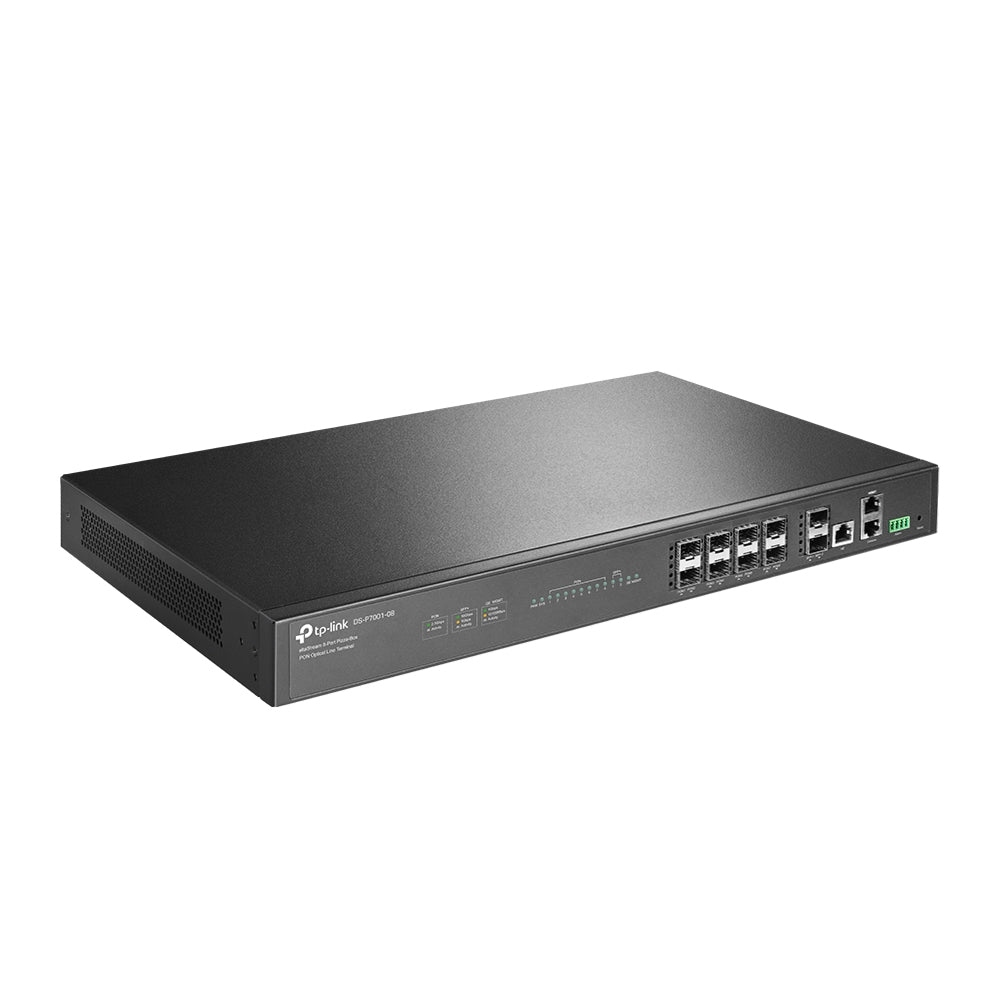

• 8 GPON Ports - Supports 1 -128 splitting ratio for every port—up to 1024 ONTs by one device
• High-Speed Uplink Ports - Provides 2 x 10GE SFP+ ports and 1 x gigabit uplink port

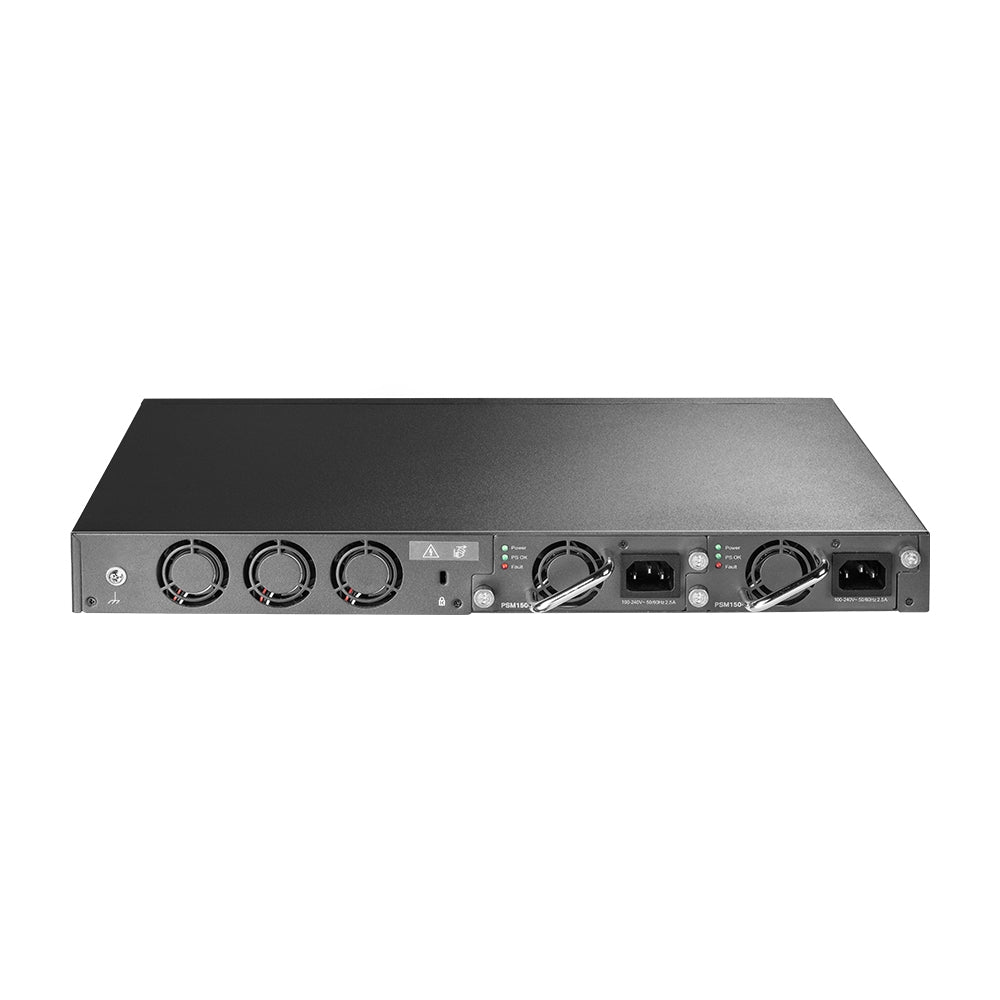

• Redundant Dual Power Supplies - Carrier-class reliability with dual hot-swapping AC+DC power supplies
• Complete L2 & Advanced L3 Functions - Satisfies the need for numerous commercial requirements
• Centralized Management - Via DeltaStream PON Management System (DPMS), SNMP, CLI, and WEB UI
• Advanced L2/L2+ Functions - Static Routing, IGMP Snooping, and more meet the requirement for different applications

• Interface: 8 x 2.5G PON Ports; 2 x 10 Gbps SFP+ Uplink Ports; 1 x 10/100/1000 Mbps RJ45 Uplink Port; 1 x RJ45 Console Port; 1 x RJ45 MGMT Port; 1 x Alarm Port (Reserved)
• Power Supply: Dual Power Supplies - 2 AC, 2 DC or AC+DC (AC: 100V~240V, 50/60Hz; DC: -38.4V~-72V)
• Max. Power Consumption: Max. 70W
• Data Rates: Downstream - 2.5 Gbps ; Upstream - 1.25 Gbps
• Max. Splitting Ratio: 1: 128
• Wave Length: Tx - 1490 nm; Rx - 1310 nm
• Interface Type: SC/UPC
• Fiber Type: 9/125μm SMF (Single Mode Fiber)
• Tx power: Class C+
• Security: ACL, 802.1x Authentication, ARP Inspection, IP Source Guard
• Certification: CE,FCC
• Operating Temperature: 0°C~50°C (32°F~122°F)

• 1 x OLT Device
• 1 x Power Cord and Console Cable
• Mouting Brackets, Screws and Rubber Feet
• Installation Guide

10.58 lbs

17.3-in x 10.2-in x 1.7-in
