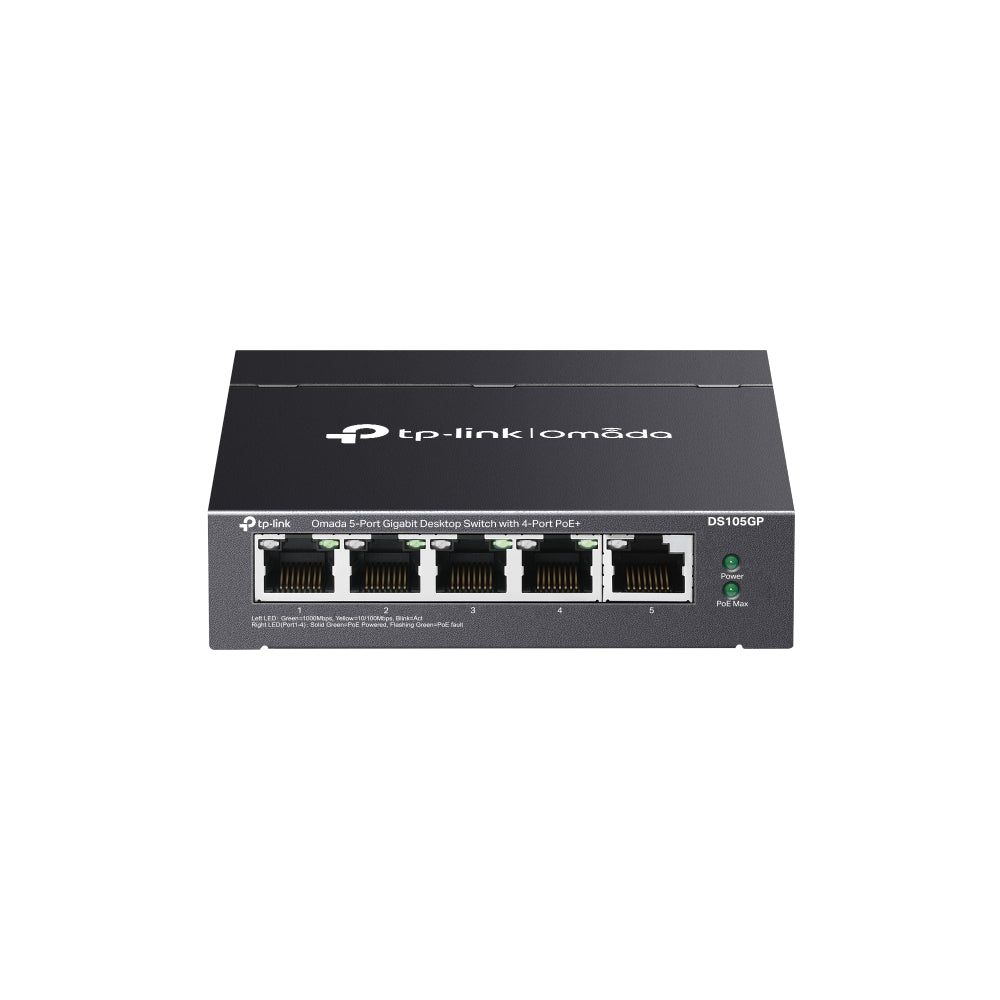

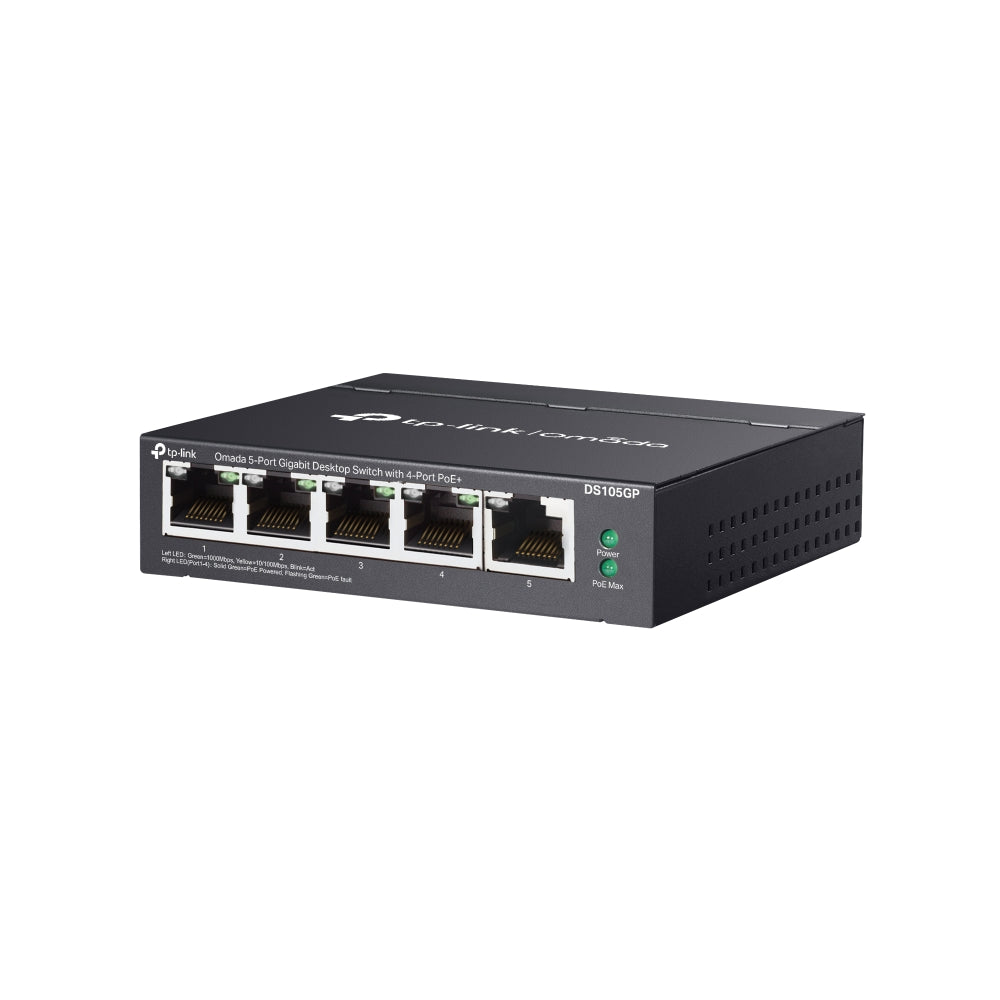

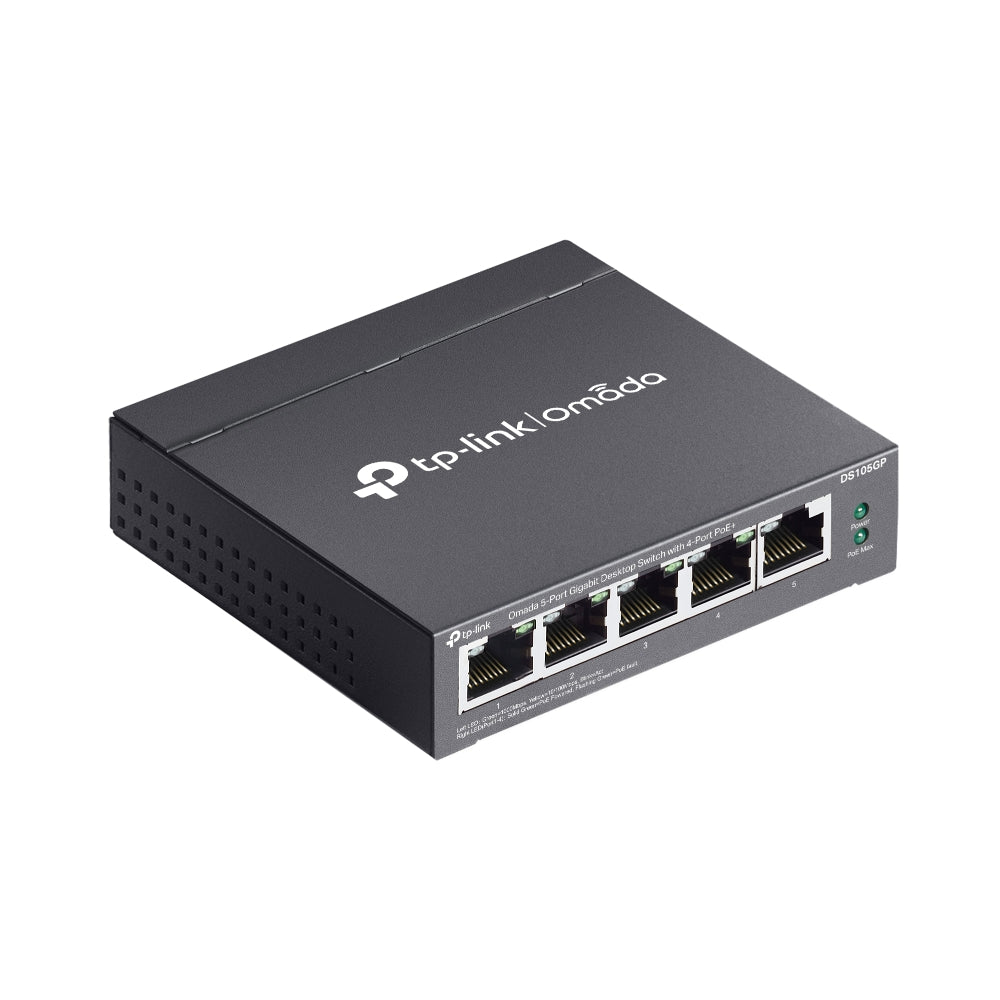

• 5 x 10/100/1000 Mbps RJ45 ports
• With four PoE+ ports, transfers data and power on one single cable
• Works with IEEE 802.3af/at compliant PDs
• 802.1p/DSCP QoS enable smooth latency-sensitive traffic
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 65 W for all PoE ports
• Up to 250m (820ft) data and power transmitting range under Extend Mode
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and Play. No configuration or central management required

• Interface: 5 x 10/100/1000Mbps RJ45 Ports (AUTO Negotiation; AUTO MDI/MDIX)

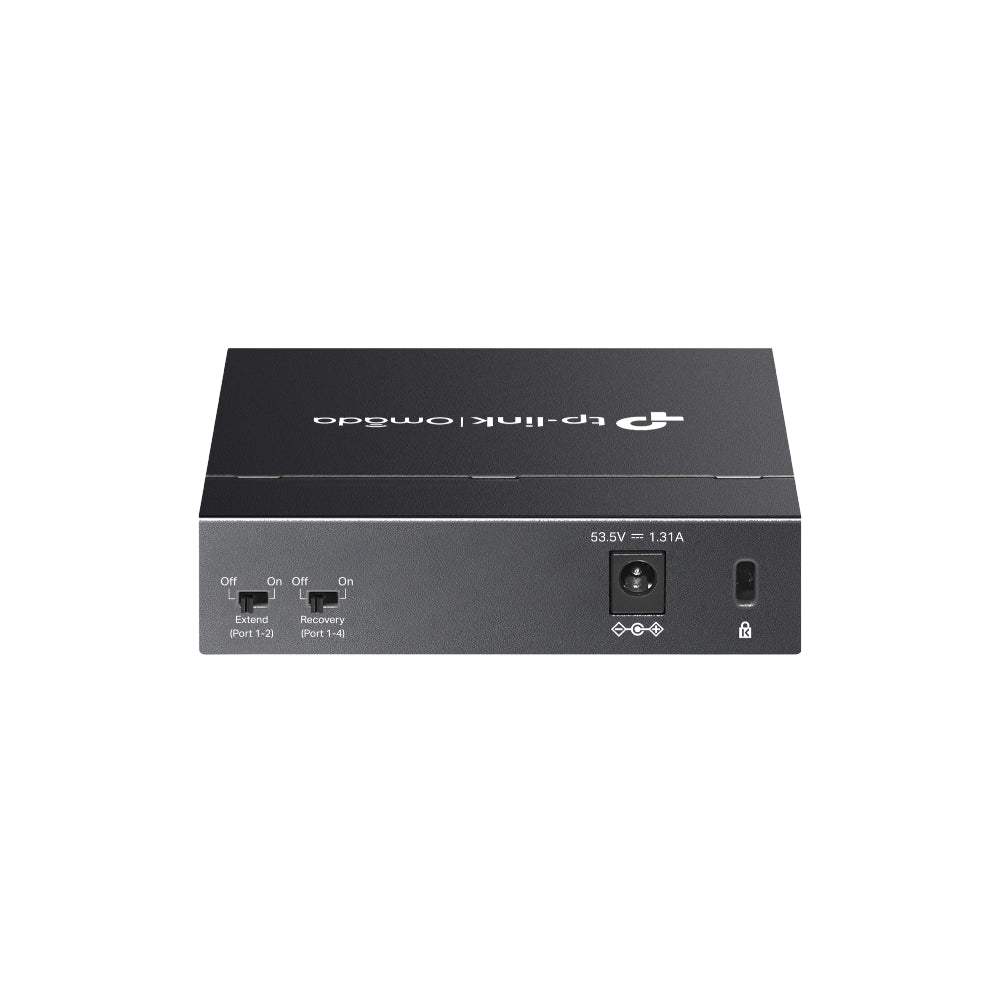

• External Power Supply: External Power Adapter (Output: 53.5 VDC / 1.31 A)
• Packet Forwarding Rate: 7.44 Mpps
• PoE Ports (RJ45): Ports 1–4 (802.3 af/at compliant)
• Mac Address Table: 2K
• Jumbo Frame: 16 KB
• Switching Capacity: 10 Gbps
• Max. Power Consumption: 3.44 W (220/50 Hz. no PD connected); 74.49 W (220/50 Hz. with 65 W PD connected)
• Max. Heat Dissipation: 11.73 BTU/h (no PD connected); 254.01 BTU/h (with 65 W PD connected)
• Certification: FCC, CE, RoHS
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Operating Humidity: 10% - 90% RH non-condensing

• 1 x DS105GP
• 1 x Power Adapter
• Installation Guide

3.9-in x 3.9-in x 1-in
