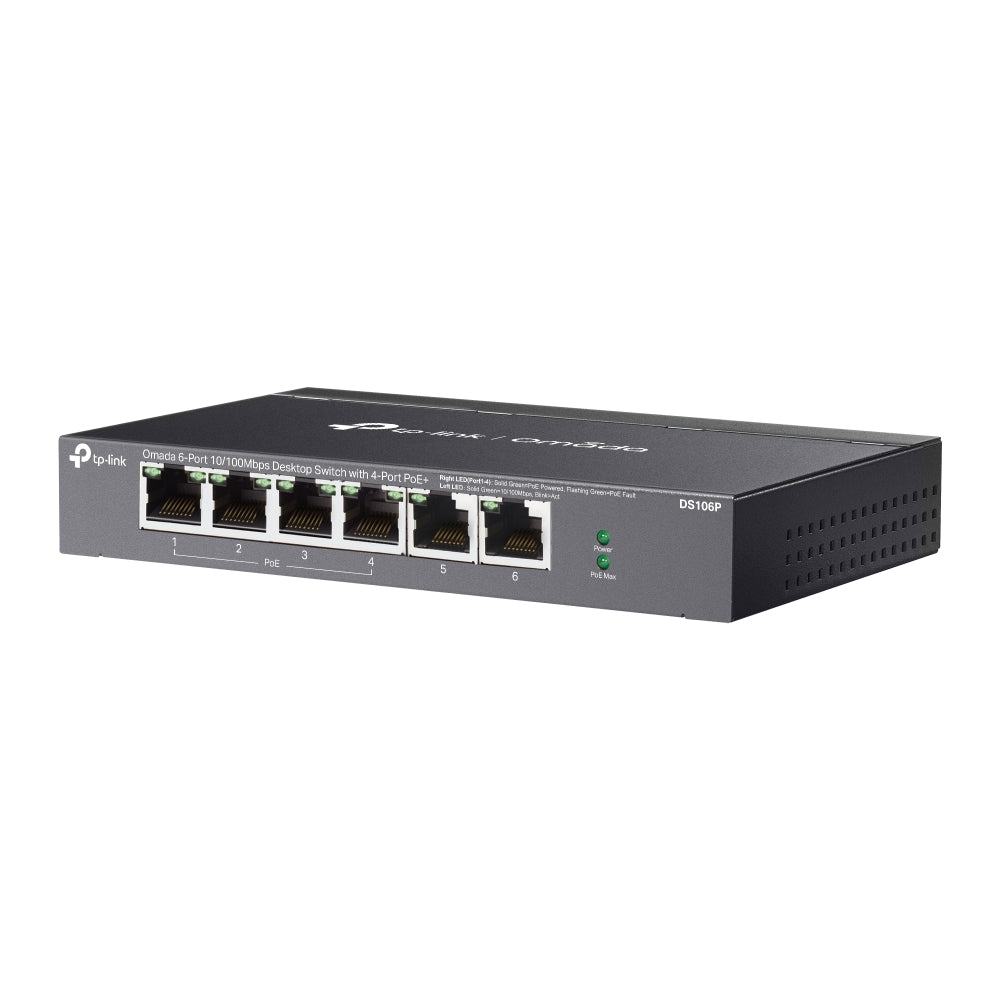

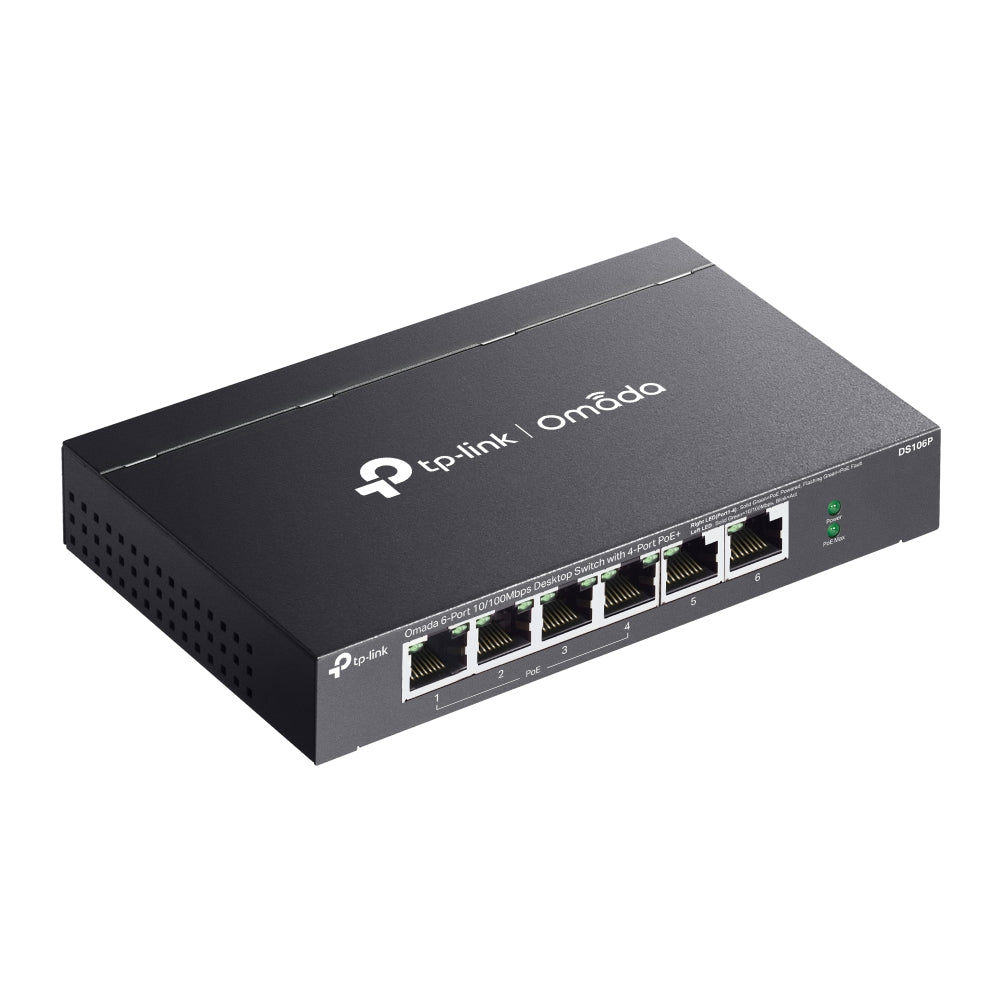

• 6 x 10/100 Mbps RJ45 ports
• 4 x PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 67 W for all PoE ports
• Up to 250m (820ft) data and power transmitting range under Extend Mode
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Plug and Play. No configuration or central management required

• Interface: 6 x 10/100 Mbps RJ45 Ports (ports 1–4 support 802.3af/at PoE+); AUTO Negotiation, AUTO MDI/MDIX

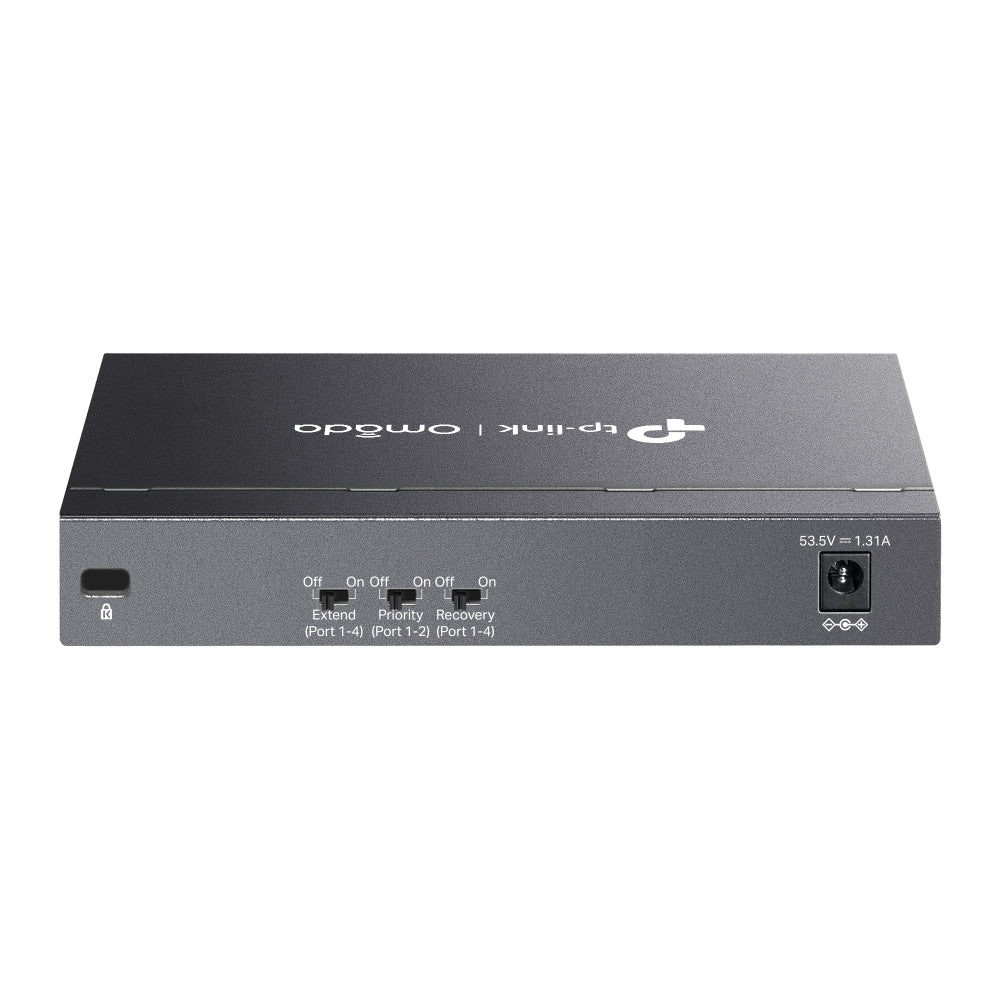

• External Power Adapter: Output 53.5 V DC / 1.31 A
• PoE Ports (RJ45): Ports 1–4 (802.3 af/at compliant)
• PoE Power Supply: 67 W
• Max. Power Consumption: 2.52 W (220 V / 50 Hz, no PD connected); 75.4 W (220 V / 50 Hz, with 67 W PD connected)
• Max. Heat Dissipation: 8.59 BTU/h(no PD connected); 257.11 BTU/h(with 67 W PD connected)
• Switching Capacity: 1.2 Gbps
• Packet Forwarding Rate: 0.8928 Mpps
• MAC Address Table: 2K
• Certification: FCC, CE, RoHS
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Operating Humidity: 10% - 90% RH non-condensing

• 1 x DS106P
• 1 x Power Adapter
• Installation Guide

6.2-in x 4-in x 1-in
