• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate
• Ideal for long-range wireless transmission up to 1 km
• Auto-pairing and agile LEDs for efficient deployment
• 3 x Gigabit Ethernet ports for more high-speed IP camera connections
• Supports Omada SDN for remote and centralized management
• IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability
• Supports Passive PoE for flexible deployment (adapter included)

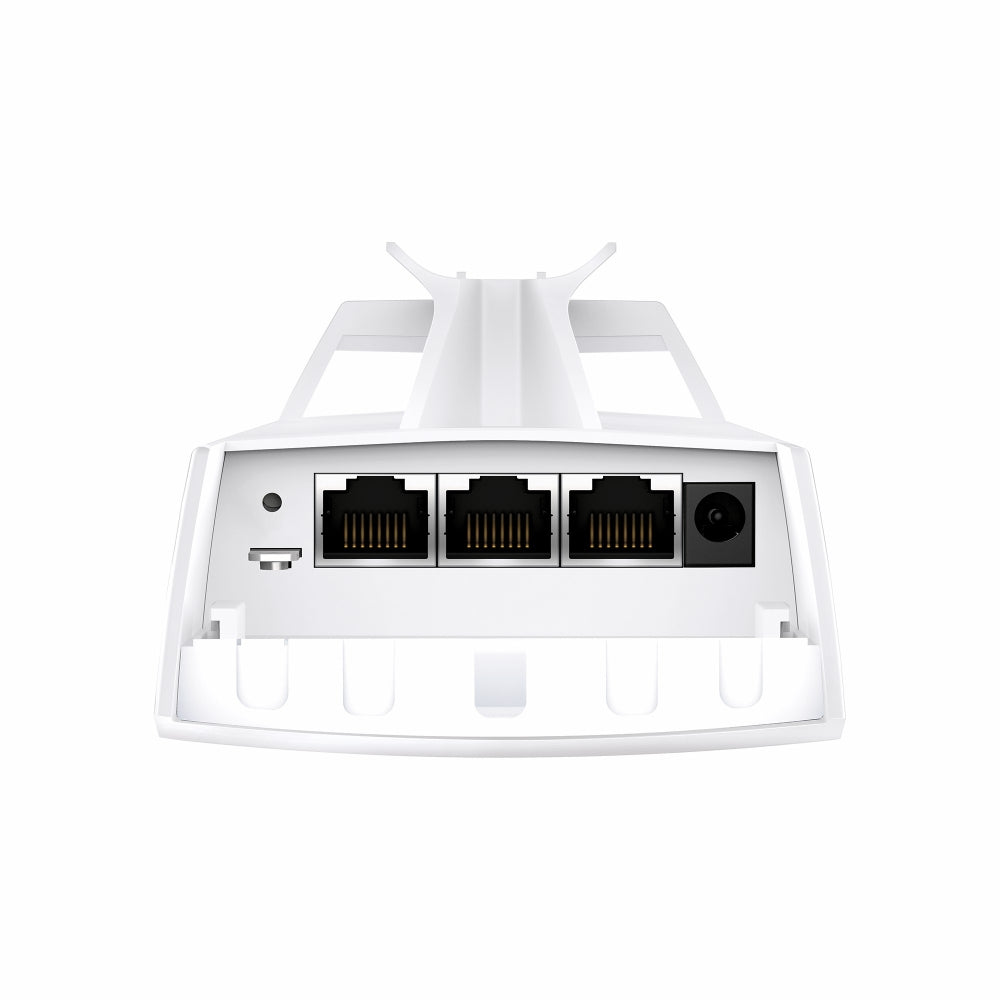

• Interface: 3 x Gigabit Ethernet Ports
• DIP Switch: Role Switch
• Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)
• Max. Power Consumption: 11.5W
• Antenna: Internal 2 x 2 Dual-polarized directional MIMO antennas (5 GHz: 7.0 dBi; Horizontal 70°, Vertical 70°)
• Coverage: 1000m (3280ft)
• Wireless Standards: IEEE 802.11 a/b/g/n/ac
• Signal Rate: Up to 867 Mbps @ 5GHz
• Lightning Protection: Air discharge ±8kV; Contact discharge ±4kV; Common mode 10/700 ±6kV
• Certification: FCC, CE, RoHS
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10%~90% non-condensing

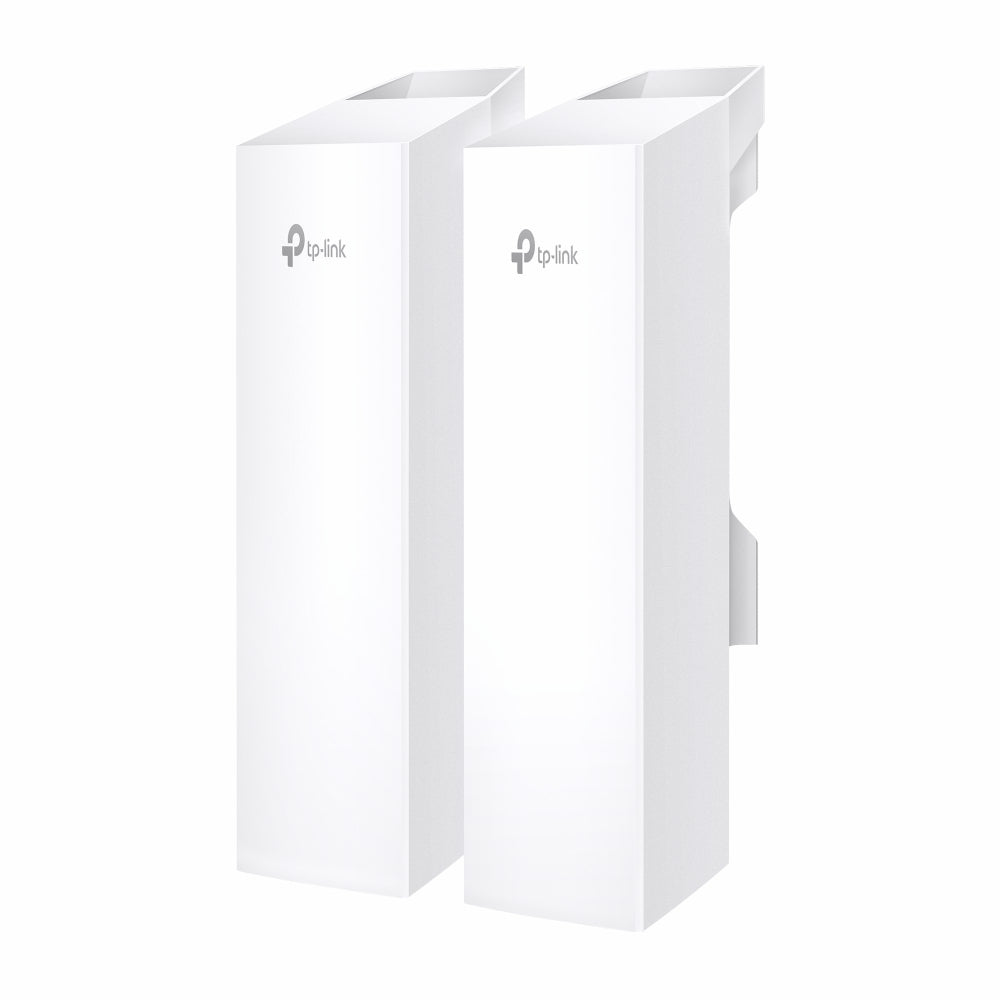

• 1 x EAP211-Bridge KIT
• 1 x Passive PoE Adapter
• 1 x Power Cord
• 1 x Mounting Kit
• Installation Guide

Datasheet
