• Ultra-Fast Wi-Fi 6 Speeds - Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds
• High-Density Connectivity - 4 x increased capacity to connect more devices simultaneously
• Integrated into Omada SDN - Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring
• Centralized Management - Cloud access and Omada app for ultra convenience and easy management
• Ultra-Slim Design - Φ160 mm x 33.6 mm elegant design brings more agility
• Seamless Roaming - Even video streams and voice calls are unaffected as users move between locations
• Omada Mesh - Enables wireless connectivity between access points for extended range and flexible deployment
• PoE+ Powered - Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations
• Secure Guest Network - Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies

• Interface: 1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
• Power Supply: 802.3at PoE; 48 V Passive PoE; 12 V / 1.5 A DC (adapter included)
• Max. Power Consumption: EU - 14.4 W (For PoE); 13.1 W (for DC); US - 14.9 W (For PoE); 13.4 W (for DC)
• Internal Omni Antenna: 2.4 GHz - 2 x 4 dBi; 5 GHz - 2 x 5 dBi
• Coverage: 140㎡(1500 ft²)
• Concurrent Clients: 1,020+
• Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
• Signal Rate: Up to 1201 Mbps @ 5 GHz; Up to 574 Mbps @ 2.4 GHz
• Transmission Power: CE <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band)
FCC <25 dBm (2.4 GHz); <25 dBm (5 GHz)
• Certification: CE, FCC, RoHS
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Operating Humidity: 10% - 90% RH non-condensing

• 1 x EAP620 HD
• 1 x Power Adapter

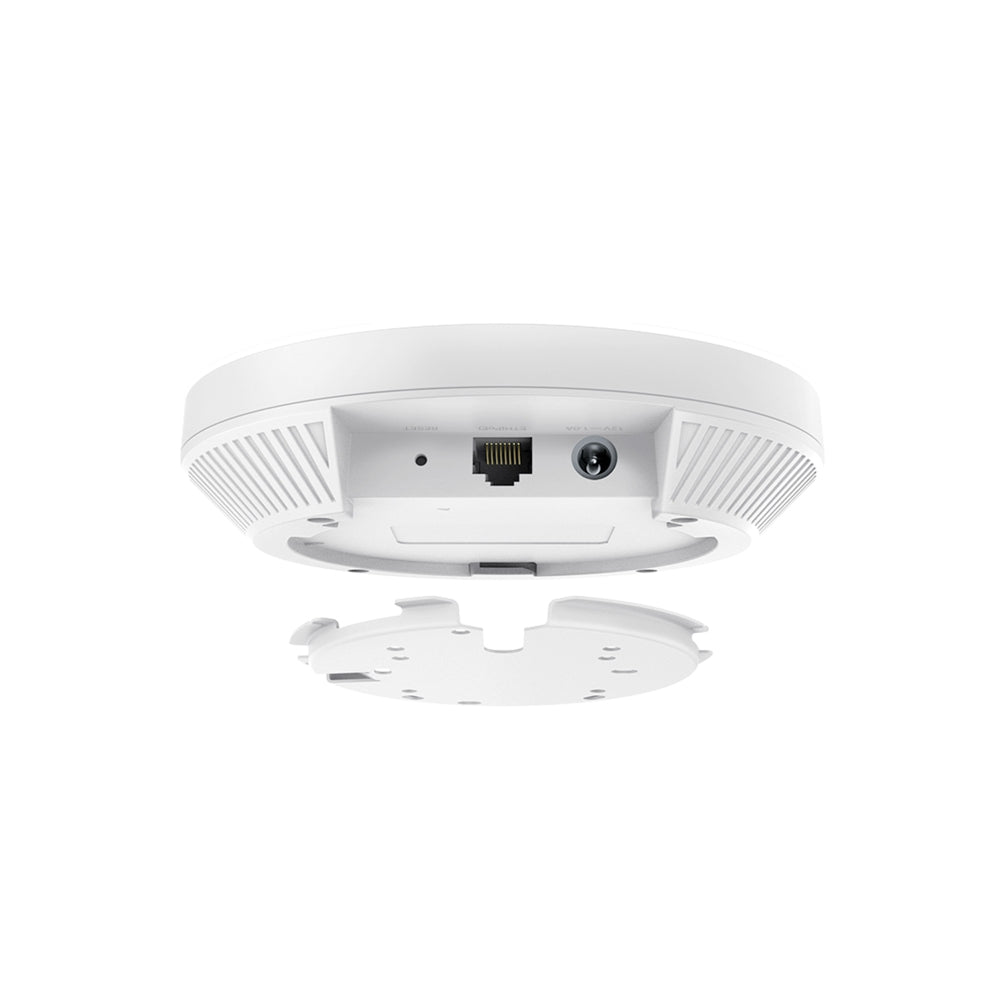

• 1 x Ceiling Mounting Kit
• 1 x Wall Mounting Kit
• Installation Guide

6.3-in x 6.3-in x 1.3-in
