• Superior Wi-Fi 6 Speeds - 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz
• Directional Ultra-Range Coverage - Equipped with built-in high-gain directional antennas to deliver precise and extended coverage
• Ideal for Warehouses and Outdoor Scenes - Features an IP68 waterproof enclosure with -30°C to +70°C operating range
• 802.11k/v/r Seamless Roaming - Ensures uninterrupted connectivity for AGVs and handheld scanners
• Flexible Deployment - Supports 802.3at PoE and Omada Mesh technology
• Centralized Cloud Management - Control everything from a single interface anywhere via the Omada app or Web UI

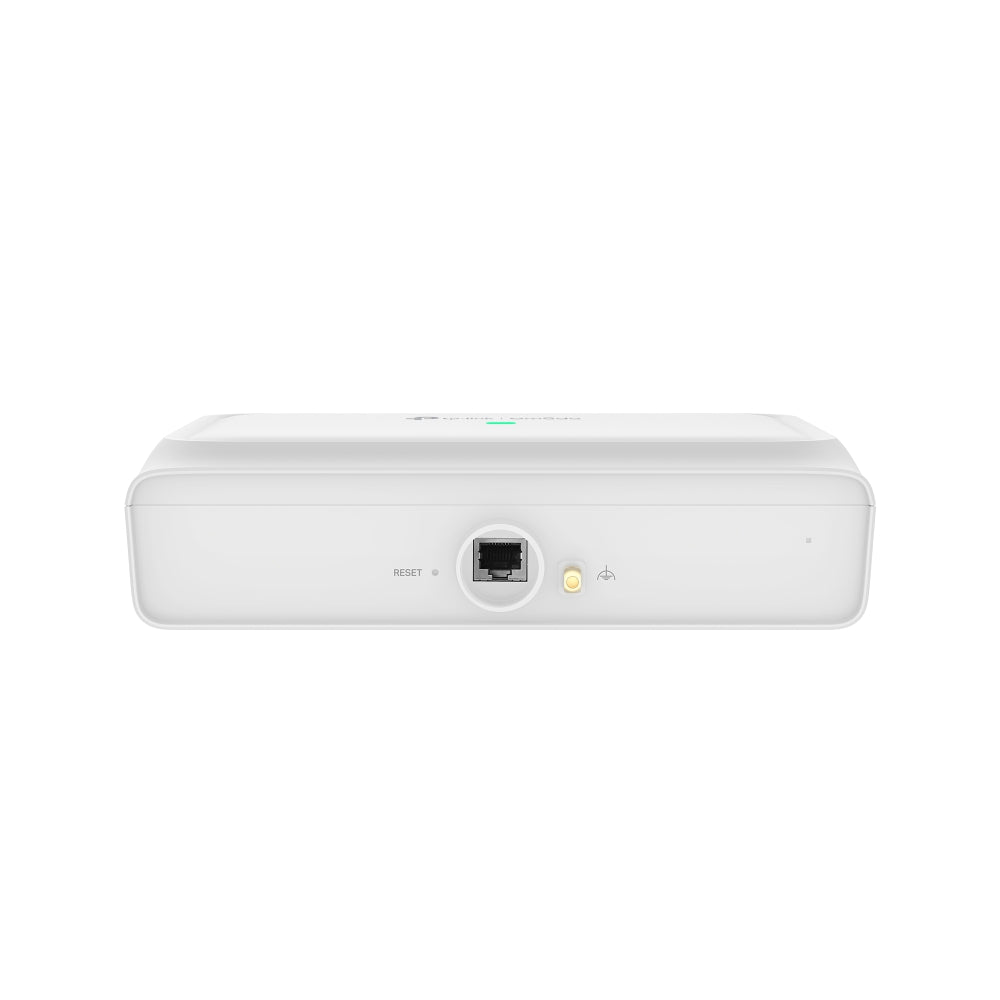

• Interface: 1 x Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)
• Signal Rate: 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)
• Concurrent Clients: 250+
• Antenna: 2.4 GHz - 2 x 8.0 dBi; 5 GHz - 2 x 10.0 dBi (Beamwidth: 120° Horizontal; 30° Vertical)
• Transmit Power: CE - < 20 dBm (2.4GHz, EIRP); < 23dBm (5 GHz, band1 & band 2, EIRP);< 30 dBm (5 GHz, band 3, EIRP);
FCC - < 30 dBm (2.4 GHz); < 30 dBm (5 GHz)
• Wireless Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• MU-MIMO: 2x2 MU-MIMO DL/UL
• Power Supply: 802.3at PoE; 48V Passive PoE
• Lightning Protection: Air discharge ±8kV; Contact discharge ±4kV; Common mode 10/700 ±6kV
• Certifications: CE, FCC, RoHS, IC
• Operating Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
• Operating Humidity: 10%–90% non-condensing

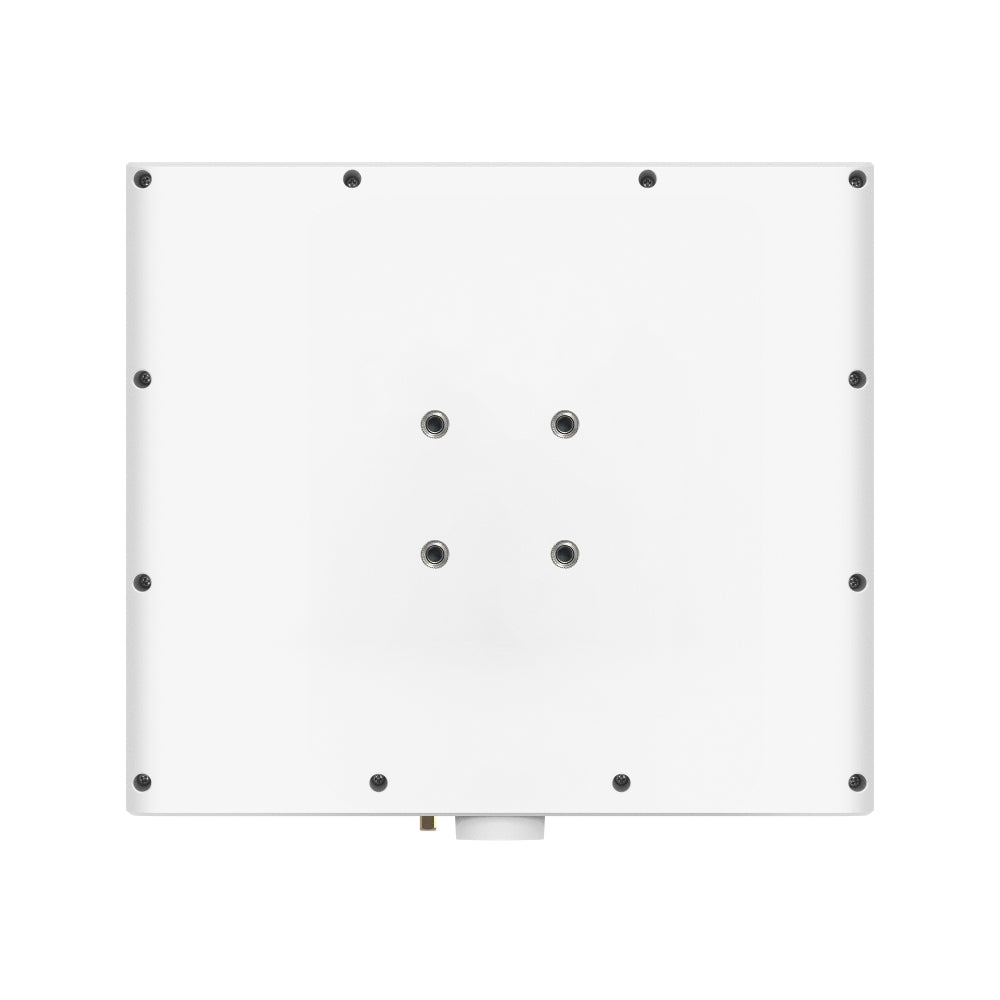

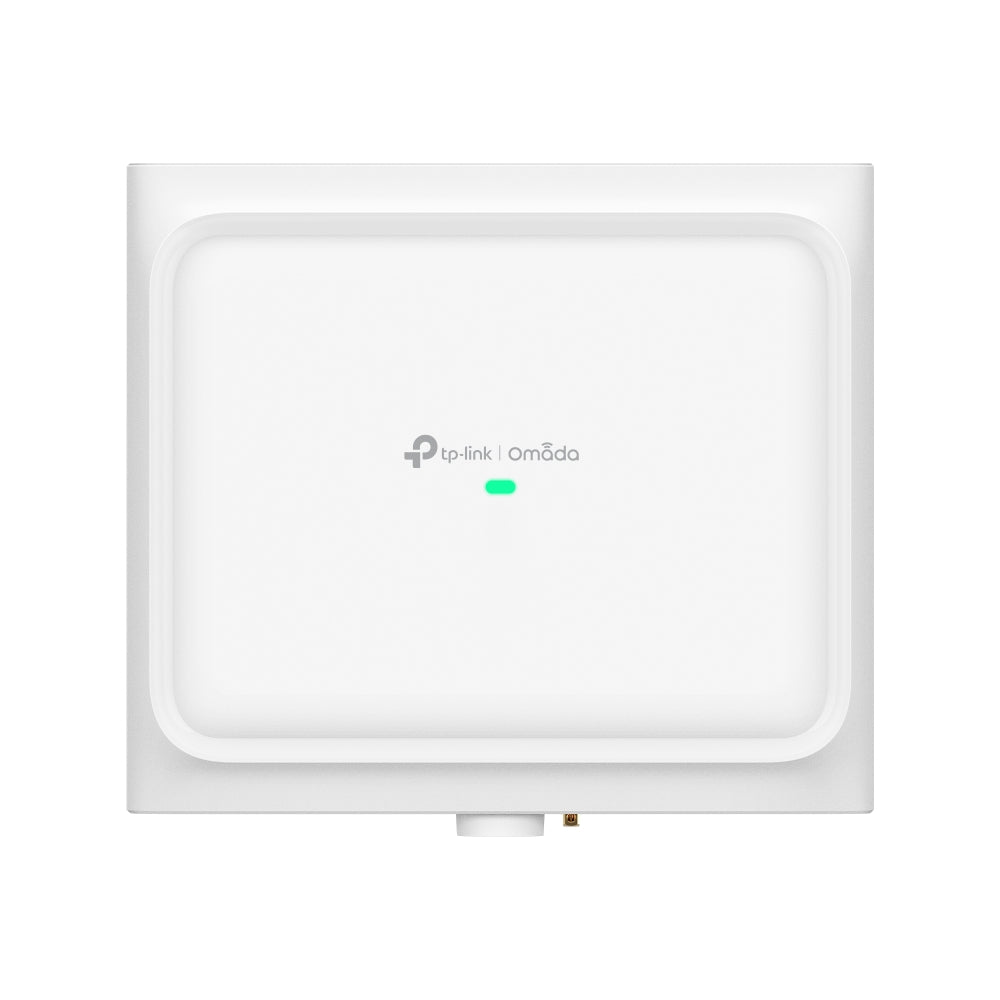

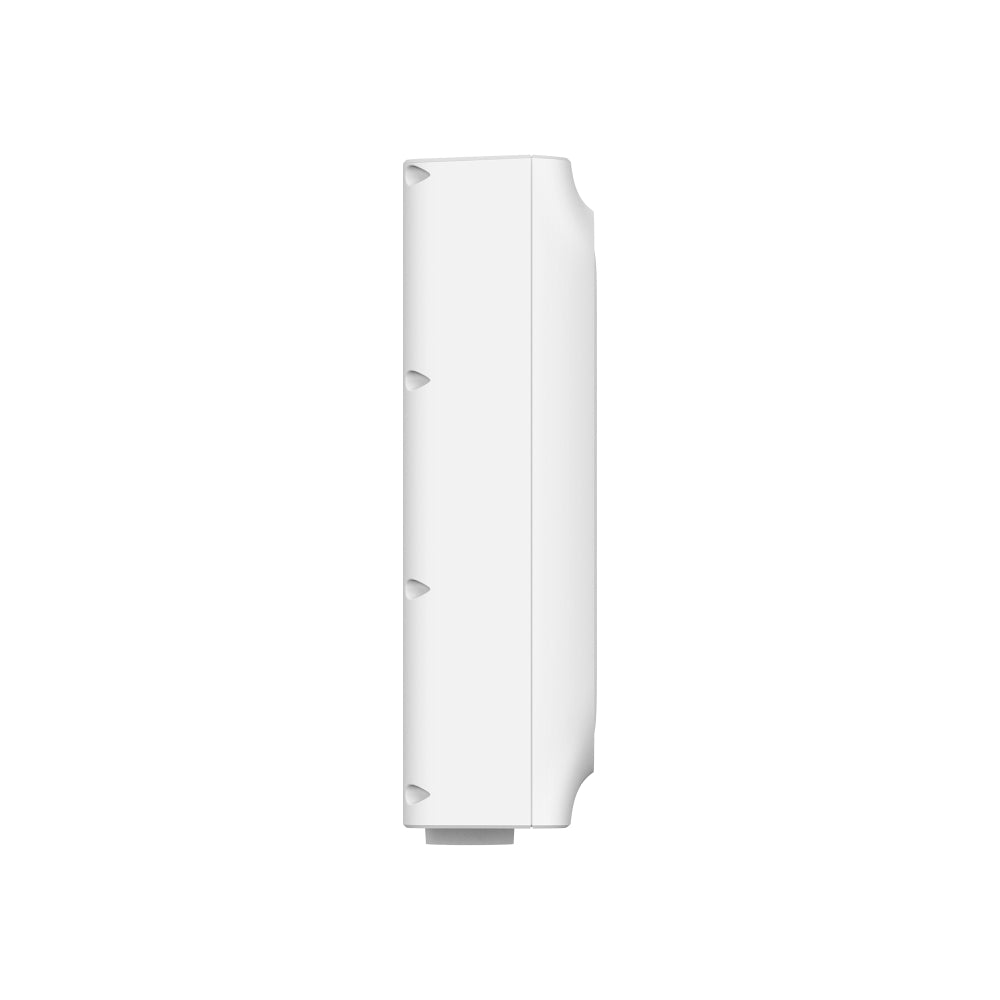

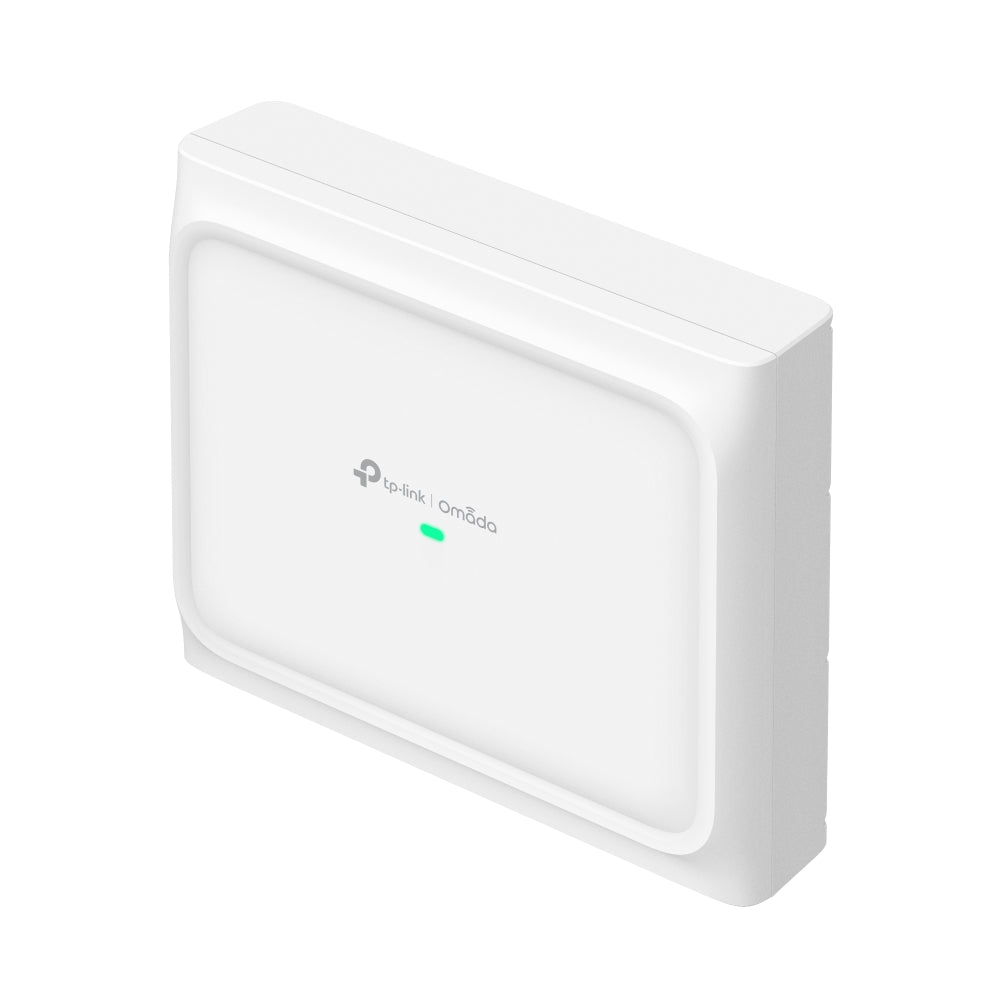

• 1 x EAP650 D120-Outdoor Access Point
• 1 x Wall Mounting Kit
• 1 x Pole Mounting Kit
• Installation Guide

9.1-in x 8.2-in x 2.8-in

3.1 lbs
