• Blazing-Fast AX3000 Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps Wi-Fi speeds

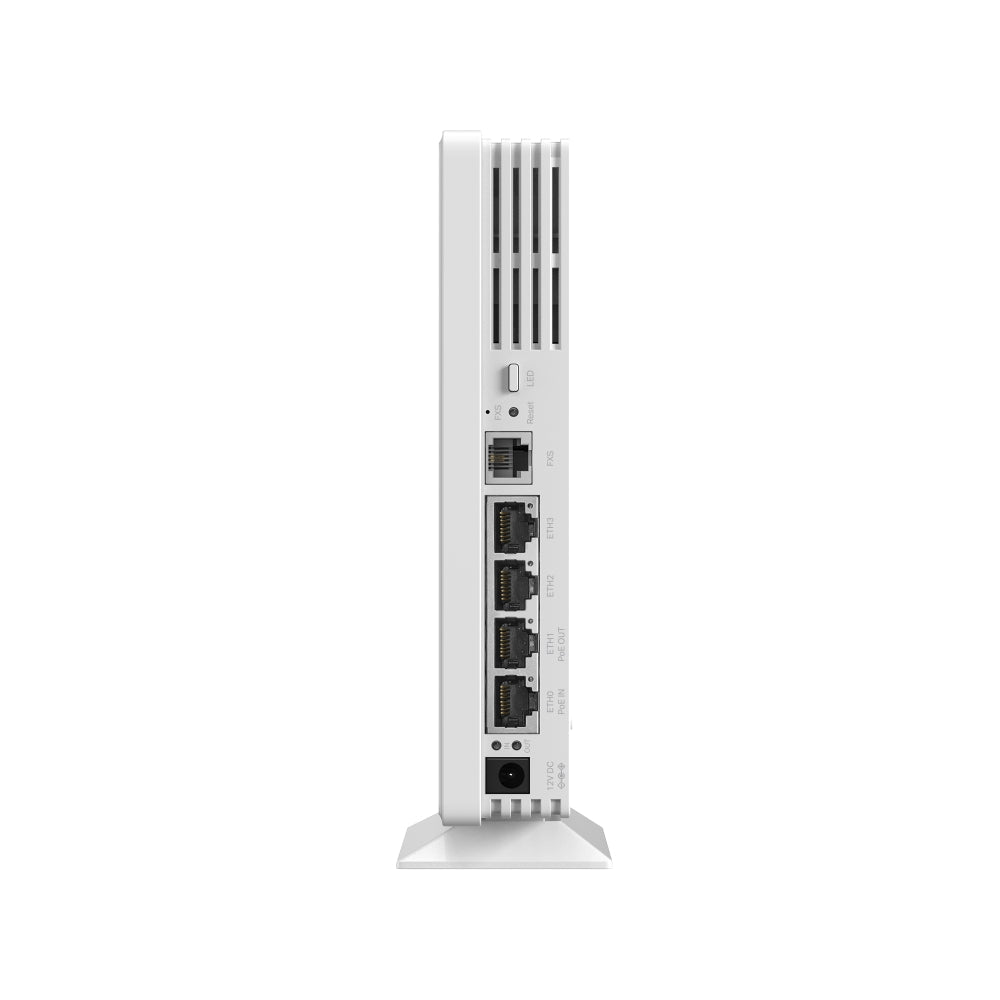

• Multiple Gigabit Ports: Connect multiple devices with 4× Gigabit Ethernet Ports
• Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment
• No Installation needed: Supports desktop installation without the need for additional setup

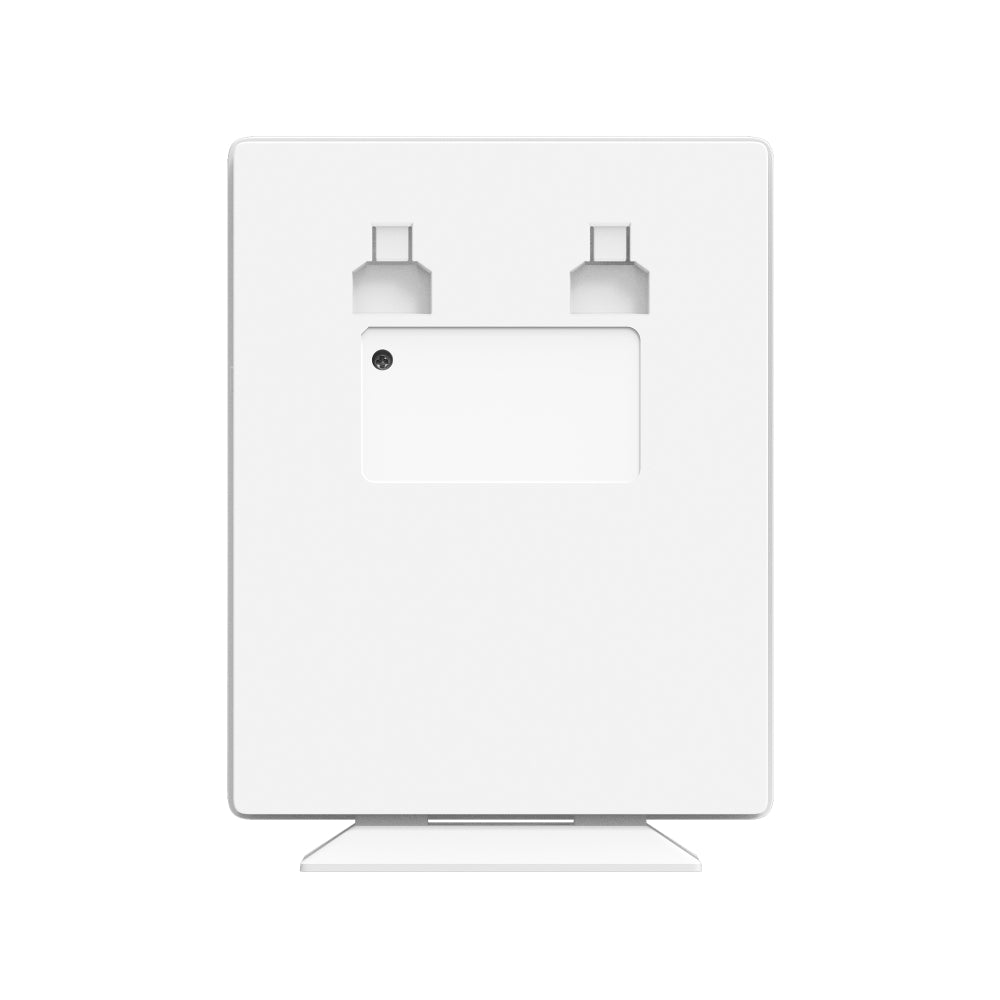

• High Flexibility: Provide flexible installation solutions for both desktop and wall mounting
• Stay Smooth with Seamless Roaming: Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points
• Centralized Cloud Management: Integrates with the Omada SDN platform for Centralized Management

• Range 140㎡(1500 ft²)
• Concurrent Clients: 250+
• Antenna: Internal Omni(2.4 GHz - 2 x 5 dBi; 5 GHz - 3 x 4.7 dBi)
• Interface: 4 x 1Gbps Ethernet Ports + 1 x FXS Port (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)
• Power Supply: 802.3 af/at/bt PoE or 12V/1.5A DC (PoE Out requires 802.3at/bt PoE power supply)
• Max. Power Consumption: 17.3W (PoE Out Off)
• Signal Rate: 2402 Mbps@5 GHz; 574 Mbps@2.4 GHz
• CE Transmission Power: <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, band1 & band2, EIRP); <29 dBm(5 GHz, band3, EIRP)
• FCC Transmission Power: <26 dBm (2.4 GHz); <27 dBm (5 GHz)
• Centralized Management: Omada Hardware Controller; Omada Software Controller; Omada Cloud-Based Controller
• Operating Environment: Temperature 0°C to 40°C (32°F to 104°F); Humidity 10-90% RH (Non-Condensing)
• Certification: CE, FCC, RoHS, IC

• 1 x EAP650-Desktop
• 1 x Desktop/Wall Mounting Kit
• Installation Guide
