•Designed for business environments requiring high-performance Wi-Fi
•Wi-Fi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals

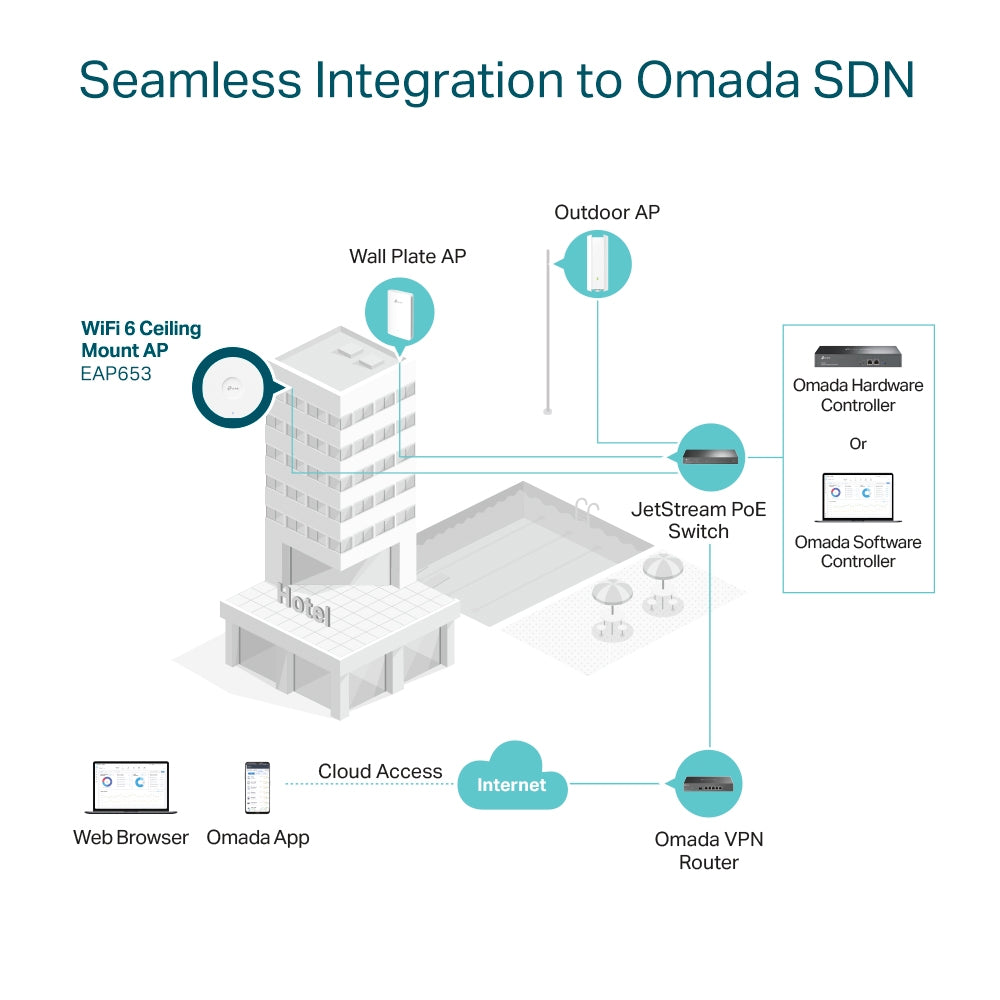

•Seamless integration into Omada Software Defined Networking (SDN) platform for a highly scalable network
•Provides powerful wireless while reducing Wi-Fi interference by adjusting the channel settings & transmission power levels of APs in the same network
•Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted

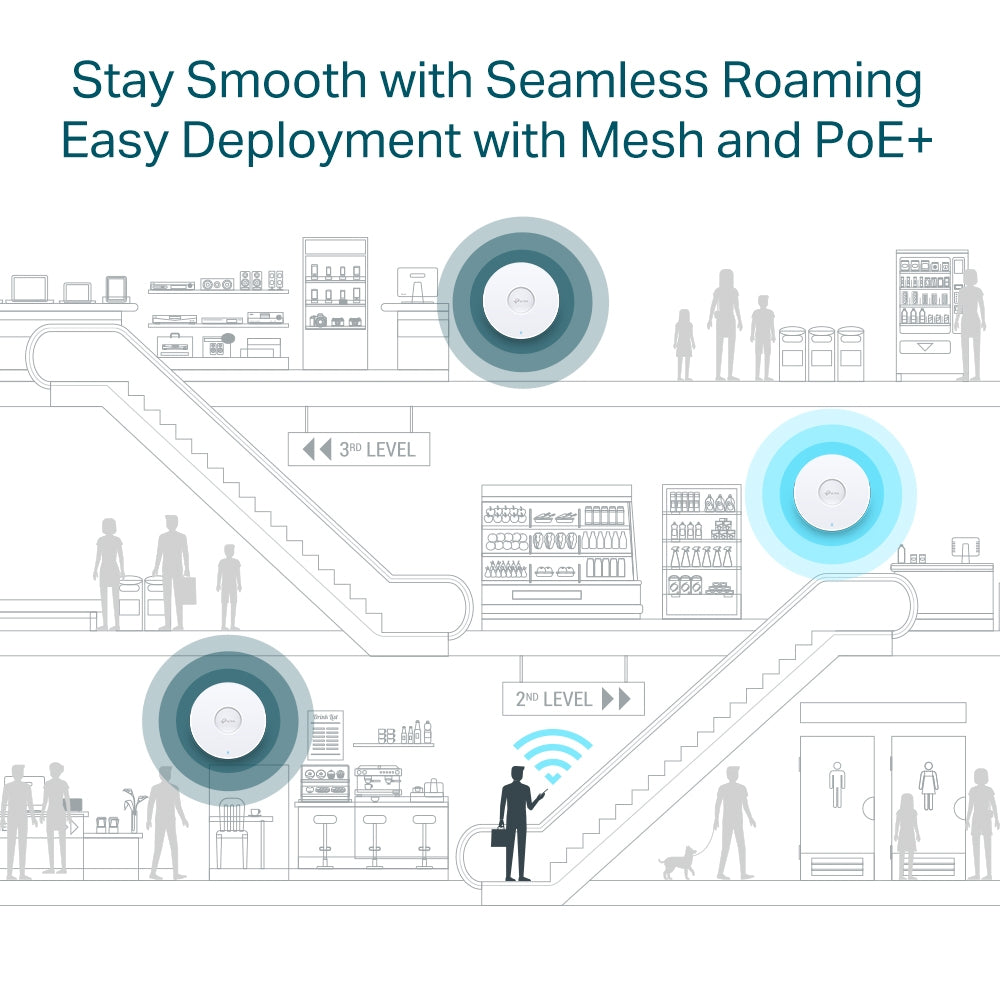

•Ensures customers enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal
•Easy to mount with refined industrial design
•With advanced enterprise security, WPA3 provides more data security for previously unsecured and open Wi-Fi hotspots
•Ensures large numbers of users have smooth network experiences in high-density business networks
•Increases average network throughput in heavily congested environments for airtime fairness
•Double the data at peak transmission times on a single stream with HE160
•Supports both DC (adapter sold seperately) and 802.3at PoE+ for flexible installations

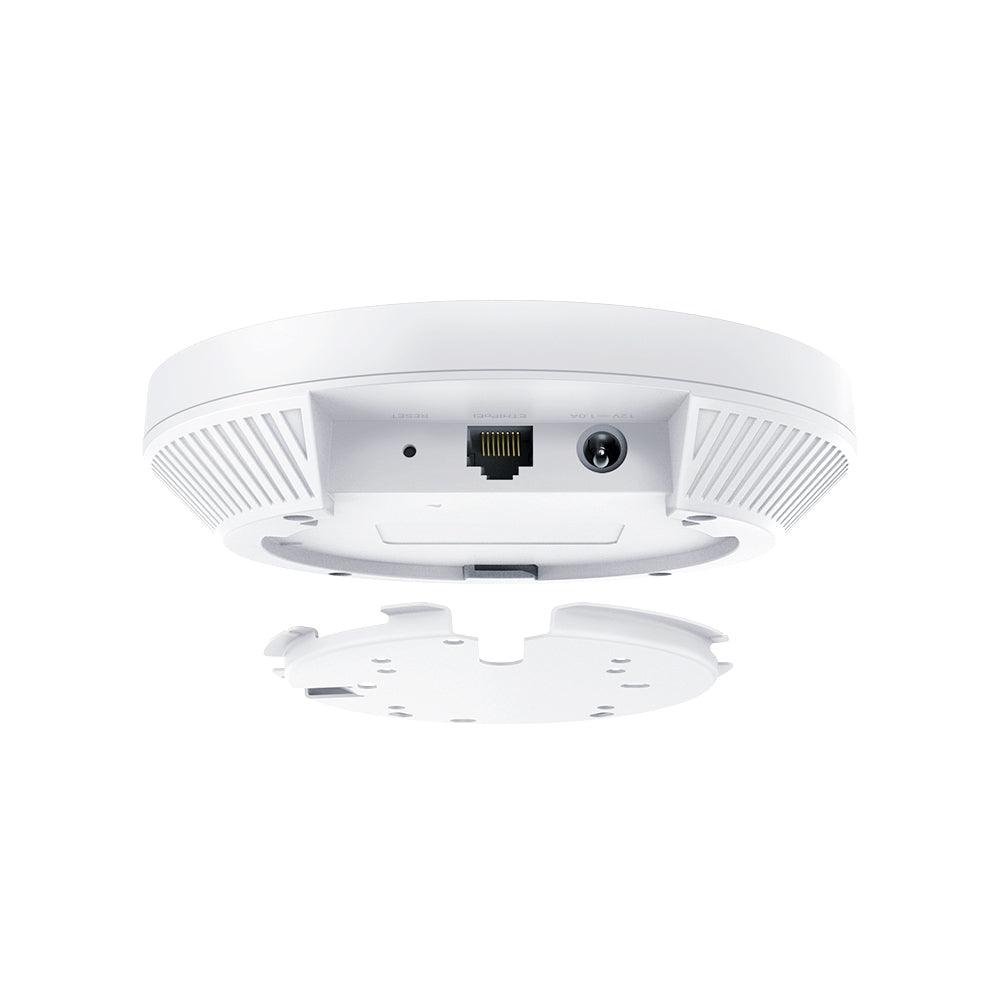

•Interface: 1 × Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE)
•Power Supply: 802.3at PoE, 12 V / 1.5 A DC (adapter sold seperately)
•Power Consumption: 14.7 W
•Antenna Type: Internal Omni 2.4 GHz - 2 × 4 dBi, Internal Omni 5 GHz - 2 × 5 dBi

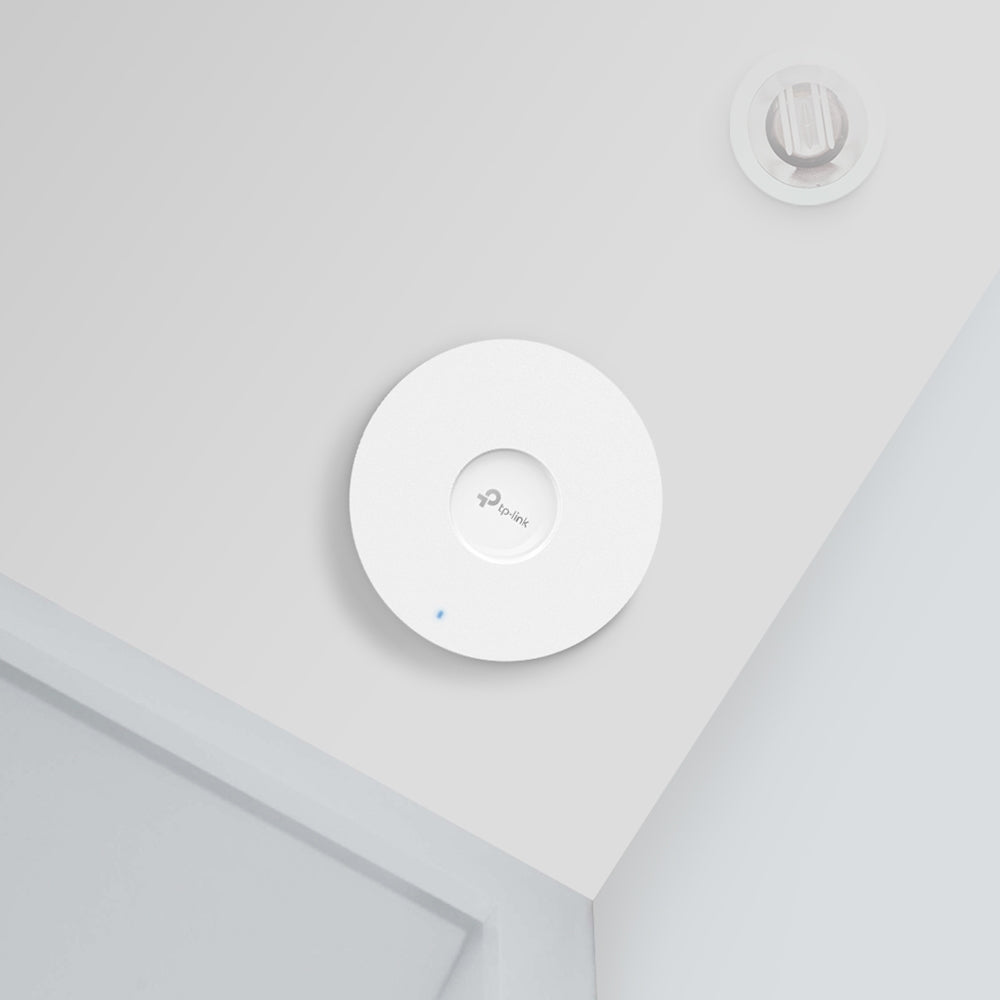

•Mounting: Ceiling / Wall Mounting (Kits included), Junction Box Mounting
•Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
•Frequency: 2.4 GHz and 5 GHz
•Signal Rate: 5 GHz - Up to 2402 Mbps, 2.4 GHz - Up to 574 Mbps
•Wireless Functions: 1024-QAM, 4× Longer OFDM Symbol, OFDMA, Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), MU-MIMO, HE160 (160 MHz Bandwidth), Seamless Roaming (requires the use of an Omada SDN controller), Omada Mesh (requires the use of an Omada SDN controller), Band Steering, Load Balance, Airtime Fairness, Beamforming, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
•Wireless Security: Captive Portal Authentication (requires the use of an Omada SDN controller), Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
•Certification: CE, FCC, RoHS
•Operating Temperature: 0°C to 40°C (32°F to 104°F)

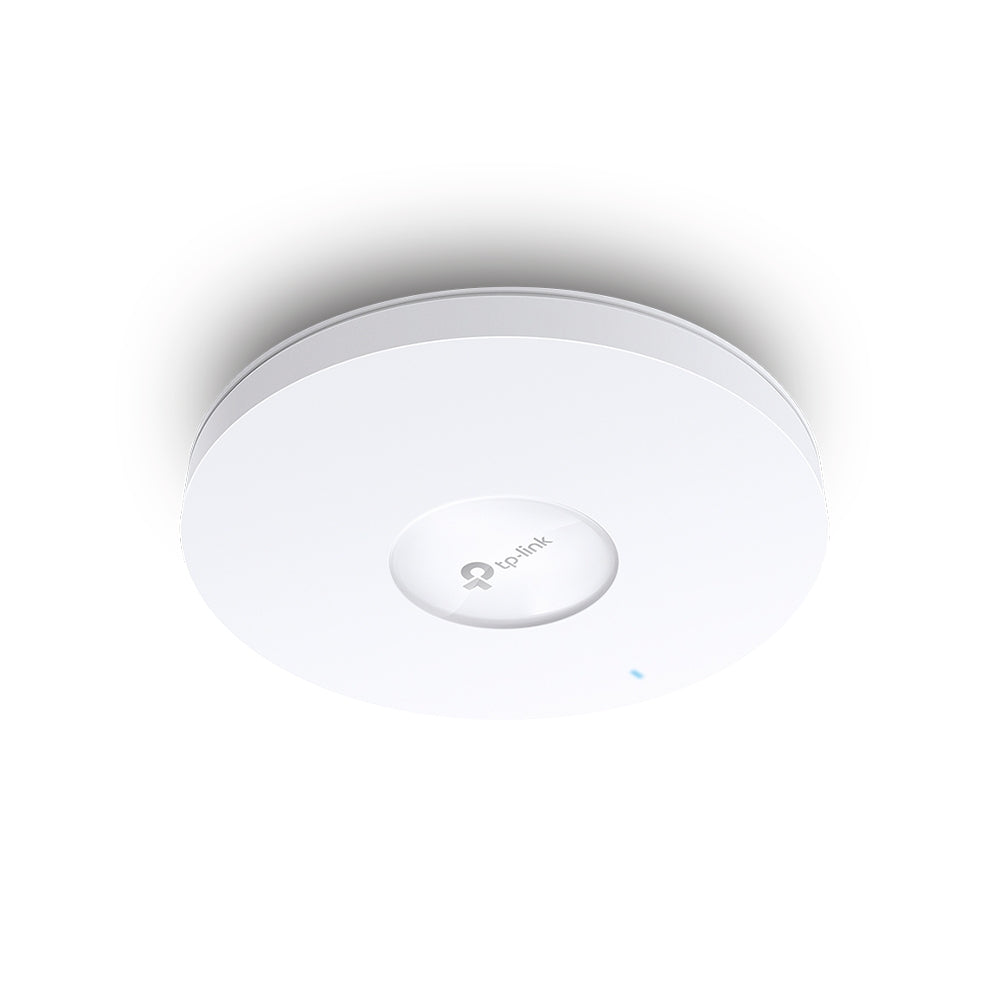

•1 x EAP653 Access Point
•1 x Ceiling Mounting Kit
•1 x Wall Mounting Kit
•Installation Guide
