•Deliver data to more devices at the same time with less lag through OFDMA and MU-MIMO
•Guaranteed strong signals and corner-to-corner WiFi coverage in each room

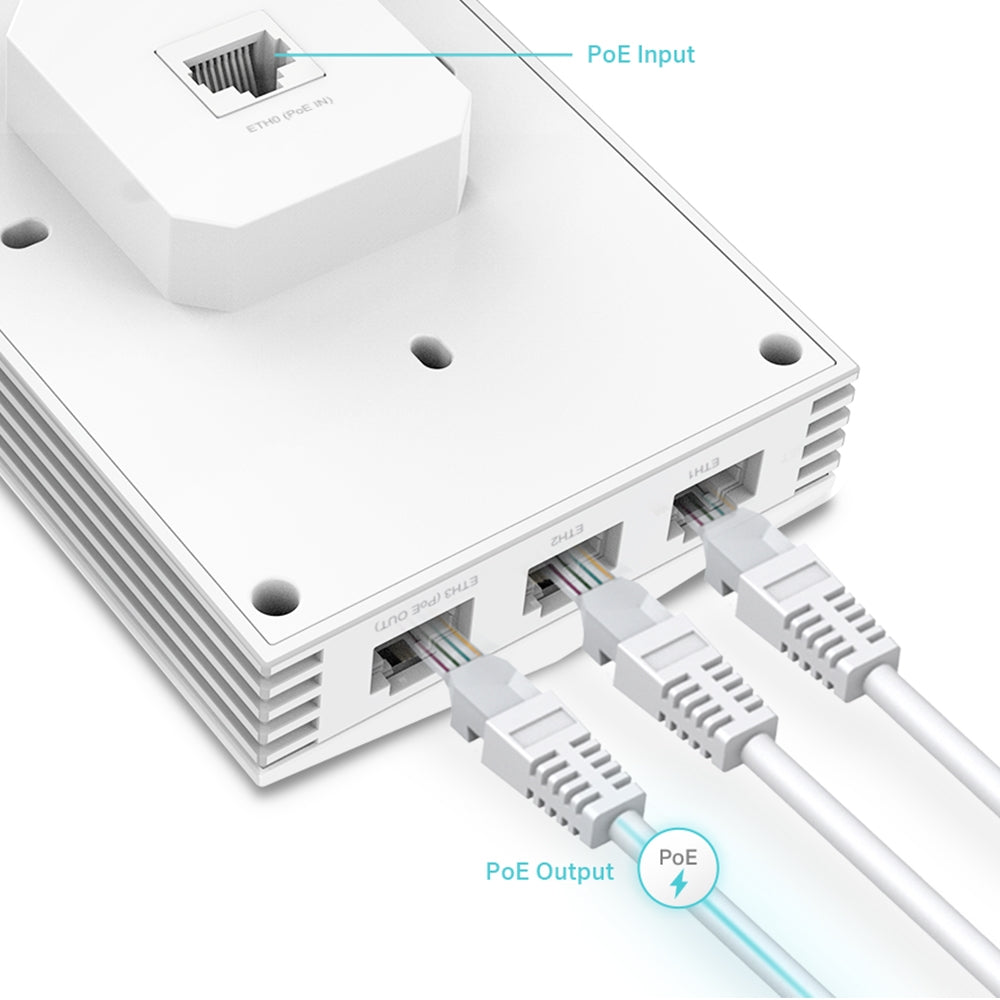

•Connect multiple devices with three downlink gigabit ports, one with PoE pass-through

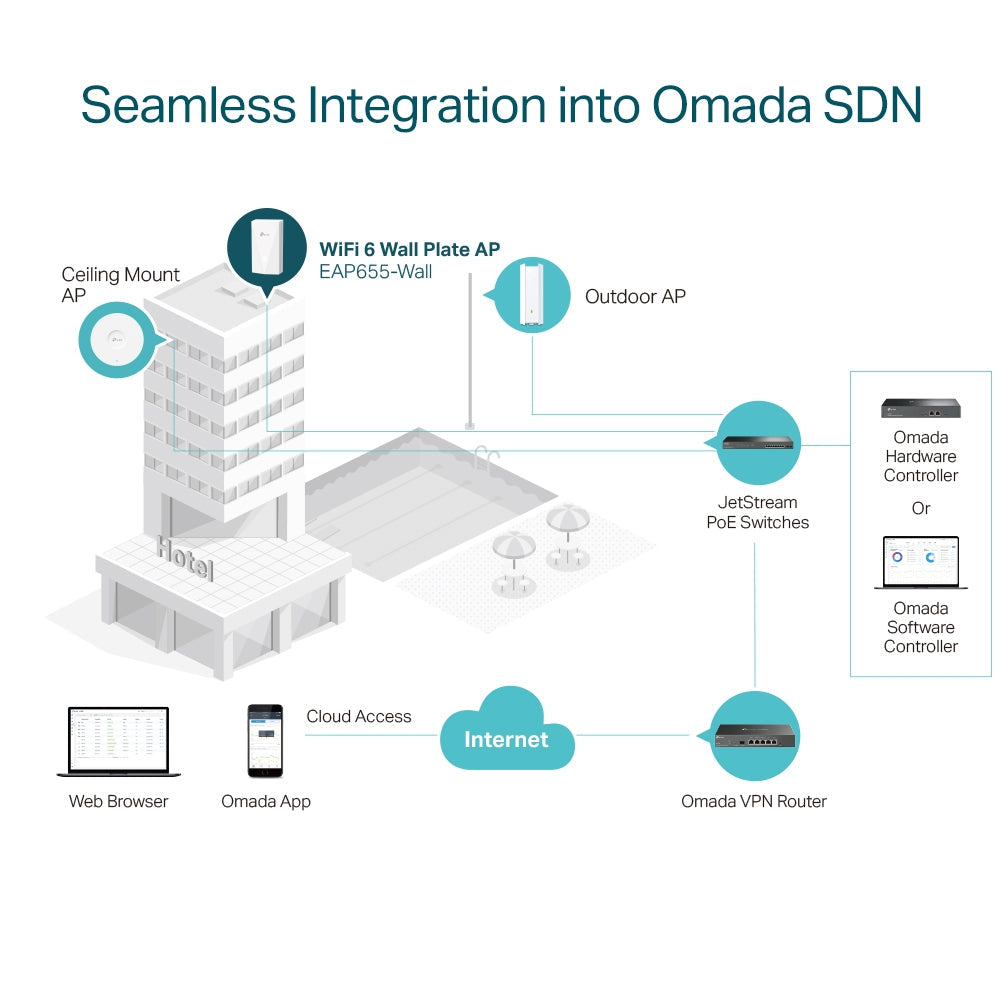

•Integrates into Omada SDN for cloud access and remote management
•Implement multiple authentication options (SMS/ Facebook Wi-Fi/ Voucher) packed with high-quality wireless security technologies
•The latest WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency
•An EAP in each room allows guests to enjoy their own private WiFi network that’s fast, providing corner to corner coverage
•Guest network access provides enhanced security to guests, different SSIDs enable flexible access management
•With an easy-to-install design, there is no need to spend time and money bringing someone in to install our EAP
•Fits three kinds of wall junctions: 86 mm wall junction box, Standard EU wall junction box, Standard US wall junction box

•Interface: Uplink - 1× 10/100/1000 Mbps Ethernet Port, Downlink - 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE out, and the PoE out feature requires 802.3at PoE+ input)
•Power Supply: 802.3af/at PoE
•Power Consumption: 11.5 W
•Antenna: 2.4 GHz - 2× 3 dBi / 5 GHz - 2× 5 dBi
•Mounting: Wall Plate Mounting (Kits included)
•Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
•Frequency: 2.4 GHz and 5 GHz
•Signal Rate: 5 GHz - Up to 2402 Mbps / 2.4 GHz - Up to 574 Mbps
•Transmit Power: CE - <20 dBm (2.4GHz, EIRP), <23 dBm (5GHz band1 & 2, EIRP), <27 dBm (5GHz band3, EIRP) / FCC - < 22 dBm (2.4 GHz) < 22 dBm (5 GHz)
•Wireless Functions: 16 SSIDs (Up to 8 SSIDs on each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS (WMM), Seamless Roaming (requires the use of an Omada SDN controller), Beamforming, MU-MIMO, Rate Limit, Load Balance, Airtime Fairness, Band Steering, Reboot Schedule, Wireless Schedule, RADIUS Accounting, MAC Authentication, Wireless Statistics, Static IP/Dynamic IP
•Wireless Security: Captive Portal Authentication (requires the use of an Omada SDN controller), Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, VLAN, Rogue AP Detection, 802.1X Support, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
•Operating Temperature: 0°C to 40°C (32°F to 104°F)

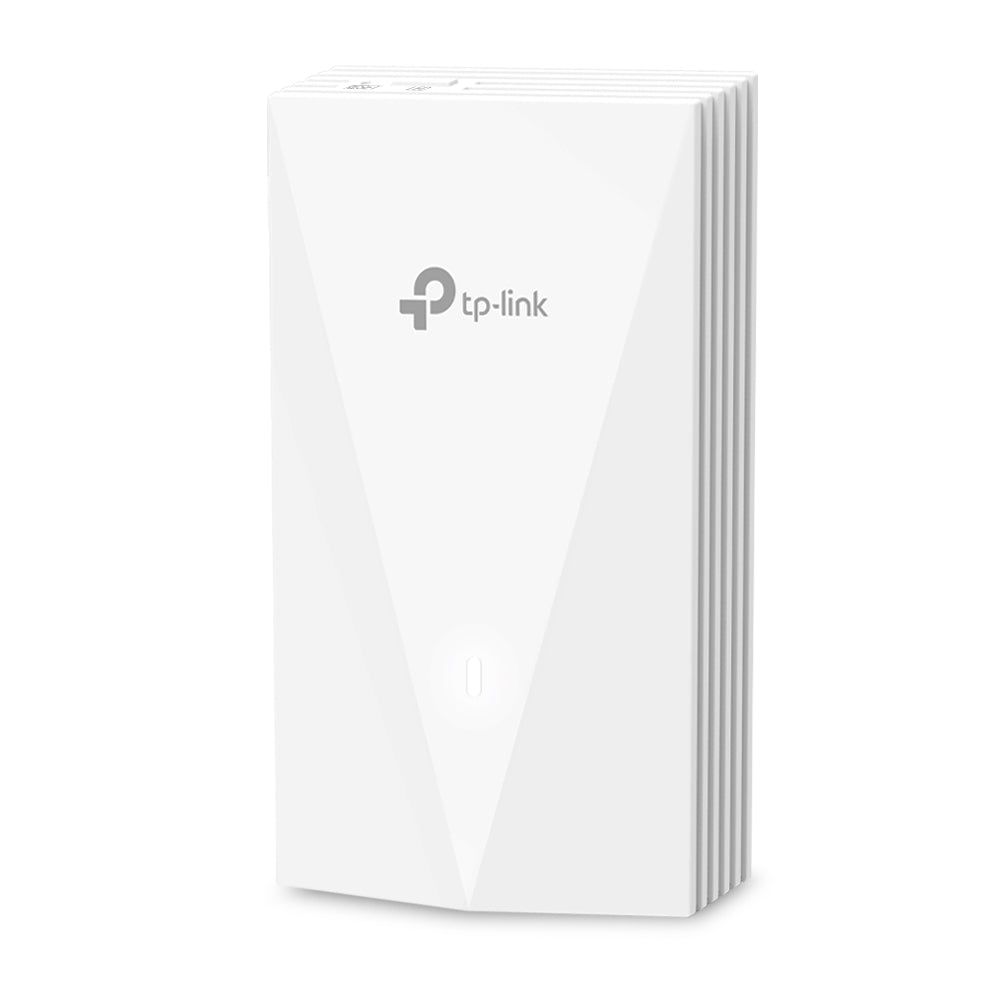

•1 x EAP655-Wall AX3000 Wall Plate WiFi 6 Access Point
•Mounting Kits
•Installation Guide
