• Ultra-Fast 3.6 Gbps Wi-Fi 6 Speeds - 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz
• High-Density Connectivity - Supports up to 1,024 devices.

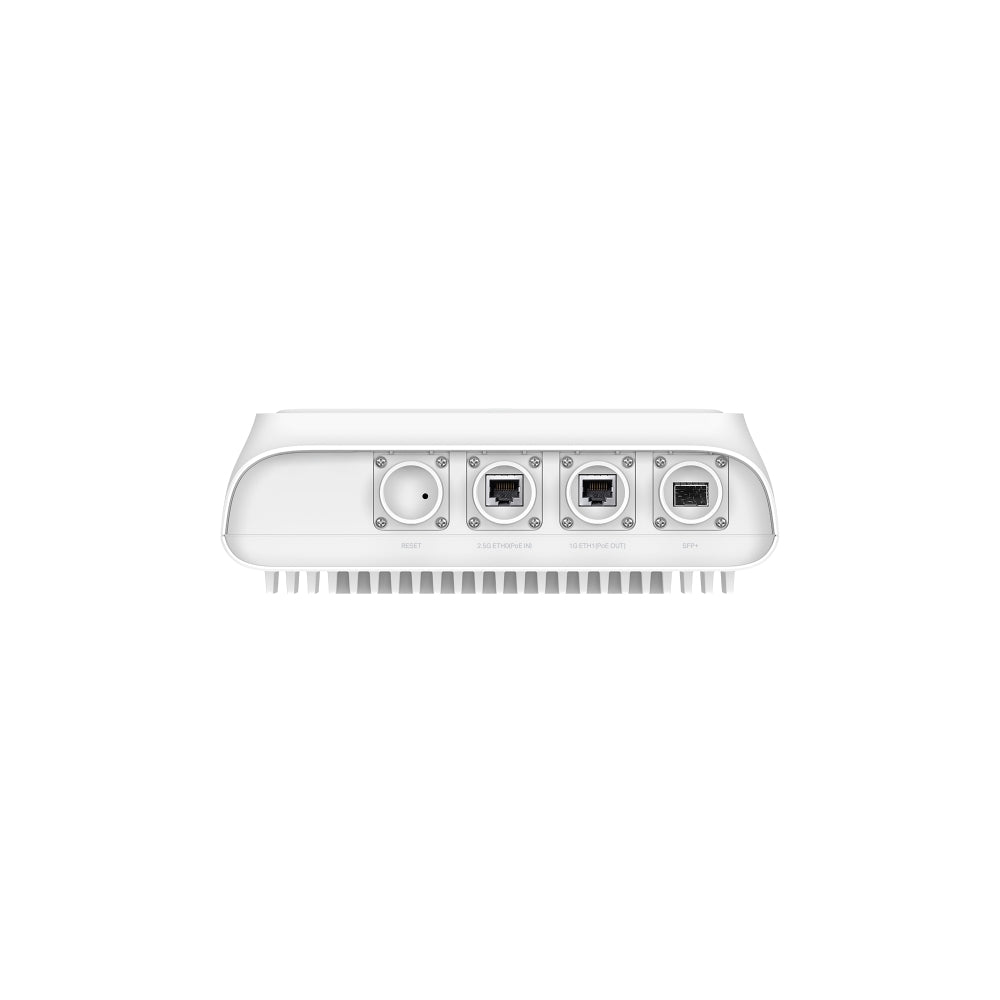

• Multiple Ports for Flexible Network Solutions - 1 x 10G SFP+ slot, 1 x 2.5G PoE-In port, and 1 x Gigabit PoE-Out port
• PoE+/PoE++ Powered and PoE+ Out - Supports 802.3at/bt PoE input and 802.3at PoE output
• Ideal for Outdoor Environments - IP68-rated weatherproof enclosure, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C
• Advanced Features - Omada Mesh, Seamless Roaming, Bluetooth, and Centralized Cloud Management

• LAN Interfaces: 1 x 2.5G Ethernet Port; 1 x 1G Ethernet Port + 1 x 10G SFP+
• Maximum Data Rate: 1148 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)
• Wireless Client Capacity: 1000+
• Antennas: 4 x External Dual-Band Omni Antennas
• Transmit Power: CE - < 20 dBm (2.4 GHz, EIRP); < 23dBm (5 GHz, band1&band 2, EIRP);< 30 dBm (5 GHz, band 3, EIRP);
FCC - < 29 dBm (2.4 GHz); < 28 dBm (5 GHz, Band1 & Band4 ) ; < 23 dBm (5 GHz, Band2 & Band3 )
• Wireless Encryption: WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
• MU-MIMO: 4x4 MU-MIMO DL/UL
• Power Supply: 802.3at/bt PoE
• Lightning Protection: Air discharge ±8kV; Contact discharge ±4kV; Common mode 10/700 ±6kV
• Certifications: CE, FCC, RoHS, IC
• Operating Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10%–90% non-condensing

• 1 x EAP668-Outdoor HD Access point
• 1 x Wall Mounting Kit
• 1 x Pole Mounting Kit
• Installation Guide

12.28-in x 9.45-in x 3.15-in

6.02 lbs
