• Dual-Band 4-Stream Wi-Fi 7 - Up to 5.0 Gbps (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz)
• 1 x 2.5G Port - Ensures fast connectivity throughout the network
• Low Latency and Interference - Multi-Link Operation, Multi-Rus, and 4K -QAM ensure high performance of your network
• Flexible Deployment and Easy Setup - Supports both 802.3at PoE and DC Power supply for flexible installation (power adapter included). Omada SDN for one-click setup
• Advanced Features - Supports centralized management, Mesh, and Seamless Roaming
• More Connections and Wider Coverage - Supports 250+ concurrent clients and covers up to 1500 ft² (140 ㎡) for reliable and extensive wireless connectivity

• Interface: 1x 2.5G Ethernet Port
• Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Included)
• Max. Power Consumption: 17.83 W (For PoE); 13.99 W (For DC)
• Antenna: 2.4 GHz: 2x 4.0 dBi; 5 GHz: 2x 5.0 dBi
• Coverage: 1500 ft² (140㎡)*
• Concurrent Clients: 250+
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
• Transmission Power: < 25 dBm (2.4 GHz); < 25 dBm (5 GHz, UNII-1&UNII-4); < 24 dBm (5 GHz, UNII-2&UNII-3)
• Certification: CE, FCC, RoHS, IC
• Operating Environment: 0°C–40°C (32°F–104°F); Humidity 5%–90% non-condensing

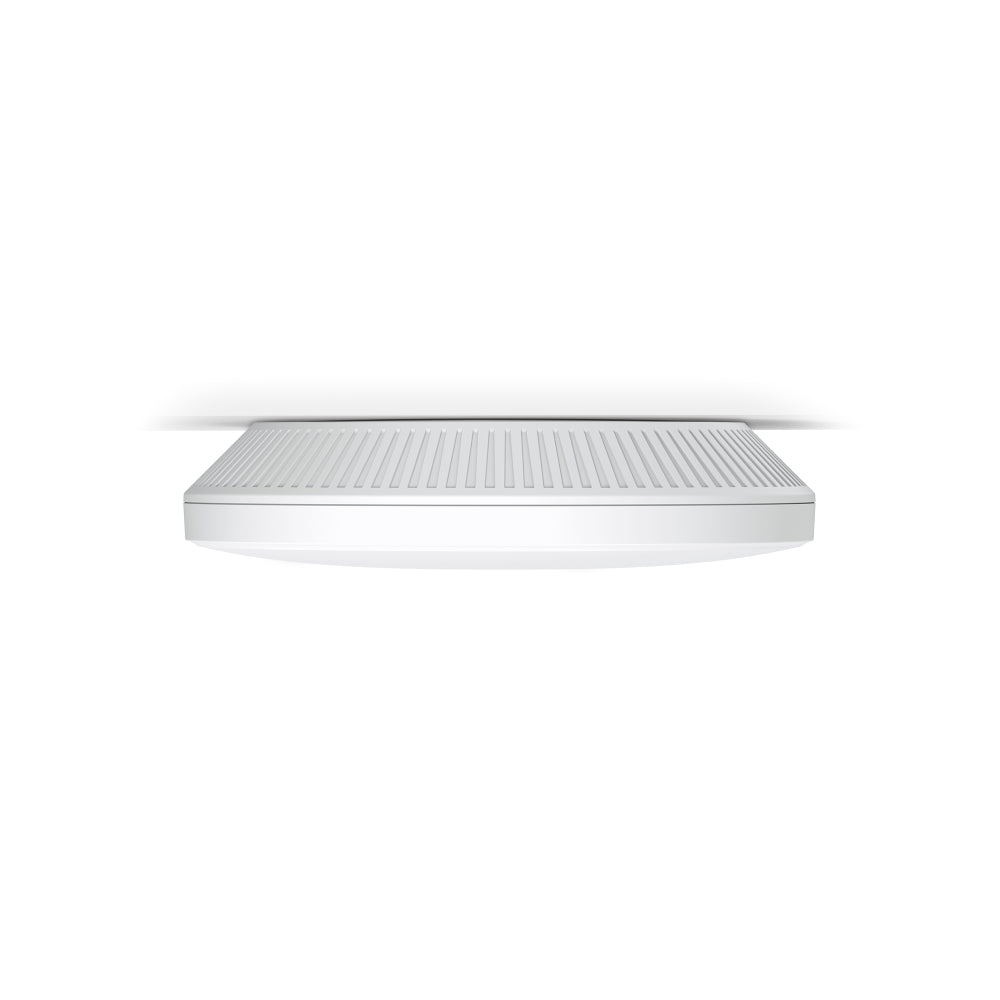

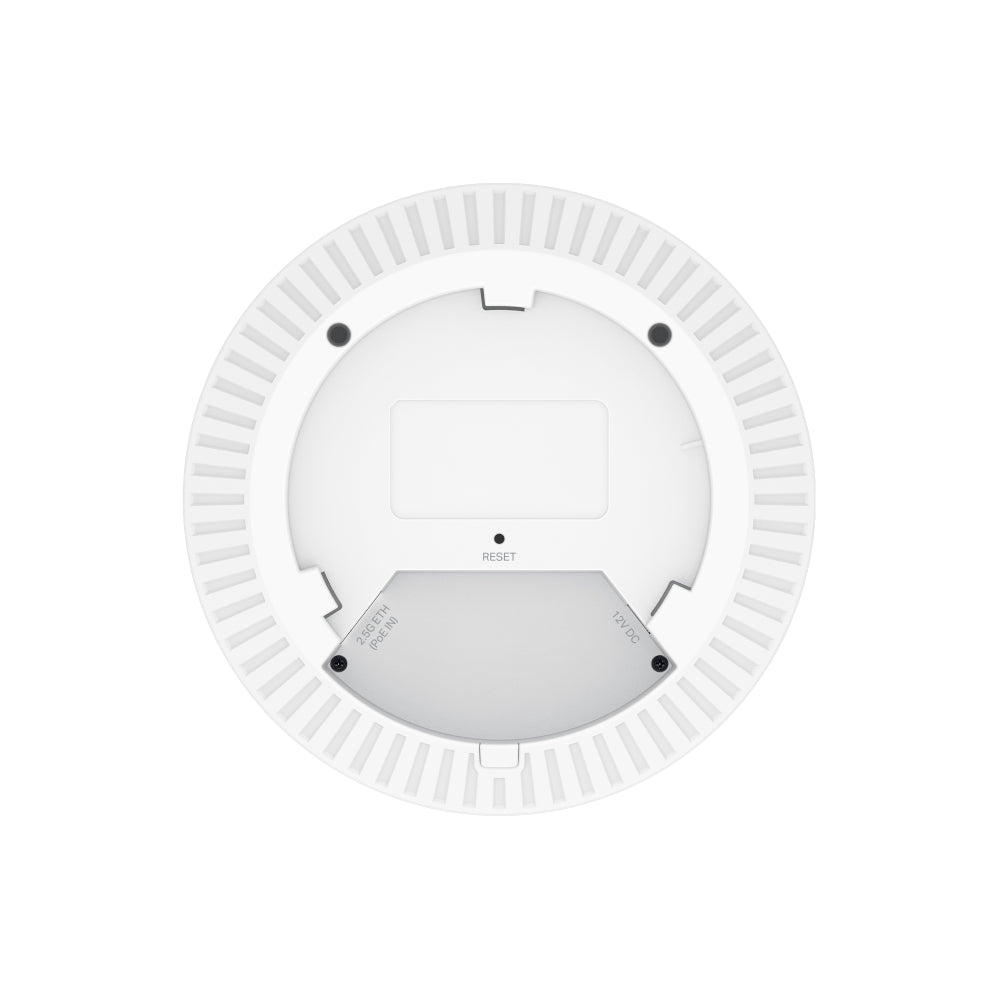

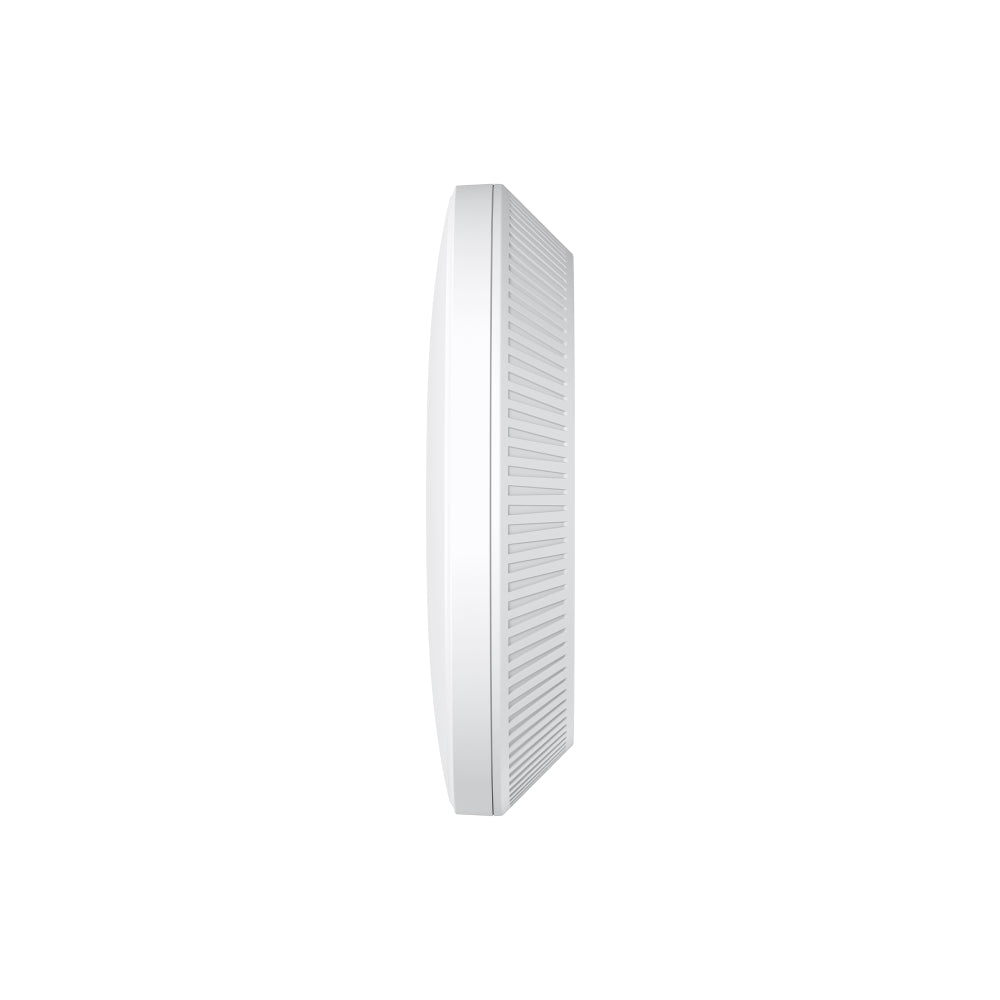

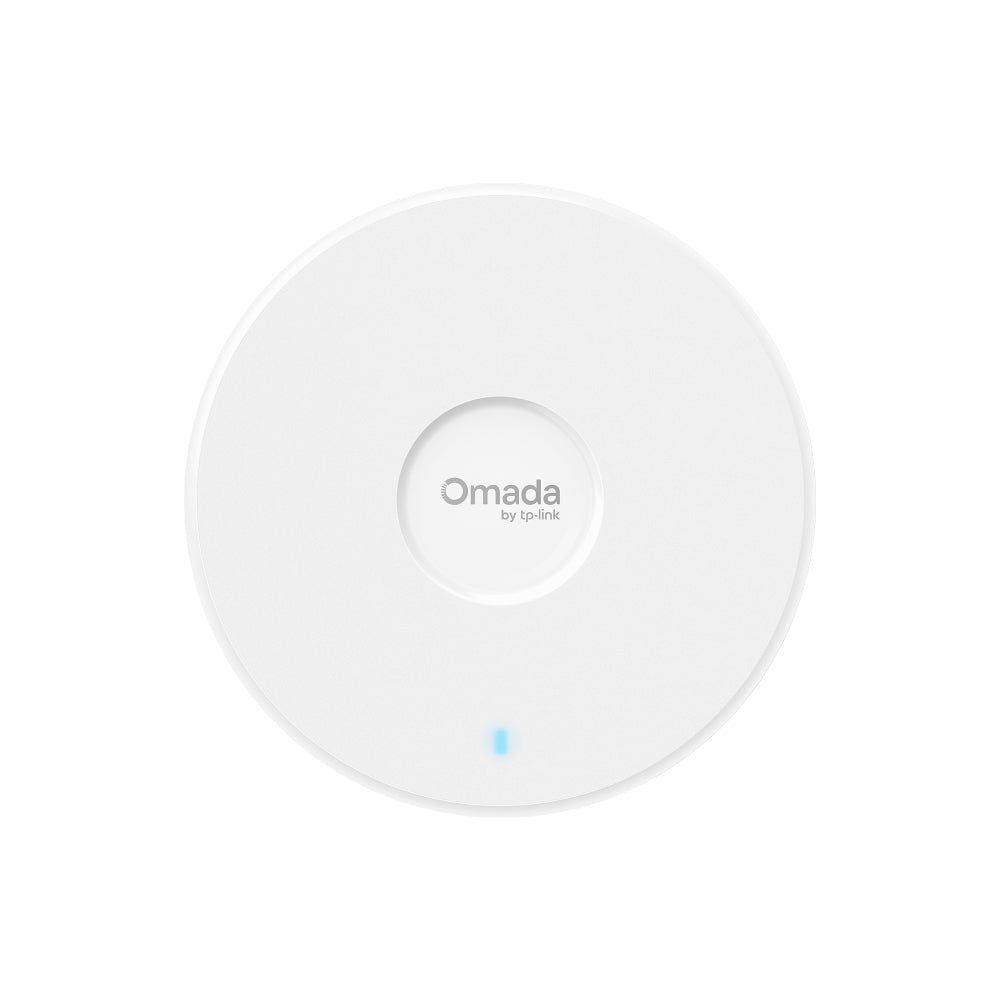

• 1 x Omada Wi-Fi 7 Ceiling Mount Access Point EAP720

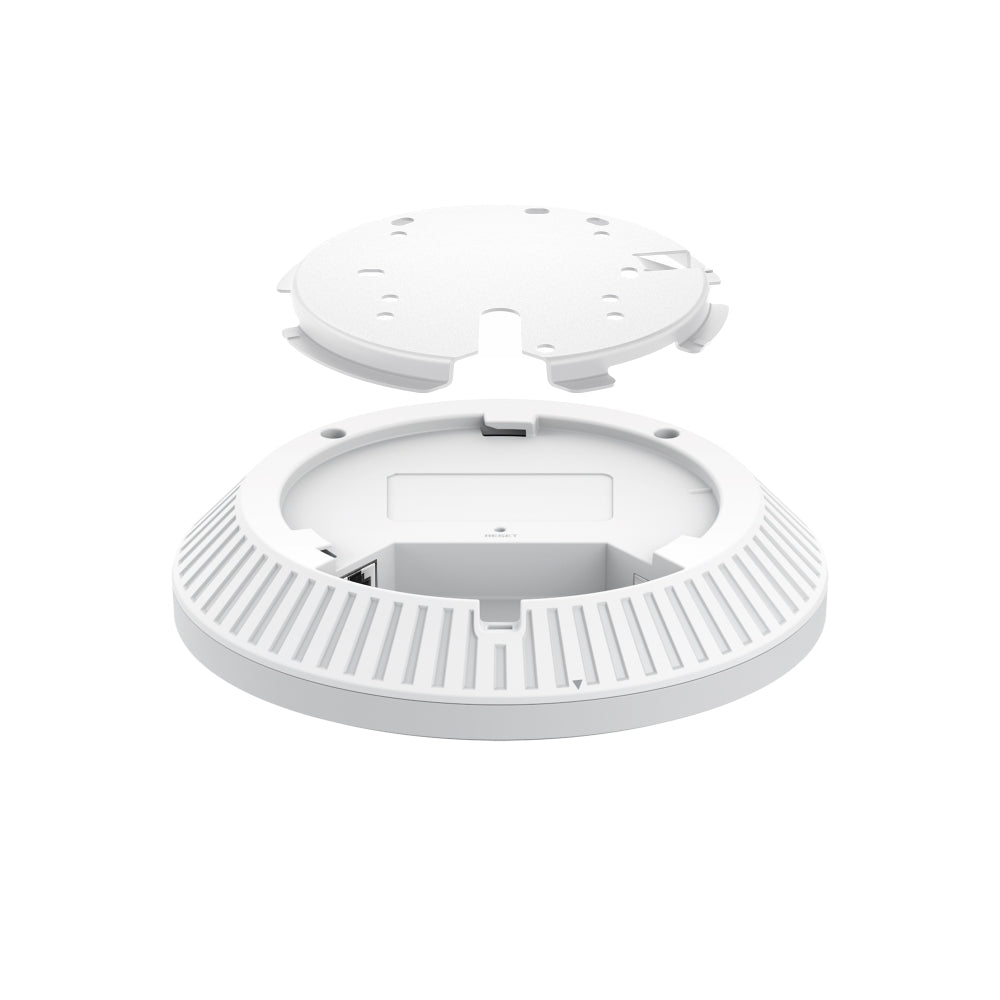

• 1 x Ceiling/Wall/Junction Box Mounting Kit
• 1 x Power Adapter
• Installation Guide

0.9 lbs

6.3-in x 6.30-in x 1.44-in
