• Dedicated RF Scanning - Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance
• Tri-Band 8-Stream Wi-Fi 7 - 5765 Mbps on 6 GHz, 5765 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz
• 1x 10G Port - Ensures fast connectivity throughout the network
• Low Latency and Interference - 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network
• Flexible Deployment and Easy Setup - Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup
• Advanced Features - Supports centralized management, Mesh, and Seamless Roaming
• More Capacity and Wider Coverage - Supports 510+ concurrent clients and covers up to 2050 ft² (190 m²) for reliable and extensive wireless connectivity

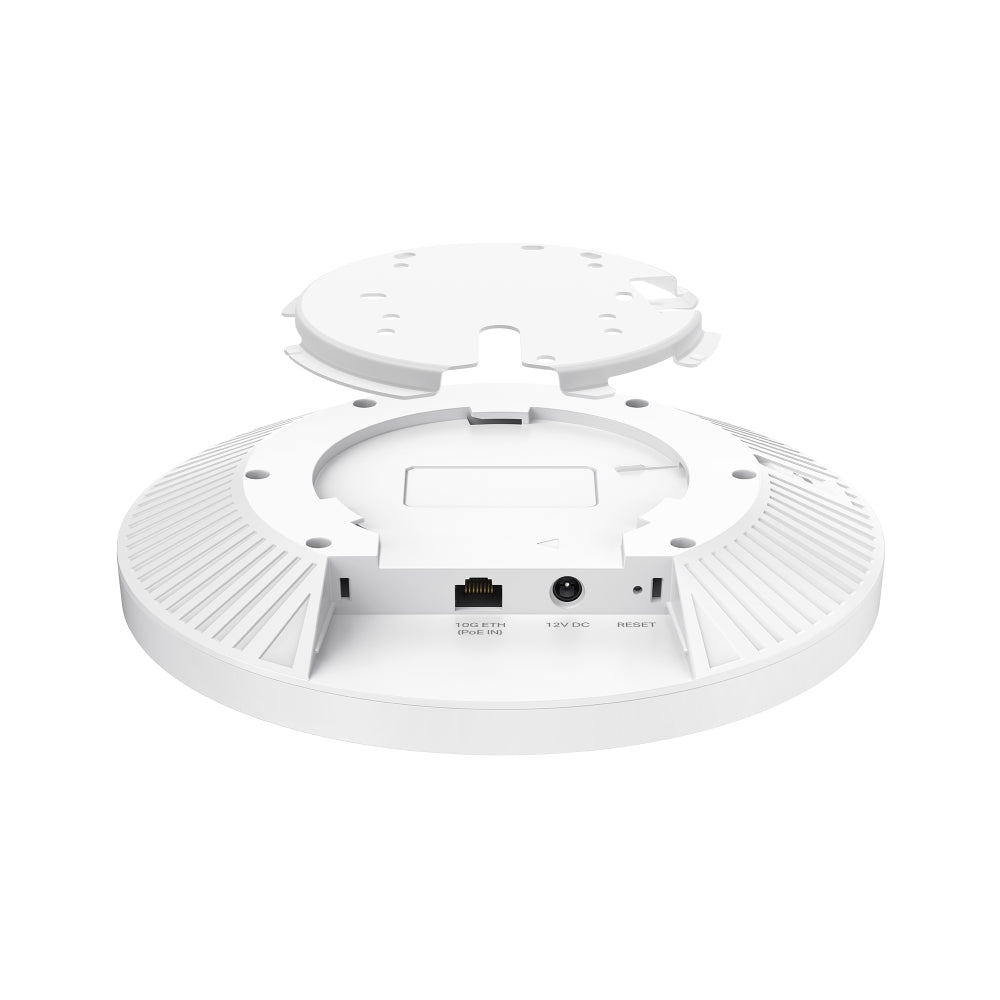

• Interface: 1 x 10G/2.5G Ethernet Port
• Power Supply: 802.3bt/at PoE or 12V/2.5A DC (Power Adapter is NOT included)
• Max. Power Consumption: 29 W (For PoE); 24.5W (For DC)
• Antenna: 2.4 GHz - 2 x 4.0 dBi; 5 GHz - 4 x 5.0 dBi; 6 GHz - 2 x 5.0 dBi
• Bluetooth: 1 x 5 dBi (peak gain), Internal antenna module
• Coverage: 2050 ft² (190 m²)
• Concurrent Clients: 510+
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Signal Rate: 688 Mbps (2.4 GHz) + 8648 Mbps (5 GHz) + 5765 Mbps (6 GHz)
• Certifications: CE, FCC, RoHS, IC
• Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
• Operating Humidity: 10%–90% non-condensing

• 1 x EAP787
• 1 x Ceiling/Wall/Junction Box Mounting Kit
• Installation Guide

8.7-in x 8.7-in x 1.5-in

2.01 lbs
