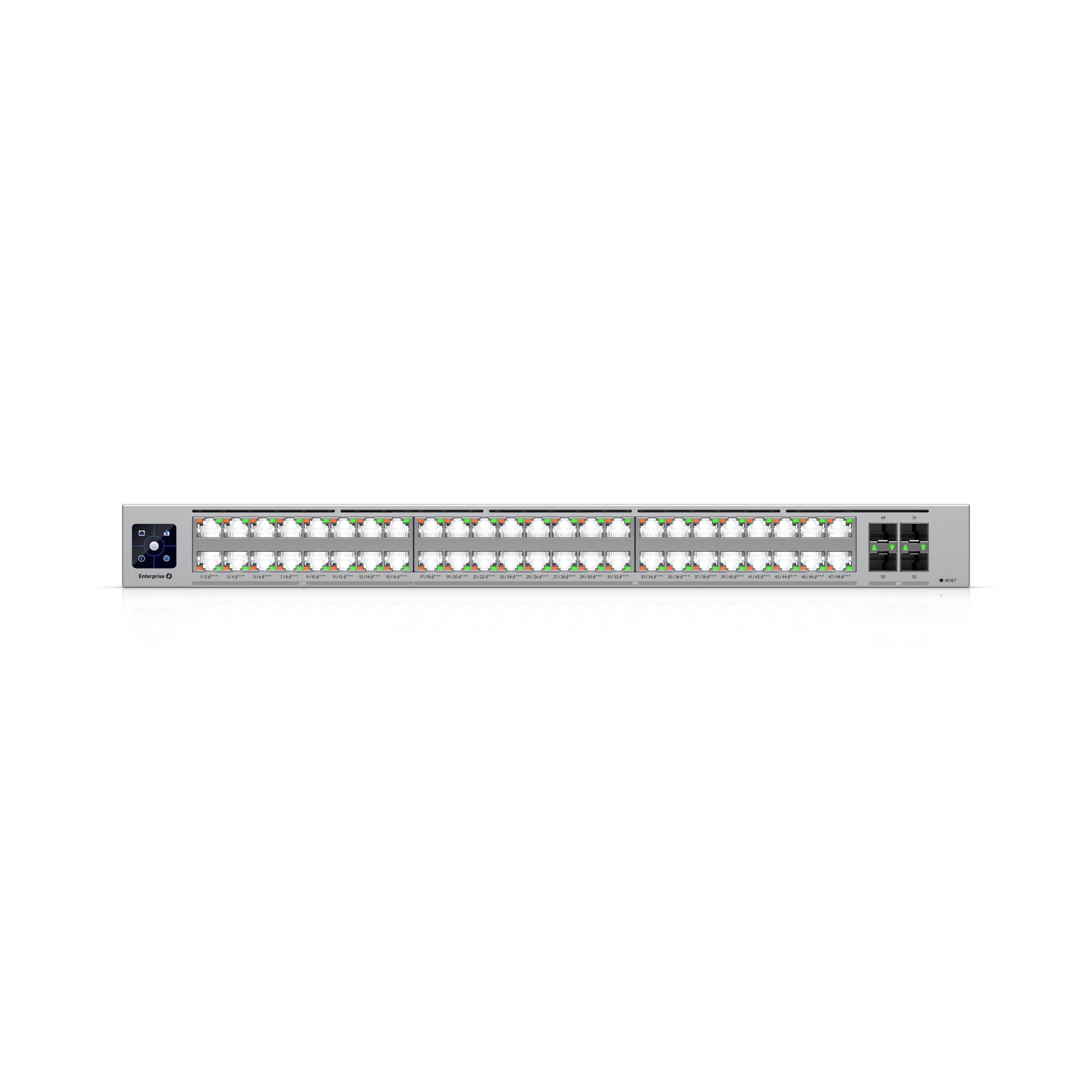

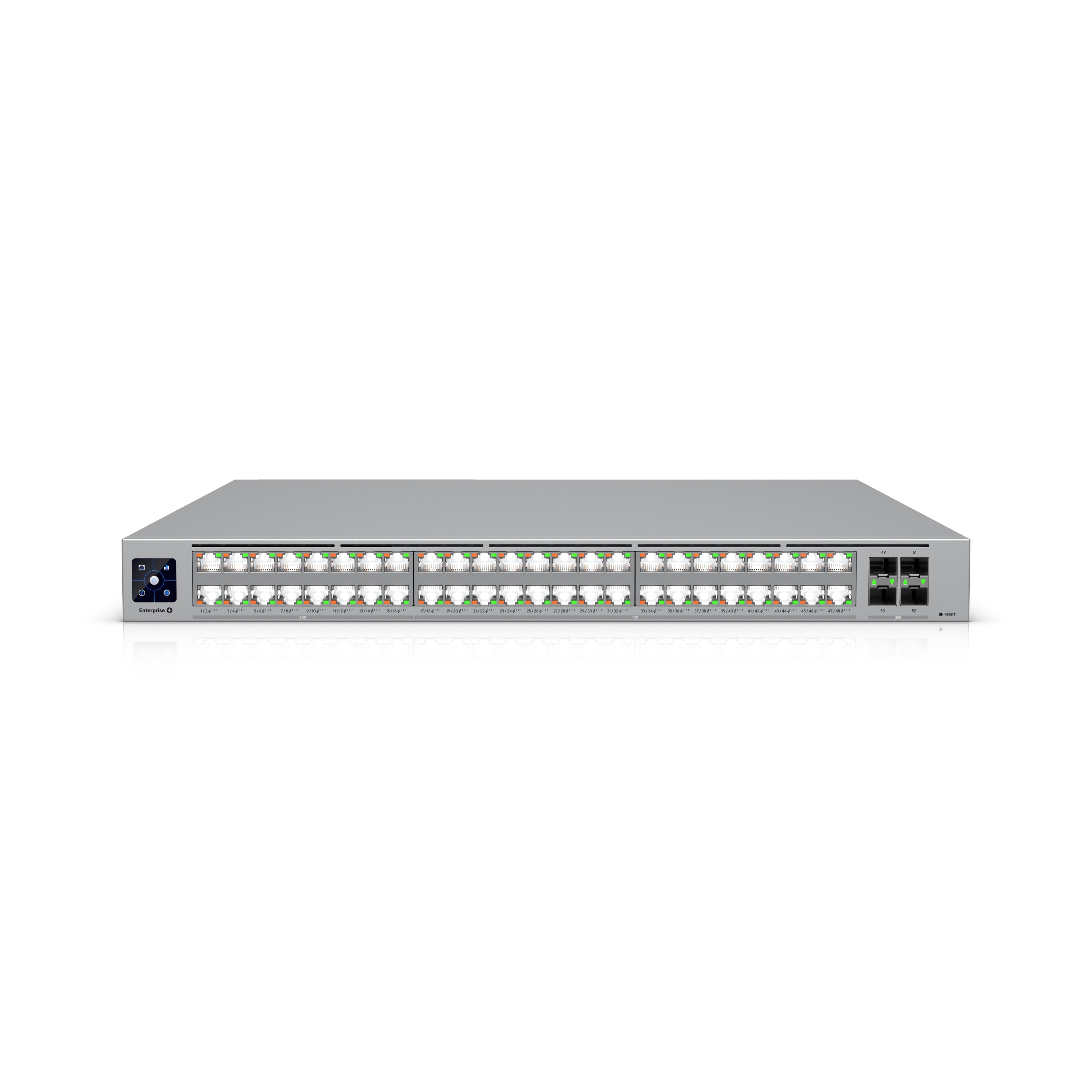

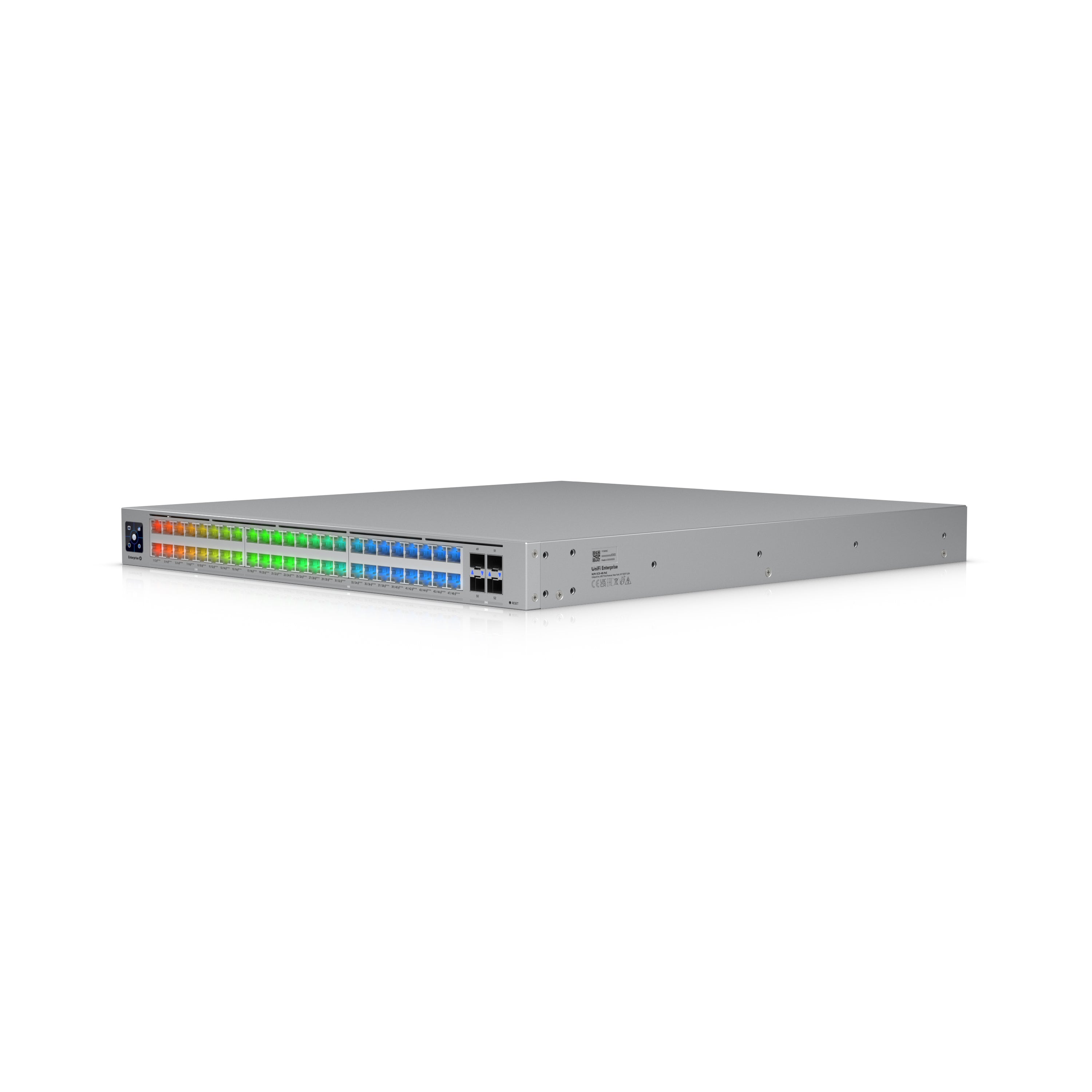

• 48 x Etherlighting™ and LED combination RJ45 ports that illuminate to indicate port location, speed/link, and native VLAN/network (Pair with UniFi Enterprise Patch Cable for optimal brightness)
• 4 x Etherlighting™ SFP28 ports
• 1.3" Touchscreen display with AR switch management
• Layer 3 switching features

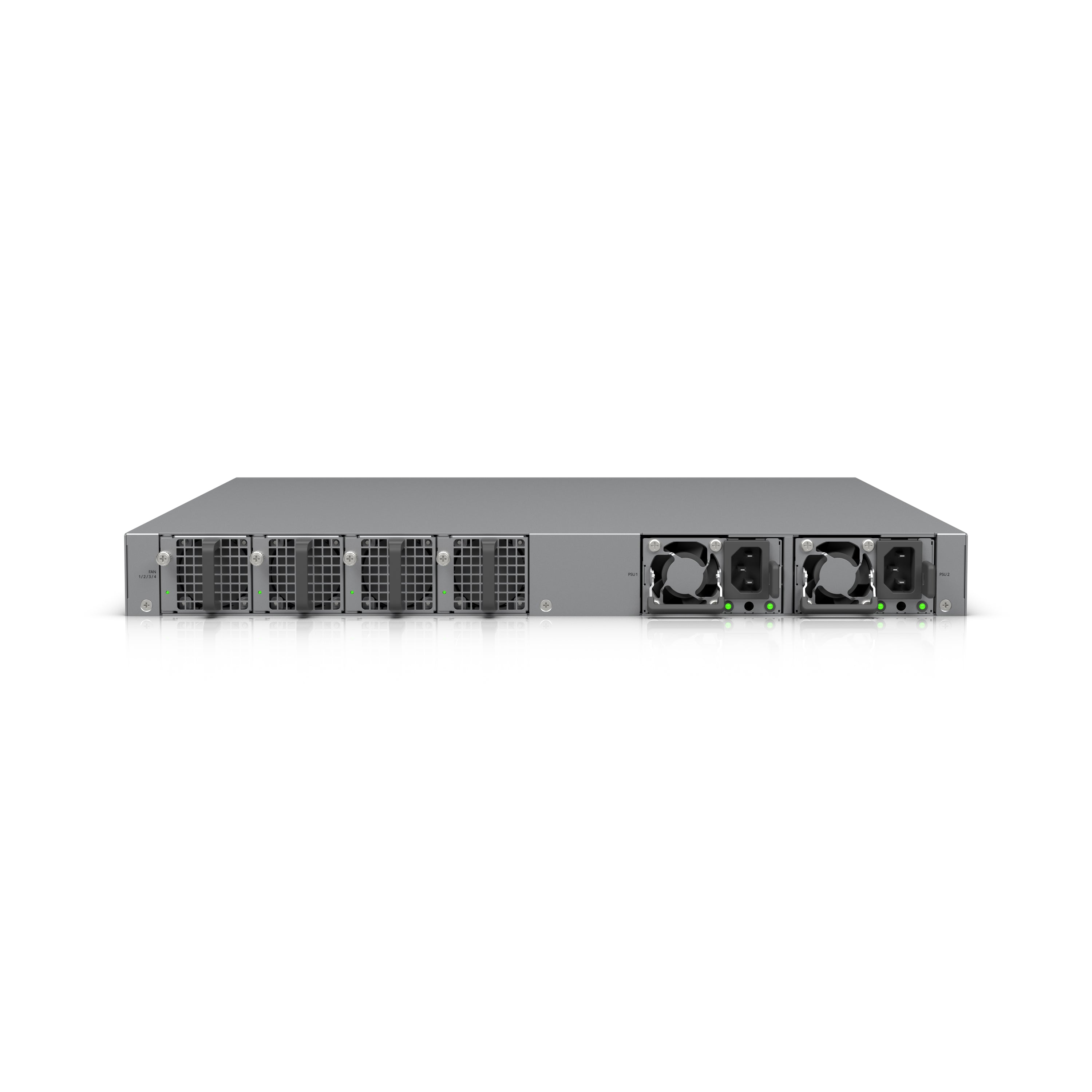

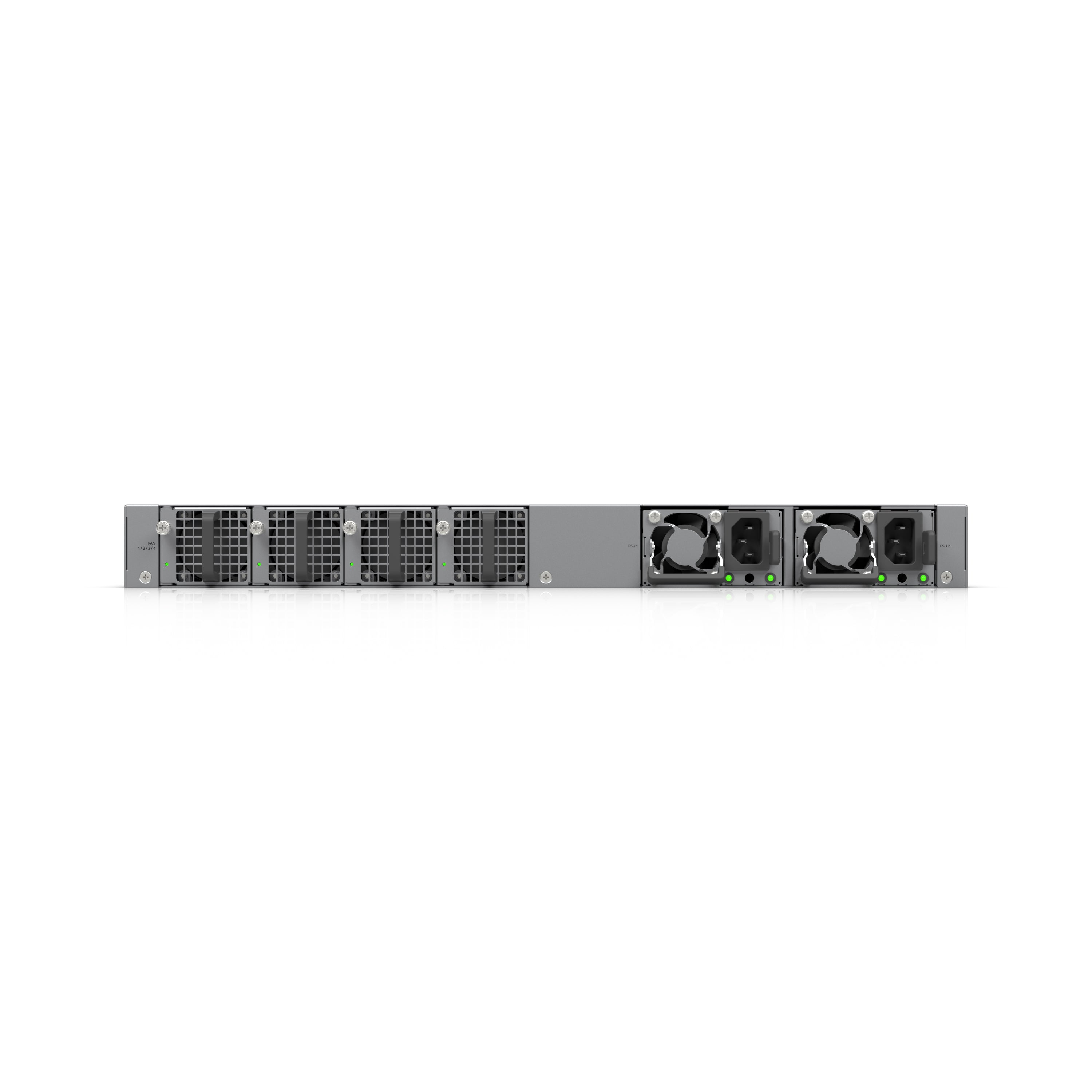

• 4 x Hot-swappable fan modules
• 2 x Hot-swappable 1200W power modules

• 2.5 GbE RJ45 Ports: 16 (All PoE+++) (2.5G/1G/100M/10M)
• 10 GbE RJ45 Ports: 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
• 25G SFP28 Ports: 4 (25G/10G/1G)
• 100G QSFP28 ports: 2 (100G)
• Max. PoE Output: Up to PoE+++
• Total PoE Availability: 200-240V AC Shared Mode - 2,150W; 100-120V AC Shared Mode - 1,750W; 200-240V AC Redundant Mode - 950W; 100-120V AC Redundant Mode - 750W
• Switching Capacity: 920 Gbps
• Total Non-Blocking Throughput: 460 Gbps
• Forwarding Rate: 684 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 128,000
• ESD Protection: Air: ± 30kV, contact: ± 19kV

• 1 x Enterprise Campus 48 PoE
• 4 x Hot-swappable fan modules
• 2 x Hot-swappable power modules
• 2 x Power cord

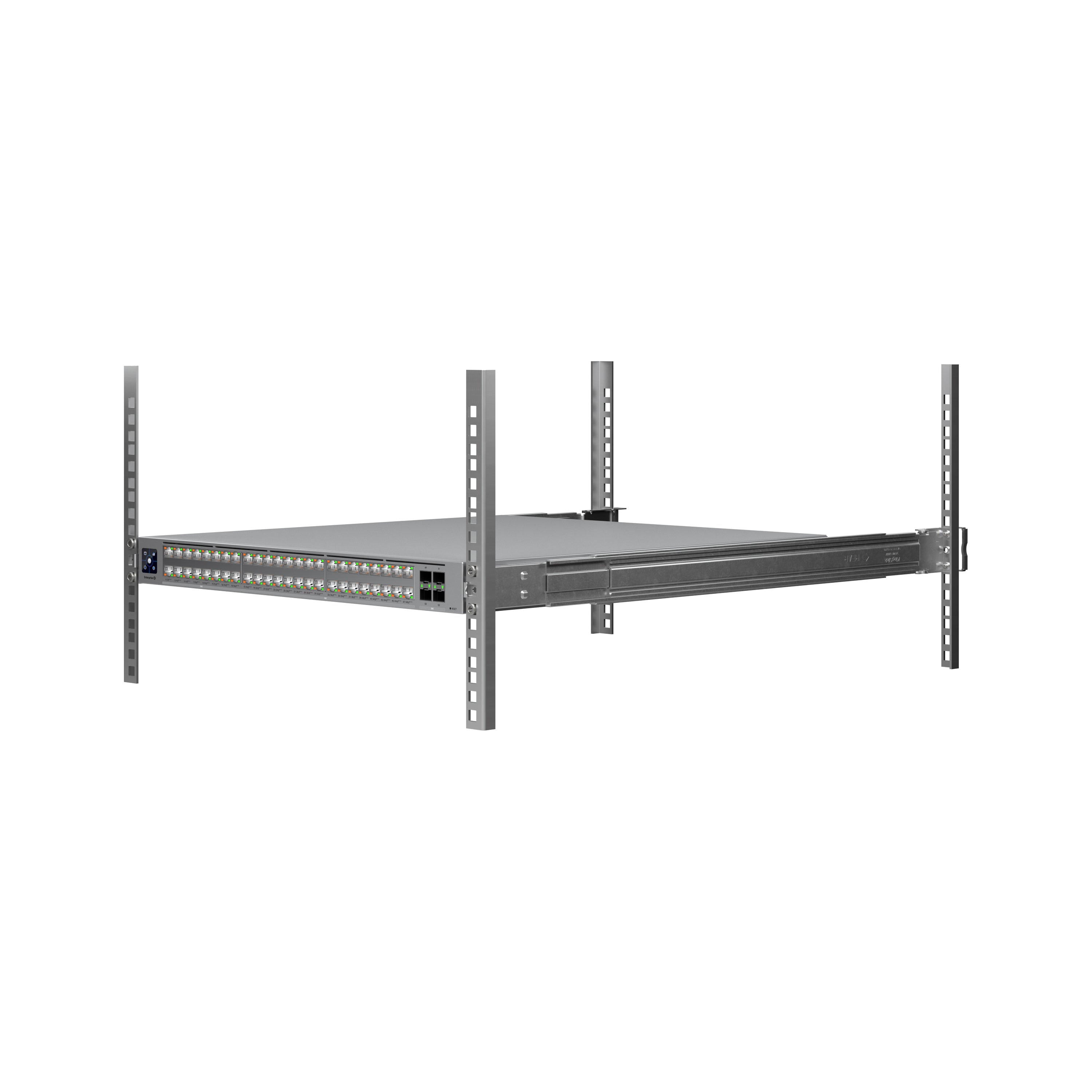

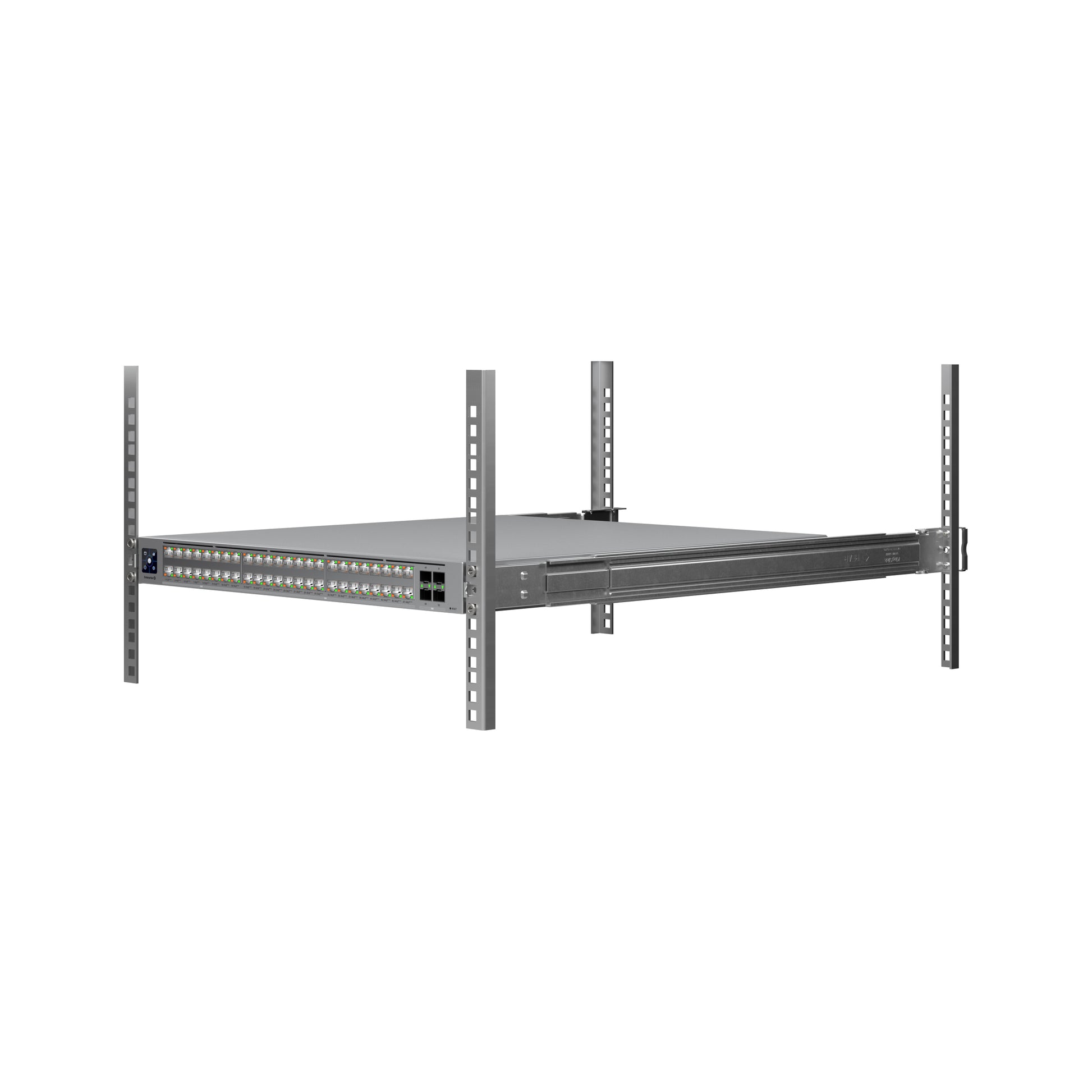

• 1 x DIN Rail Mounting Kit
• Mounting Hardware

20.9 lbs

17.4-in x 1.7-in x 19.5-in
