• Future-proof and ready for new use cases such as 5G network slicing, SD-WAN, 4K/8K cameras and AR/VR
• High-speed 5G NR and 4G LTE-Advanced Pro Cat 20 dual connectivity CBRS, C-band, FirstNet Capable™ cellular radios
• Advanced routing capabilities to help you match your use case
• Enterprise-grade Wi-Fi 6 and dual 2.5 Gigabit Ethernet
• Active PoE+ switch or DC IN for primary and backup power
• Extremely resilient cellular connection through Digi’s patented SureLink®, VRRP+ protocol and dual SIM slots
• Extended operating temperature range for wider use-cases
• Standards-based Power over Ethernet simplifies installation
• Multiple mounting options and accessories
• Serial port for remote, out-of-band management
• Includes the Digi 360 solution with warranty, customer care and Digi Remote Manager cloud management, enabling easy setup, mass configuration and management
• Value-added services include Digi Containers to enable powerful, cost-efficient applications and Digi WAN Bonding for 5G/LTE WAN aggregation with immediate failover

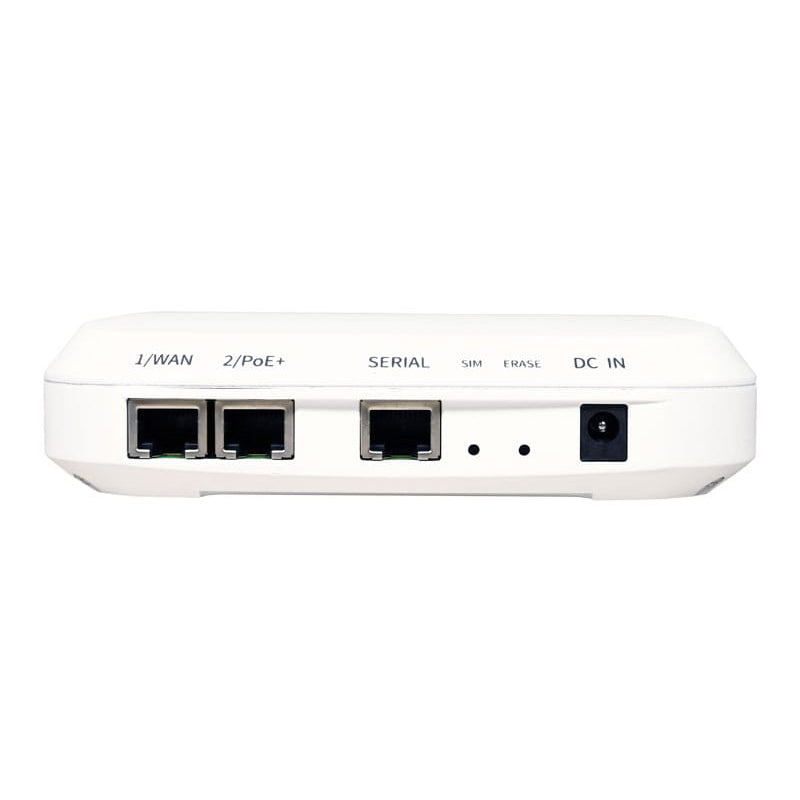

• Ethernet: (2) RJ-45; 10/100/1000/2500 Mbps (auto-sensing)
• Serial: (1) RS-232 (RJ-45); Cisco straight-through pinout; for out-of-band management of network, software selectable
• ​Software: Digi Accelerated Linux (DAL OS); secure, reliable, intelligent, customizable
• Remote management: Digi Remote Manager®, security, management, updates, alerts, scheduling and intelligence
• Local management: Web Interface (HTTPS); Command Line Interface (SSH, serial port)
• ​Application processor: ARM® Cortex®-A53, 1.8 GHz, quad-core, 64-bit
• Memory: 512 MB RAM, 512 MB flash
• Operating temperature: −30 °C to 60 °C (−22 °F to 140 °F) with Power over Ethernet or industrial-rated power supply; 0 °C to 40 °C (32 °F to 104 °F) with included commercial-rated power supply
• Radios: Wi-Fi 6 / 802.11ax, enterprise-grade, dual-band simultaneous, 2x2 MIMO; 2.4 GHz: 802.11b/g/n/ax; 2.4 GHz and 5 GHz: 802.11a/n/ac/ax Antennas: Integrated 2x2 MIMO, 2.4 with 8 dBi gain, 5 GHz with 5 dBi gain Security: Open, Enhanced Open, WPA, WPA2, WPA3; Personal, Enterprise Modes: (4) Wi-Fi access points; (2) Wi-Fi clients, (256) Wi-Fi users (typical)
• Ethernet throughput: 2.5 Gbps Cellular throughput: 1.4 Gbps IPsec VPN throughput: 500 Mbps VPN tunnels: 10 tunnels Client count: 256 clients (typical)

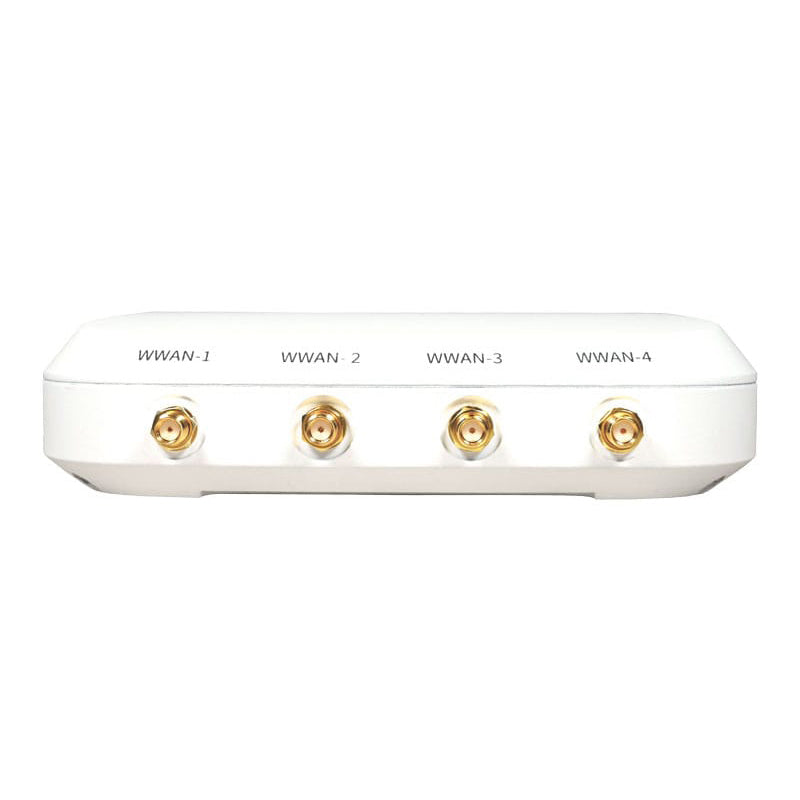

• Cellular connectivity: 5G NR: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48 CBRS, n66, n71, n77 C-band, n78, n79 4G LTE-Advanced Pro: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14 FirstNet®, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46 LAA, B48 CBRS, B66, B71 3G HSPA+: B1, B2, B4, B5, B6, B8, B9, B19 Antenna connectors: (4) 50 Ω SMA (center pin: female) SIM slots: (2) Mini-SIM (2FF); software selectable, hardware switchable; SIM slot cover plate

• Digi EX50 — Global, 5G NR Sub-6 GHz with 4G/3G fallback, Wi-Fi 6 2x2 MIMO DBS, dual 2.5 GbE, RS-232, with accessories
• Power — DC power supply
• Mounting — mounting hardware
• Cables — Ethernet and serial cables
• Antennas
• *** Warranty may vary on model ***

6.2-in x 6.2-in x 1.4-in

1.32 lbs

Datasheet
