• Works with Flex & Sector bridges for Point-to-Point/Multipoint Bridging: Supports bridging between Flex Bridges, optimized for 8 nodes, and up to 32 with a Sector Bridge hub
• Long-Range 5 GHz 867Mpbs Wireless Bridging up to 3.1 miles: Ideal for extending networks across buildings and remote locations
• Powering Surveillance with 2 x PoE Out Ports: Features 3 Gigabit PoE ports, including 2 PoE Out ports, easily powering IP cameras and simplifying surveillance network expansion
• Role & DIP Switches for Simple Pairing: Seamless role switching with DIP switch for rapid bridge pairing. Reduces configuration and deployment complexity

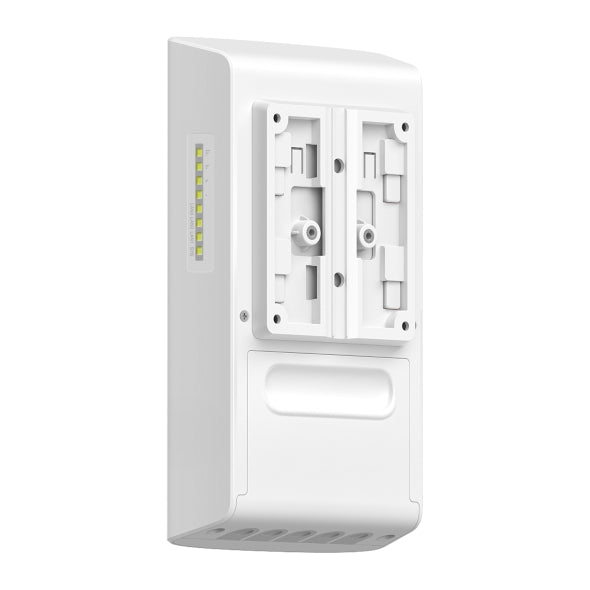

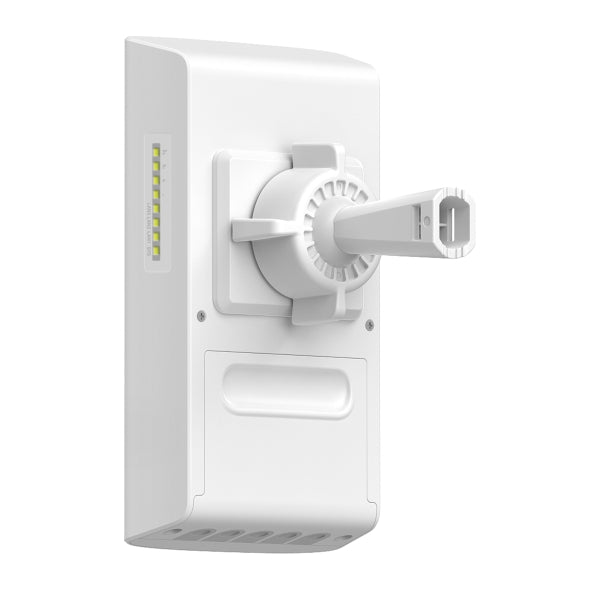

• Easy Alignment with Ball-Joint & Versatile Installation: Flexible wall and pole mounting with an optional ball-joint, allows for quick angle adjustment and fast deployments
• Industry-Leading IP66 Weatherproof: IP66 weatherproof and 6 kV lightning protection safeguard your network in harsh outdoor environments

• Wireless Functions: MU-MIMO: 5G 2x2 MU-MIMO DL, Multiple SSIDs: 1, Wireless Statistics, Reboot Schedule, RADIUS Accounting, Static/IP/Dynamic IP, Rate Limit, Enable/Disable Wireless Radio, Enable/Disable SSID Broadcast
• Transmission Power; CE: <23dBm (5 GHz, band 1/2, EIRP), <30dBm (5 GHz band3, EIRP)
FCC: <23.5dBm (5 GHz band1), <25dBm (5 GHz band4)

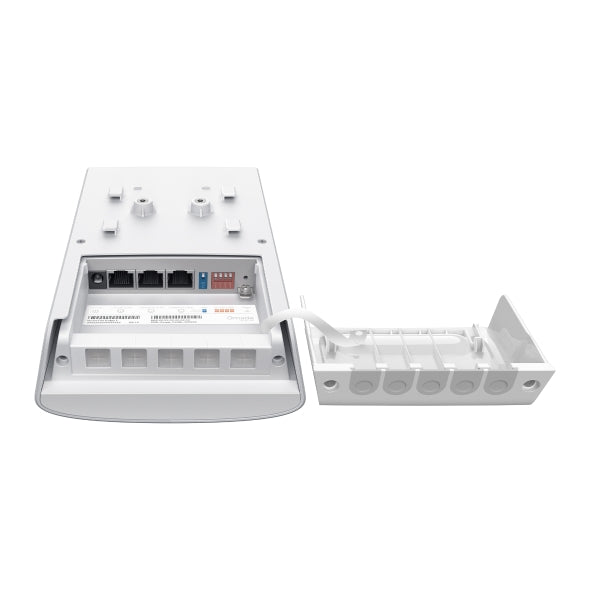

• Interface: 3× Gigabit Ethernet Ports (2 Support PoE Out)
• Wireless Security: VLAN, Rogue AP Detection, Wireless Encryption
• Centralized Management: Omada Central (Cloud-Based), Omada Hardware Controller, Omada Software Controller
• Management Features: Omada App, Restore & Backup, Firmware update via Web, NTP, Cloud Access (Require the use of an Omada Controller), Email Alerts, LED ON\OFF Control, SNMP, SSH, Web-based Management, Zero-Touch Provisioning
• Weatherproof Enclosure: IP66
• Max. Power Consumption: DC: 12W, PoE: 26.06W with PoE out
• Antenna: 2.4 GHz: 1 × 1 dBi (peak gain), internal omnidirectional antennas, 5 GHz: 2 × 17 dBi (peak gain), internal directional antennas, Beamwidth: Horizontal 40°, Vertical 18°
• Power Supply: 12V DC, 802.3at/af PoE, 24V Passive PoE (54V Passive PoE Adapter Included - For Dry Indoor Use Only)
• Certifications: CE, FCC, RoHS
• Environment:Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing

• 1x Flex Bridge 5
• 1x Installation Guide
• 1x Mounting Kit
• 1x Passive PoE Adapter
• 1x Power Cord

8.4-in x 2-in x 4.7-in

1.3 lbs
