•Designed to protect your equipment against surges and faults, ensuring excellent performance and preventing your equipment from potential problems in the field

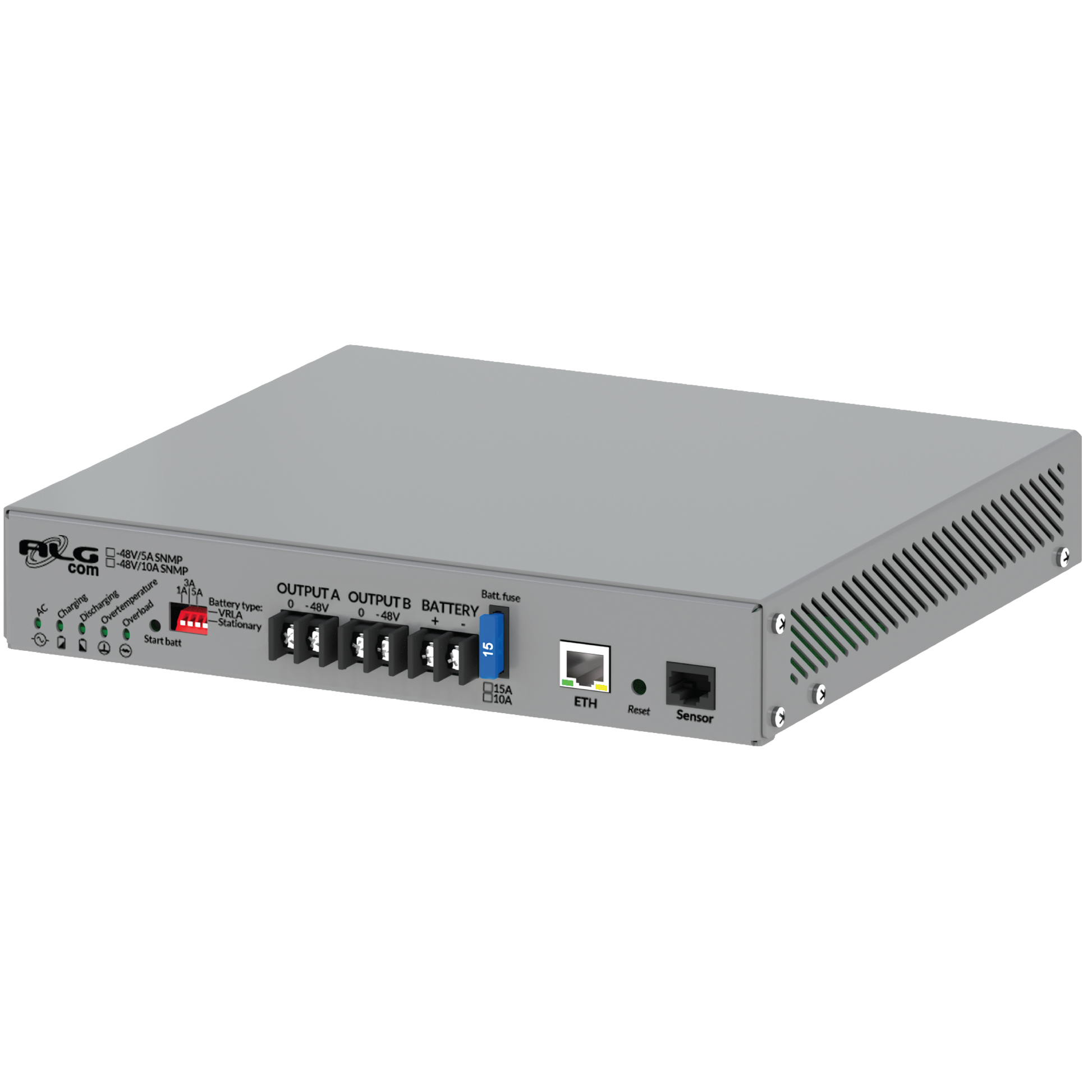

•The ALGcom DC UPS Line was created to meet 1U design standards. Taking up little space, with possibility of installation vertically and horizontally, the ALGcom DC UPS is performance and efficiency guaranteed
•Designed to work with lead acid batteries, the ALGcom Nobreak Sources features a 3-stage charger controlled by an intelligent algorithm that runs on the source microprocessor
•Battery Charge Stage 1 - Bulk: Operates with constant current that can be programmed in 1A, 3A or 5A, allowing gradual and controlled charging of the batteries. When they reach full charge, the charger goes to the next stage.
•Battery Charge Stage 2 - Absorption: At this stage, the charger applies a constant voltage in order to equalize the voltage of each cell of the battery. In this way, the effect of premature sulfating of the plates is reduced, promoting an increase in the battery charge capacity and, consequently, its lifespan. Once equalization occurs, the charger
switches to the next stage
•Battery Charge Stage 3 - Float: This is the final stage of the battery charging process, where a constant fluctuating voltage is applied in order to cancel out the self-discharge effect, allowing the battery to remain in its best state of charge for a long period
•Nobreak Mode: Responsible for powering the devices in the event of a grid fail
•ALGcom Manageable DC UPS allow access to information through the Ethernet interface of the device. Two ways to access are available: Web interface via internet browser and interface via Simple Network Management Protocol (SNMP) using network management tools
•Monitor operating parameters Status tab, such as output voltage and current and battery bank

•Rackmountable: 1U
•Voltage/Amperage: 48 volts/10 amps
•Total Output Power: 540W
•Maximum Charger: Equipment Power: 270W; Equipment Output Current: 5A; Charger Current: 5A
•Minimum Charger: Equipment Power: 486W; Equipment Output Current: 9A; Charger Current: 1A

•DC UPS
•19" Fixing Tabs
•Fork Terminals
•Power Cable
•Eye Terminal
•M3 x 10 mm Screw
•Temperature Sensor
