•The beam cross-section in bore sight is elliptical, wide in azimuth and narrow in elevation, for when an asymmetrical beam shape gives better coverage
•The absence of side lobes enables excellent noise immunity of a network when using Asymmetrical Horn CC Antennas
•The radiation pattern of the 90° Asymmetrical Horn CC Antennas is stable over the whole band width of operation
•Balanced Horizontal and Vertical beam patterns, this is hard to achieve with an asymmetrical beam shape and is where other products on the market fail
•The 90° Asymmetrical Horn CC Antenna has higher gain compared to symmetrical horn antennas with the same azimuth beam width
•RF elements Horn CC Antennas enable extraordinary network scalability
•The 90° Asymmetrical Horn CC Antennas features N-female connectors used with a wide range of radios
•Asymmetrical Horn CC Antennas have solid aluminum body, built to last and resist any weather conditions

•Frequency Range: 5180 - 6000 MHz
•Mechanical Adjustment: ± 25° Elevation, ± 20° Azimuth
•Wind Survival: 160 km/hour
•Wind Loading: 76 N at 160 km/hour
•Pole Mounting Diameter: 36 - 80 mm (recommend as close to 80mm as possible)
•Gain: 16 dBi
•Beam Efficiency: 90 %
•Front-to-Back Ratio: 30 dB
•VSWR Max 5180-6000 MHz: 1.8
•Polarization: Dual Linear H + V
•Impedance: 50 Ohm
•Materials: UV Resistant ABS Plastic, Polycarbonate, HDPE, Aluminum, Stainless Steel

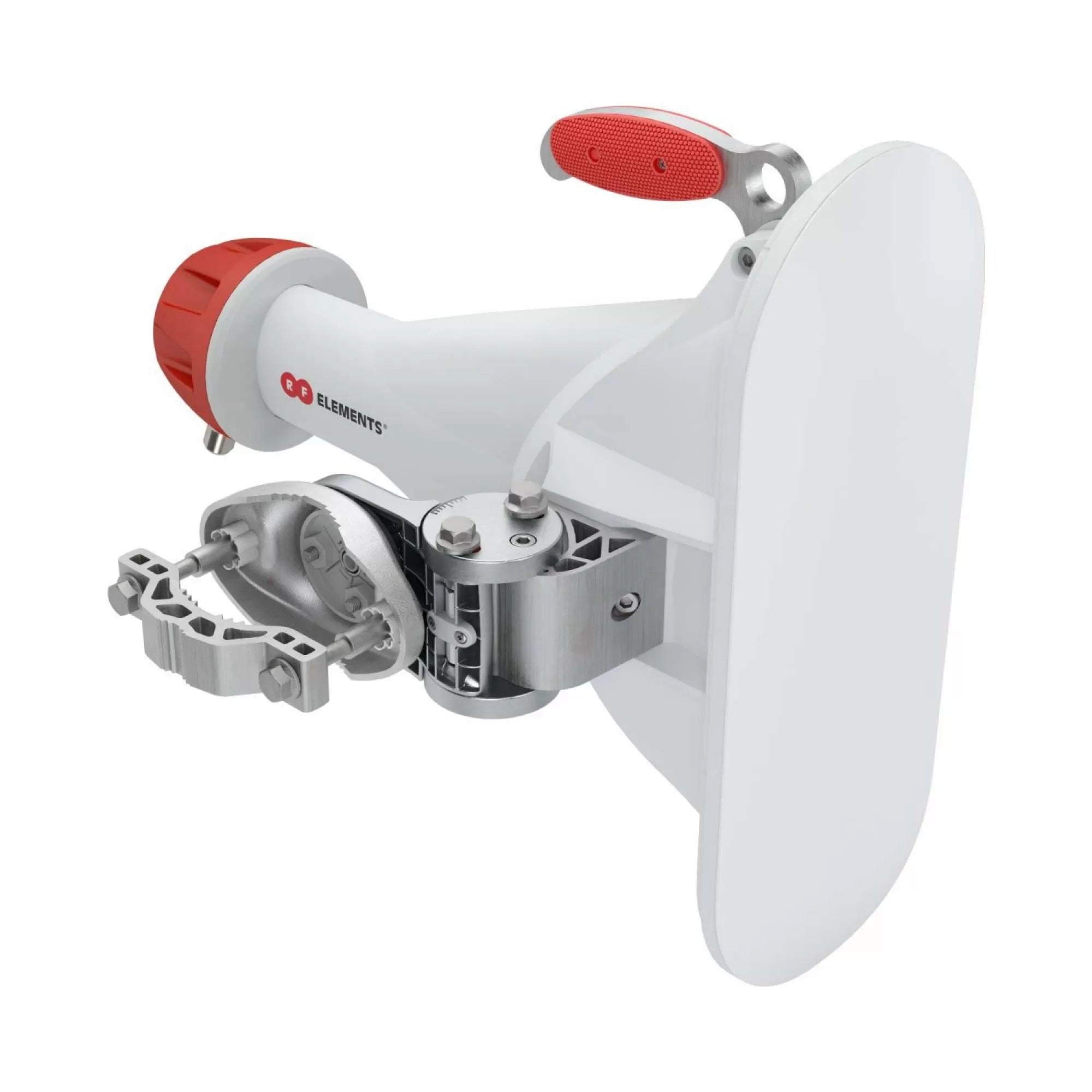

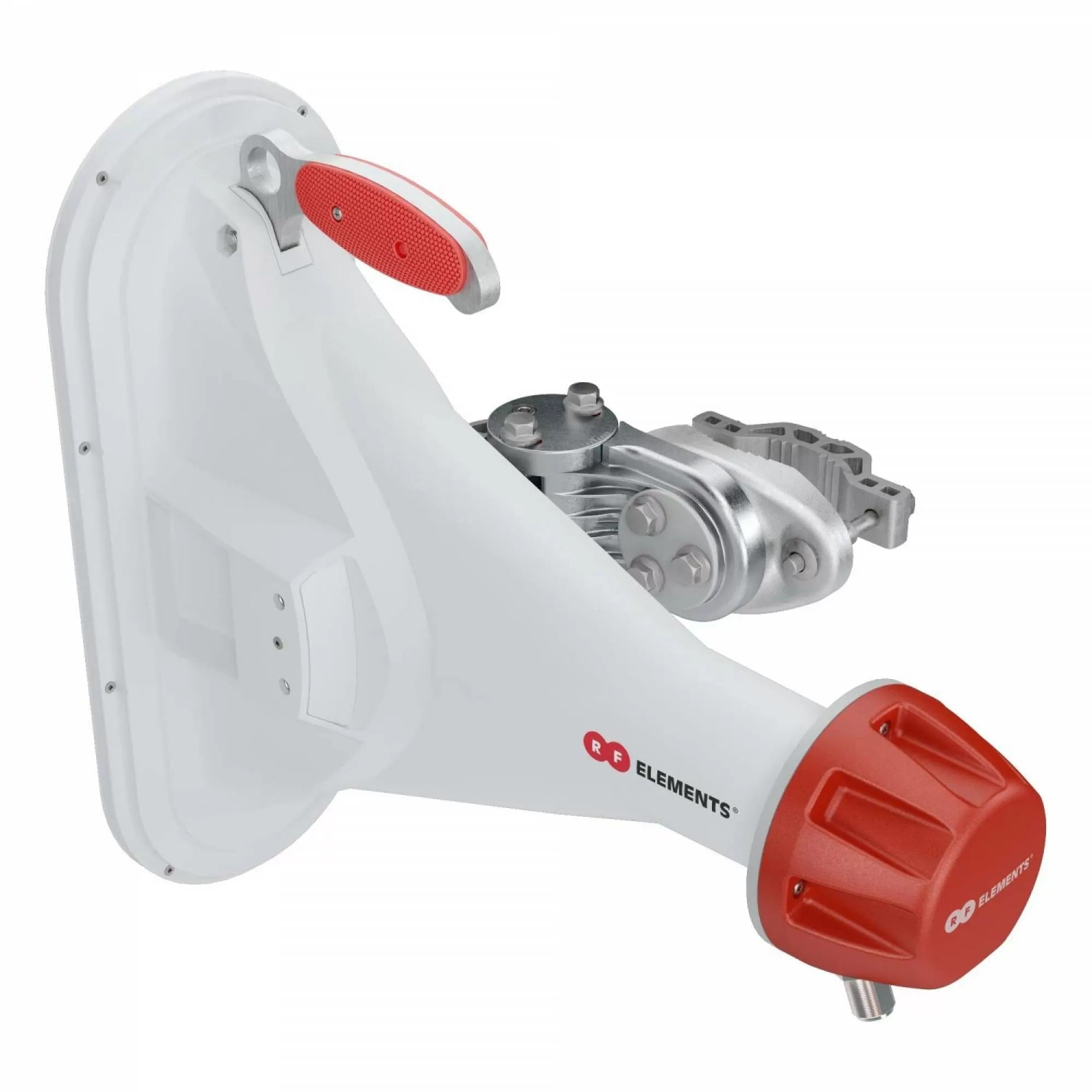

•1 x 90° Asymmetrical Beam Antenna
