• 4 x Gigabit RJ45 Ports (1 x PoE++, 3 x PoE+)
• 1 x Gigabit Combo RJ45/SFP Slot, 1 x Gigabit SFP Slot
• 120W Power Budget* with up to 60W for PoE++ Port
• Professional Industrial-Grade Design - With -40°C to 75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
• Abundant Features - Up to 820ft (250m) PoE, VLAN, QoS, and STP/RSTP
• Centralized Cloud Management via the Web or Omada App
• Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

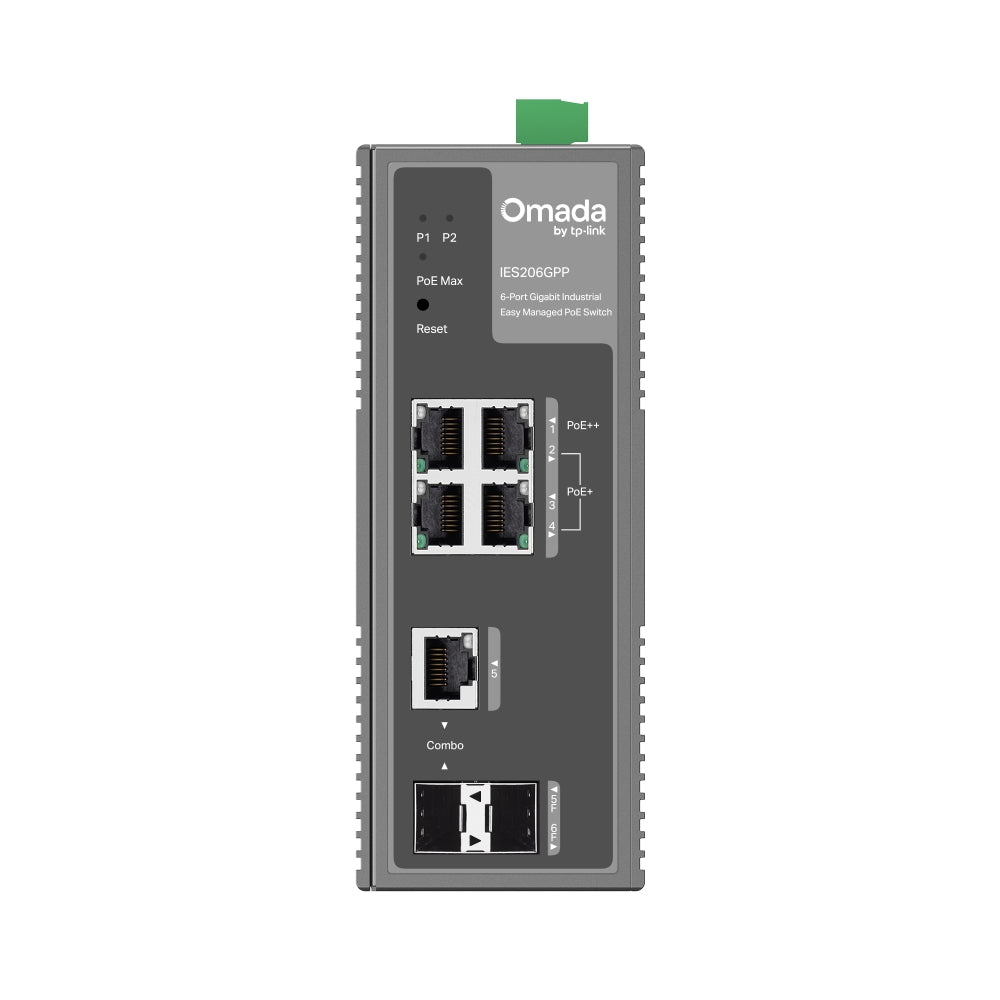

• Interface: 1 x 10/100/1000 Mbps PoE++ RJ45 Ports; 3 x 10/100/1000 Mbps PoE+ RJ45 Ports; 1 x Gigabit SFP/RJ45 Combo Slot; 1 x Gigabit SFP Slot; Auto-Negotiation/Auto MDI/MDIX

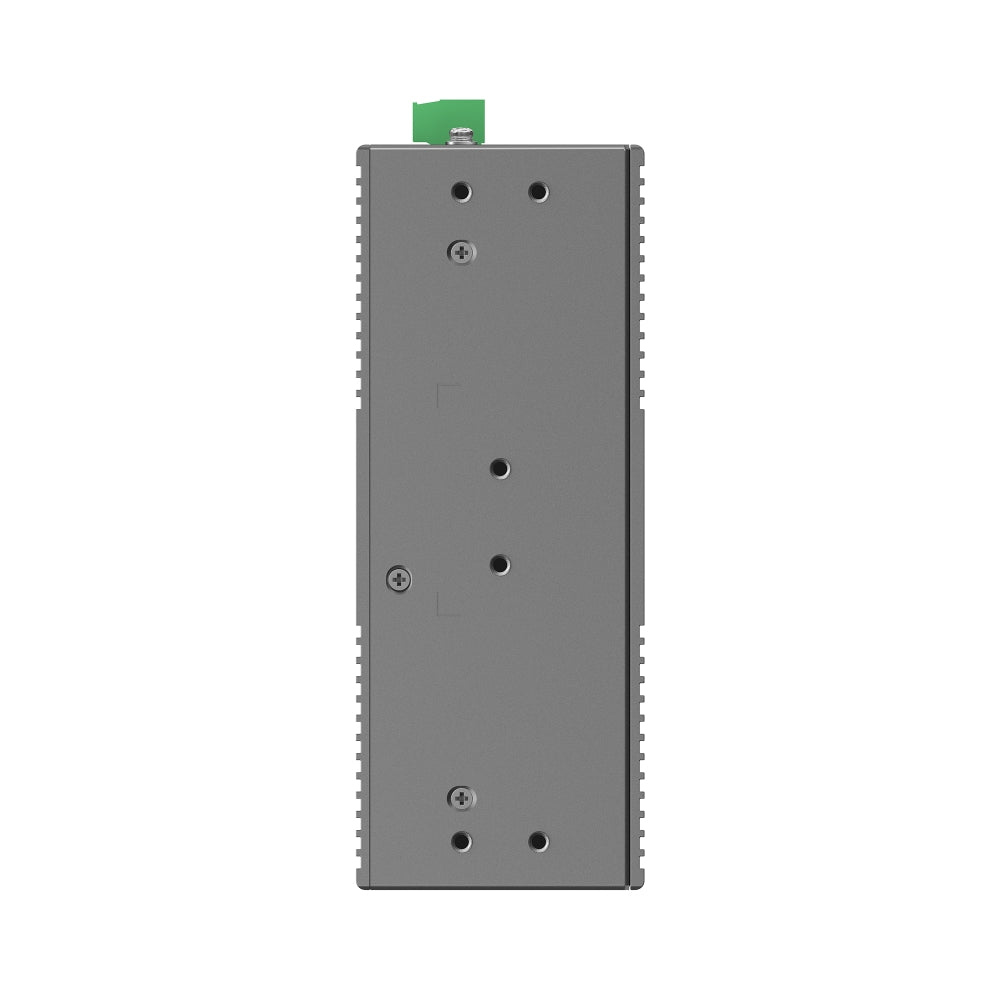

• Installation: DIN-rail mounting; Wall mounting

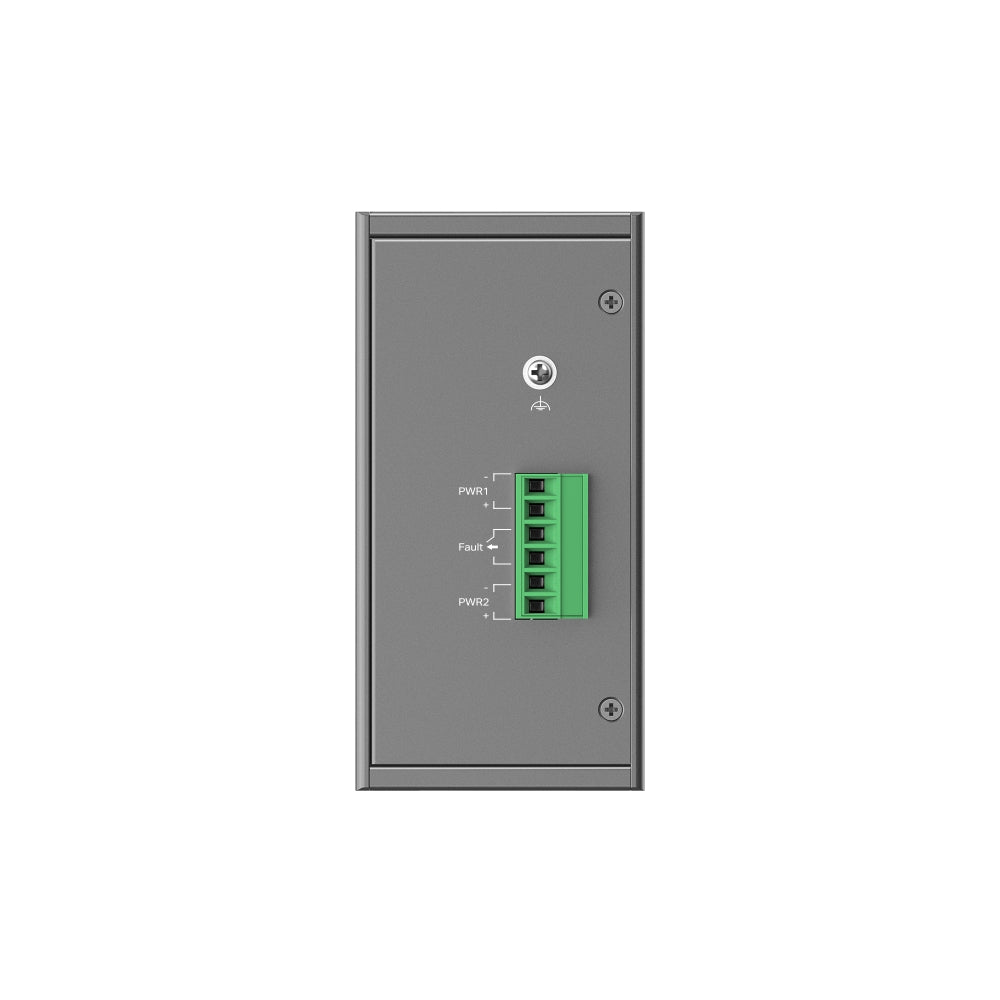

• Power Supply: 12-57V 1+1 Redundant DC Power Input
• PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port
• PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port
• PoE Budget: 60W (Input: 12V / 7.0A - 21V / 3.5A); 120W (Input: 21V / 6.5A - 57V / 2.3A)
• Surge Protection: ±6 kV in common mode for Ethernet ports; ±4 kV in common mode for DC power input ports
• Switching Capacity: 12 Gbps
• Packet Forwarding Rate: 8.93 Mpps
• Certifications: FCC, CE, RoHS
• Operating Temperature: -40°C~75°C (-40°F~167°F)
• Operating Humidity: 5%~95% non-condensing

• 1 x IES206GPP 6-Port Gigabit Industrial Easy Managed Switch
• 1 x DIN-Rail Mounting Bracket
• 2 x Wall-Mounting Plates
• Installation Guide

6.1-in x 4.7-in x 2.4-in 2.47 lbs
