• 8 x Gigabit RJ45 Ports (2 x PoE++, 6 x PoE+)
• 2 x Gigabit Combo RJ45/SFP Slots
• 240W Power Budget with up to 60W for Each PoE++ Port
• Professional Industrial-Grade Design - With -40°C ~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
• Abundant Features - Up to 820ft (250m) PoE, VLAN, QoS, and STP/RSTP
• Centralized Cloud Management via the Web or Omada App
• Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

• Interface: 2 x 10/100/1000 Mbps PoE++ RJ45 Ports; 6 x 10/100/1000 Mbps PoE+ RJ45 Ports; 2 x Gigabit SFP/RJ45 Combo Slots; Auto-Negotiation/Auto MDI/MDIX

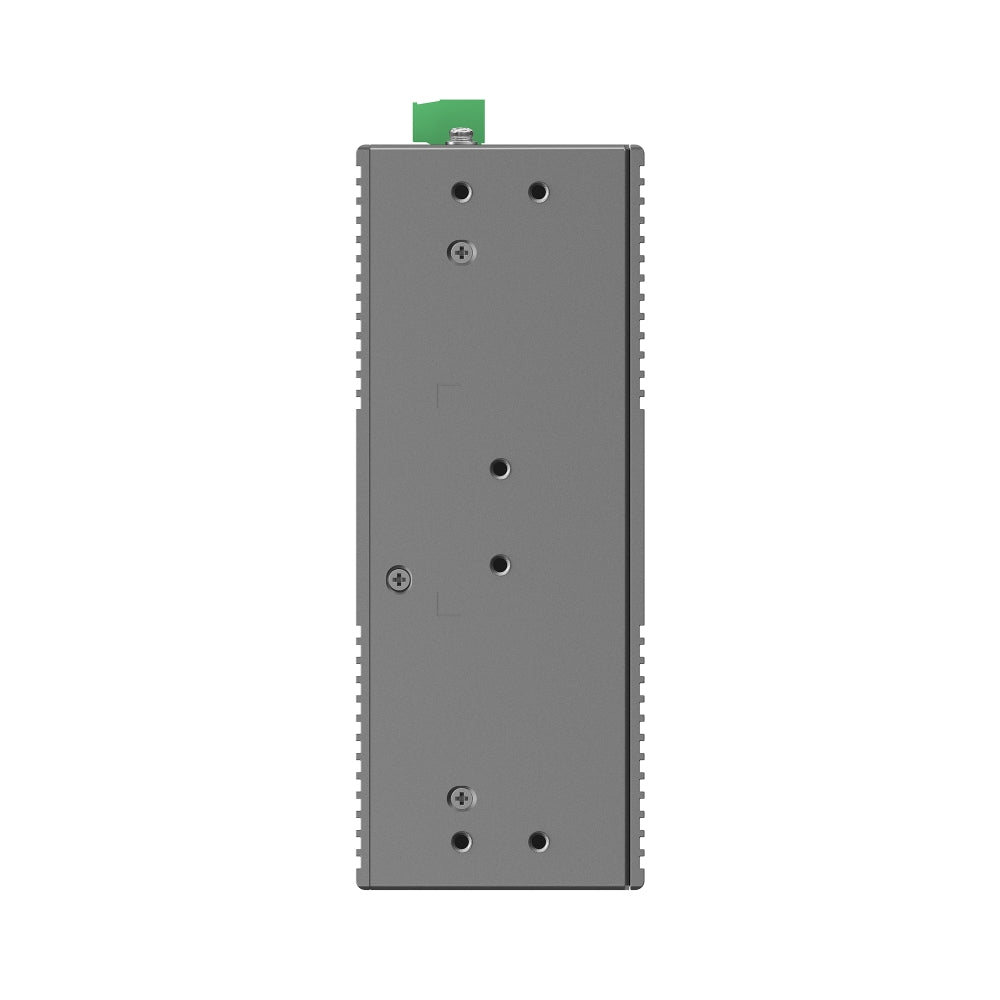

• Installation: DIN-rail mounting; Wall mounting

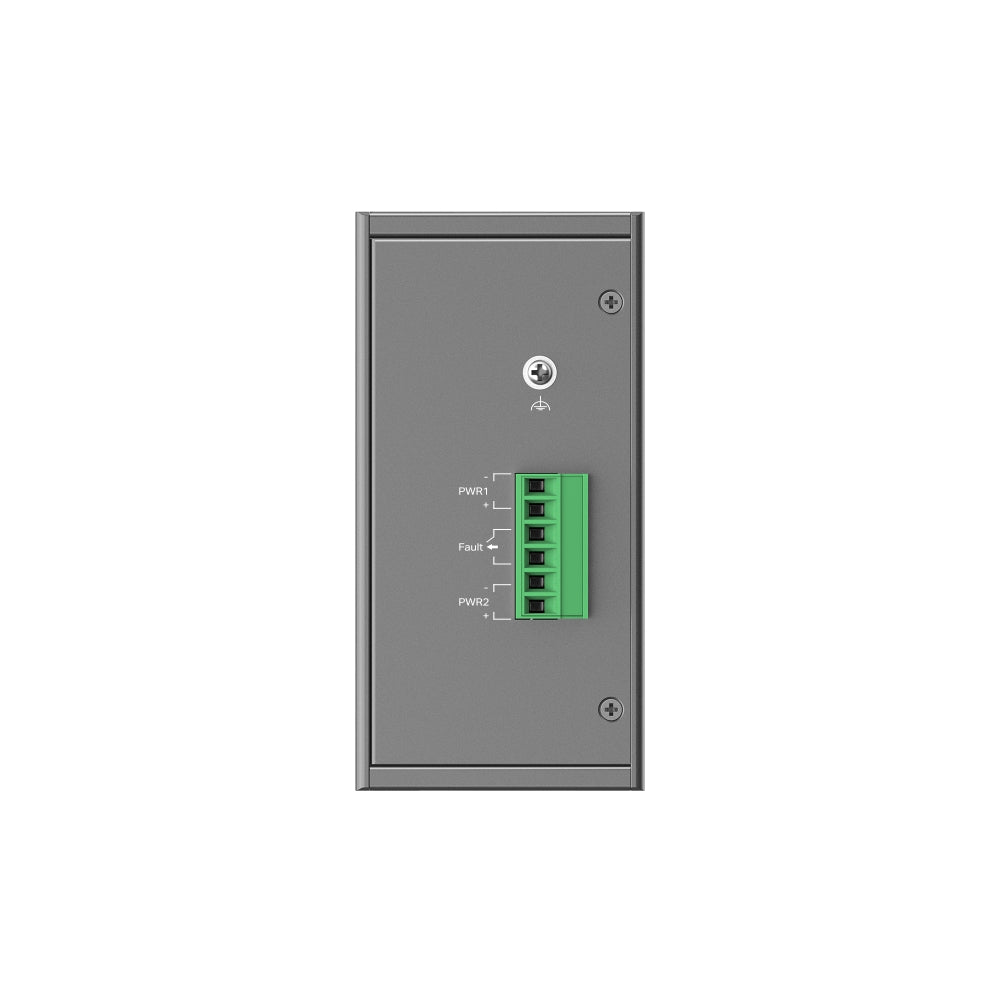

• Power Supply: 12-57V 1+1 Redundant DC Power Input
• Surge Protection: ±6 kV in common mode for Ethernet ports; ±4 kV in common mode for DC power input ports
• Switching Capacity: 20 Gbps
• Packet Forwarding Rate: 14.88 Mpps
• MAC Address Table: 8K
• Packet Buffer Memory: 4 Mbit
• Jumbo Frame: 15 KB
• Certifications: CE, FCC, RoHS
• Operating Temperature: -40°C~75°C (-40°F~167°F)
• Operating Humidity: 5%~95% non-condensing

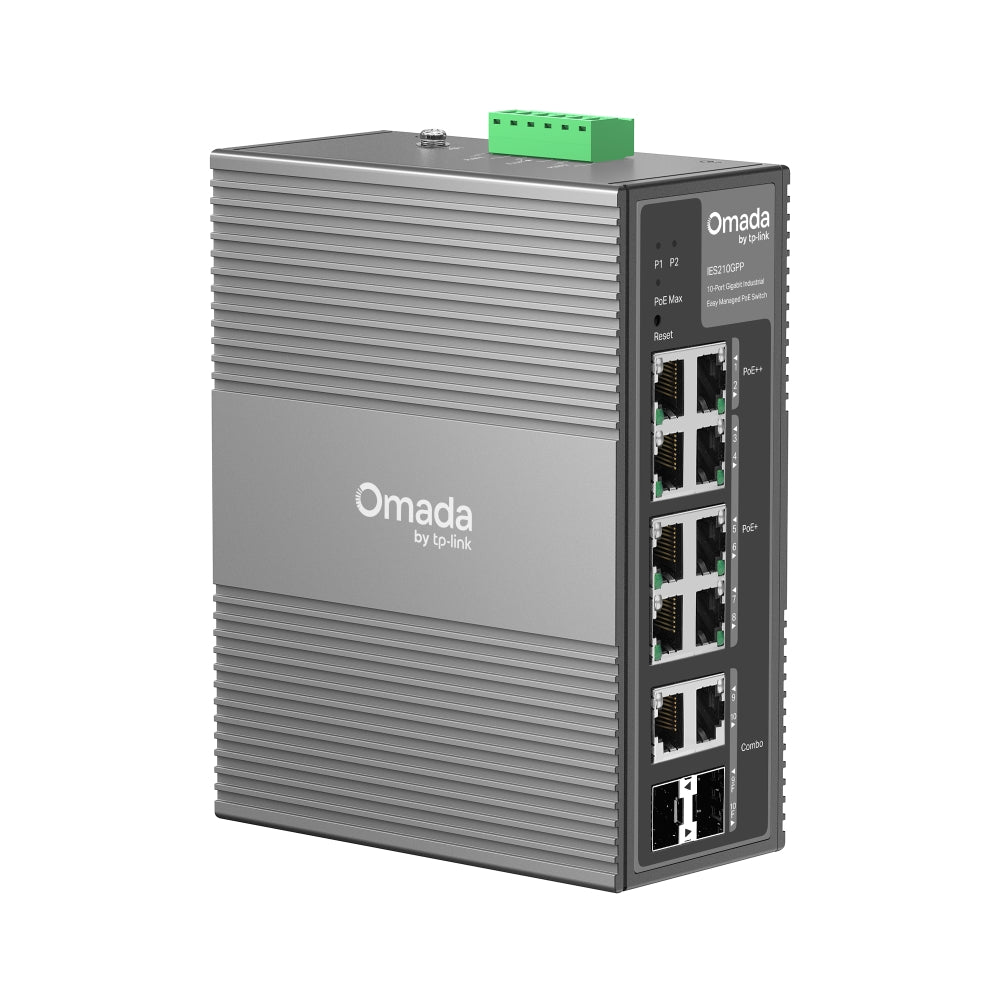

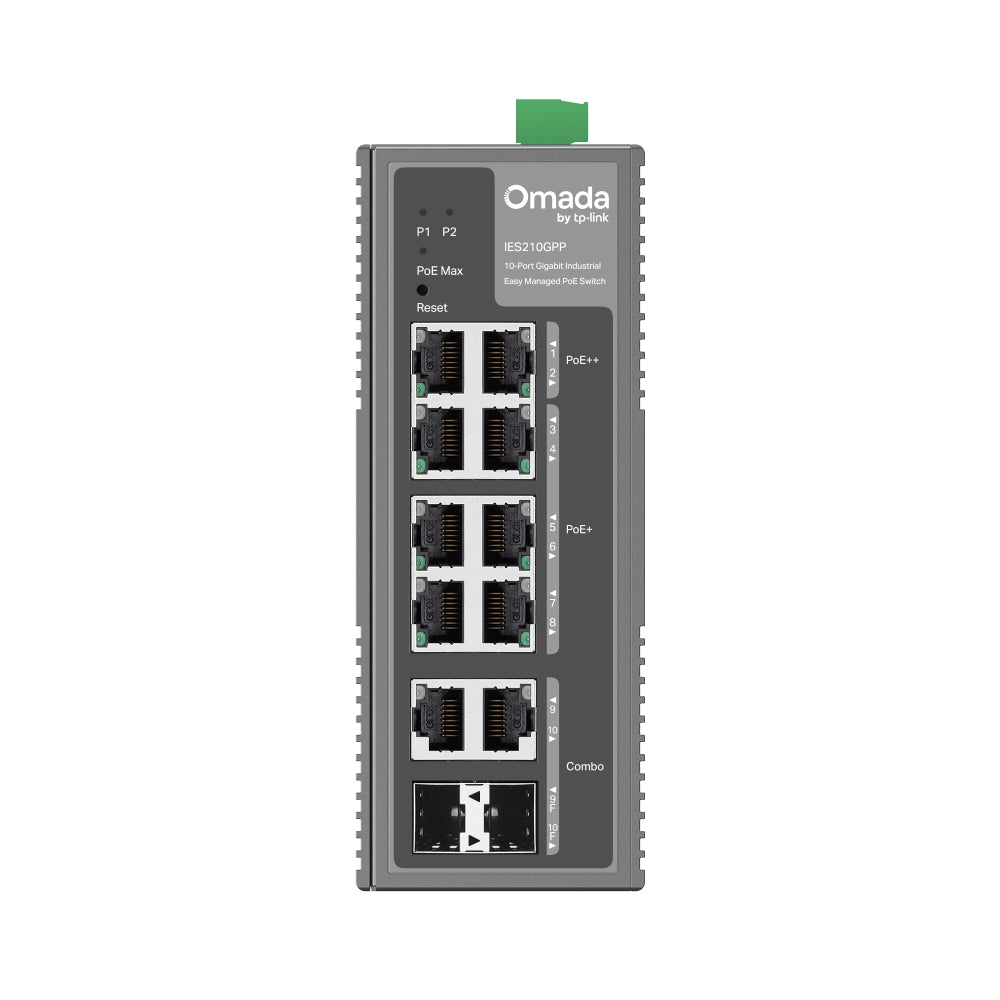

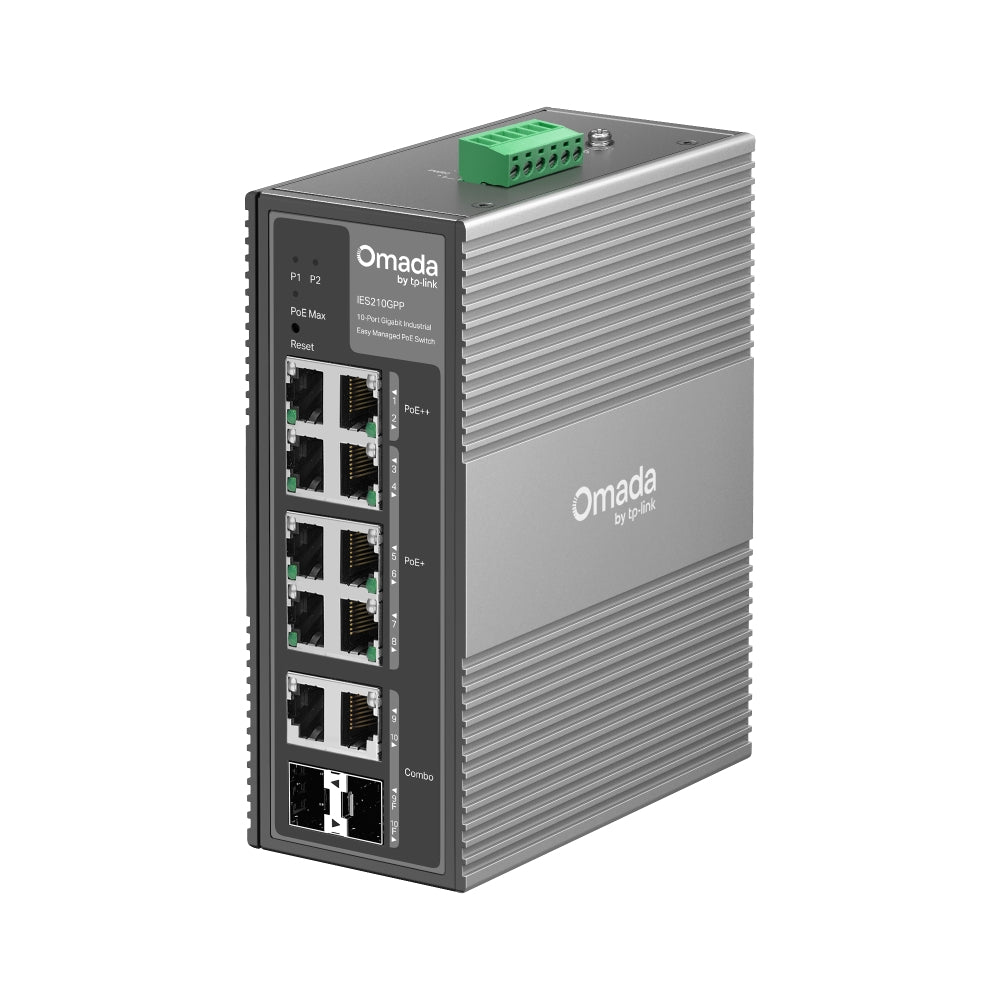

• 1 x IES210GPP 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++
• 1 x DIN-Rail Mounting Bracket
• 2 x Wall-Mounting Plates
• Installation Guide

2.6 lbs

6.1-in x 4.7-in x 2.4-in
