• Features from their site to expound on and highlight on our descripion :: Same as IX30 PLUS… Surelink, 5G high speed data throughput, x4 Ethernet ports + 1Gigabit SFP ports. Modbus bridging,
• Global 5G and LTE support and certification on major carriers
• Integrated industrial edge computing capabilities for hosting containerized applications and custom solutions
• Support for CBRS and global private 5G networking deployments
• Ethernet, SFP, serial, I/O and Modbus bridging
• Extremely resilient cellular connection through Digi’s patented SureLink®, VRRP+ protocol and dual SIM slots
• Optional Digi eSIM accessory for remote carrier switching
• GNSS receiver supporting GPS, GLONASS, BeiDou and Galileo
• License-free enterprise software: VPN, firewall, logging and authentication
• C1D2 rated with rugged enclosure and options for DIN rail or shelf mounting

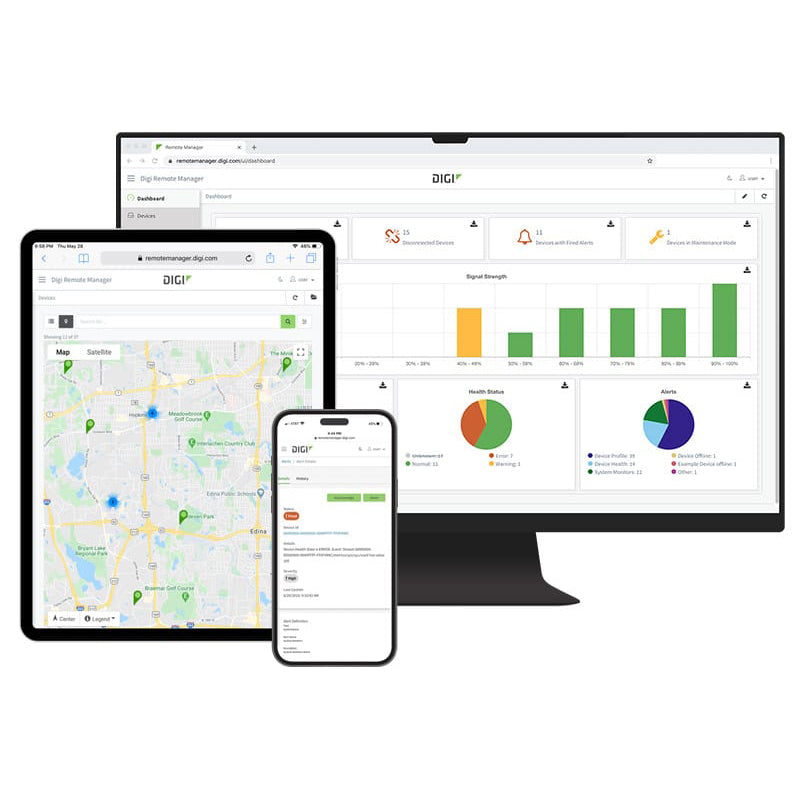

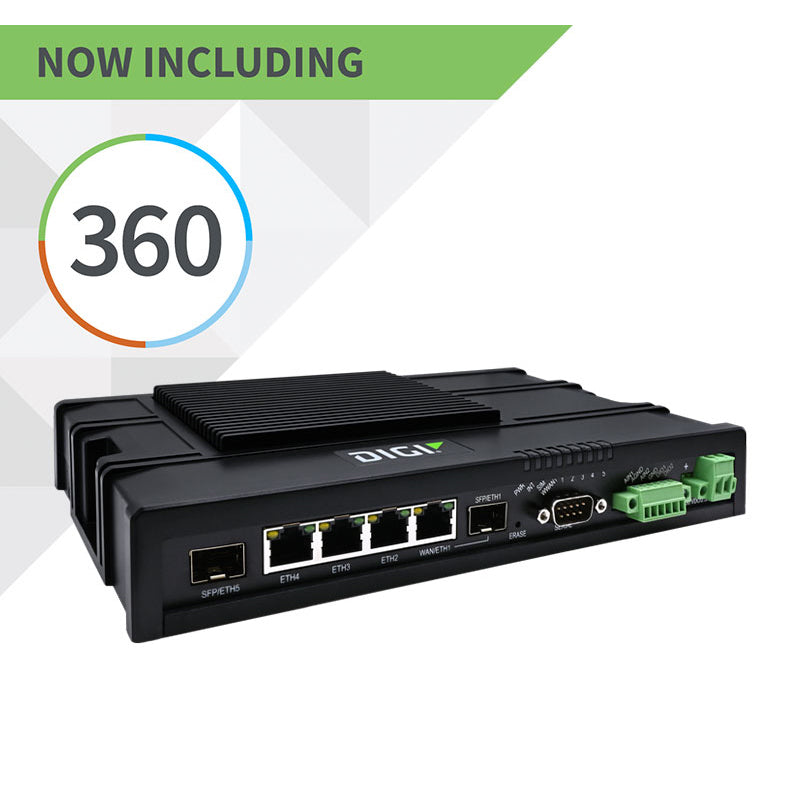

• Includes the Digi 360 solution with warranty, customer care and Digi Remote Manager® cloud management, enabling easy setup, mass configuration and management
• IX are for various multiple types of stationary deployments, but CAN be used in SOME mobile applications

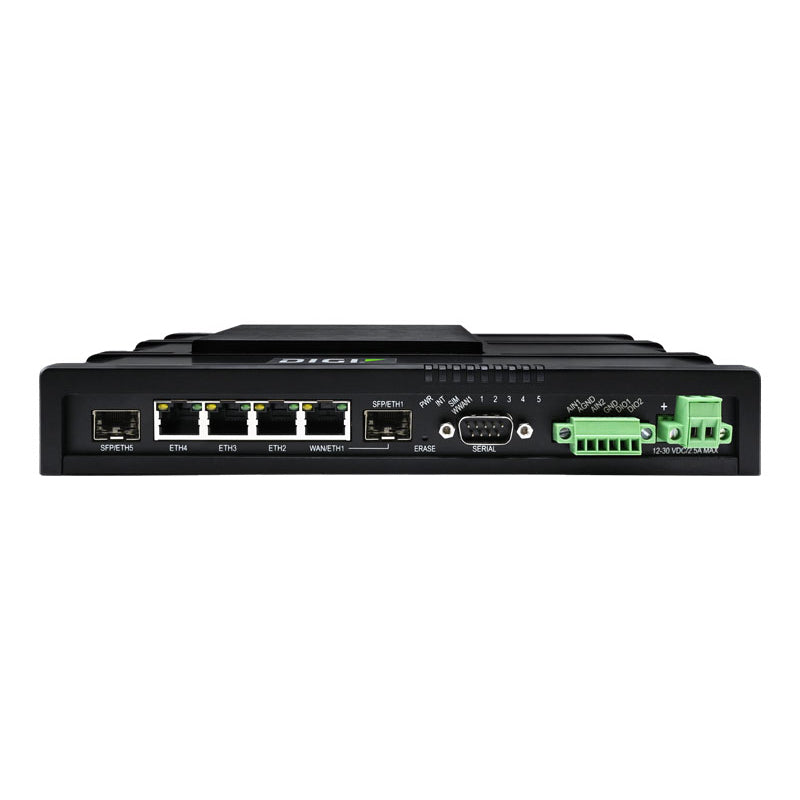

• Ethernet Ports: (4) RJ-45; 10/100/1000 Mbps Base-T (auto-sensing); IEEE 802.3; configurable as WAN or LAN
• I/O Ports/Connector: (2) Digital input/outputs; (2) analog inputs (0 - 10 V; 4 - 20 mA; 12-bit resolution)
• SFP Ports/Connector: (2) 1 Gb capable SFP sockets
• Serial Ports/Connector: (1) RS-232/422/485; DB-9 male (DTE)
• Remote Management: Digi Remote Manager (cloud based); SNMP v1/v2c/v3 (user installed/managed), SMS
• Local Management: Web UI (HTTPS); CLI (SSH, serial)
• Management Tools: SFTP, SCP; protocol analyzer with PCAP for Wireshark; event logging with Syslog
• Application Processor: 1.6 GHz quad-core i.MX 8M Plus ARM® Cortex®-A53 processor
• RAM/Flash: 1 GB / 8 GB
• Same as IX30 PLUS
• Surelink, 5G high speed data throughput
• Modbus bridging

• IX40-05 Device
• Power Adapter
• Ethernet Cable
• Quick Start Guide
• Warranty Information
• *** Warranty may vary on model ***

9.21-in x 6.06-in x 1.61-in

2.51 lbs
