•The LiteBeamACAPdelivers up to 450+ Mbps real TCP/IP throughput and features an efficient form factor

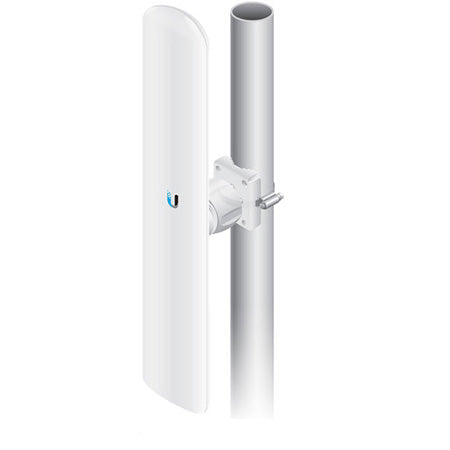

•Minimal fasteners simplify installation, No tools are needed; only a single wrench is required for pole-mounting

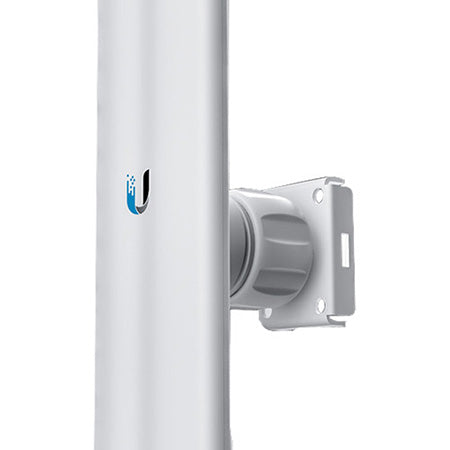

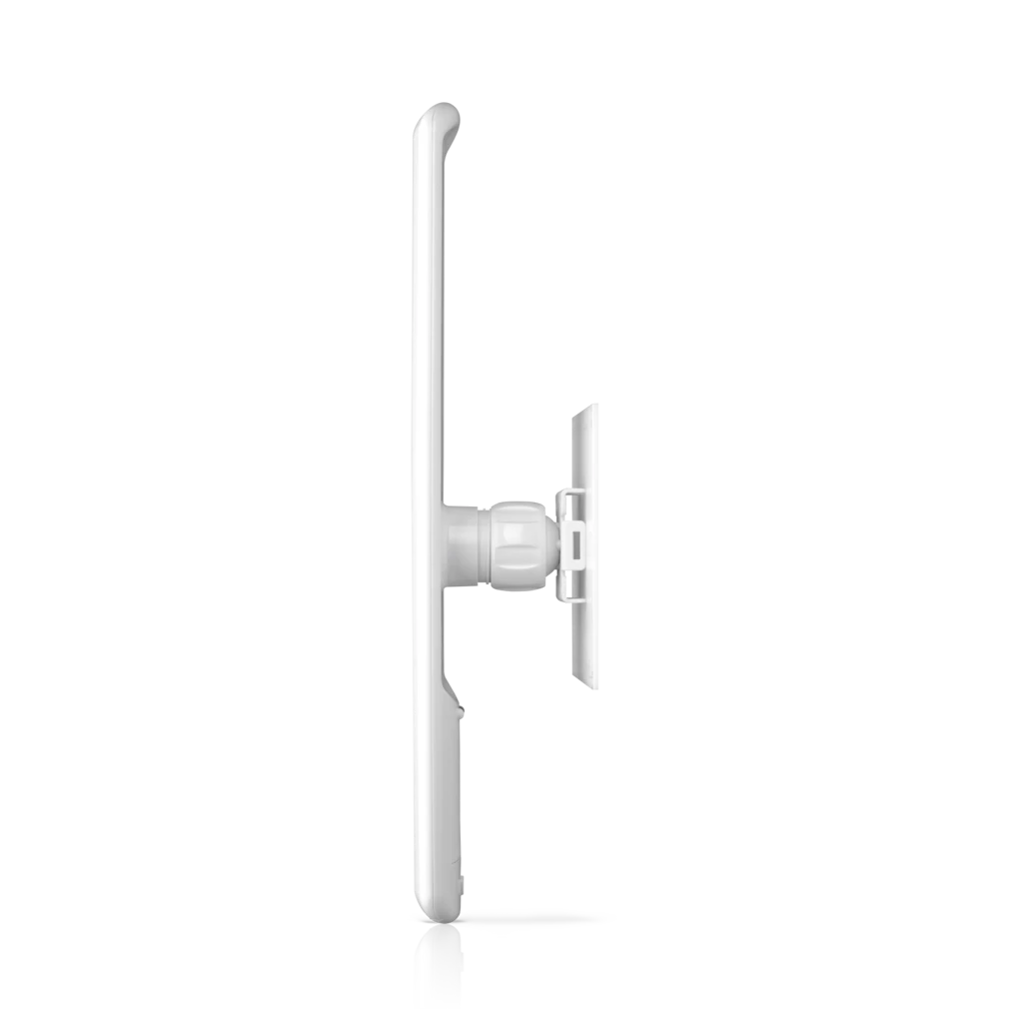

•The ball-joint mount of the LiteBeamACAPprovides adjustment flexibility for versatile mounting options

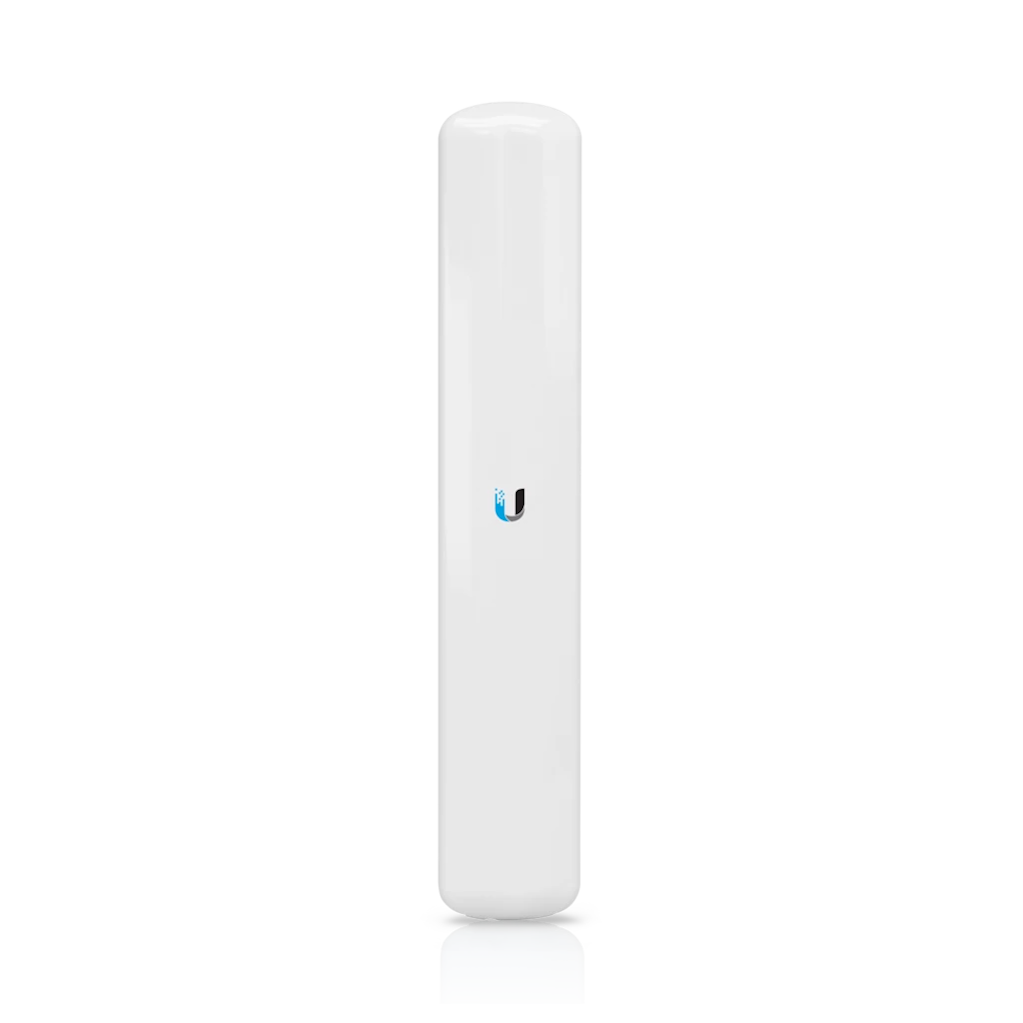

•The LiteBeamACAP features a lightweight antenna with an integrated radio in a sleek design
•The LiteBeamACAP delivers high throughput over its wired connection
•Connect the ball-joint mount to the LiteBeamACAP by turning the lock nut clockwise by hand

•Frequency: 5 GHz
•Throughput: 450+ Mbps
•Ports: (1) 10/100/1000 Ethernet Port
•Antenna Gain: 16 dBi
•Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
•Supported Voltage: Range 20 - 26VDC
•ESD/EMP Protection: +/- 24kV Contact / Air
•Operating Frequency (MHz): 5150 - 5875
•Wind Survivability 200 km/h (125 mph)
•Wind Loading 77 N @ 200 km/h (17.3 lbf @ 125 mph)
•Operating Temperature -40°C to 70°C (-40°F to 158°F)
•Operating Humidity 5 to 95% Noncondensing

•1 x LiteAP
•1 x Ball Joint Mount
•1 x Metal Strap
•1 x Gigabit PoE (24V, 0.5A) with Mounting Bracket
•1 x Power Cord
•Quick Start Guide
