•The LTU LR supports both bridged and built-in hardware NAT router modes to suit your specific deployment
•The LTU LR can use different frequencies for TX and RX to avoid interference
•The LTU LR directs RF energy in a tighter beam width. With the focus in one direction, the LTU LR blocks or spatially filters out noise to improve noise immunity. This is especially important in an area crowded with other RF signals of the same or similar frequency
•Ubiquiti's InnerFeed technology integrates the radio into the feedhorn of a 26 dBi antenna, so there is no need for a cable. This improves performance because it eliminates cable losses
•The LTU LR features a large reflector size and easy elevation adjustment (azimuth is adjusted by rotation around the pole)
•Auto Power Adjustments: By default, the Auto Output Power option allows the LTU LR to set the output power (EIRP) to the appropriate level
•Signal Control: The LTU LR's TX output power is controlled by the AP's target TX output power. A PtMP network can manage signal levels to enhance network stability and achieve optimal wireless performance with the highest possible modulation
•Convenient Configuration: To manage the LTU LR, you have two options: the LTU Configuration Interface and UISP Application. Either option lets you manually configure the LTU LR. Within the LTU Configuration Interface, you can manually configure the LTU LR or manage it from the AP side using the Find My AP feature. The LTU LR will automatically scan for APs using the same channel bandwidth. Select the appropriate AP and then use it to configure the LTU LR
•PtMP Dashboard: New graphs provide instant status updates and help you to detect connectivity issues and their effects on PtMP performance

•Networking Interface: 1 x 10/100/1000 Ethernet Port
•Range: up to 30km
•Max. Power Consumption: 8.5W
•Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
•Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8-)
•Voltage Range: 22 - 26V
•Max. Conducted TX Power: 22 dBm (per chain)
•Gain: 26 dBi
•Mounting: Pole-Mount (Kit Included)
•Wind Loading: 550 N @ 200 km/h (123.6 lbf @ 125 mph)
•Enclosure: Outdoor UV Stabilized Plastic

•Antenna feed
•Centre reflector panel
•Side reflector panels x 2

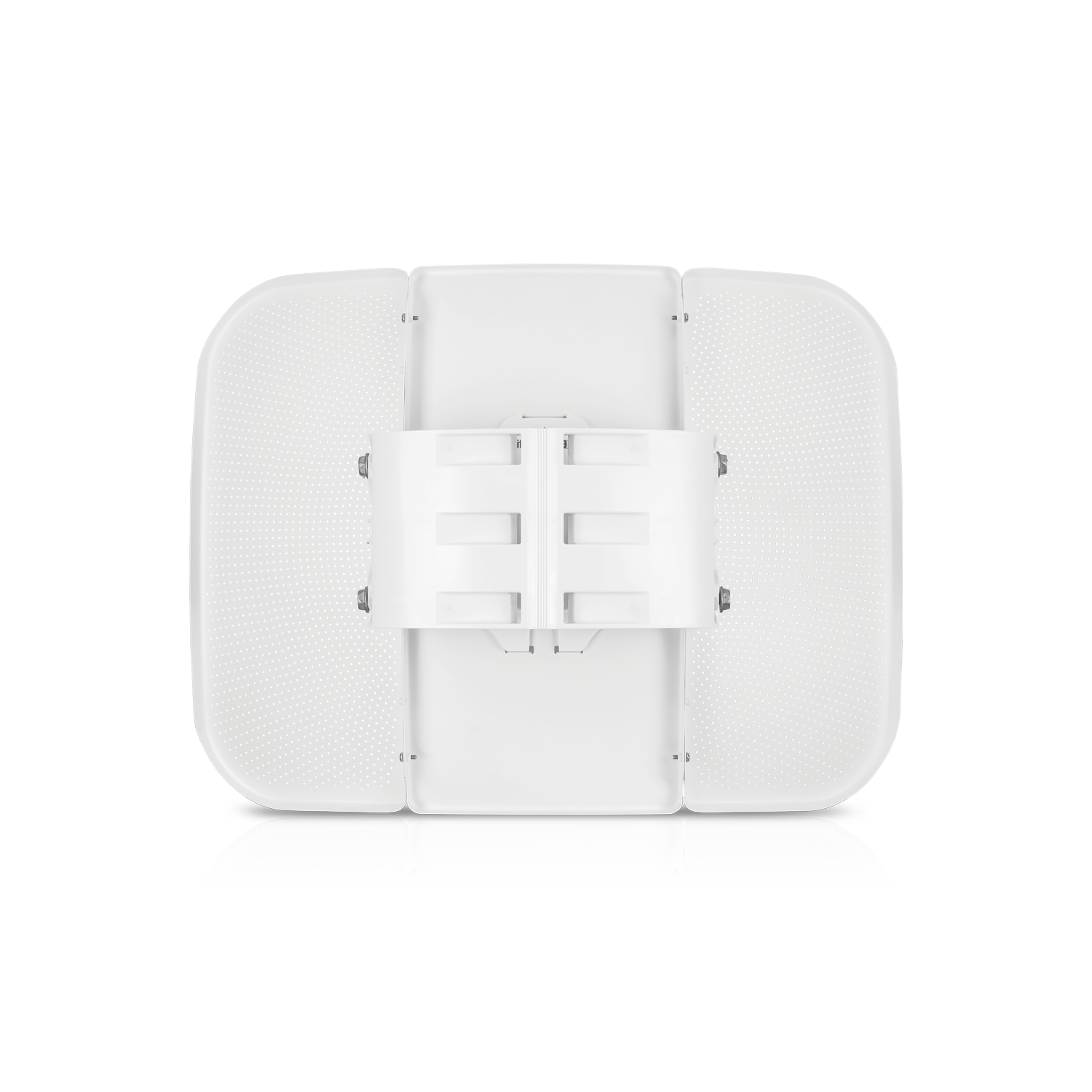

•Mounting bracket
•Rear housing
•Pivot panels x 2
•M4 SEM screws x 8
•M8 SEM screws x 4
•Metal straps x 3
•Gigabit PoE (24V, 0.5A) with mounting bracket
•Power cord
