•Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42 Degrees half-power beamwidth with non-existent side lobes
•With an front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection

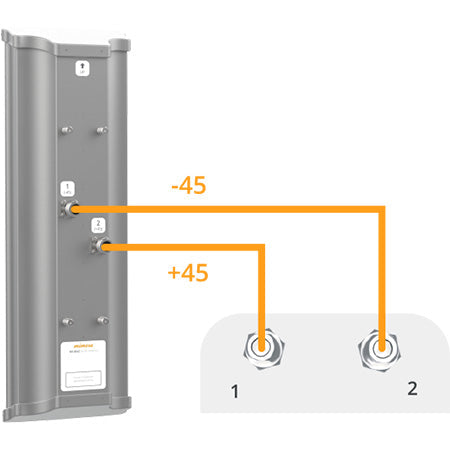

•Improve performance and noise rejection by using the N5-45x2 with any 2x2 access point

•Gain: 19 dBi
•Polarization: Slant 45 degree
•Front-to-Back Ratio (min): 43 dB
•Impedance: 50 Ohms
•Max Input Power: 30 dBm
•RF Connectors: 2 N-type female
•Enclosure Characteristics: Outdoor, UV stabilized, engineered polymer
•Wind Survivability: 200 km/h (125 mph)
•Wind Loading: 4.77 kg @ 160 km/h (10.49 lbs @ 100 mph)
•Operating Temperature: -40°C to +55°C
•Operating Humidity: 5 to 100% condensing
•Operating Altitude: 4,420 m (14,500') max

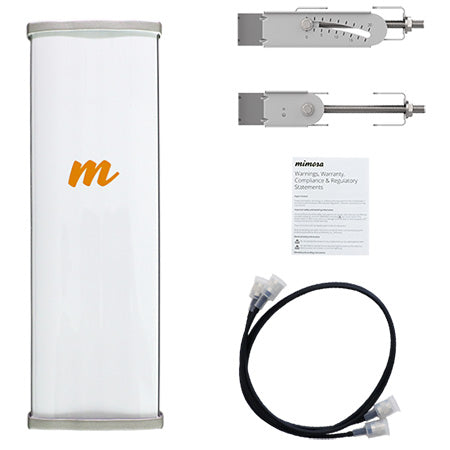

•1 x N5-45x2
•2 x LMR-240 Cables with Weatherized Boots
•1 x Pivot Bracket
•1 x Sliding Bracket
•Warranty and Compliance Sheet
